Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater

Name: Intellinet 2-Port Gigabit High-Power PoE+ 561266
Brand: INTELLINET
SKU: 11197105
Price: 56.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater IEEE 802.3at/af metal

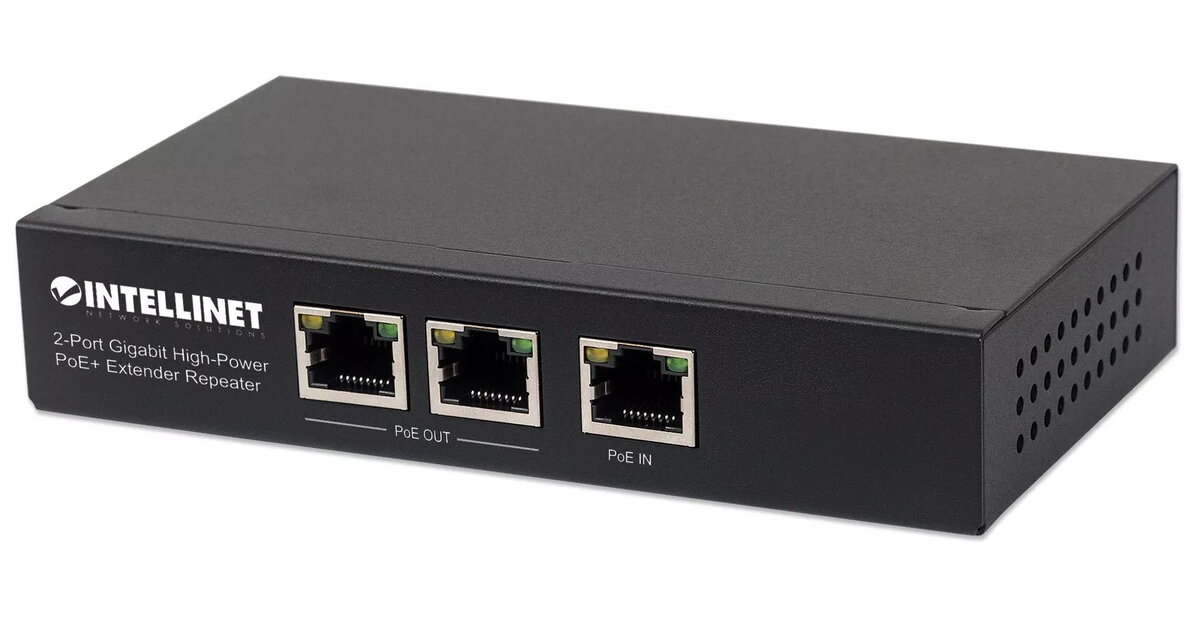

Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater Photo 1

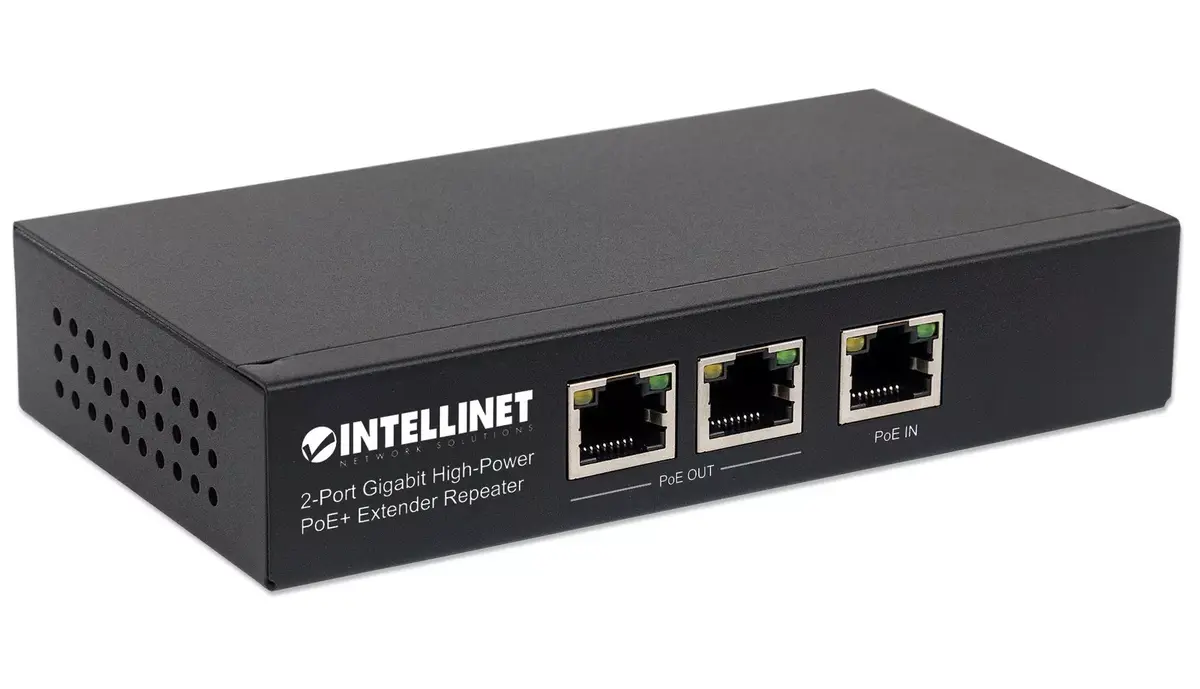

Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater Photo 2

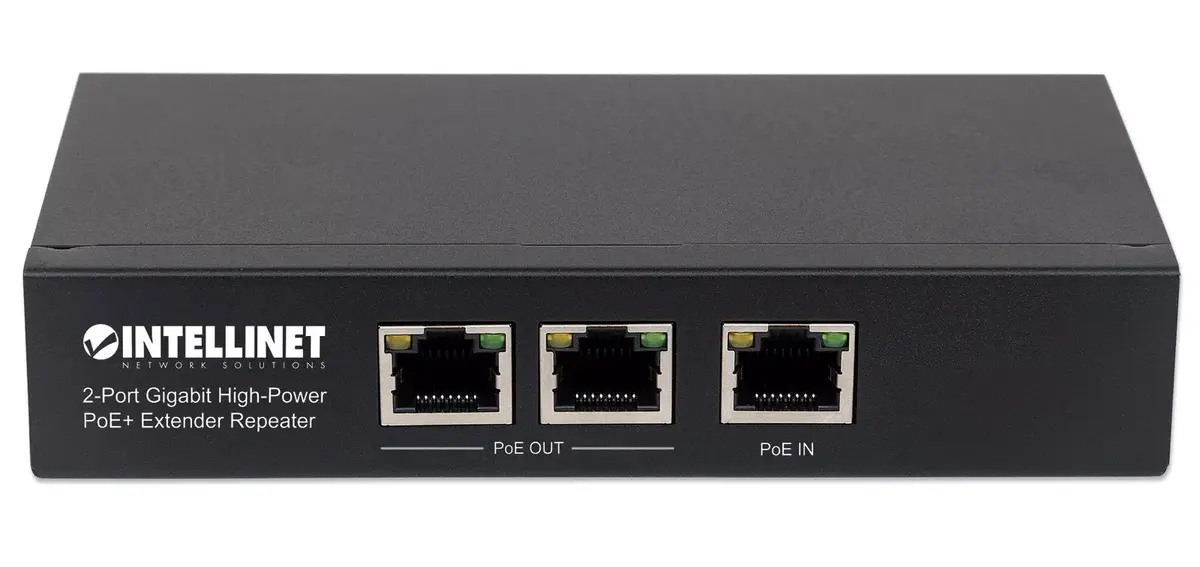

Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater Photo 3

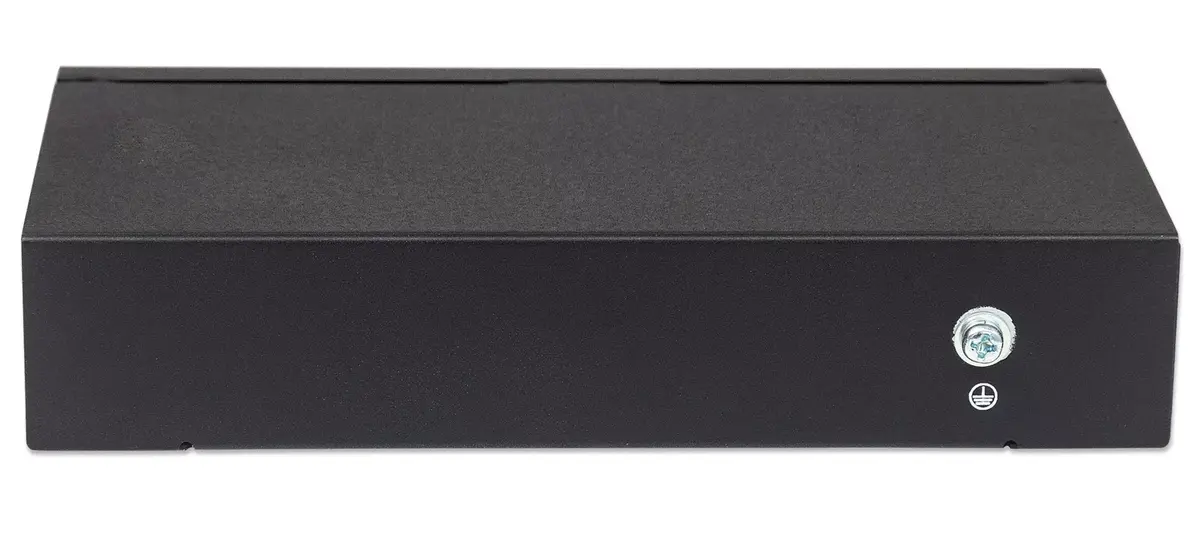

Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater Photo 4

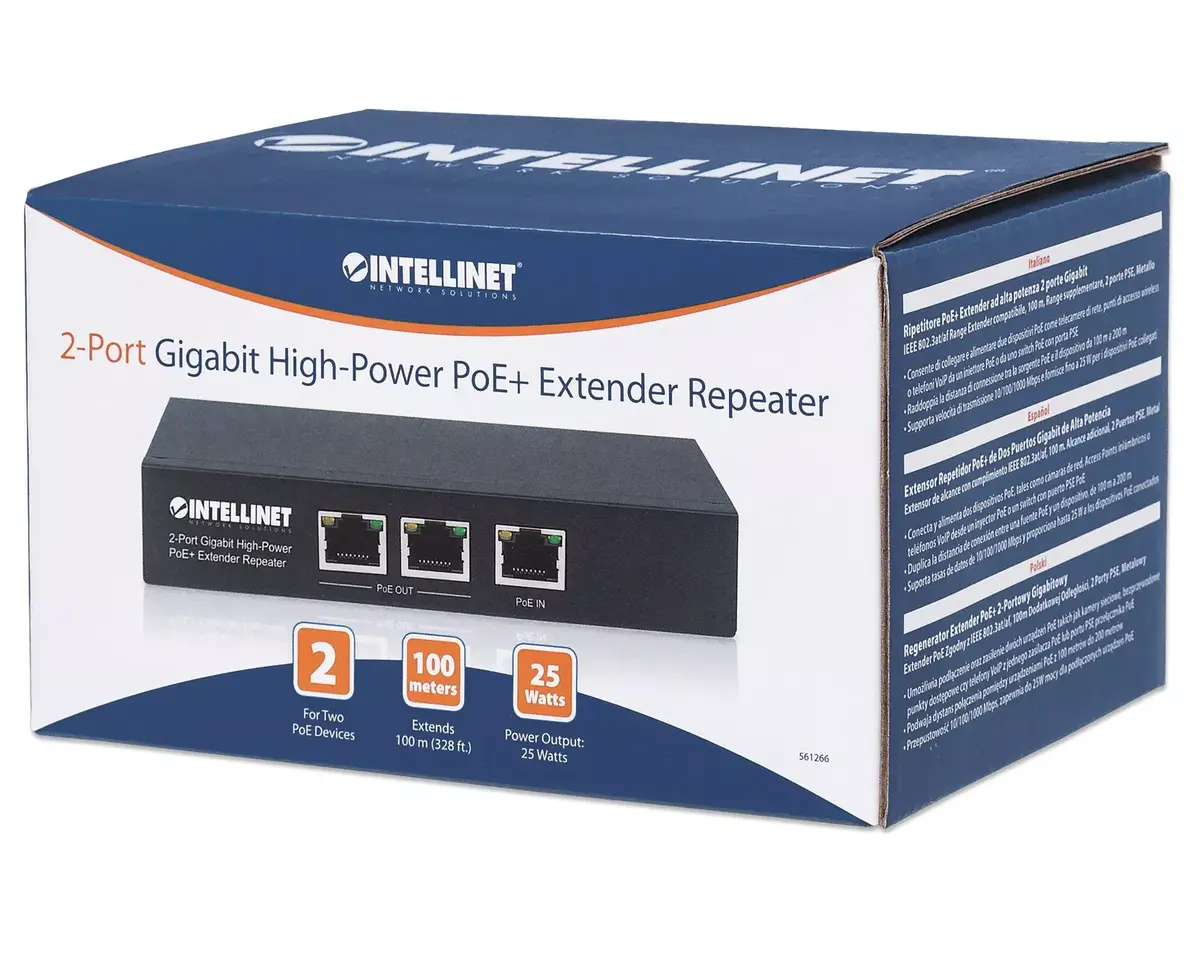

Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater supports IEEE 802.3at/af standards, offering 3 Gigabit Ethernet ports and a switching capacity of 6 Gbit/s. Ideal for extending PoE connections in networks.

Available at price 56.49 €: 30 pcs.

Total available for order: 90 pcs.

Warranty: 2 Years

SKU: 11197105

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.36 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater extends Power over Ethernet connections so you can place PoE devices farther from the PoE source. It draws the power it needs from the PoE input and provides two Gigabit PoE output ports, allowing extended reach over Cat5e or Cat6 cabling without an extra power supply. The device supports IEEE 802.3at and IEEE 802.3af standards and forwards data at Gigabit speeds.

Advantages

The PoE+ extender increases maximum cable distance between a PoE source and powered devices by providing two additional output ports while complying with IEEE 802.3at/af standards. It eliminates the need to run separate AC power lines to devices such as wireless access points, IP cameras or VoIP phones and keeps installation simple by drawing power from the upstream PoE injector or switch. The repeater supports up to 30 W of input power to connected compliant devices and enables a combined reach of up to 200 m (656 ft.) between the PoE source and a powered device when chaining two 100 m segments.

Suitable for

Extending PoE connections for IP cameras
Powering access points and wireless equipment at greater distances
Connecting VoIP phones where AC power is not available
Small office or branch deployments requiring additional PoE outlets

Key specifications

Standards: IEEE 802.3at (PoE+), IEEE 802.3af (PoE)
Ports: 1 PoE input port, 2 PoE output ports (Gigabit Ethernet)
Data rate: Gigabit Ethernet on all ports
Power delivery: Up to 30 W input power available to connected compliant devices
Cable type: Cat5e / Cat6 compatible
Maximum segment length: up to 100 m (328 ft.) per cable segment; total up to 200 m (656 ft.) between PoE source and device when using two segments
Housing: metal enclosure

How to use

Connect the PoE source (PoE switch or PoE injector) to the device's PoE In port using Cat5e or Cat6 cable. Then connect up to two PoE-powered devices to the PoE Out ports using appropriate Ethernet cable. Ensure that the upstream PoE source can supply sufficient power for the connected devices. No separate power adapter is required for the extender; once connected it will pass data and DC power to the downstream devices at Gigabit speeds.

Usage recommendations

For reliable operation, use good-quality Cat5e or Cat6 cabling and verify the upstream PoE switch or injector supports IEEE 802.3at if you intend to power devices requiring higher wattage. Avoid exceeding the available power budget of the PoE source when connecting multiple devices.

Specifications

Weight:: 0.24 kg
Product colour:: Black

All features

Switching capacity:: 6 Gbit/s
Store-and-forward:: Yes
Switch type:: Unmanaged
10G support:: No
Copper ethernet cabling technology:: 10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 3
Packet buffer memory:: 0.256 MB
Power over Ethernet (PoE) power per port:: 25 W

Operational conditions

Operating relative humidity (H-H):: 5 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: -10 - 45

Certificates

Certification:: FCC Class A, CE

Logistics data

Harmonized System (HS) code:: 85176990

Packaging content

Manual:: Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 30 W
Power over Ethernet (PoE):: Yes

Performance

MAC address table:: 2048 entries
Jumbo frames support:: Yes
Cable types supported:: Cat5e, Cat5

Weight & dimensions

Weight:: 0.24 kg
Height:: 28 mm
Width:: 140 mm
Depth:: 77 mm

Features

LED indicators:: Y
Networking standards:: IEEE 802.3, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab
Housing material:: Metal

Design

Product colour:: Black

Hide Show all
