Wall Mounted Rack Intellinet 711692

Name: Wall Mounted Rack Intellinet 711692 711692
Brand: INTELLINET
SKU: 696564
Price: 92.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

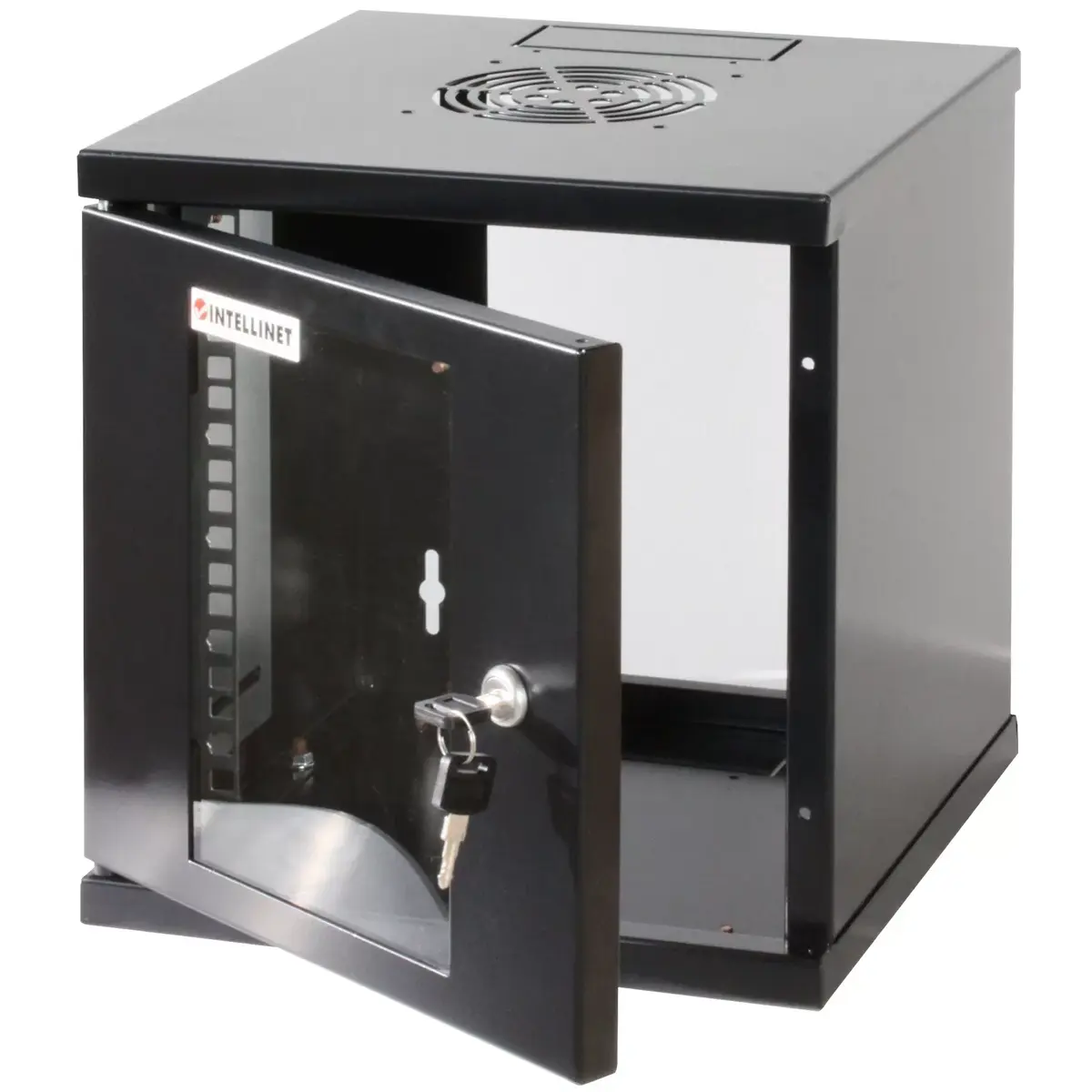

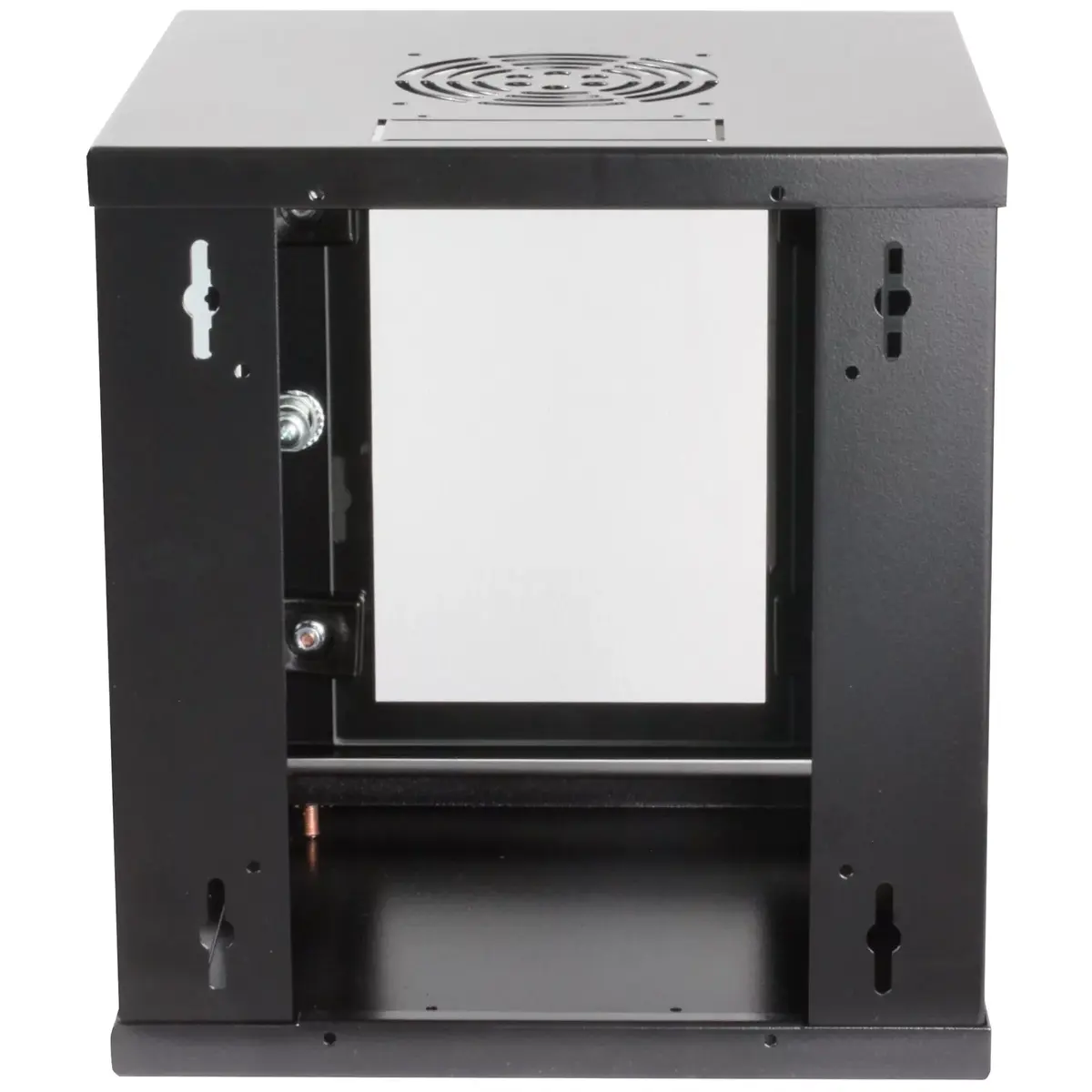

Wall Mounted Rack Intellinet 711692 Photo 3

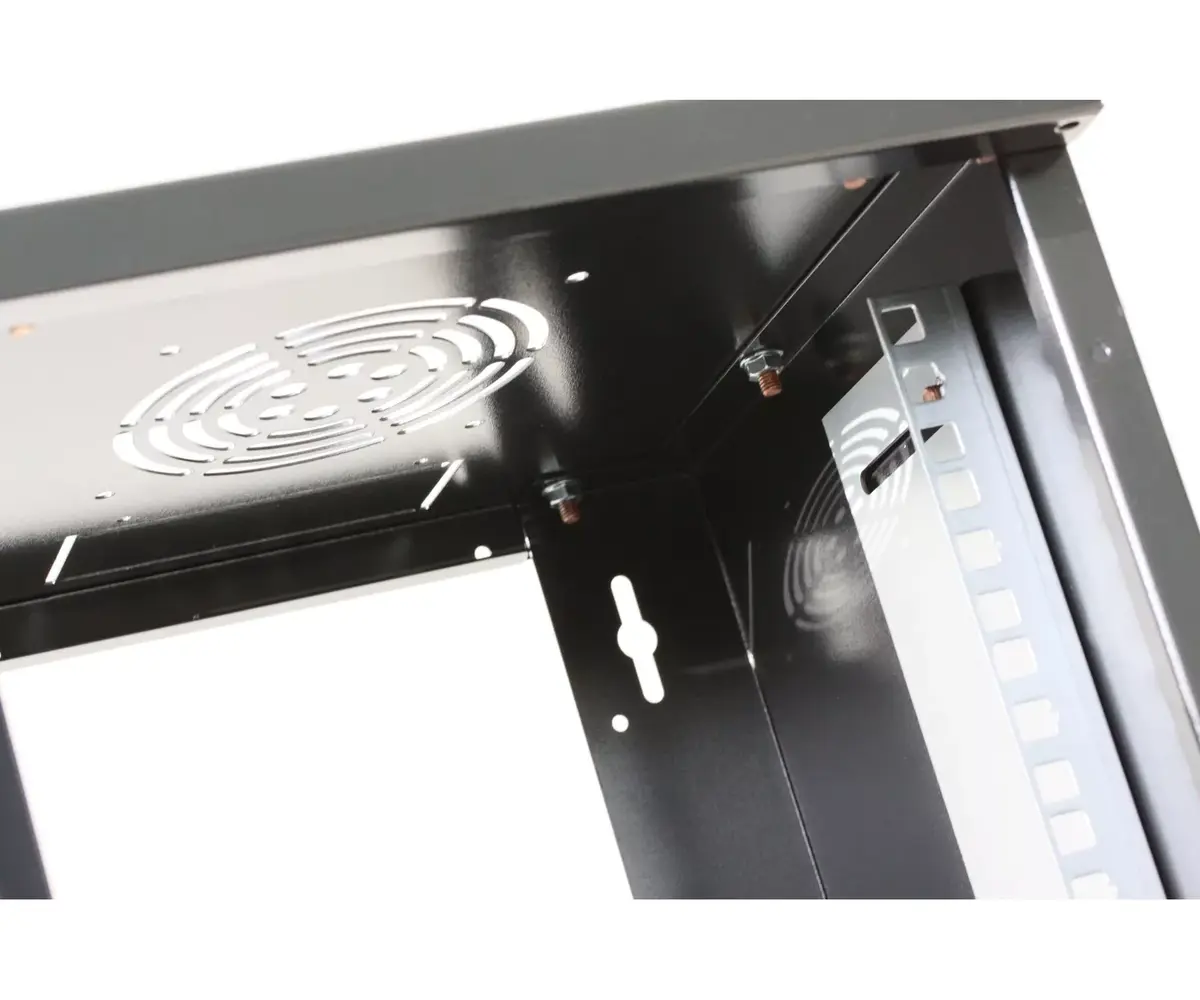

Wall Mounted Rack Intellinet 711692 Photo 4

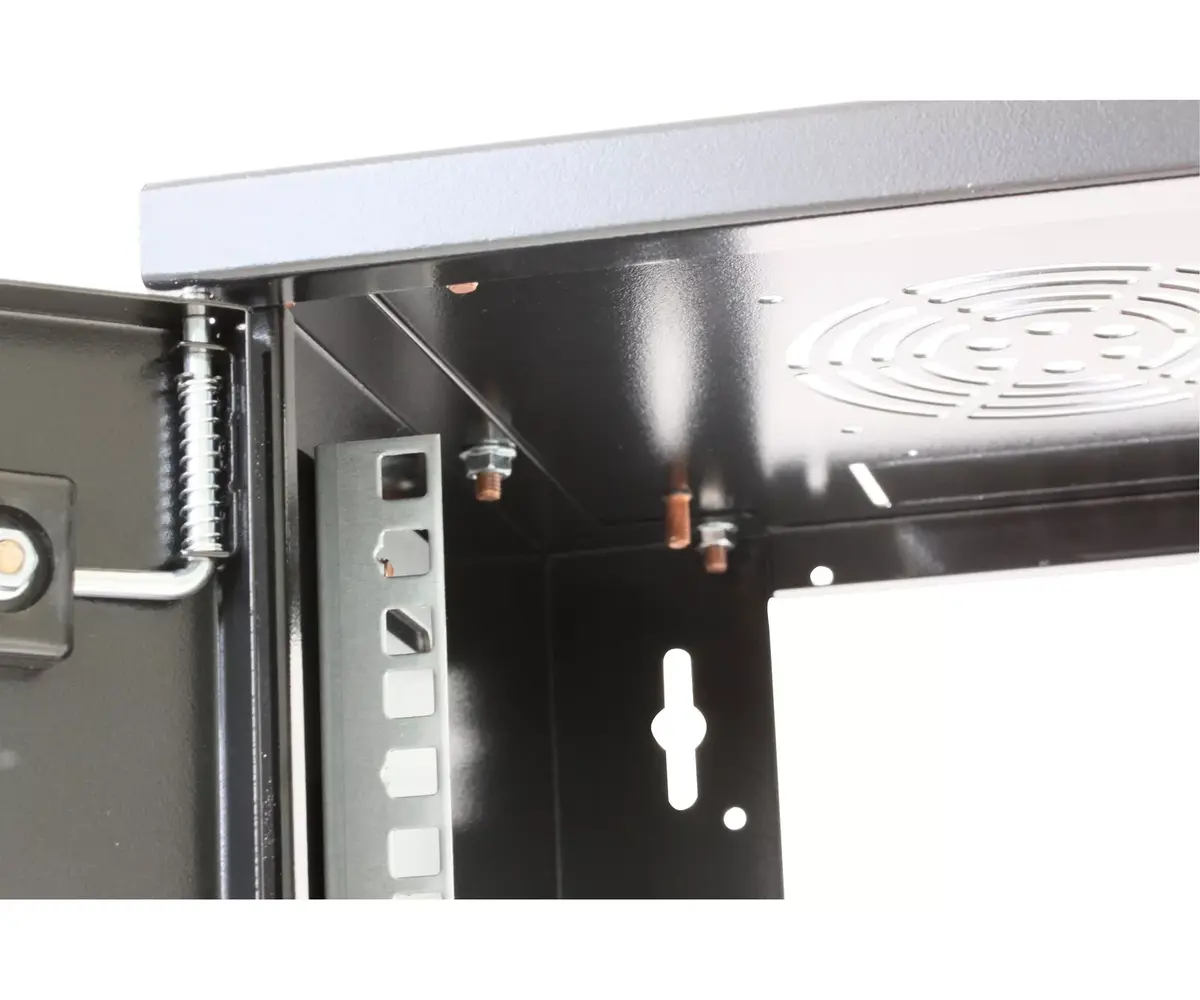

Wall Mounted Rack Intellinet 711692 Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Intellinet Wall Mounted Rack (6U) is designed for efficient space management. With a usable depth of 265mm and width of 239mm, it supports a maximum weight of 60kg. The cabinet features a metal and glass door, removable sides, and a back panel, making it versatile for desk or floor use. Ideal for organizing network equipment, it comes fully assembled but does not include wall installation parts.

Available at price 92.49 €: 25 pcs.

Total available for order: 52 pcs.

Warranty: 2 Years

SKU: 696564

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 6.39 € (Weight: 7.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 92.49 €: 1 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Intellinet Wall Mounted Rack Intellinet 711692 is a 6U cabinet designed for compact network installations and efficient space management. It has external dimensions of approximately 320 mm height, 300 mm width and 300 mm depth with a usable depth close to 265 mm, a load capacity up to 60 kg and a total product weight of 6.7 kg. The unit includes a metal and glass front door, removable side panels and a removable back panel, and is supplied fully assembled. Wall installation fittings are not included.

Advantages

This 6U wall mount rack provides a space-saving 10" form factor suited for small server rooms, communication cabinets or office network closets. The removable side panels and back panel simplify access for cabling and equipment changes, while the metal and tempered-glass door offers a balance of protection and visibility. The relatively low weight and compact dimensions make it easy to handle during installation and transport.

Suitable for

Small network equipment such as switches, patch panels and routers
Telecom and VoIP installations in offices
Compact server or edge computing devices
Wiring closets and network distribution points in small premises

Key specifications

Model: Intellinet 711692
Rack capacity: 6U
External height: 320 mm
External width: 300 mm
External depth: 300 mm (usable depth ~265 mm)
Maximum load: 60 kg
Product weight: 6.7 kg
Colour: Black
Front door: Metal and tempered glass
Features: Removable side panels and removable back panel; supplied fully assembled

How to use

Mount the cabinet on a suitable load-bearing wall using appropriate fixings (wall mount fittings are not included). Ensure the chosen wall and fixings can support the cabinet plus the intended equipment weight (maximum load 60 kg). Fit network devices into the 6U rack space using standard rack mount screws or brackets; route cabling through the side openings and rear panel as required. Use the removable panels to gain access for installation and maintenance and close the metal/glass door to secure equipment.

Usage recommendations

Check that the total equipment weight and mounting surface meet the cabinet’s load rating before installation. For permanent installations, use certified wall anchors suited to the wall material and consider professional installation if unsure. Keep ventilation clear and avoid exceeding the specified load to maintain safe operation.

Specifications

Rack capacity:: 6U
Weight:: 6.7 kg
Height:: 320 mm
Depth:: 300 mm
Width:: 300 mm
Size (imperial):: 10 "
Product colour:: Black

All features

Features

Type:: Wall mounted rack
Certification:: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Material:: SPCC
Product colour:: Black
Maximum weight capacity:: 60 kg
Rack capacity:: 6U
Side panels included:: Yes
Removable side panels:: Yes
Frame type:: Closed
Adjustable depth:: Yes
Adjustable mounting rails:: Yes
Front door construction:: Glass

Logistics data

Harmonized System (HS) code:: 85381000

Weight & dimensions

Weight:: 6.7 kg
Size (imperial):: 10 "
Height:: 320 mm
Width:: 300 mm
Depth:: 300 mm
