Freestanding Rack Intellinet 22U

Name: Freestanding Rack Intellinet 22U 713085
Brand: INTELLINET
SKU: 697729
Price: 798.49 EUR
Availability: OutOfStock

Hot Deals at AiO.lv

A curated selection of maximum value offers!

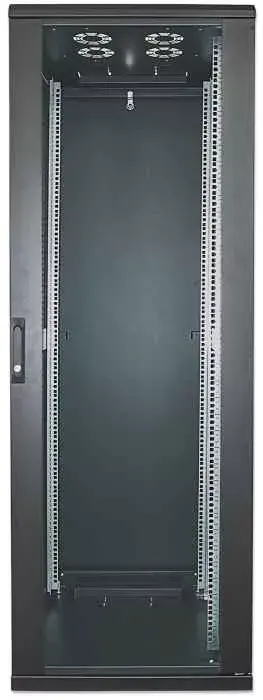

Freestanding Rack Intellinet 22U Photo 3

Freestanding Rack Intellinet 22U Photo 4

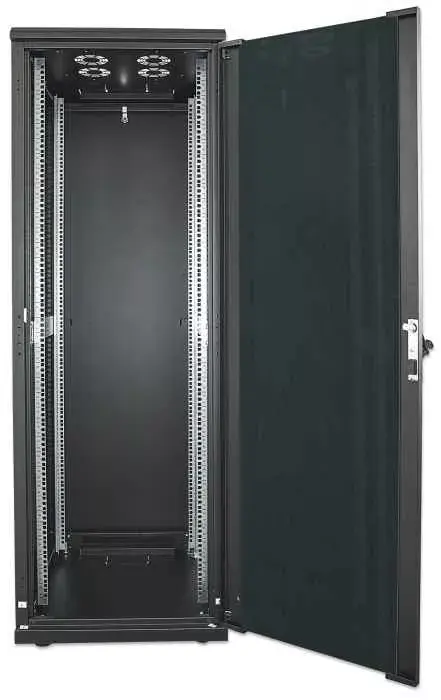

Freestanding Rack Intellinet 22U Photo 5

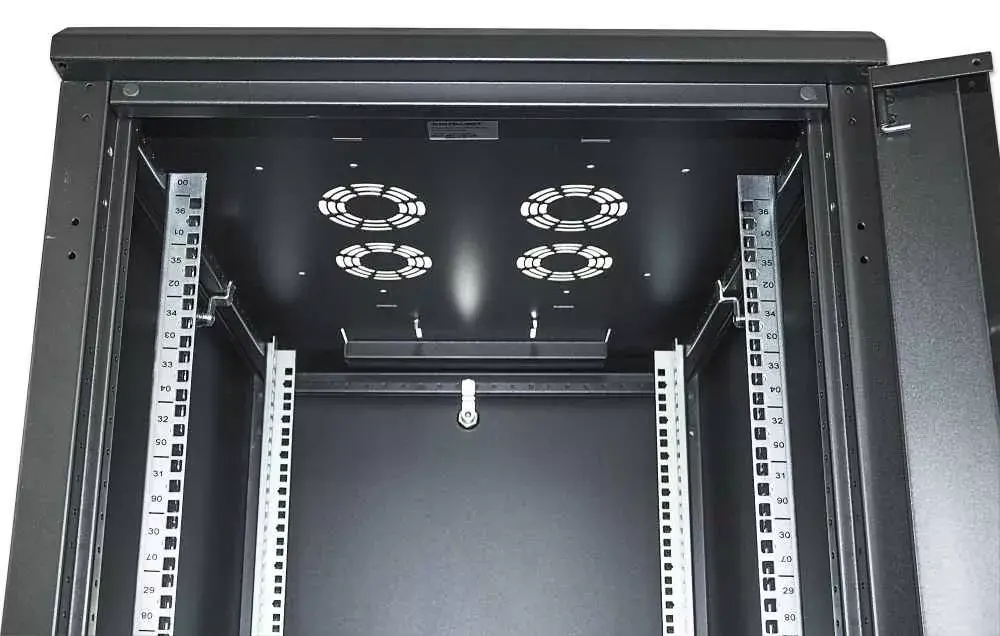

Freestanding Rack Intellinet 22U Photo 6

Freestanding Rack Intellinet 22U Photo 7

Short description

The Intellinet Freestanding Rack 22U is designed for optimal equipment storage with a usable depth of 123 to 573mm and a width of 503mm. It supports a maximum weight of 1500kg and features a multi-point door lock for security. Constructed from durable steel, it is IP20 rated and comes with adjustable feet for stability. This rack is perfect for organizing servers and networking equipment in a secure and efficient manner.

Warranty: 2 Years

SKU: 697729

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Intellinet Freestanding Rack 22U is a steel network cabinet designed for storing and organizing servers and networking equipment. It offers a usable depth range from 123 to 573 mm, a width of 503 mm and supports up to 1500 kg. The cabinet is available assembled or as a flatpack and features a lockable tempered-glass front door, removable side panels and adjustable feet for stable placement. Finished in black (RAL9005), it has a cold-rolled steel frame, zinc-plated 19" mounting rails and an antistatic powder-coated surface with an IP20 rating.

Advantages

The freestanding 22U rack provides a robust steel construction with high load capacity and corrosion-resistant mounting rails. Removable side panels and a tempered-glass door with multi-point lock simplify access for cabling and component replacement while maintaining security. Multiple depth adjustment options and adjustable feet allow flexible installation in different environments; available as preassembled or flatpack to reduce shipping volume.

Suitable for

Server and network equipment storage in small server rooms or wiring closets
Racking switches, patch panels and rack-mounted devices
Environments requiring secure, lockable equipment enclosures

Key specifications

Height: 22U
Usable depth: 123–573 mm
Width: 503 mm
Maximum load capacity: 1500 kg
Material: Cold-rolled steel, zinc-plated 19" rails
Finish: Antistatic powder coating (black, RAL9005)
Protection rating: IP20
Weight: 81 kg
Features: Tempered-glass lockable door, removable side panels, adjustable feet, multi-point door lock

How to use

Place the freestanding rack on a level surface and adjust the feet to achieve stable, plumb alignment. If delivered flatpack, follow the included assembly instructions to mount the frame, rails and panels. Install rack equipment into the zinc-plated 19" rails using standard rack screws, distribute load evenly and route cables through panel openings. Use the lockable tempered-glass door and multi-point lock to secure devices when installation and cabling are complete.

Usage recommendations

For reliable operation, ensure adequate ventilation and avoid overloading the rack beyond the specified 1500 kg capacity. Secure heavy equipment at lower U positions to maintain stability and verify that installed devices and cabling do not obstruct airflow through the cabinet.

Specifications

Type: Characteristics of the device.: Freestanding rack
Product colour: The colour e.g. red, blue, green, black, white.: Black

All features

Rack capacity: The spase that device fill in rack.: 22U
Side panels included: Indicates if the side panels are included or not: Yes
Removable side panels:: Yes
Key lock:: Yes
Frame type:: Closed
Adjustable feet: The feet length (supports on the bottom of the device) can be adjusted.: Yes
Adjustable depth:: Yes
Adjustable mounting rails:: Yes
Front door construction:: Glass
Front door key lock:: Yes

Other features

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 1500 kg

Logistics data

Harmonized System (HS) code:: 85381000

Technical details

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Sustainability certificates:: RoHS

Weight & dimensions

Size (imperial): Physical dimension.: 19 "
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 81 kg
Height: The measurement of the product from head to foot or from base to top.: 1144 mm
Depth: The distance from the front to the back of something.: 800 mm
Width: The measurement or extent of something from side to side.: 600 mm

Design

Certification:: UL, Gost-R
