Freestanding Rack Intellinet 36U

Name: Freestanding Rack Intellinet 36U 713160
Brand: INTELLINET
SKU: 696525
Price: 1024.99 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

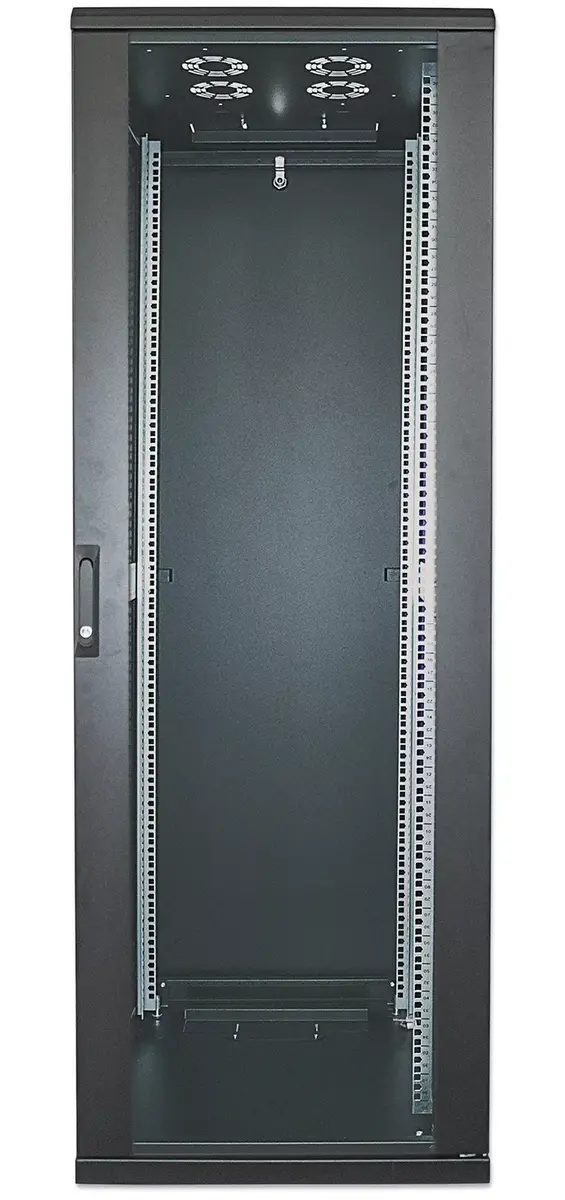

Freestanding Rack Intellinet 36U Photo 3

Freestanding Rack Intellinet 36U Photo 4

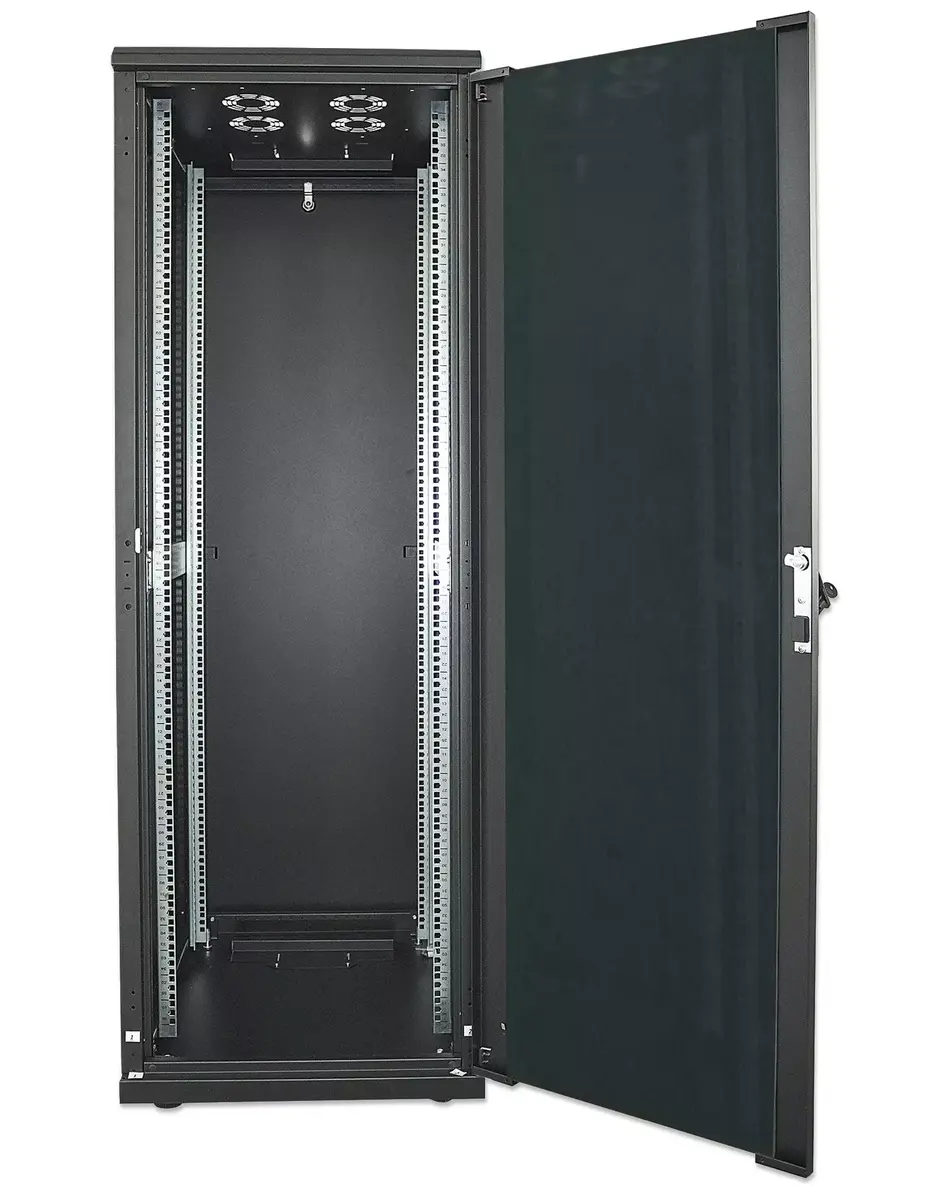

Freestanding Rack Intellinet 36U Photo 5

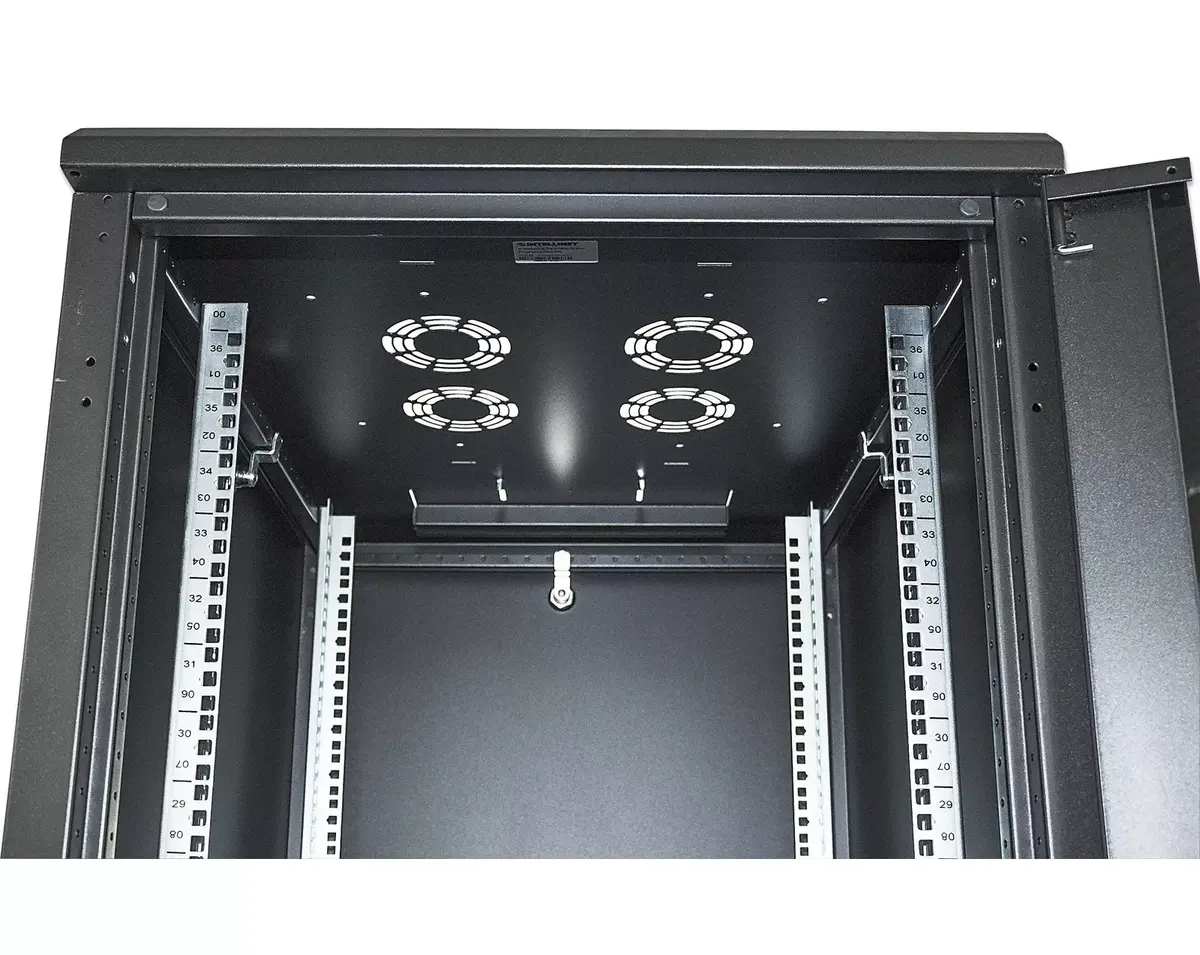

Freestanding Rack Intellinet 36U Photo 6

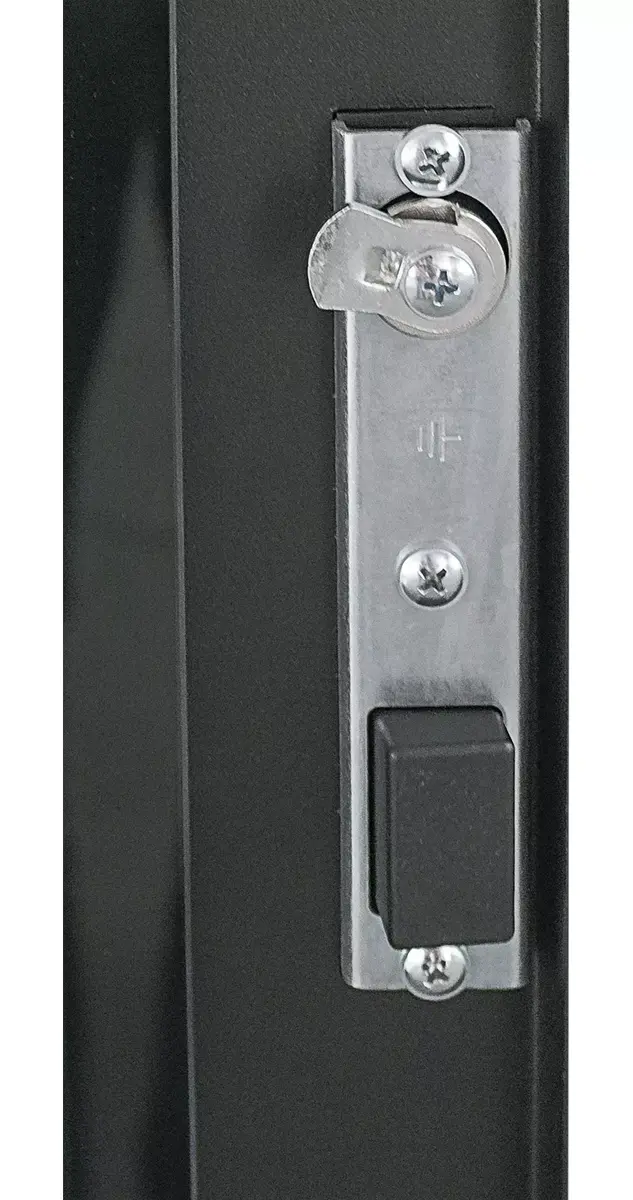

Freestanding Rack Intellinet 36U Photo 7

Short description

The Intellinet Freestanding Rack 36U is designed for optimal storage and organization of network equipment. With a usable depth of 123 to 573mm and a width of 703mm, it supports a maximum weight of 1500kg. The rack features a multi-point door lock for enhanced security, adjustable feet for stability, and is IP20 rated for protection against solid objects. Constructed from durable steel, it comes in a sleek black finish and includes a three-year warranty.

Warranty: 2 Years

SKU: 696525

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Intellinet Freestanding Rack 36U is a steel network cabinet engineered for organized storage and secure mounting of 19" equipment in data rooms, server closets and technical spaces. It provides a usable depth range from 123 to 573 mm and an overall width of 703 mm, supporting distributed loads up to 1500 kg. The rack is finished in black and includes adjustable feet for stability, a multi-point door lock for controlled access and an IP20 rating for protection against ingress of solid objects. Available fully assembled or in flatpack format, the cabinet accommodates standard 19" mounting rails and removable side panels to simplify cabling and component replacement.

Advantages

The freestanding construction and cold-rolled steel frame ensure mechanical strength and long service life while zinc-plated mounting rails resist corrosion. Adjustable installation depth and removable panels allow flexible equipment placement and easier maintenance. The multi-point lock on the front door increases physical security for installed devices, and the antistatic powder coat reduces dust adherence and wear. A three-year warranty is provided for manufacturing defects.

Suitable for

Housing 19" network switches, patch panels and routers
Small to medium server or storage deployments in offices and telecom rooms
Structured cabling termination and equipment consolidation
Environments requiring a secure, stable freestanding cabinet with easy access for maintenance

Key specifications

Height: 36U (standard 19" rack units)
Usable installation depth: 123–573 mm
Overall width: 703 mm
Maximum supported static load: 1500 kg
Weight: 119 kg
Material: cold-rolled steel frame with zinc-plated 19" mounting rails
Finish: black, antistatic powder coating
Door: lockable with multi-point locking mechanism; tempered glass option available
Ingress protection: IP20 (protection against solid objects greater than 12 mm)
Leveling: adjustable feet for stable placement on uneven floors
Delivery options: fully assembled or flatpack

How to use

Place the rack on a stable, level surface and adjust the feet to achieve proper alignment. If delivered in flatpack, follow the supplied assembly instructions to complete mechanical assembly and fit the 19" mounting rails. Install equipment on the mounting rails using appropriate rack screws and cage nuts, ensuring weight is distributed and heavier items are mounted lower. Route power and network cables through the cabinet openings or side panels and secure cabling to prevent strain on connectors. Lock the front door when access is not required to maintain security and dust protection.

Usage recommendations

For safe and reliable operation, allocate sufficient ventilation or add fan modules if installing heat-generating devices. Adhere to the maximum load rating and distribute weight evenly across the rack. Use cable management accessories and earthing/grounding practices compatible with server-room standards. Choose the assembled option for immediate use or the flatpack option to reduce transport volume during delivery.

Specifications

Type: Characteristics of the device.: Freestanding rack
Product colour: The colour e.g. red, blue, green, black, white.: Black

All features

Rack capacity: The spase that device fill in rack.: 36U
Side panels included: Indicates if the side panels are included or not: Yes
Removable side panels:: Yes
Key lock:: Yes
Frame type:: Closed
Adjustable feet: The feet length (supports on the bottom of the device) can be adjusted.: Yes
Adjustable depth:: Yes
Adjustable mounting rails:: Yes
Front door construction:: Glass
Front door key lock:: Yes

Other features

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 1500 kg

Logistics data

Harmonized System (HS) code:: 85381000

Technical details

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Sustainability certificates:: RoHS

Weight & dimensions

Size (imperial): Physical dimension.: 19 "
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 119 kg
Height: The measurement of the product from head to foot or from base to top.: 1766 mm
Depth: The distance from the front to the back of something.: 800 mm
Width: The measurement or extent of something from side to side.: 800 mm

Design

Certification:: UL, Gost-R
Product colour: The colour e.g. red, blue, green, black, white.: Black
Type: Characteristics of the device.: Freestanding rack
