header-product Wall mounted rack Intellinet 713641 2U/4U 60 kg IP20 Grey
118.49 €

Wall mounted rack Intellinet 713641 2U/4U 60 kg IP20 Grey

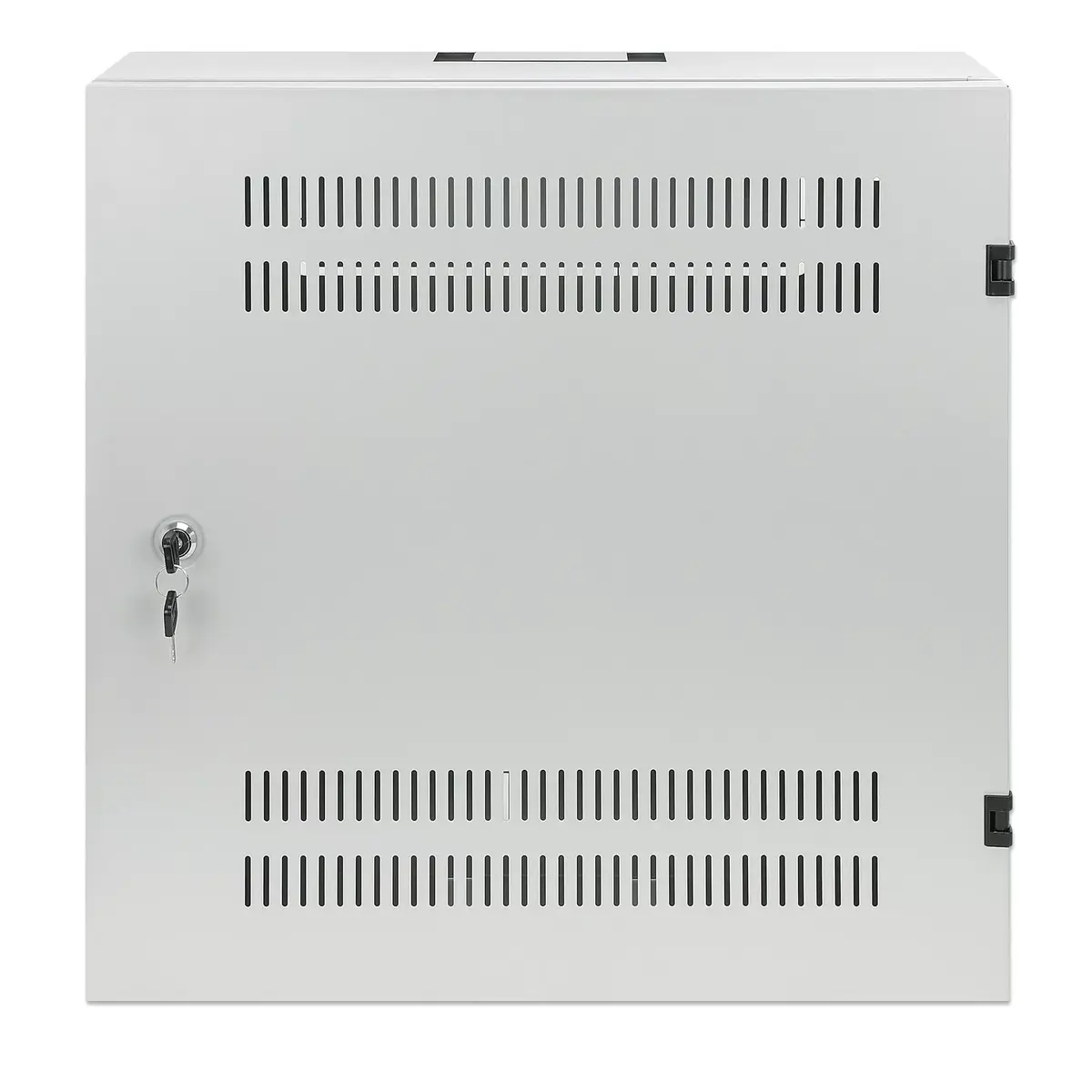

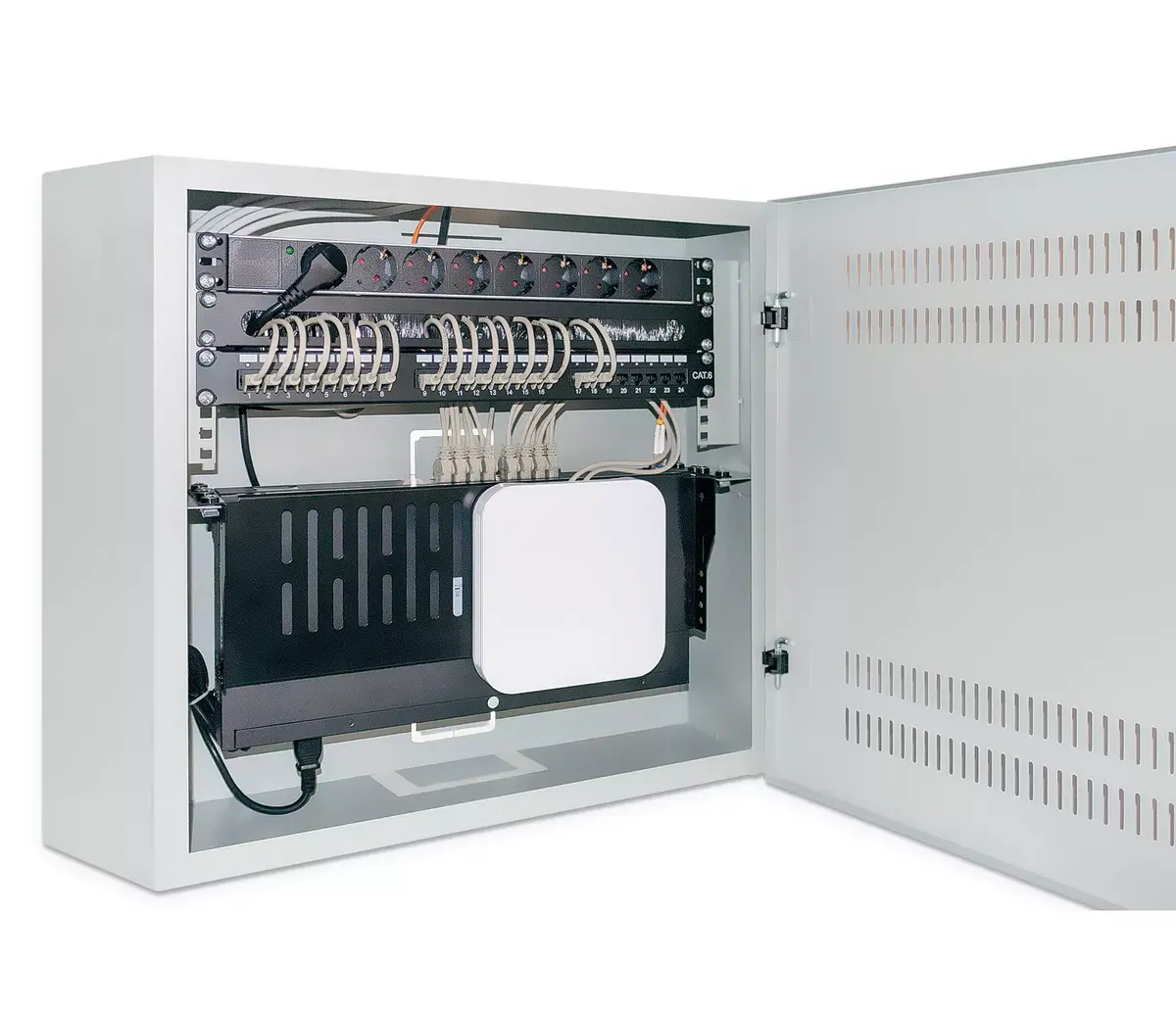

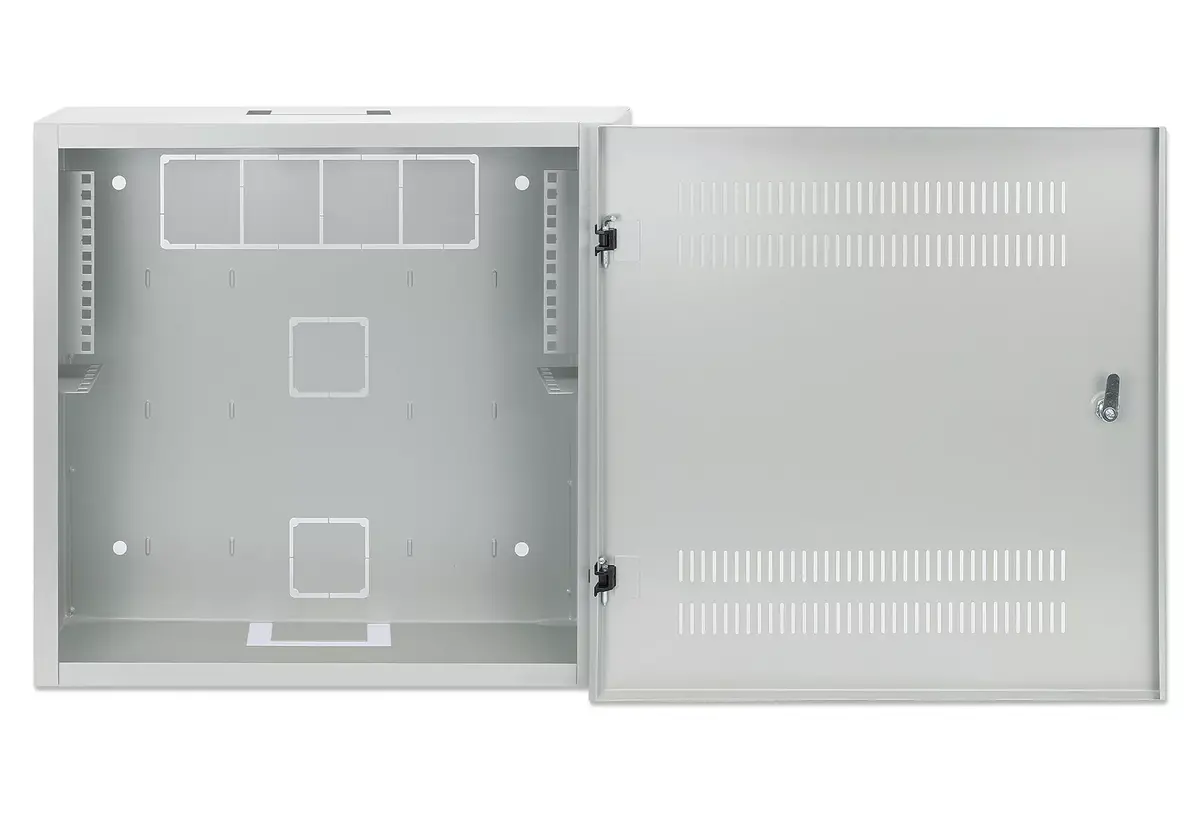

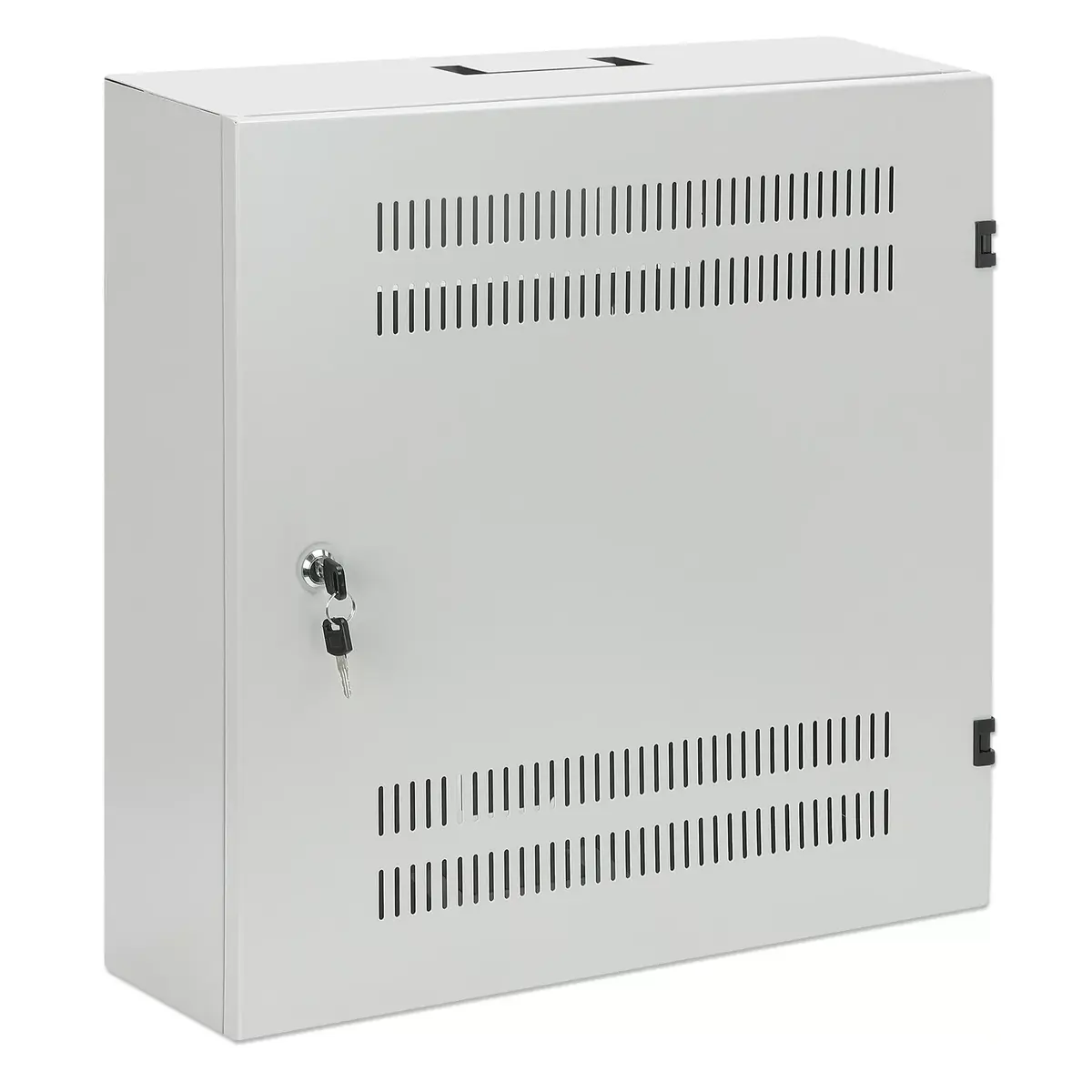

Wall mounted rack Intellinet 713641 Photo 1
Wall mounted rack Intellinet 713641 Photo 2
Wall mounted rack Intellinet 713641 Photo 3
Wall mounted rack Intellinet 713641 Photo 4
Wall mounted rack Intellinet 713641 Photo 5
Wall mounted rack Intellinet 713641 Photo 6
Wall mounted rack Intellinet 713641 Photo 1
Wall mounted rack Intellinet 713641 Photo 2
Wall mounted rack Intellinet 713641 Photo 3
Wall mounted rack Intellinet 713641 Photo 4
Wall mounted rack Intellinet 713641 Photo 5
Wall mounted rack Intellinet 713641 Photo 6
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Wall mounted rack Intellinet 713641 2U/4U 60 kg IP20 Grey

{{email}}
You keep track of price changes

Wall mounted rack Intellinet 713641 2U/4U 60 kg IP20 Grey

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Intellinet 713641 is a low-profile wall mount cabinet designed for AV multimedia and surveillance applications. It features 4U horizontal and 2U vertical rails, a maximum weight capacity of 60 kg, and a compact depth of only 170 mm. The cabinet is assembled and comes in a sleek gray color RAL 7035, making it a space-saving solution for various installations.
Available at price 118.49 €: 1 pcs.
Total available for order: 13 pcs.
Warranty: 2 Years
SKU: 4727295
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
15.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
20.07.2026 {{selectedOffer.courierDeliveryString}}
From 8.05 € (Weight: 9.37 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
20.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 119.99 €: 3 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Intellinet 713641 low-profile wall mount cabinet is a slim 19" rack enclosure designed for AV multimedia, surveillance and SOHO network installations. It combines 4U horizontal and 2U vertical rails in a compact steel housing with a depth of 170 mm, a load capacity up to 60 kg and IP20 protection. The cabinet ships fully assembled in grey (RAL 7035) and provides ventilation slots, pre-punched cable entry points and a three-point lock for secure, space-saving mounting on the wall.

Advantages

The cabinet saves wall space through its shallow 170 mm depth while still accommodating deeper devices up to 280 mm using the vertical mounting option. Its sturdy steel construction with antistatic powder coating and an IP20 rating offers basic protection against contact and solid objects. A three-point door lock and a 60 kg load capacity ensure secure installation of AV, surveillance or network equipment. Pre-punched holes on top, rear and bottom and ventilation slots facilitate cable management and cooling. The unit arrives fully assembled to simplify installation.

Suitable for

  • Home AV and multimedia systems
  • Small office / SOHO network equipment
  • Surveillance and CCTV devices
  • Audio/video distribution and home automation components

Key specifications

  • Model: Intellinet 713641
  • Rack capacity: 2U vertical / 4U horizontal
  • Material and finish: Steel with antistatic powder coating
  • Protection rating: IP20
  • Maximum load: 60 kg
  • Dimensions (H×W×D): 540 × 550 × 170 mm
  • Supports device depth up to 280 mm (with vertical mounting)
  • Weight: 8.5 kg
  • Colour: Grey (RAL 7035)

How to use

Mount the assembled cabinet on a suitable wall using appropriate anchors for the wall material and the cabinet's weight. Choose horizontal or vertical rail configuration depending on the equipment depth and secure devices to the rails with compatible rack screws. Route structured cabling through the pre-punched entry points on the top, rear or bottom and ensure airflow by keeping ventilation slots clear. Lock the front door with the integrated three-point lock to protect equipment from tampering or unauthorized access.

Usage recommendations

Install on a solid wall with appropriate fixings rated for the combined weight of the cabinet and installed equipment, and allow space for ventilation. For heavier or heat-generating devices, verify that the load and cooling requirements are met and consider additional ventilation if needed.

Specifications

International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP20
Rack capacity:
2U/4U
Weight:
8.5 kg
Height:
540 mm
Depth:
170 mm
Width:
550 mm
Product colour:
Grey
All features

Logistics data

Master (outer) case height:
190 mm
Master (outer) case width:
560 mm
Master (outer) case gross weight:
9500 g
Master (outer) case length:
560 mm
Products per master (outer) case:
1 pc(s)

Features

Type:
Wall mounted rack
Material:
Steel
Product colour:
Grey
Maximum weight capacity:
60 kg
Rack capacity:
2U/4U
Product design:
4-post
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP20
Key lock:
Yes
Frame type:
Closed
Ventilation holes:
Yes
Front door construction:
Steel
Front door key lock:
Yes

Technical details

Sustainability compliance:
Yes
Sustainability certificates:
RoHS

Packaging data

Package depth:
555 mm
Package height:
205 mm
Package width:
545 mm
Number of screws:
12
Screws included:
Yes
Number of washers included:
12
Nuts included:
Yes
Number of nuts:
12

Weight & dimensions

Weight:
8.5 kg
Height:
540 mm
Width:
550 mm
Depth:
170 mm
