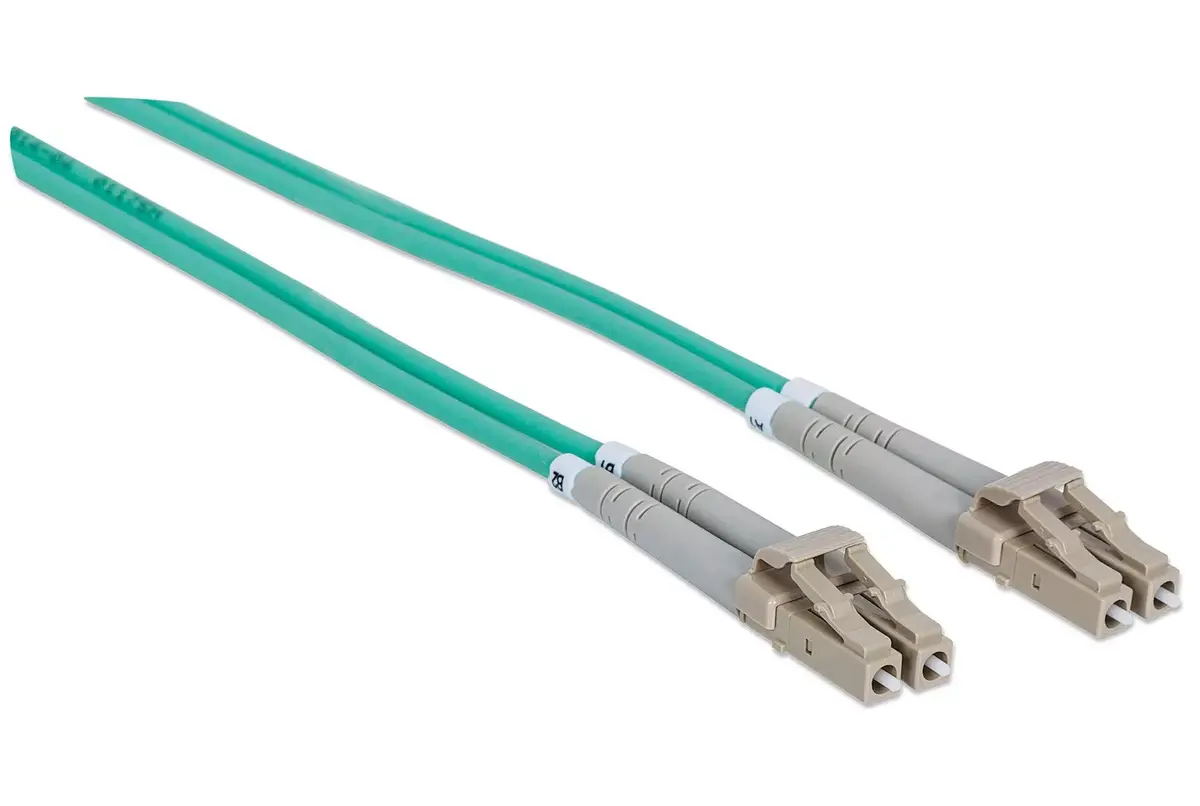

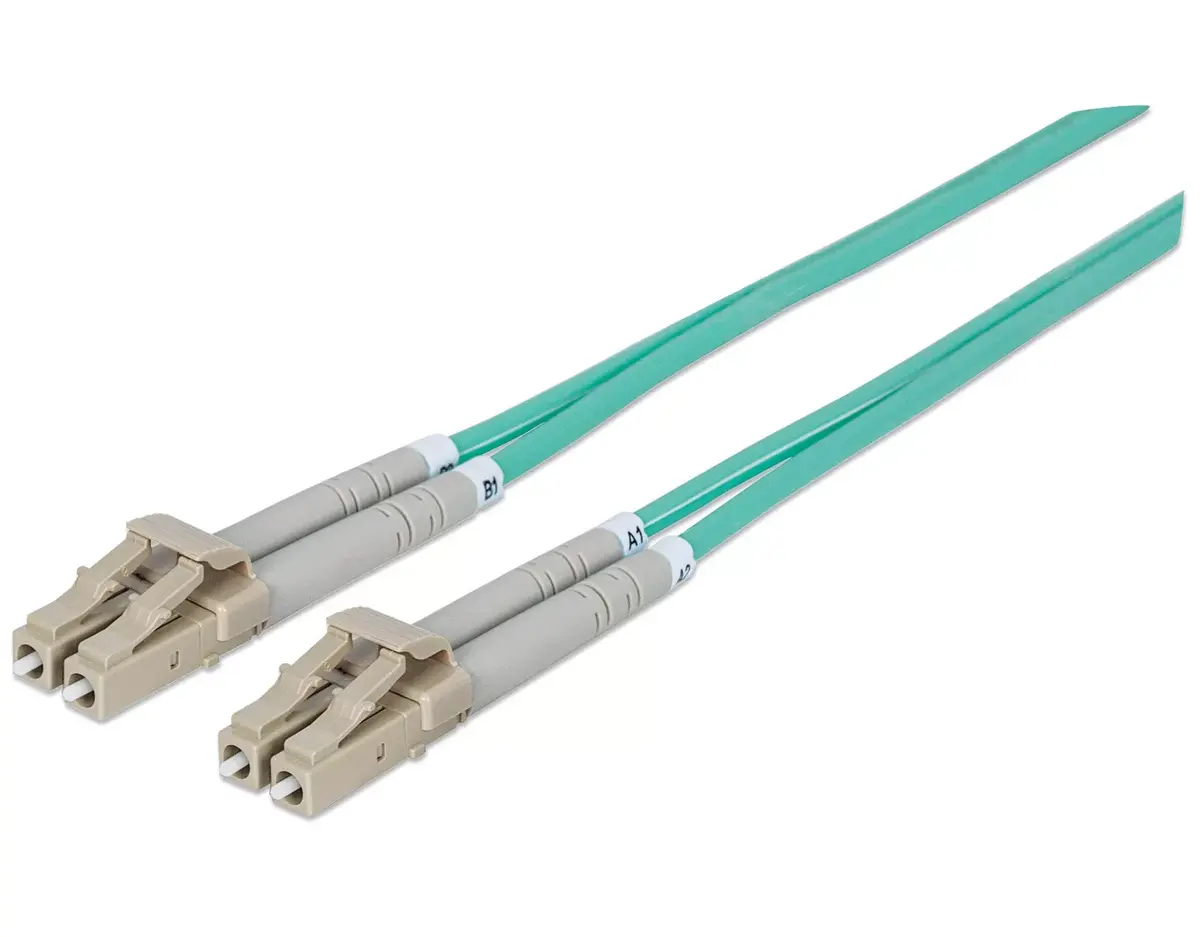

Fiber Optic Patch Cable Intellinet OM3 LC/LC 10m Aqua Duplex Multimode 50/125 µm LSZH

The Intellinet Fiber Optic Patch Cable OM3 LC/LC 10m Aqua Duplex Multimode 50/125 µm LSZH is a 10-metre duplex multimode fiber patch cable equipped with LC connectors on both ends. It uses OM3 multimode fiber with a 50/125 µm core/cladding geometry and an aqua jacket colour for easy identification. The cable is constructed from low-smoke zero-halogen (LSZH) materials to reduce toxic and corrosive gas emissions in case of fire and is intended for full-duplex optical links in data centre and campus environments. The product is supplied by INTELLINET and is backed by a lifetime warranty covering manufacturing defects.

Advantages

This fiber optic patch cable provides high-bandwidth multimode performance suitable for 10 Gigabit Ethernet and other short-reach optical applications where OM3 specification is required. The LC/LC duplex connector configuration enables compact port density and straightforward duplex connections. The LSZH jacket reduces smoke and halogen release for installations in enclosed spaces and public areas that require enhanced fire-safety materials. The aqua colour and standard 10 m length make identification and deployment across racks and patch panels convenient.

Suitable for

• Short-reach high-speed networks such as 10 GbE within data centres and server rooms
• Connections between switches, servers and active optical equipment with LC ports
• Campus backbone links and intrabuilding fiber runs requiring OM3 multimode
• Environments requiring low-smoke zero-halogen cabling for safety compliance

Key specifications

• Fiber type: Multimode OM3
• Core/cladding diameter: 50/125 µm

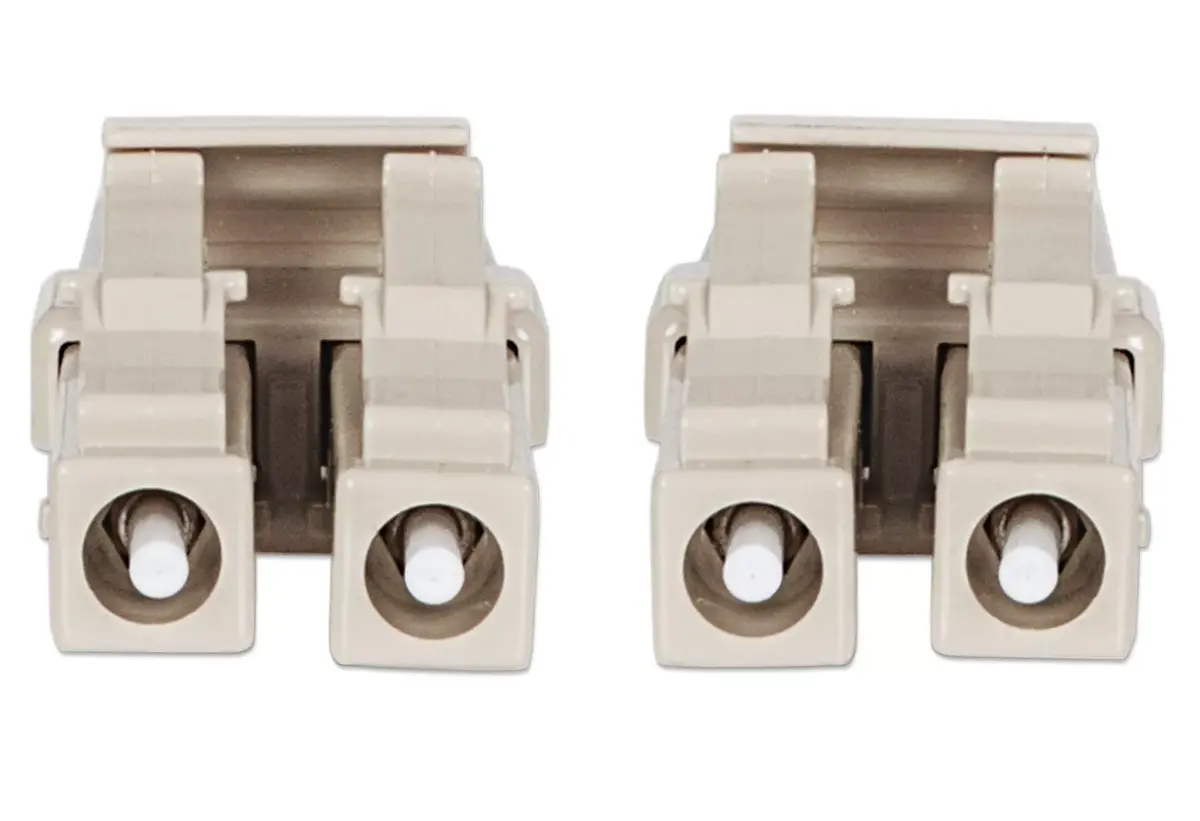

• Connector type: LC to LC duplex
• Length: 10 metres
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Colour: Aqua
• Mode: Duplex for full-duplex communication
• Typical applications: Short-reach data transmission and high-bandwidth multimode links

How to use

Verify that both endpoints support LC duplex multimode connections and that OM3 fiber is appropriate for the intended link budget and distance. Carefully remove dust caps from the LC connectors before insertion and use appropriate dust protection when not connected. Insert each LC connector into the matching LC adapter or port until it seats securely. Route the cable with gentle bends to avoid exceeding the manufacturer’s recommended minimum bend radius and secure it with cable management to prevent strain on connectors. For best results, clean connectors with approved fiber cleaning tools before mating and inspect endfaces if performance is degraded.

Usage recommendations

Use this OM3 LC/LC duplex cable for short to medium multimode links where 10 Gb and higher short-reach performance is required, and select LSZH cabling where low smoke and halogen-free materials are mandated by building codes or safety policies. Store and handle connectors with dust caps and use proper cleaning procedures to maintain optical performance.
