Inter-Tech 19'' Cat.5e UTP 24 AMP Rack Mount Black Metal Plastic

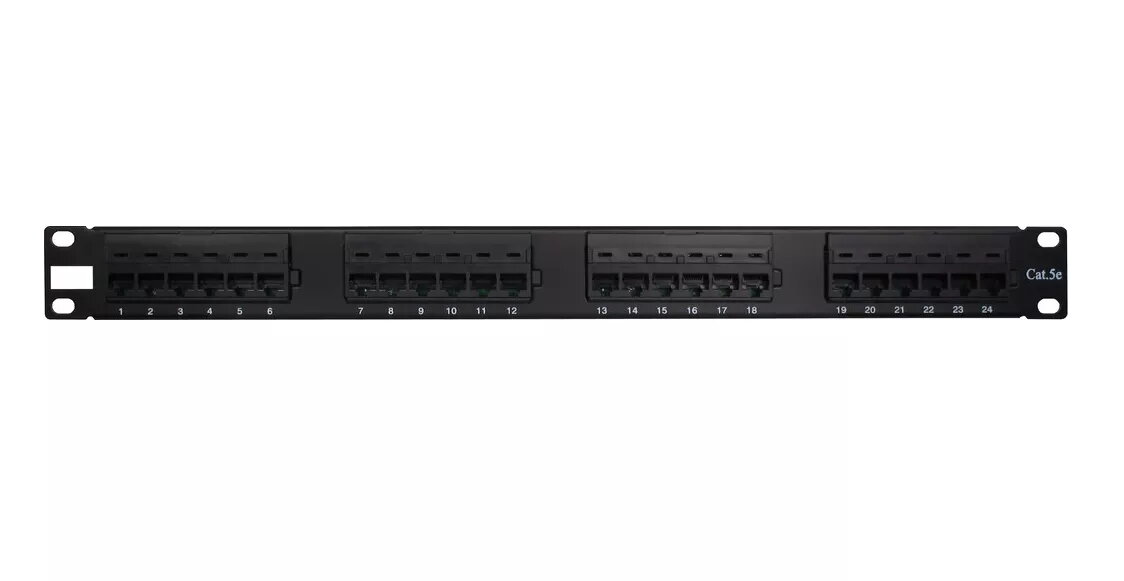

The Inter-Tech 19'' Cat.5e UTP 24 AMP Rack Mount Black Metal Plastic is a 1U rack panel engineered to organize and terminate up to 24 Cat5e UTP network cables in a standard 19-inch equipment rack. Constructed from metal and plastic components, the panel provides a compact 482 mm wide and 35 mm high front profile that aligns with typical rack mounting holes and cable management workflows. Each port accepts an RJ-45 connector and the panel offers a fixed, space-saving solution for structured cabling in server rooms, small data closets, and telecommunications cabinets.

Advantages

The panel's slim 1U height conserves rack space while providing 24 accessible RJ-45 ports for straightforward patching. Metal elements add structural rigidity for secure rack installation and long-term durability, while plastic components reduce weight and provide insulation around ports. The standard 19-inch width and consistent port layout simplify integration with existing rack equipment and patch cabling, supporting organized cable routing and easier maintenance.

Подходит для

• Организация и маркировка портов Cat5e в серверных стойках
• Сборка коммутационных панелей для небольших дата-центров и серверных шкафов
• Обеспечение удобного доступа к RJ-45 патч-кордам в телекоммуникационных шкафах

Key specifications

• Form factor: 19-inch rack-mount panel, 1U height
• Ports: 24 RJ-45 ports for Cat5e UTP cabling
• Material: metal frame with plastic port housings
• Width: 482 mm (fits standard 19" racks)
• Height: 35 mm (1U)
• Color: black finish for reduced visual contrast in racks

How to use

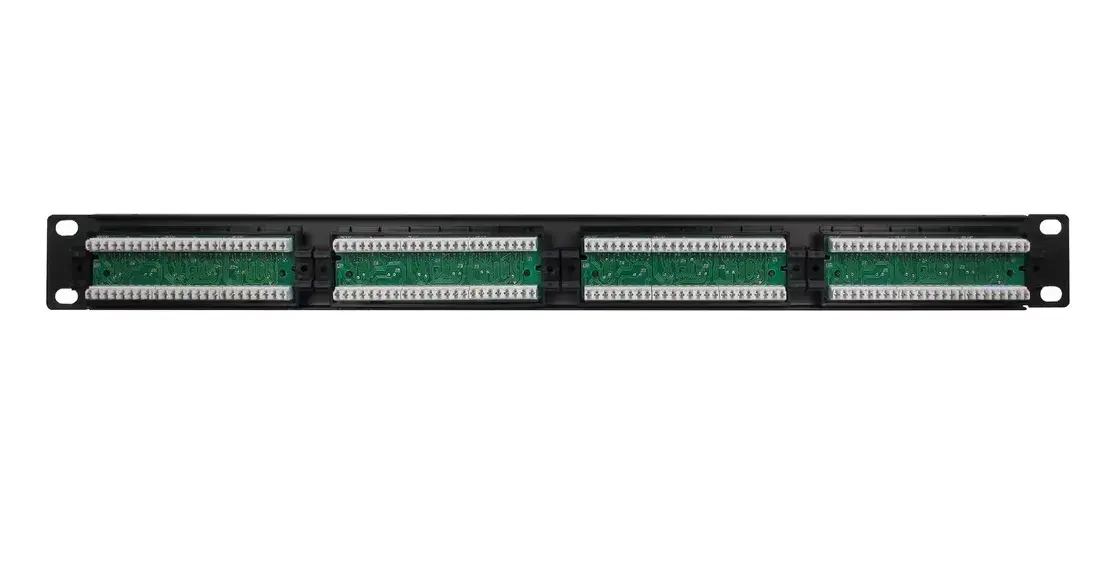

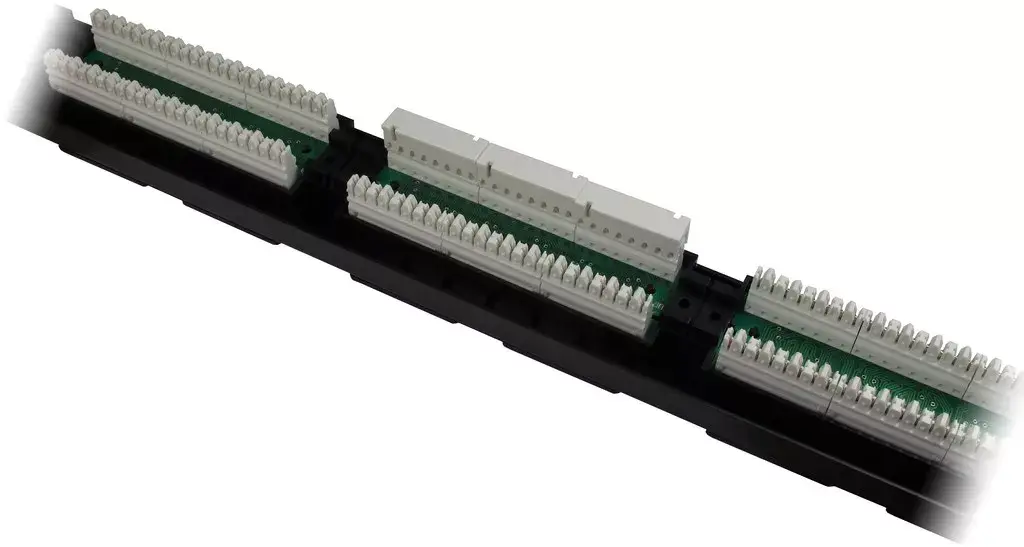

Mount the panel in a standard 19-inch rack using appropriate rack screws and cage nuts that match your rack hardware. Terminate Cat5e UTP cable conductors to the rear-side contacts or use rear-mounted punch-down terminations if applicable, following standard wiring schemes (T568A/T568B) to maintain network consistency. Connect patch cords to the front RJ-45 ports to link devices, switches, or patch panels. Secure and route cables with cable management accessories to minimize strain on terminations and maintain airflow in the rack.

Рекомендации по использованию

Используйте маркировку портов и выдерживайте рекомендованные схемы коммутации (T568A или T568B) для обеспечения совместимости. При прокладке придерживайтесь радиусов изгиба кабеля для сохранения параметров передачи Cat5e и избегайте натяжения проводников для продления срока службы соединений.

Inter-Tech 19'' Cat.5e UTP 24 AMP Rack Mount Black Metal Plastic — это практическая панель для аккуратной организации 24 Cat5e соединений в стандартной 19" стойке, обеспечивающая простоту доступа и стабильность коммутаций.

Privalumi

Plāns 1U izmērs ietaupa vietu serveru skapī, vienlaikus nodrošinot 24 pieejamus RJ-45 portus vienkāršai savienojumu izveidei. Metāla rāmis piešķir konstrukcijai stingrību uzstādīšanai stendā, bet plastmasas detaļas samazina svaru un nodrošina izolāciju ap portiem. Standarta 19 collu platums un vienmērīgs portu izvietojums vienkāršo integrāciju ar esošo aprīkojumu un kabeļu vadību.

Piemērots

• Tīkla portu pārvaldībai serveru skapjos
• Komutācijas paneļu izveidei mazākos datu centros un telekomunikāciju skapjos
• Pieejas nodrošināšanai RJ-45 patch-kordiem un tīkla ierīcēm

Galvenās specifikācijas

• Formfaktors: 19" panelis, 1U augstums
• Porti: 24 RJ-45 porti Cat5e UTP kabeļiem
• Materiāls: metāla rāmis ar plastmasas portu turētājiem
• Platums: 482 mm (standarta 19" rāmis)
• Augstums: 35 mm (1U)
• Krāsa: melns pārklājums

Kā lietot

Uzstādiet paneli 19 collu stendā ar atbilstošām skrūvēm un uzgriežņiem. Pievienojiet Cat5e UTP vadus pie aizmugures kontaktpunktiem vai izmantojiet punch-down tipa terminācijas, ievērojot T568A vai T568B shēmas. Savienojiet patch-kordus pie priekšējiem RJ-45 portiem, lai pieslēgtu slēdžus, serverus vai citus tīkla komponentus. Lai saglabātu kārtību un novērstu spriegumu uz kabeļiem, izmantojiet kabeļu organizatorus un piesprādzēšanas elementus.

Ieteikumi lietošanai

Ieteicams marķēt portus un dokumentēt kabeļu izvietojumu, lai atvieglotu apkopi. Saglabājiet ieteicamos kabeļa saliekuma rādiusus un nepieļaujiet pārmērīgu savilktību, lai saglabātu Cat5e pārraides īpašības.

Inter-Tech 19'' Cat.5e UTP 24 AMP Rack Mount Black Metal Plastic nodrošina kompaktu un sakārtotu risinājumu 24 Cat5e savienojumu izvietošanai standarta 19" stendā.

The Inter-Tech 19'' Cat.5e UTP 24 AMP Rack Mount Black Metal Plastic provides a space-efficient, standardized front panel for organizing 24 Cat5e connections in a 19-inch rack environment. It is intended for installations that require clear port access and robust mounting in server rooms and network cabinets.

Advantages

The unit's standardized dimensions and 24 RJ-45 ports make it compatible with common rack layouts and patching practices. A metal frame contributes to mounting stability, while plastic port housings reduce weight and offer electrical insulation around connectors. The black finish reduces visual clutter inside racks and the compact 1U profile supports denser equipment arrangements.

Suitable for

• Organizing Cat5e patch connections in server racks
• Setting up patch panels for small data centers or network closets
• Providing easy access to RJ-45 patch cords in telecommunications cabinets

Key specifications

• Form factor: 19-inch rack panel, 1U height
• Ports: 24 RJ-45 ports for Cat5e UTP cabling
• Material: metal frame with plastic port housings
• Width: 482 mm
• Height: 35 mm (1U)
• Color: black

How to use

Install the panel into a standard 19-inch rack using appropriate mounting hardware. Terminate Cat5e UTP cables at the rear termination points in accordance with chosen wiring standard (T568A or T568B). Attach patch cords to the front RJ-45 ports to connect switches, patch panels, or end devices. Employ cable ties and cable management accessories to secure cabling, minimize strain on terminations, and preserve rack airflow.

Usage recommendations

Label ports clearly and maintain consistent wiring schemes to simplify troubleshooting and future changes. Observe recommended cable bend radii and avoid pulling or sharply bending UTP cables to preserve Cat5e performance.

This Inter-Tech 19" Cat.5e UTP 24 AMP rack mount panel is intended to support orderly network cabling and straightforward port access in standard rack installations.
