j5create JCD393 4K60 Elite USB-C Mini Dock

Name: j5create JCD393 4K60 Elite USB-C JCD393-N
Brand: j5 create
SKU: 7624503
Price: 96.49 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

j5create JCD393 4K60 Elite USB-C Mini Dock Wired 10Gbps

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 1

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 2

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 3

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 4

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 5

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 6

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 7

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 8

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 9

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 10

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 11

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 12

j5create JCD393 4K60 Elite USB-C Mini Dock Photo 13

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The j5create JCD393 is a 4K60 Elite USB-C Mini Dock featuring wired connectivity, USB 3.2 Gen 1 interface, and 100W power delivery. It supports Ethernet LAN data rates of 10/100/1000 Mbit/s and is compatible with MicroSD and SD memory cards. Its compact design makes it ideal for enhancing your connectivity options.

Available at price 96.49 €: 10 pcs.

Total available for order: 30 pcs.

Warranty: 2 Years

SKU: 7624503

Manufacturer: j5 create

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

02.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.10 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

02.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 126.99 €: 10 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

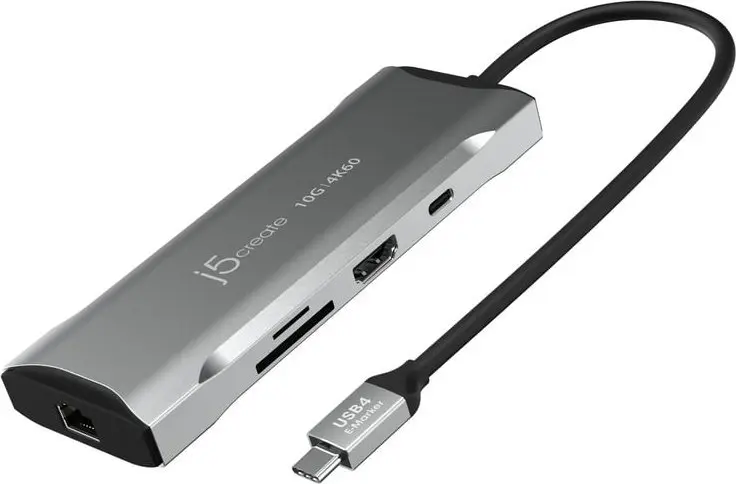

The j5create JCD393 4K60 Elite USB-C Mini Dock is a compact wired dock that expands a USB-C host with a DisplayPort 1.4 video output, three 10Gbps SuperSpeed USB ports, an SD and microSD card reader, Gigabit Ethernet and Power Delivery pass-through. It uses an advanced USB-C E-Mark chip for compatibility with USB4, Thunderbolt 3 and Thunderbolt 4 hosts and supports 4K at 60Hz when connected to a compatible display.

Advantages

This mini dock provides a small, portable solution to add a 4K60 DisplayPort output and multiple high-speed USB ports while maintaining a wired Gigabit Ethernet connection. The built-in SD and microSD card reader simplifies media transfer, and Power Delivery 3.0 pass-through allows up to 100W charging to power the host laptop and connected peripherals. The dock’s E‑Mark chip ensures broad compatibility with modern USB-C and Thunderbolt hosts.

Suitable for

Connecting a 4K 60Hz external monitor via DisplayPort 1.4
Attaching USB peripherals such as external drives, keyboards or mice
Transferring photos and video from SD and microSD cards
Using a wired Gigabit Ethernet connection for stable network access
Charging a laptop or passing power to peripherals via USB-C PD (up to 100W)

Key specifications

Model: j5create JCD393 4K60 Elite USB-C Mini Dock
Video: DisplayPort 1.4, up to 4K @ 60Hz
USB: Three SuperSpeed 10Gbps ports (1 × USB-C, 2 × USB-A)
Card reader: SD and microSD (SD 4.0 compatible)
Ethernet: Gigabit Ethernet (10/100/1000 Mbps)
Power Delivery: PD 3.0 pass-through, up to 100W
Connectivity: Wired USB-C with E‑Mark chip (compatible with USB4/Thunderbolt 3/4)
Color and weight: Grey, 0.104 kg

How to use

Connect the dock’s USB-C cable to a compatible USB-C, USB4 or Thunderbolt host device. Attach the external monitor to the DisplayPort output and plug USB peripherals into the available USB-C or USB-A ports. Insert SD or microSD cards into the card reader to access media files. If charging is required, connect a USB-C power adapter to the host or to the dock’s upstream power source to enable Power Delivery pass-through up to 100W. Ensure the host supports DisplayPort Alt Mode for video output when using the external display.

Usage recommendations

For best results when driving a 4K60 display, use a USB-C host that supports DisplayPort Alt Mode and verify that the connected power adapter can supply sufficient wattage for your laptop while allowing peripherals to operate correctly.

Specifications

HDMI ports quantity:: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 2
Connectivity technology:: Wired
Ethernet LAN (RJ-45) ports:: 1
Weight:: 0.104 kg
Product colour:: Grey

All features

Ports & interfaces

Connectivity technology:: Wired
Ethernet LAN (RJ-45) ports:: 1
Microphone in:: No
Host interface:: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
HDMI ports quantity:: 1
HDMI version:: 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:: 2
USB Type-C DisplayPort Alternate Mode:: Yes
USB Power Delivery (USB PD):: Yes
USB Power Delivery revision:: 3.0
USB Power Delivery up to:: 100 W

Network

Ethernet LAN:: Yes
Ethernet LAN data rates:: 1000, 100, 10

Performance

Compatible memory cards:: MicroSD (TransFlash), SD
Plug and Play:: Yes
Compatibility:: Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0
Data transfer rate:: 10 Gbit/s
Product colour:: Grey
Card reader integrated:: Yes
Housing material:: Aluminium
Maximum digital resolution:: 3840 x 2160
Maximum refresh rate:: 144 Hz
Windows operating systems supported:: Y
Mac operating systems supported:: Y
Charging function:: Yes
Number of displays supported:: 1
Display modes:: Extended, Mirror, Primary display
HD type:: 4K Ultra HD
Colour name:: Space Grey

Technical details

Master (outer) case GTIN (EAN/UPC):: 24712795086267
Warranty period:: 2 year(s)

Weight & dimensions

Weight:: 0.104 kg
Height:: 16 mm
Width:: 138 mm
Depth:: 50 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 3.48 W
Output voltage:: 5
Output current:: 0.69 A
Power source type:: USB
USB cable length:: 0.2 m
Power connector:: USB Type-C

Operational conditions

Operating relative humidity (H-H):: 0 - 85
Storage temperature (T-T):: -17 - 68
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 0 - 85

Other features

Special features:: Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz

Packaging content

Manual:: Yes
Quick start guide:: Yes

Logistics data

Country of origin:: Taiwan
Master (outer) case height:: 190 mm
Master (outer) case width:: 226 mm
Master (outer) case gross weight:: 4060 g
Quantity per pack:: 1 pc(s)
Master (outer) case length:: 445 mm
Products per master (outer) case:: 18 pc(s)
Shipping (inner) case width:: 165 mm
Shipping (inner) case length:: 212 mm
Shipping (inner) case height:: 137 mm
Products per shipping (inner) case:: 6 pc(s)
Shipping (inner) case net weight:: 1140 g
Export Control Classification Number (ECCN):: EAR99

Packaging data

Package weight:: 164 g
Package depth:: 125 mm
Package height:: 22.5 mm
Package width:: 193 mm
