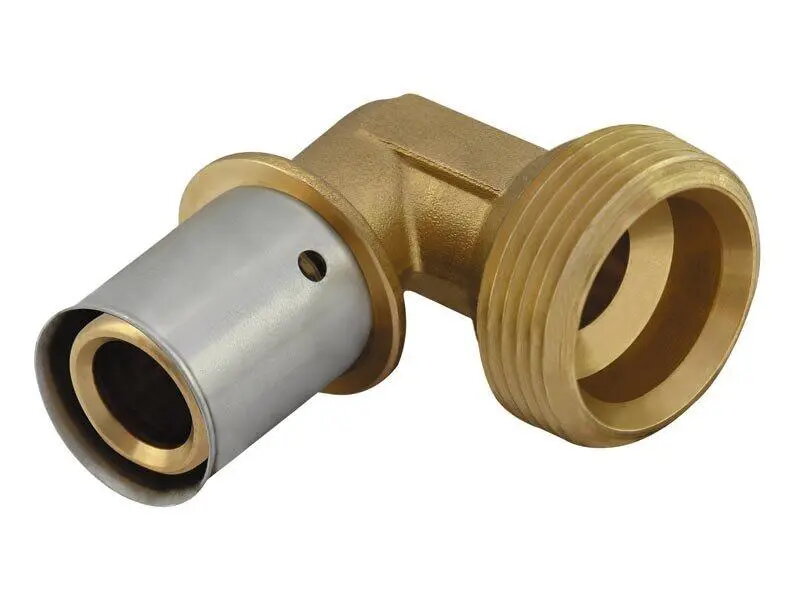

KAN-therm press elbow 90° with press ring 25x2.5 mm G1" model K-901002

The KAN-therm press elbow 90° with press ring 25x2.5 mm G1" model K-901002 is a right-angle plumbing fitting designed for press-fit systems. It combines a press connection for 25x2.5 mm pipe with a G1" threaded port to connect threaded components. The fitting is intended for use in hot and cold water installations and central heating circuits where a reliable mechanical and sealed elbow joint is required. The integrated press ring allows installation with standard press tools to create a durable sealed connection without soldering or welding.

Advantages

The press elbow provides a secure mechanical joint that reduces installation time compared with traditional soldered or flanged assemblies. Its integrated press ring simplifies alignment and pressing operations, while the combination of a press end and a G1" threaded outlet enables flexible connection of threaded valves, taps, or gauges. The design is suitable for use in systems that require resistance to temperature variations typical for potable water and heating circuits.

Suitable for

• Hot and cold water distribution systems
• Central heating installations and radiator connections
• Connections to threaded valves, taps, pressure gauges, and boiler fittings with G1" threads
• Press-fit piping systems using 25x2.5 mm copper or compatible multilayer pipes

Key specifications

• Elbow angle: 90°
• Press connection for pipe outer diameter: 25 mm, wall thickness 2.5 mm
• Threaded connection: G1" (female/male as applicable for the model)
• Integrated press ring for use with standard pressing tools and jaws
• Intended media: potable water and heating fluids within normal system parameters

How to use

Prepare the pipe by cutting it square and removing burrs, then slide the pipe into the press end until it seats fully against the fitting stop. Position the press tool jaw over the integrated press ring according to the tool manufacturer’s instructions and perform the press operation to form a permanent mechanical joint. Thread the G1" connection to the mating component using appropriate thread sealant or tape if required by the installation practice. Verify alignment and check for leaks after filling the system and applying operating pressure.

Usage recommendations

Use compatible press tools and jaws sized for 25 mm press fittings, follow the press tool manufacturer's procedure, and observe applicable local regulations and standards for potable water and heating installations. Inspect fittings before installation for damage, ensure correct pipe dimensions (25x2.5 mm), and test the completed system at recommended test pressures before commissioning.
