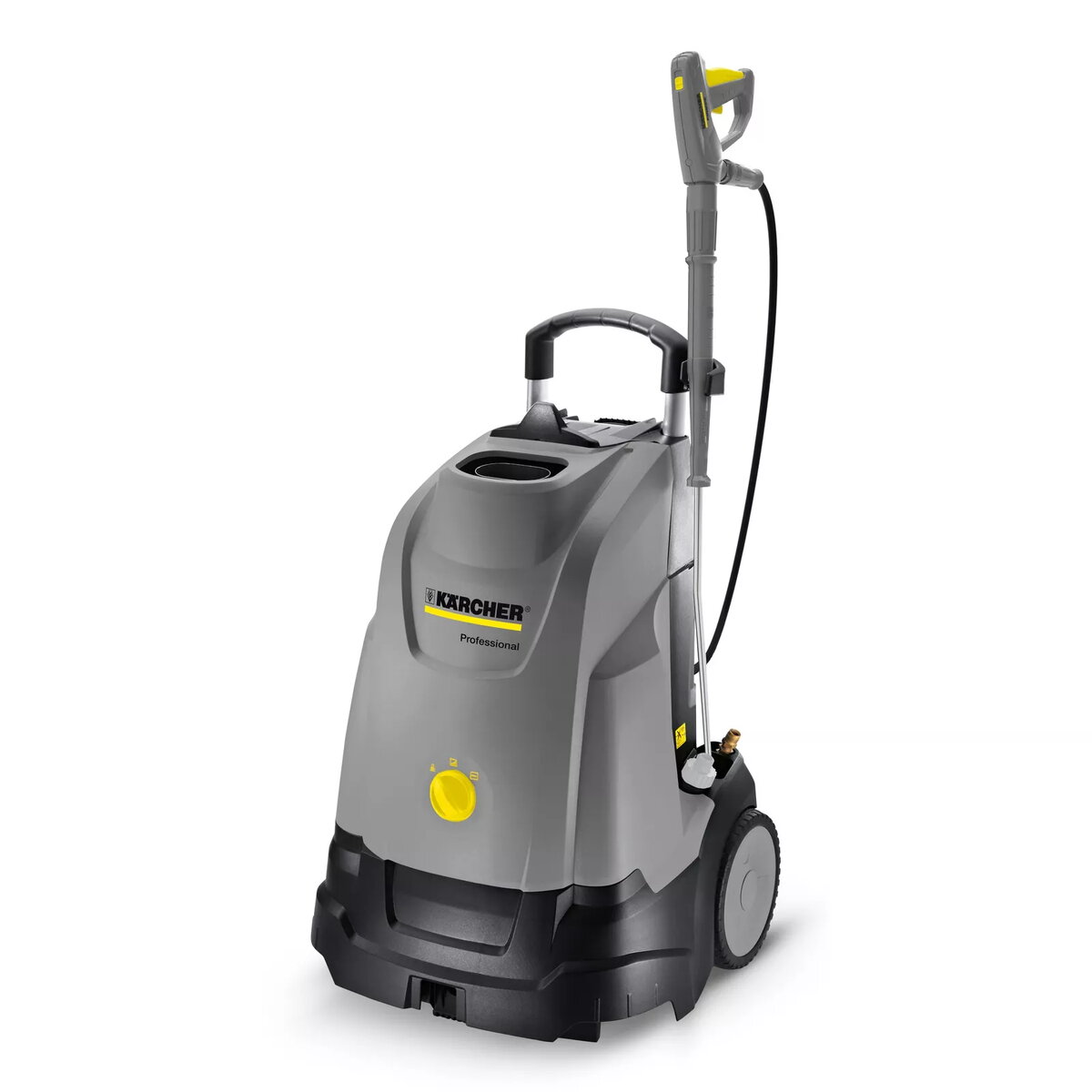

Pressure Washer Kärcher HDS 5/15 U

The Kärcher HDS 5/15 U is an entry-level hot water high-pressure cleaner with an upright, compact design that reduces weight and overall dimensions. The horizontal arrangement of components and the large wheels with a push handle ensure easy transport in estate cars and good mobility over uneven surfaces. Cleaning performance is achieved through a combination of patented nozzle technology, a turbo blower and an efficient pump; the unit includes a 6.5 L fuel tank and delivers up to 150 bar maximum working pressure.

Advantages

The machine combines compact dimensions and reduced weight with effective hot-water cleaning performance. EASY!Force high-pressure gun uses the recoil of the high-pressure jet to eliminate holding force for the operator, while EASY!Lock quick-release fastenings speed up assembly and disassembly. The design also offers practical storage options for the hose and spray lance, and a connected electrical load compatible with 230 V/50 Hz supply.

Suitable for

• Light to medium-duty outdoor and industrial cleaning
• Cleaning of vehicles, machinery and work areas requiring hot-water treatment
• Sites where compact transport and mobility over uneven ground are needed

Key specifications

• Maximum working pressure: 150 bar
• Fuel tank capacity: 6.5 L
• Connected electrical load: 2700 W (230 V, 50 Hz)
• Fuel consumption at full load: 2.4 kg/h (heating oil/gas)
• Weight: 74 kg
• Dimensions (W × D × H): 620 × 620 × 990 mm

How to use

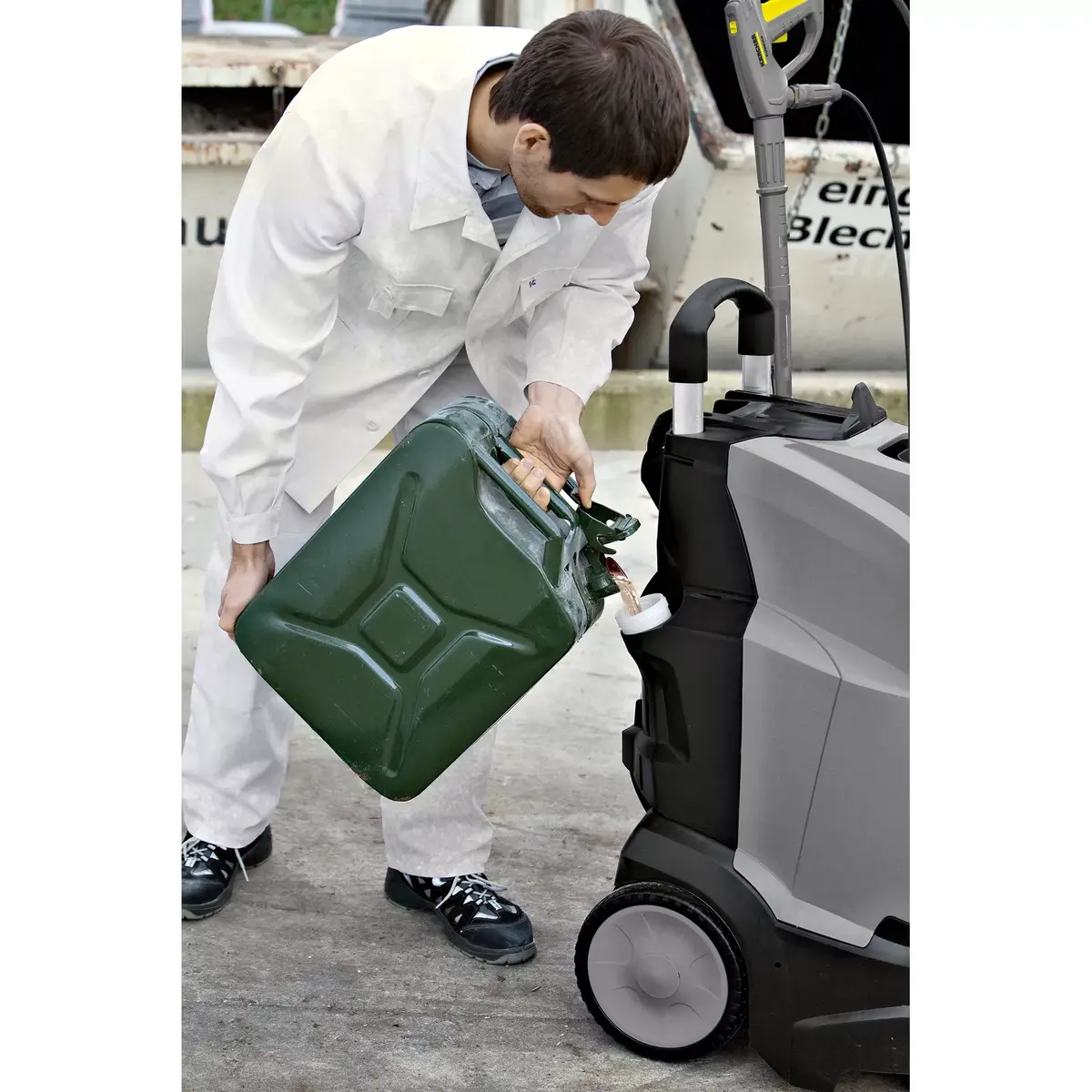

Position the machine on a stable, level surface and connect it to a 230 V/50 Hz power supply. Fill the fuel tank with the recommended heating oil or gas and check all fluid levels before starting. Attach the high-pressure hose and spray lance using the EASY!Lock quick-release fastenings, and operate the unit using the controls provided. For effective hot-water cleaning, select the appropriate nozzle and maintain the correct distance and angle to the surface being cleaned. After use, switch off the unit, relieve pressure, drain residual water if required and store the hose and lance in the designated holders.

Usage recommendations

Use the EASY!Force gun to reduce operator fatigue during extended use, inspect nozzles and connections regularly for wear, and follow local regulations for disposal of fuel and wastewater. For best results on stubborn grime, apply hot-water cleaning at an appropriate nozzle setting and keep a safe working distance to protect surfaces.
