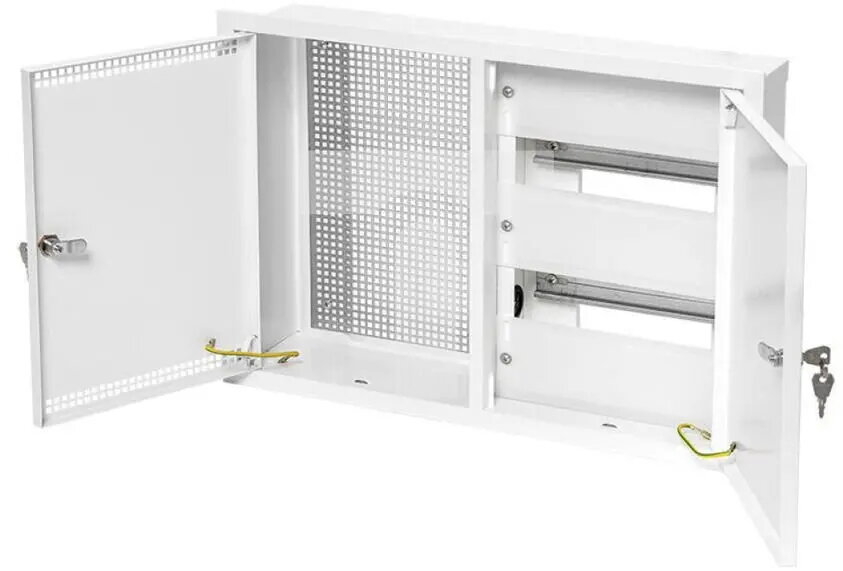

The KARWASZ MRP-24Z is a professional-grade flush-mounted modular distribution board engineered for secure and organized electrical installations. Designed to accommodate up to 24 modules across two rows, this enclosure provides a reliable housing solution for circuit breakers, residual current devices, and other modular components. Its robust steel construction ensures long-term durability, while the integrated mounting plate offers flexibility for custom component arrangement within residential or commercial electrical systems.
Advantages
The primary benefit of this distribution board is its sturdy steel construction, which provides excellent mechanical protection for internal electrical components. The flush-mounted design allows for a clean, aesthetic integration into walls, saving valuable space in hallways or utility rooms. With a capacity of 2x12 modules, it offers sufficient space for standard home or office electrical circuits. The inclusion of a dedicated mounting plate simplifies the installation process, allowing for precise positioning of devices and ensuring a tidy wiring layout that meets safety standards.
Suitable for
- Residential electrical distribution systems
- Commercial office building circuit management
- Installation of modular DIN-rail devices
- Organizing circuit breakers and RCDs in wall-recessed setups
When it may not be suitable
This distribution board is rated IP30, meaning it is intended for indoor use in dry environments only. It is not suitable for outdoor installations or areas exposed to moisture, dust, or high humidity, as it does not provide protection against water ingress.
Key specifications
- Capacity: 24 modules (2 rows of 12)
- Mounting type: Flush-mounted
- Material: Steel
- Protection rating: IP30
- Included: Mounting plate
How to use
The installation should be performed by a qualified electrician in accordance with local electrical codes. First, prepare the wall recess according to the dimensions of the enclosure. Secure the steel housing into the wall cavity, ensuring it is level and stable. Once the housing is fixed, mount the DIN-rail components onto the provided mounting plate. Connect the electrical wiring to the breakers, ensuring all terminals are tightened to the manufacturer's torque specifications. Finally, attach the front cover to complete the installation.
What to consider before purchase
- Verify the wall depth to ensure the flush-mount housing fits correctly.
- Confirm that the IP30 rating is sufficient for your specific indoor environment.
- Ensure the 24-module capacity meets your current and future circuit requirements.
- Check that the dimensions align with your wall cutout plans.
Usage recommendations
Ensure that all electrical connections are inspected for tightness and that the distribution board is properly grounded before energizing the system. Regularly check the internal components for signs of wear or overheating to maintain optimal safety.
