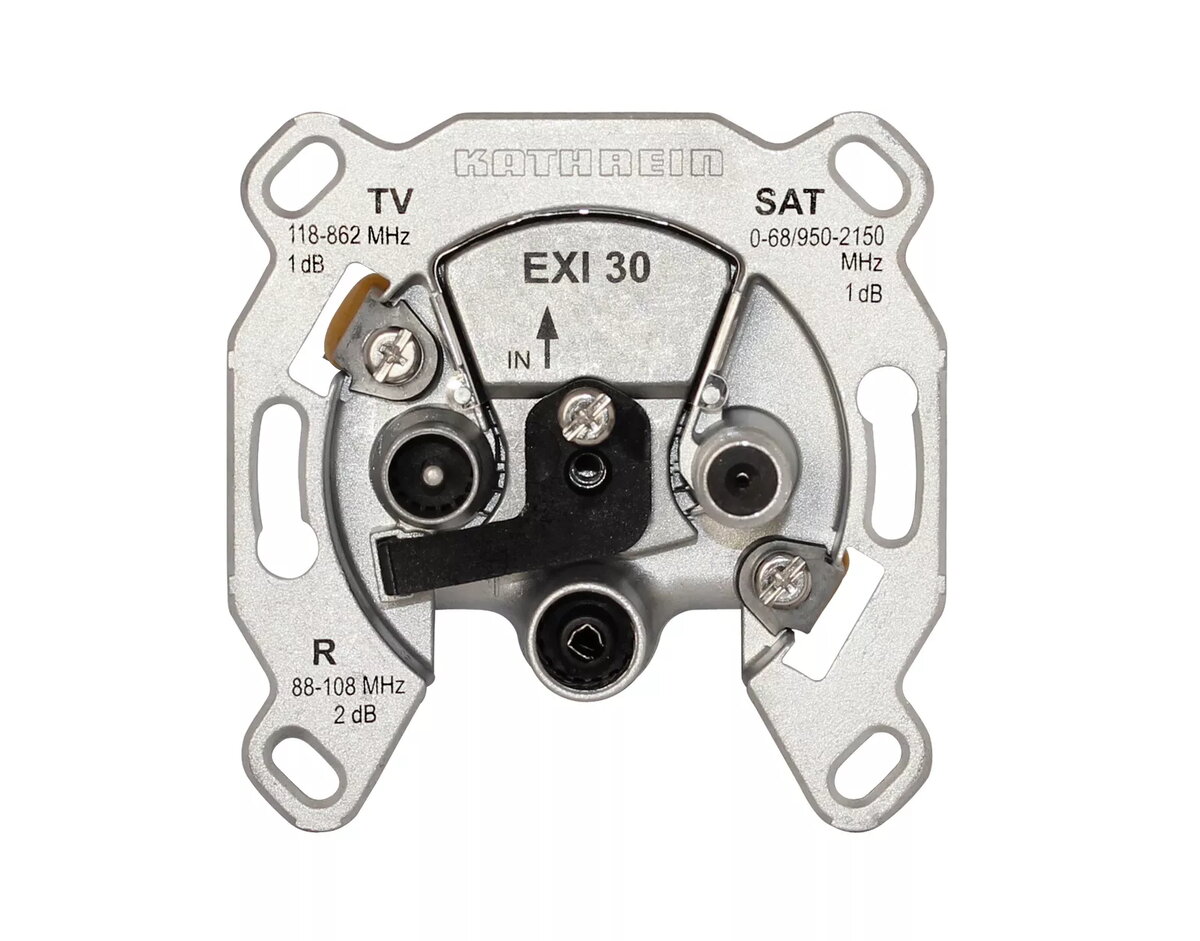

Socket outlet SAT + TV + Radio Kathrein EXI 30

The Kathrein EXI 30 socket outlet provides SAT, TV and radio connections in a single metallic unit suitable for stub and star-wired in-house distribution systems. It supports Kathrein K‑LAN home networking with EXI 01 and EXI 3508 devices, offers DC passage (max. 24 V / 400 mA) and passes 22 kHz and DiSEqC signals. The device features low attenuation (approx. 2 dB) and selective filtering for TV and radio to ensure optimal reception, while an ingress-noise blocking function reduces unwanted interference. A robust die‑cast housing and screw-and-claw fixing make it compatible with in-wall outlet boxes with diameters of 55–65 mm and most installation programs.

Advantages

The metal construction and die-cast housing deliver mechanical durability and stable shielding for improved signal integrity. Low insertion loss (≈2 dB) preserves signal strength across SAT, TV and radio paths. Selective filtering optimises reception parameters for TV and radio, while ingress noise blocking prevents backward irradiation of interference from subscriber equipment. Built-in DC passage and support for 22 kHz and DiSEqC enable seamless operation with power-fed LNBs and control signals. Standard screw-and-claw mounting ensures compatibility with common in-wall installation boxes.

Suitable for

• Residential SAT, TV and radio outlet in stub or star-wired distribution systems
• Installations requiring K-LAN integration with EXI 01 or EXI 3508
• Setups where DC passage and DiSEqC/22 kHz signalling are needed
• In-wall mounting in outlet boxes with 55–65 mm diameter

Key specifications

• Connections: SAT + TV + Radio
• Attenuation: approx. 2 dB
• DC passage: max. 24 V / 400 mA
• Control signals supported: 22 kHz, DiSEqC
• Ingress noise blocking: yes
• Housing: robust die-cast metal
• Mounting: screw and claw fixing, for 55–65 mm in-wall boxes
• Compatibility: for stub and star-wired in-house distribution; compatible with most installation programmes

How to use

Mount the outlet into an appropriate in-wall box (55–65 mm diameter) using the screw-and-claw fixing. Connect the SAT, TV and radio coaxial cables to their corresponding terminals ensuring correct polarity and secure fittings. If using K‑LAN devices such as EXI 01 or EXI 3508, connect according to the manufacturer’s wiring schemes. Ensure any powered LNBs or other devices drawing power through the SAT line do not exceed the 24 V / 400 mA limit. Verify DiSEqC and 22 kHz control signals operate correctly after installation.

Usage recommendations

For optimal reception, use high-quality coaxial cables and maintain tight, corrosion-free connections. Avoid exceeding the specified DC current and voltage to prevent equipment damage. When integrating with K‑LAN or external control devices, follow Kathrein product documentation to ensure correct signal routing and compatibility.
