header-product KVM Switch ATEN 16-Port USB - HDMI
738.49 €

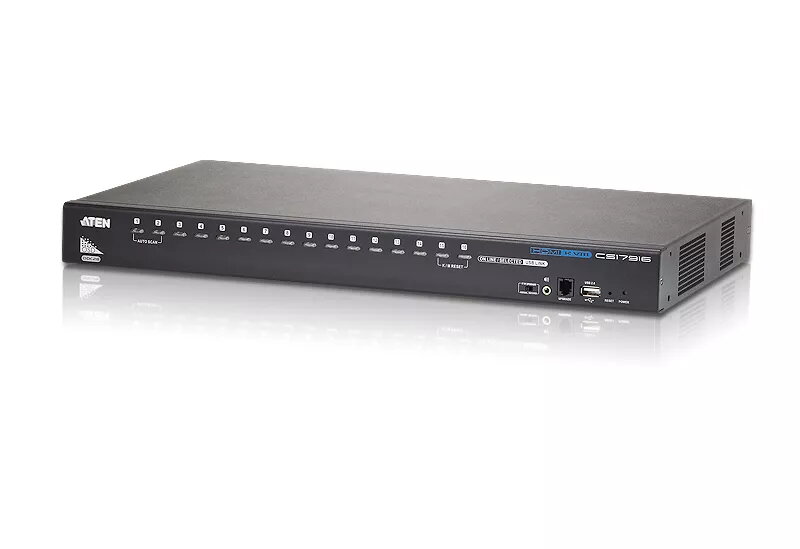

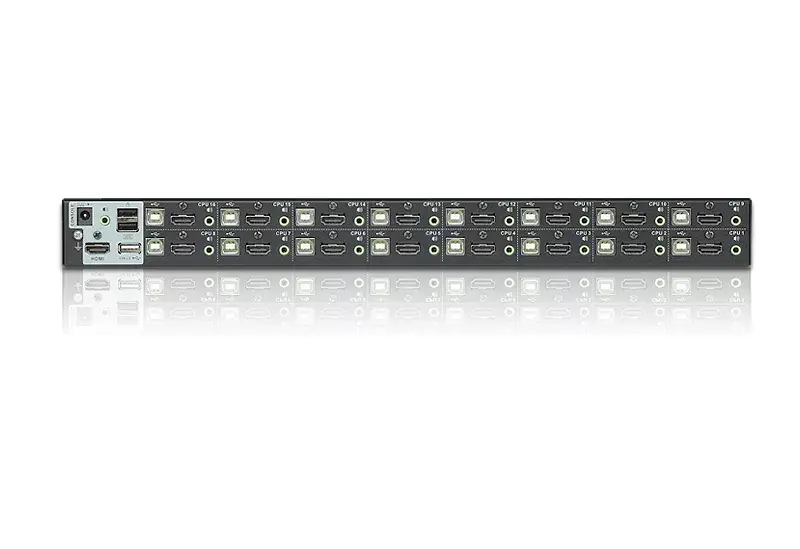

KVM Switch ATEN 16-Port USB - HDMI

KVM Switch ATEN 16-Port USB - HDMI Photo 1
KVM Switch ATEN 16-Port USB - HDMI Photo 2
KVM Switch ATEN 16-Port USB - HDMI Photo 3
KVM Switch ATEN 16-Port USB - HDMI Photo 1
KVM Switch ATEN 16-Port USB - HDMI Photo 2
KVM Switch ATEN 16-Port USB - HDMI Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

KVM Switch ATEN 16-Port USB - HDMI

{{email}}
You keep track of price changes

KVM Switch ATEN 16-Port USB - HDMI

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The ATEN 16-Port USB - HDMI KVM Switch allows you to control up to 16 computers from a single keyboard, mouse, and monitor setup. It supports HDMI video output with a maximum resolution of 1920 x 1200 pixels at 60 Hz, ensuring high-quality visuals. The switch features USB ports for keyboard and mouse connections, and its robust metal housing provides durability. With a compact design, it measures 432.4 mm in width, 257.2 mm in depth, and 44 mm in height. The device operates on a 5V DC power supply with a typical power consumption of 8.66 W.
Available for order: 8 pcs.
Warranty: 2 Years
SKU: 432798
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
24.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
29.07.2026 {{selectedOffer.courierDeliveryString}}
From 5.06 € (Weight: 5.10 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
29.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 246.16 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities
36 months installment: from 20.51 euros per month
Leasing for legal entities: from 25.7 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ATEN CS17916 16-port USB HDMI KVM Switch consolidates control of up to 16 HDMI-equipped computers to a single USB keyboard, USB mouse and one monitor. Designed for rack installation, the switch provides HDMI video output with support for up to 1920 x 1200 at 60 Hz, a sturdy metal housing and a compact footprint (432.4 mm × 257.2 mm × 44 mm). The package includes the KVM unit with rack mounting kit, two custom 1.8 m USB–HDMI KVM cables, a firmware upgrade cable, power cord, power adapter, foot pads and user instructions.

Advantages

The ATEN 16-Port USB–HDMI KVM Switch reduces desktop clutter by allowing one keyboard, one mouse and one monitor to manage 16 computers. Its HDMI video support delivers clear output at up to 1920 x 1200 @ 60 Hz. USB connectivity for keyboard and mouse ensures compatibility with most peripherals, while the metal chassis and rack-mount kit provide robust installation options for server rooms or workstations. The included cables and accessories enable immediate setup out of the box.

Suitable for

  • Server rooms and data centers requiring centralized console access
  • IT maintenance stations and control rooms
  • Workstations that need to switch between multiple HDMI computers
  • Environments where rack-mounted compact KVM solutions are preferred

Key specifications

  • Brand: ATEN
  • Model: CS17916 (16-port USB–HDMI KVM Switch)
  • Video output: HDMI, up to 1920 x 1200 @ 60 Hz
  • Keyboard / Mouse ports: USB
  • Number of computers controlled: 16
  • Power: DC 5 V, typical consumption 8.66 W
  • Dimensions (W × D × H): 432.4 mm × 257.2 mm × 44 mm
  • Weight: 5.103 kg
  • Colour: Black
  • EAN: 4719264641602
  • Package contents: CS17916 unit with rack mounting kit, 2 × 2L-7D02UH 1.8 m USB–HDMI KVM cables, LIN5-04A2-J11G firmware upgrade cable, LIN2-418K-E12G power cord, 0AD8-8005-40MG power adapter, foot pad set (4 pcs), user instructions

How to use

Mount the CS17916 in a rack using the supplied mounting kit or place it on a stable surface using the foot pads. Connect each computer to the KVM switch using the supplied 1.8 m USB–HDMI KVM cable sets, attaching HDMI for video and USB for keyboard/mouse signals. Attach your console (HDMI monitor, USB keyboard and USB mouse) to the front-panel console ports. Connect the power cord and adapter, then power on the KVM and connected computers. Use the switch’s front-panel controls, hotkeys or on-screen display (if supported) to select and switch between connected computers.

Usage recommendations

For reliable HDMI performance, use the included certified USB–HDMI KVM cables and ensure connected computers are set to output a resolution up to 1920 x 1200 @ 60 Hz. Place the unit in a ventilated rack space to maintain proper cooling and follow firmware upgrade instructions when prompted to ensure compatibility and stability.

Specifications

Keyboard port type:
USB
Mouse port type:
USB
Video port type:
HDMI
Weight:
5.103 kg
Number of computers controlled:
16
Product colour:
Black
All features

Packaging content

Manual:
Yes
Quick installation guide:
Yes

Ports & interfaces

Headphone outputs:
17
DC-in jack:
Yes
Keyboard port type:
USB
Mouse port type:
USB
Video port type:
HDMI
Number of computers controlled:
16
HDMI ports quantity:
16
Audio connections:
Yes
Number of microphone inputs:
1
USB hub:
Yes
Console ports:
3.5mm headphone, 3.5mm mic, HDMI, USB A
USB 2.0 Type-B ports quantity:
16
USB 2.0 Type-A hub ports quantity:
2

Performance

Maximum resolution:
1920 x 1200
Scan interval:
1, 5, 255
HD type:
WUXGA
Video bandwidth:
60 Hz

Display

Built-in display:
No

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
8.66 W
Power source:
DC
Input voltage:
5

Operational conditions

Operating relative humidity (H-H):
0 - 80
Storage temperature (T-T):
-20 - 60
Operating temperature (T-T):
0 - 50
Storage relative humidity (H-H):
0 - 80

Logistics data

Master (outer) case height:
348 mm
Master (outer) case width:
427 mm
Master (outer) case gross weight:
18050 g
Master (outer) case length:
519 mm
Products per master (outer) case:
3 pc(s)
Master (outer) case net weight:
15309 g
Harmonized System (HS) code:
85176200

Packaging data

Package weight:
5682 g
Package depth:
499 mm
Package height:
324 mm
Package width:
133 mm

Weight & dimensions

Weight:
5.103 kg
Height:
44 mm
Width:
432.4 mm
Depth:
257.2 mm

Design

LED indicators:
Y
Product colour:
Black
Housing material:
Metal

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}

Customer reviews

Customer questions

FAQ

How much does the KVM Switch ATEN 16-Port USB - HDMI cost, and is it available for purchase?

The price is 738.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 8 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 24.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can KVM Switch ATEN 16-Port USB - HDMI be purchased with a lease?

Yes, the purchase is available both on credit and with an interest-free installment plan. We work with leading banks and leasing companies in Latvia, allowing you to make your purchase on convenient terms — with a minimal down payment and a repayment period from 3 to 36 months. You can apply for credit or installments for the KVM Switch ATEN 16-Port USB - HDMI online, and the application process is as simple as possible:
  • Select the product on the website and add it to your cart;
  • When placing your order, choose the payment method “Installments”;
  • Fill in the required details for the lending partner;
  • Receive a decision within a few minutes.
For more information about available payment options, interest-free installment terms, and credit conditions in Latvia, please visit the Payment page.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All ATEN products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized ATEN service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: keyboard port type, mouse port type, video port type, weight, number of computers controlled, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for KVM Switch ATEN 16-Port USB - HDMI?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
