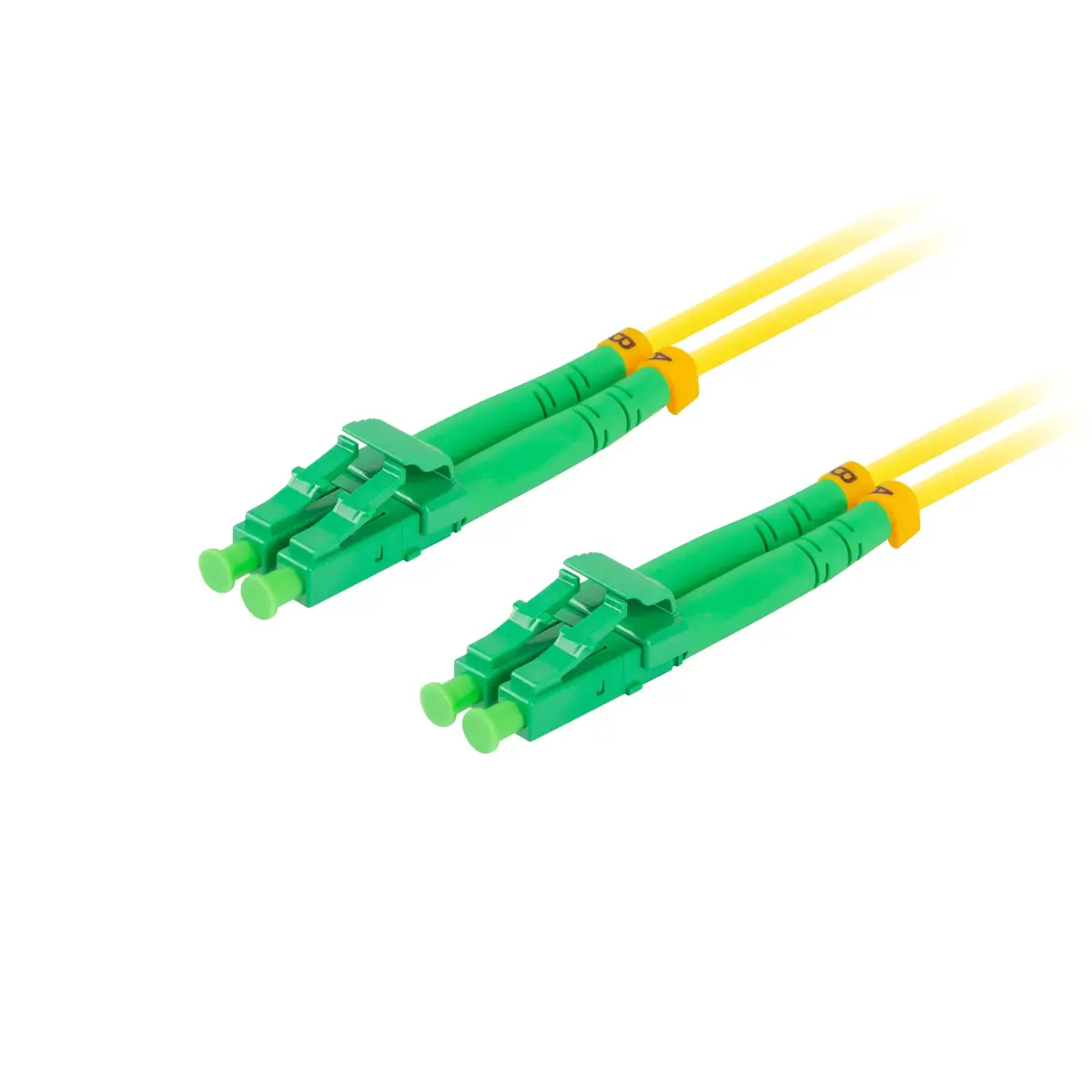

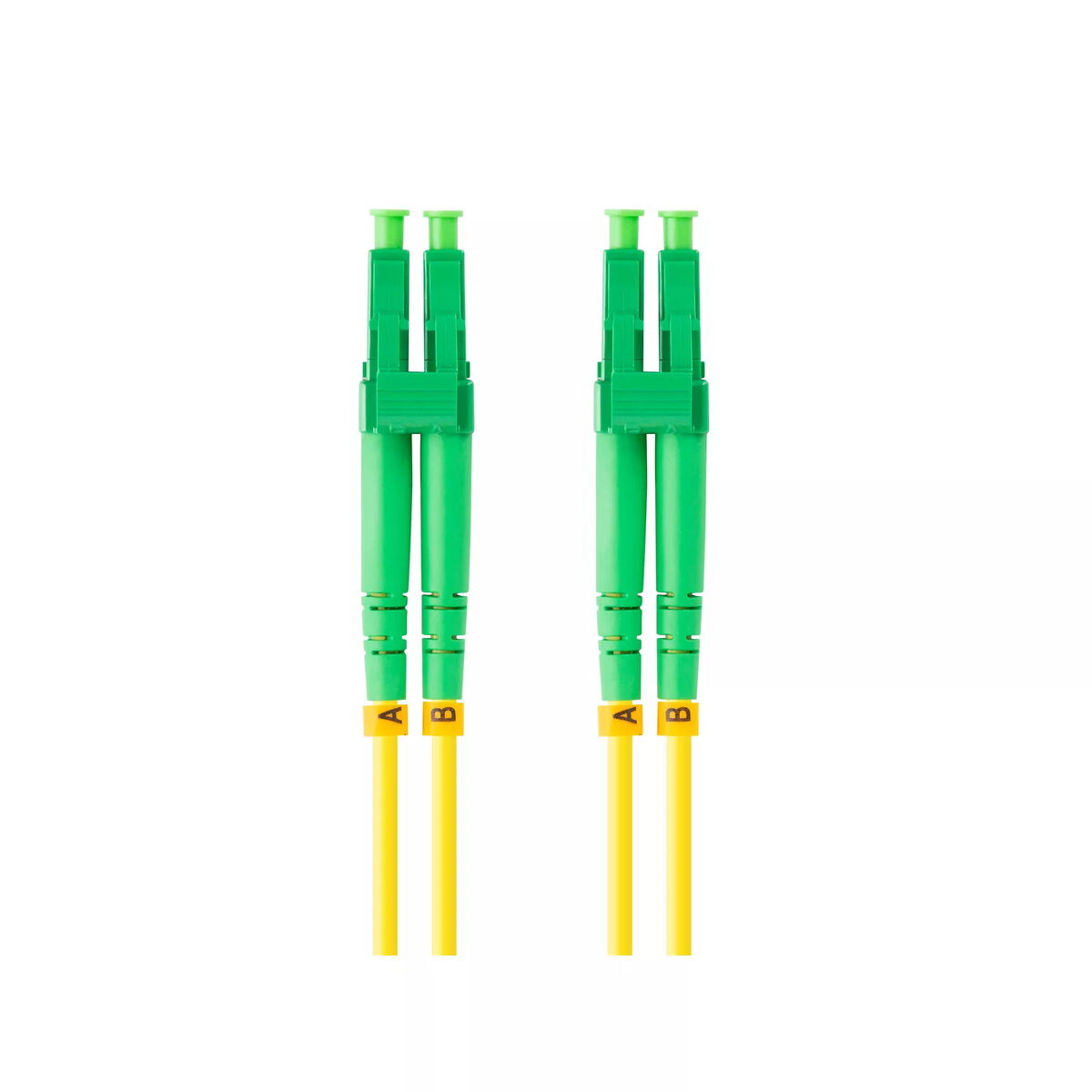

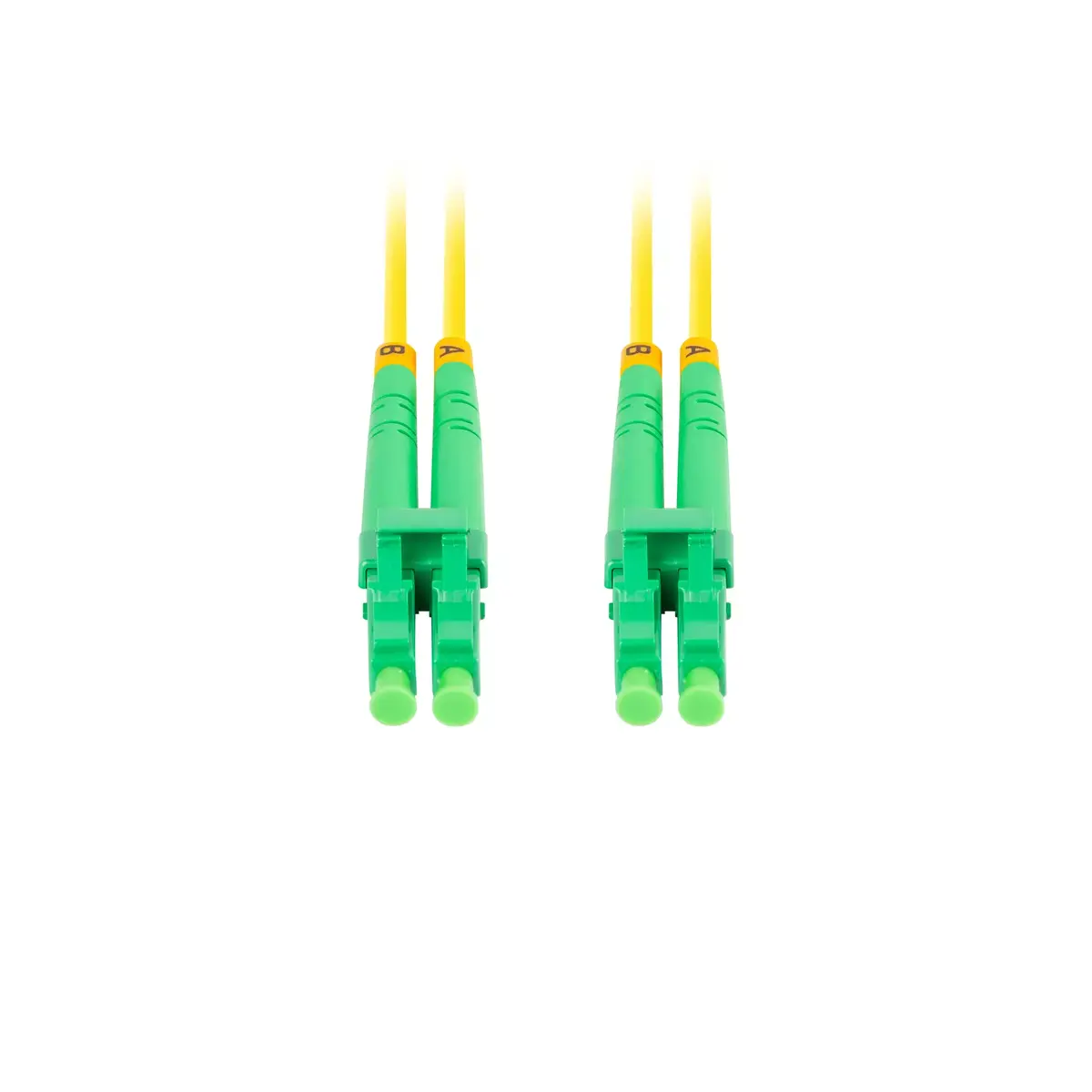

Fibre optic cable LANBERG FO-LALA-SD11-0010-YE, singlemode G.657.A1, LC–LC, 1 m, yellow

LANBERG FO-LALA-SD11-0010-YE is a 1 m singlemode fibre optic patch cable with G.657.A1 bend-insensitive fibre and LC–LC APC connectors. The duplex 9/125 µm construction in a yellow LSZH jacket is intended for identification in racks and high-density environments. With low insertion loss and high return loss it supports reliable singlemode transmission for fibre links and InfiniBand connections where compact LC terminations and tight bend tolerance are required.

Advantages

This LC–LC singlemode cable uses G.657.A1 bend-insensitive fibre, allowing a minimum bend radius of 10 mm for flexible routing in cabinets and tight spaces. APC polished LC connectors provide improved return loss performance (> 60 dB) while maintaining low insertion loss (< 0.25 dB). The LSZH outer jacket reduces smoke and toxic gas generation in case of fire and the bright yellow color makes identification and cable management in multi-fibre installations straightforward.

Suitable for

• Short interconnects in data centre racks and patch panels
• Singlemode fibre links and InfiniBand connections requiring LC terminations
• Environments with tight cable bends or limited routing space
• Installations where low-smoke zero-halogen jacket is required

Key specifications

• Fiber type: single-mode (G.657.A1), 9/125 µm
• Connector type: LC–LC with APC polishing
• Cable construction: duplex, cable diameter 3.0 mm
• Jacket material: LSZH, color: yellow
• Insertion loss: < 0.25 dB
• Return loss: > 60 dB
• Operating temperature range: -40 to 85 °C
• Minimum bend radius: 10 mm
• Length: 1 m

How to use

Connect each LC connector to the corresponding LC adapter or transceiver port, ensuring APC ferrules are correctly aligned to maintain return loss performance. Route the duplex cable following rack or conduit pathways, avoid sharp kinks and keep bends above the 10 mm minimum bend radius. For best performance, keep connectors clean and capped when not in use and inspect endfaces with a fibre inspection tool before mating.

Usage recommendations

For reliable links, clean LC–APC endfaces with approved fibre cleaning tools and perform insertion loss and return loss tests after installation. Use cable ties or management panels that do not compress the cable beyond its specified bend radius. In environments where fire safety standards require low smoke and halogen-free materials, install the LSZH-jacketed cable accordingly.
