Managed Switch Lancom Systems GS-3152X

Name: Managed Switch Lancom Systems GS-3152X 61488
Brand: Lancom
SKU: 2096961
Price: 15991.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Lancom Systems GS-3152X is a managed L3 Gigabit Ethernet switch with 48 RJ-45 ports supporting 10/100/1000 Mbps. It features a switching capacity of 176 Gbit/s and a MAC address table with 32,000 entries. Compliant with various IEEE networking standards, this 1U rack-mounted switch is ideal for efficient network management and high-performance connectivity.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 2096961

Manufacturer: Lancom

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 4.10 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 556.52 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

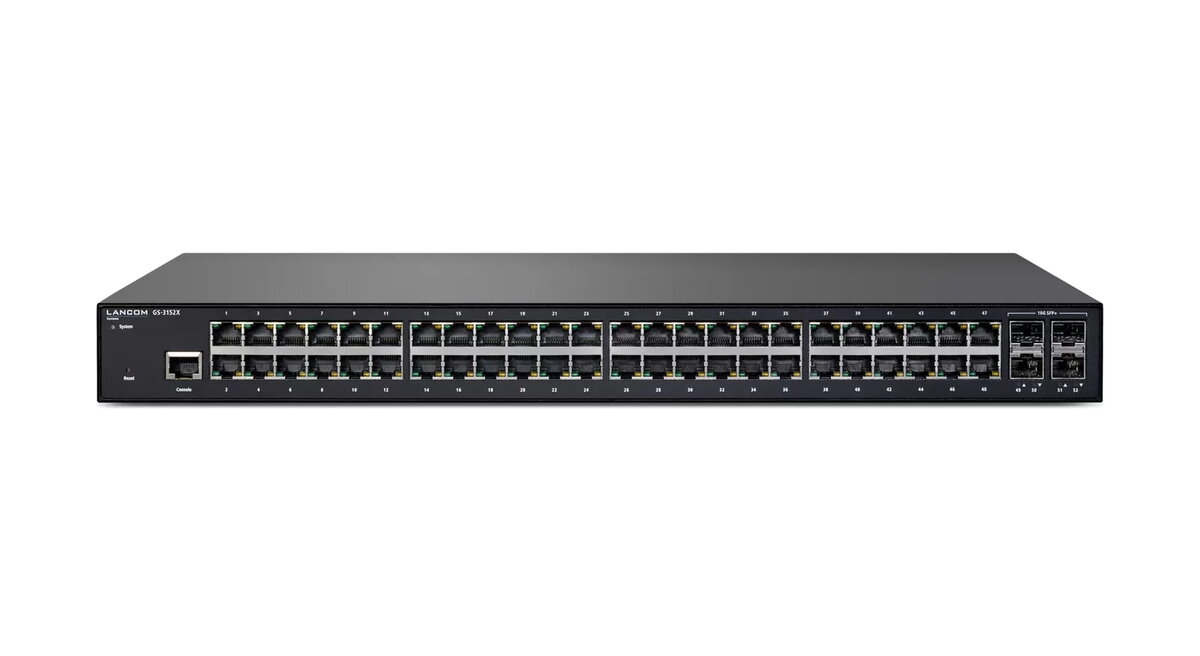

The Managed Switch Lancom Systems GS-3152X is a 1U rack-mounted, Layer 3 lite Gigabit Ethernet switch designed for environments requiring high port density and advanced management. It offers 48 Gigabit RJ-45 ports plus 4 SFP+ uplink ports with 10 Gbps support, a switching capacity of 176 Gbit/s and a MAC address table sized for 32,000 entries. The switch supports both IPv4 and IPv6 dual-stack operation and complies with a broad set of IEEE networking standards, making it suitable as an access switch in modern, cloud-orchestrated networks.

Advantages

The GS-3152X combines high port density and uplink bandwidth with basic Layer 3 features such as static routing and integrated DHCP server, enabling offload of routing tasks and centralized IP management. Managed operation and comprehensive security capabilities—including IEEE 802.1X port-based access control, SSH/SSL, SNMPv3 and TACACS+—support secure remote administration. Integration with LANCOM Management Cloud and SD‑LAN enables automated configuration and coordinated multi-site rollouts, reducing manual setup time.

Suitable for

Enterprise and campus access layer with many connected devices
Branch offices and multi-site networks requiring cloud-managed orchestration
Environments needing secure port access and centralized IP address assignment
Networks that demand 10 Gbps uplinks for aggregation or server connectivity

Key specifications

Form factor: 1U rack-mounted managed switch
Ports: 48 × Gigabit RJ-45 (10/100/1000) and 4 × SFP+ (10 Gbps)
Switching capacity: 176 Gbit/s
MAC address table: 32,000 entries
Layer: Layer 2 with basic Layer 3 features (static routing, DHCP server)
Weight: 4.1 kg
Colour: Black
Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3ad; IEEE 802.1Q, 802.1p, 802.1D, 802.1x, 802.1w, 802.1s, 802.1ad, 802.1ab; IEEE 802.3x

How to use

Install the GS-3152X in a standard 19-inch rack and connect power and network cabling according to rack layout and airflow recommendations. Use the SFP+ ports for aggregation links or high-speed uplinks and the 48 RJ-45 ports to connect endpoints, access points and edge devices. Configure basic networking parameters either via the local management interface or remotely using secure protocols (SSH, SSL, SNMPv3). For cloud orchestration, register and onboard the device in the LANCOM Management Cloud to enable SD‑LAN automated configuration and centralized management.

Usage recommendations

Place the switch in a temperature-controlled rack environment with proper ventilation and redundant power where available. When deploying in multi-site or large-scale environments, use the LANCOM Management Cloud to provision VLANs, access control (IEEE 802.1X) and static routes centrally, and reserve the SFP+ ports for uplinks to aggregation or core switches to maintain optimal throughput.

Specifications

10G support:: Yes
Weight:: 4.1 kg
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Switch type:: Managed
Basic switching RJ-45 Ethernet ports quantity:: 48
Networking standards:: IEEE 802.3x, IEEE 802.3z, IEEE 802.3u, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Product colour:: Black

All features

Logistics data

Harmonized System (HS) code:: 85176990

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Operating temperature (T-T):: 0 - 40

Power

AC input frequency:: 50 - 60
AC input voltage:: 110 - 230
Power consumption (max):: 65 W
Power supply included:: Yes

Certificates

Certification:: CE, FCC

Design

Rack mounting:: Yes
Form factor:: 1U
Product colour:: Black
Number of fans:: 1 fan(s)
Housing material:: Metal

Weight & dimensions

Weight:: 4.1 kg
Height:: 44 mm
Width:: 442 mm
Depth:: 300 mm

Data transmission

MAC address table:: 32000 entries
Switching capacity:: 176 Gbit/s
Jumbo frames support:: Yes
Jumbo frames:: 10240
Static route:: Yes

Network

Networking standards:: IEEE 802.3x, IEEE 802.3z, IEEE 802.3u, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Port mirroring:: Yes
Link aggregation:: Yes
Broadcast storm control:: Yes
Number of VLANs:: 4096
Spanning tree protocol:: Yes
VLAN support:: Yes
10G support:: Yes
Copper ethernet cabling technology:: 1000BASE-TX, 100BASE-T, 10BASE-T
Virtual LAN features:: Voice VLAN, Tagged VLAN, Port-based VLAN

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:: 48
Console port:: RJ-45
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 48
SFP+ module slots quantity:: 4

Packaging content

Cables included:: Serial, AC
Manual:: Yes
Quick start guide:: Yes
Rack mount kit:: Yes

Management features

Switch layer:: L3
Switch type:: Managed

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Performance

Firmware upgradeable:: Yes

Protocols

GARP VLAN Registration Protocol (GVRP):: Yes

Security

Security algorithms:: SSL/TLS, SSH, SNMPv3
Access Control List (ACL):: Yes
SSH/SSL support:: Yes
Authentication type:: AAA
Authentication:: Port-based authentication, MAC-based authentication, Guest VLAN
IGMP proxy:: Yes
DHCP features:: DHCP relay, DHCP client, DHCP server
