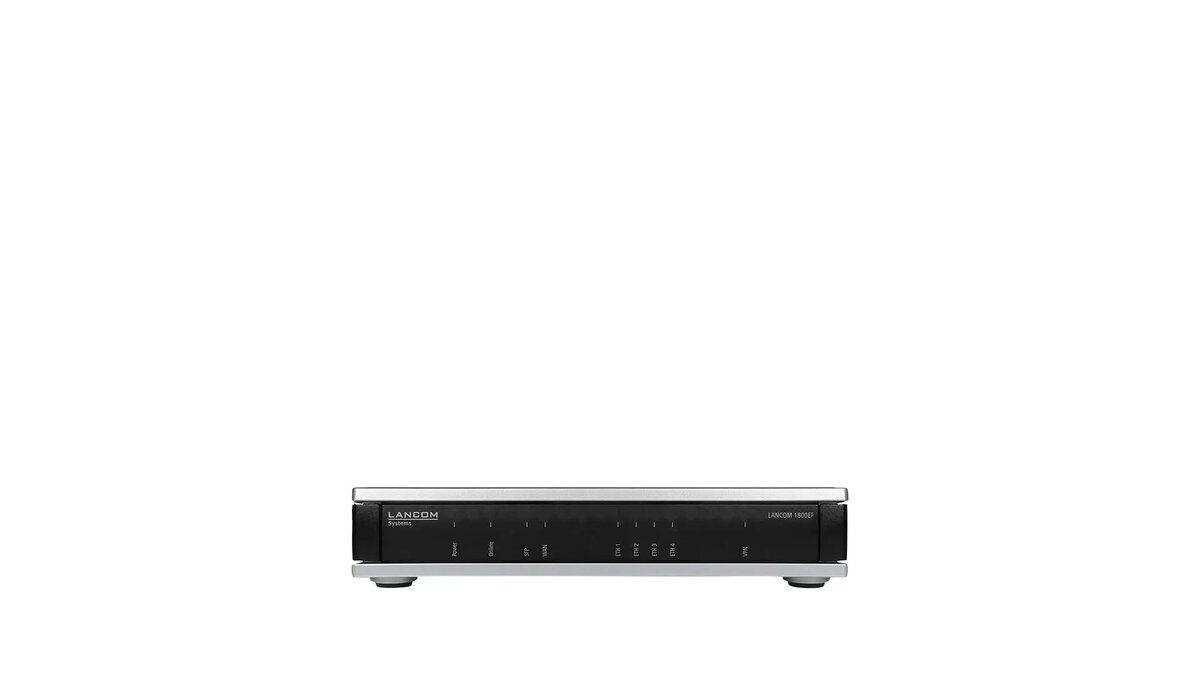

Router Lancom Systems LANCOM 1800EF (EU) — Ethernet WAN, 10/100/1000 LAN, USB‑C, Kensington lock

Serial interface type:

USB C

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

1 fan(s)

Power consumption (idle):

6 W

IGMP snooping:

Yes

Number of VLANs:

4096

Syslog:

Yes

Cable lock slot type:

Kensington

Password protection: The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.

Yes

Dynamic DNS (DDNS):

Yes

DHCPv6 snooping:

Yes

Multicast Listener Discovery (MLD) snooping:

Yes

Fixed SFP ports quantity:

1

Control display unit:

No

Load balancing:

Yes

PPTP/L2TP VPN tunnels (max):

5

Logistics data

Customs product code (TARIC):

85176200

Packaging data

Package weight: Weight of the packaged product.

1440 g

Package height: The distance from the top to the bottom of the packaging.

94 mm

Package depth: The distance from the front to the back of the packaging.

288 mm

Package width: The distance from one side of the packaging to the other.

385 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.45 kg

Height: The measurement of the product from head to foot or from base to top.

45 mm

Depth: The distance from the front to the back of something.

140 mm

Width: The measurement or extent of something from side to side.

210 mm

Operational conditions

Operating relative humidity (H-H):

0 - 95

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Power

Power consumption (max): The maximum amount of power used by the device.

15 W

Design

Country of origin: Country where the device is made. Aka Country of manufacture (COM).

Germany

Product colour: The colour e.g. red, blue, green, black, white.

Black, Silver

Features

Heat dissipation: The heat generated by the power supply.

60 BTU/h

Packaging content

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

Cables included:

LAN (RJ-45)

AC adapter included:

Yes

Certificates

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

CE, Federal Communications Commission (FCC), RCM

Security

Network address translation (NAT):

Yes

Access Control List (ACL):

Yes

Authentication method:

PAP, CHAP, MS-CHAP, MS-CHAPv2

Firewall security: Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.

Yes

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

3DES, SHA-512, SHA-384, SHA-256, SHA-1, MD5, FIPS 140, AES, 4096-bit RSA, 1024-bit RSA, 2048-bit RSA

Protocols

Routing protocols:

VRRP, BGP4, LISP, OSPFv2, RIP-2

DMZ support:

Yes

Ports & interfaces

WAN connection: A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations.

Ethernet (RJ-45)

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

4

Management features

Reset button:

Yes

Quality of Service (QoS) support:

Yes

Network

Multicast support:

Yes

VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.

Yes

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

100, 10, 1000

Cabling technology: Type of cable technology performance.

10/100/1000Base-T(X)

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1Q, IEEE 802.3az
