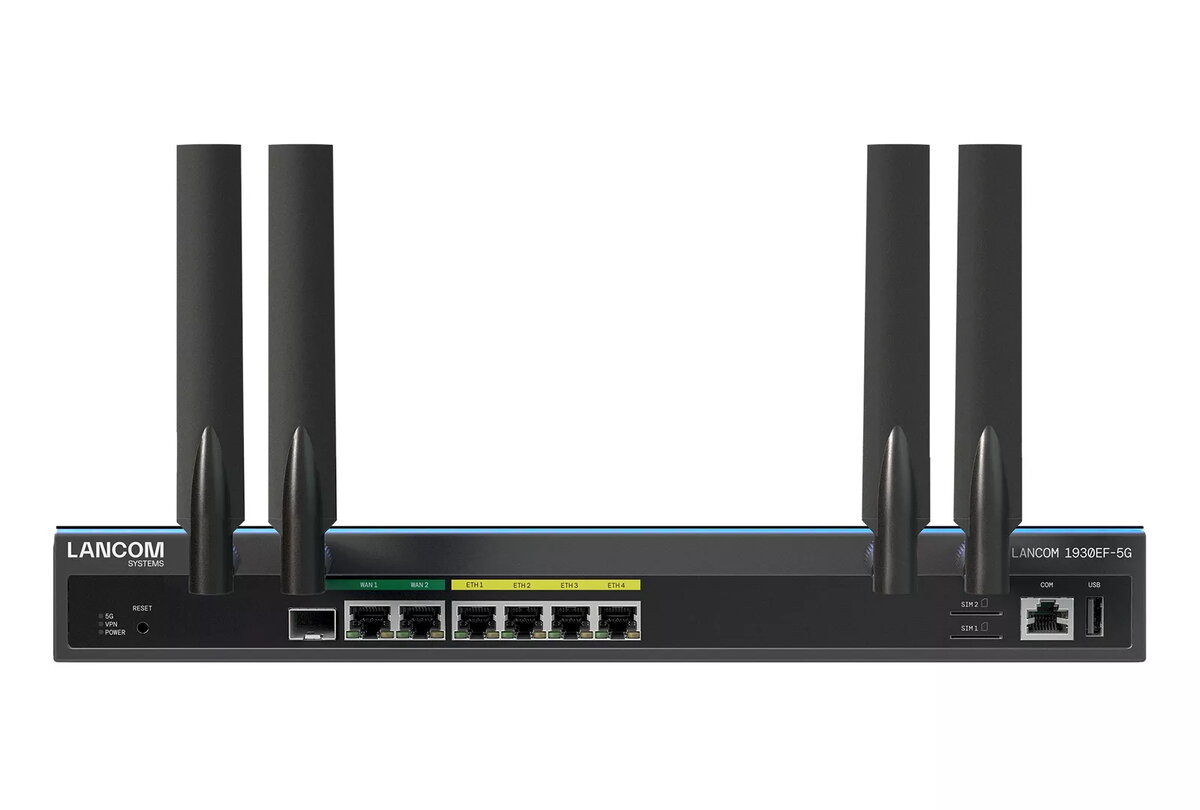

Router LANCOM 1930EF-5G Black Desktop/Wall mounting 5G

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

1 fan(s)

Mounting type: Type of mounting e.g. wall mounting.

Desktop/Wall mounting

Number of VLANs:

4096

Number of simultaneous SIM cards:

2

Console port:

RJ-45

SIM card type:

MiniSIM

Password protection: The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.

Yes

Dynamic DNS (DDNS):

Yes

Control display unit:

No

Other features

Input voltage: The voltage (V) which is required to power the product.

110 - 230

Input frequency: The frequency (Hz) which is required to power the product.

50 - 60

Logistics data

Customs product code (TARIC):

85176200

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

2.5 kg

Height: The measurement of the product from head to foot or from base to top.

44 mm

Depth: The distance from the front to the back of something.

253 mm

Width: The measurement or extent of something from side to side.

345 mm

Operational conditions

Operating relative humidity (H-H):

0 - 95

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Power

Power consumption (max): The maximum amount of power used by the device.

27 W

Antenna

Antennas quantity:

4

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.

External

Design

Country of origin: Country where the device is made. Aka Country of manufacture (COM).

Germany

Product colour: The colour e.g. red, blue, green, black, white.

Black

Features

Heat dissipation: The heat generated by the power supply.

92 BTU/h

Security

Network address translation (NAT):

Yes

Access Control List (ACL):

Yes

MAC address filtering: Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.

Yes

Firewall security: Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.

Yes

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

SNMP, SNMPv2, SNMPv3

Protocols

DHCP client: Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.

Yes

DHCP server: A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Yes

Ports & interfaces

WAN connection: A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations.

Ethernet (RJ-45)

Combo SFP ports quantity:

1

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

6

Management features

Quality of Service (QoS) support:

Yes

Mobile network

Data network: Telecommunications network that allows computers to exchange data.

UMTS, LTE, HSPA, 5G

GSM bands supported:

1800, 2600, 2100, 1900, 900, 850, 800

Mobile network generation:

5G

Network

VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.

Yes

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

1000, 100, 10

Cabling technology: Type of cable technology performance.

10/100/1000Base-T(X)

WAN connection

SIM card slot: Whether the device features a SIM card slot.

Yes
