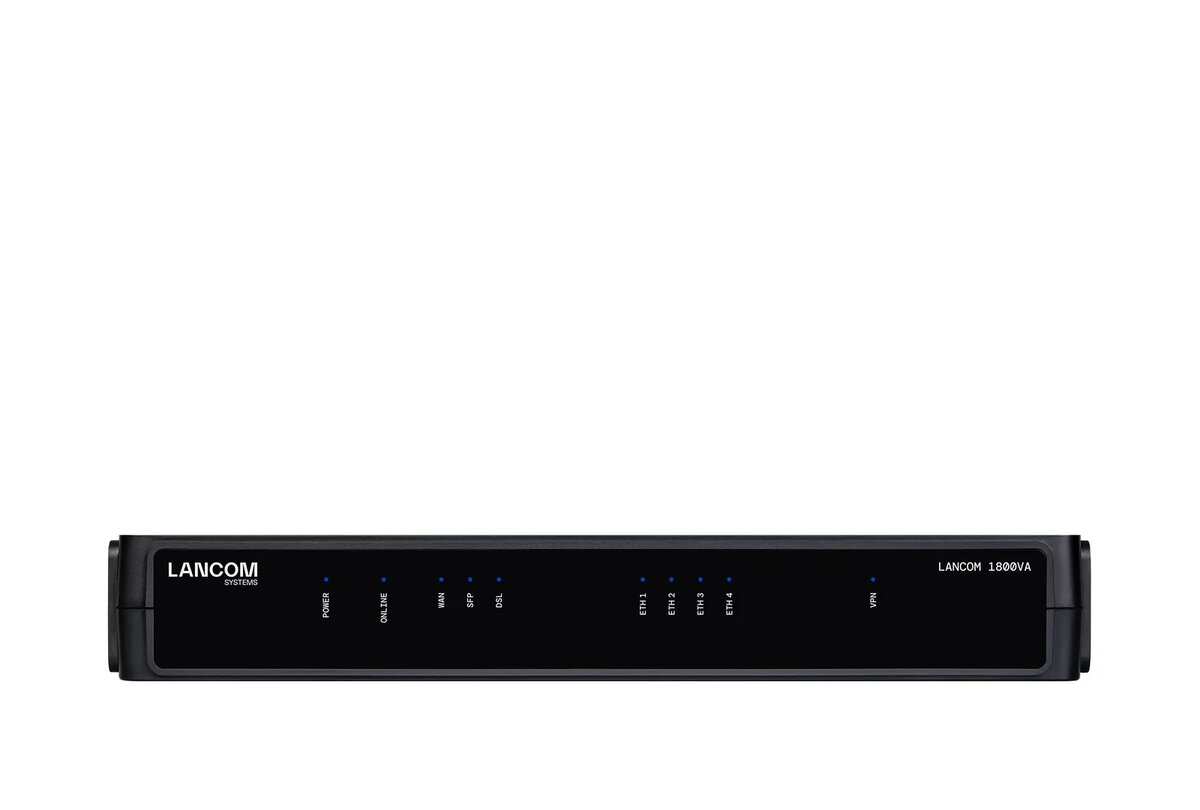

Gateway/Controller Lancom Systems 1800VA 10 100 1000 Mbit/s Black

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

IGMP snooping:

Yes

Syslog:

Yes

Dynamic DNS (DDNS):

Yes

DHCPv6 snooping:

Yes

Multicast Listener Discovery (MLD) snooping:

Yes

Control display unit:

No

Load balancing:

Yes

PPTP/L2TP VPN tunnels (max):

25

Other features

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

No

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.715 kg

Height: The measurement of the product from head to foot or from base to top.

44 mm

Depth: The distance from the front to the back of something.

190 mm

Width: The measurement or extent of something from side to side.

293 mm

Operational conditions

Operating relative humidity (H-H):

0 - 95

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Power

Power consumption (max): The maximum amount of power used by the device.

24 W

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

17 W

Antenna

Antennas quantity:

2

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.

External

Design

LED indicators:

Y

Product colour: The colour e.g. red, blue, green, black, white.

Black

Certificates

Sustainability compliance:

Yes

Packaging content

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

Cables included:

LAN (RJ-45)

AC adapter included:

Yes

Security

Access Control List (ACL):

Yes

MAC address filtering: Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.

Yes

Authentication method:

PAP, CHAP, MS-CHAP, MS-CHAPv2

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

AES-GCMP, 2048-bit RSA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-TLS, EAP-TTLS, FIPS 140, MSCHAPv2, PEAP, TKIP, WEP, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise, 4096-bit RSA, 1024-bit RSA, 802.1x RADIUS, AES-CCMP

Protocols

Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

Ethernet over GRE-Tunnel (EoGRE), L2TPv3, ARP-Lookup, LLDP, DHCP option 82, IPv6-Router-Advertisement-Snooping, DHCPv6-Snooping, LDRA (Lightweight DHCPv6 Relay Agent), Spanning Tree, Rapid Spanning Tree, ARP, Proxy ARP, BOOTP, DHCP, LACP

Management protocols:

SNMPv1,v2c,v3

Routing protocols:

OSPFv2, BGP4, LISP, RIP-2, VRRP

DMZ support:

Yes

DHCP client: Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.

Yes

DHCP server: A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Yes

Ports & interfaces

WAN connection: A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations.

Ethernet (RJ-45)

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

5

Management features

Reset button:

Yes

Traffic shaping:

Yes

Wireless LAN features

Modulation: Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.

256-QAM, 1024-QAM

Network

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

10, 100, 1000
