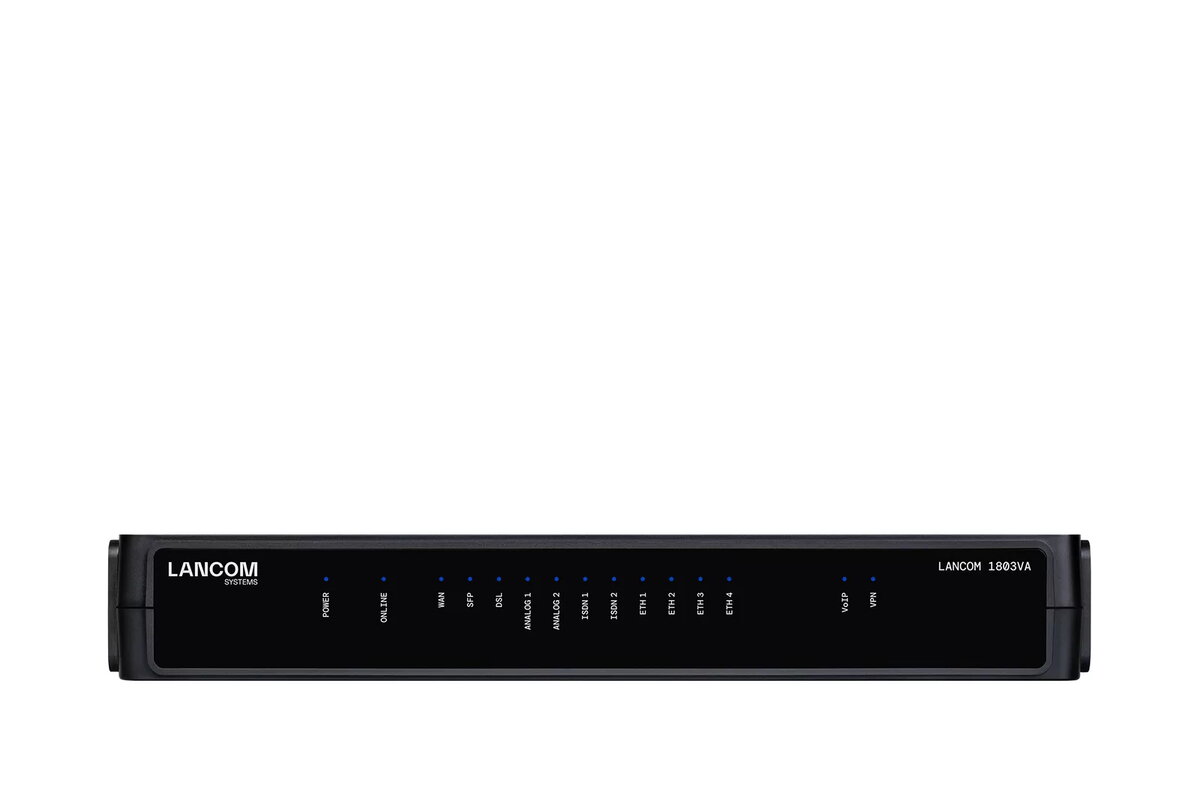

Router LANCOM 1803VA Black 1 Fan SNMP Ethernet 10 100 1000 Mbit/s

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

1 fan(s)

Power consumption (idle):

13 W

Number of VLANs:

4096

Syslog:

Yes

Password protection: The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.

Yes

Dynamic DNS (DDNS):

Yes

Control display unit:

No

Logistics data

Customs product code (TARIC):

85176200

Packaging data

Package height: The distance from the top to the bottom of the packaging.

110 mm

Package depth: The distance from the front to the back of the packaging.

320 mm

Package width: The distance from one side of the packaging to the other.

210 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.74 kg

Height: The measurement of the product from head to foot or from base to top.

44 mm

Depth: The distance from the front to the back of something.

190 mm

Width: The measurement or extent of something from side to side.

293 mm

Operational conditions

Operating relative humidity (H-H):

0 - 95

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Power

Power consumption (max): The maximum amount of power used by the device.

26 W

Design

Country of origin: Country where the device is made. Aka Country of manufacture (COM).

Germany

LED indicators:

Y

Product colour: The colour e.g. red, blue, green, black, white.

Black

Features

Heat dissipation: The heat generated by the power supply.

104 BTU/h

Packaging content

Manual:

Yes

AC adapter included:

Yes

Security

Network address translation (NAT):

Yes

Access Control List (ACL):

Yes

MAC address filtering: Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.

Yes

Authentication method:

PAP, CHAP, MS-CHAP, MS-CHAPv2

Firewall security: Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.

Yes

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

AES, SHA-256, SHA-384, SHA-512, SHA-1, 3DES, FIPS 140

Protocols

Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

Ethernet over GRE-Tunnel (EoGRE), L2TPv3, ARP-Lookup, LLDP, DHCP option 82, IPv6-Router-Advertisement-Snooping, DHCPv6-Snooping, LDRA (Lightweight DHCPv6 Relay Agent), Spanning Tree, Rapid Spanning Tree, ARP, Proxy ARP, BOOTP, DHCP, LACP

Management protocols:

SNMPv1,v2c,v3

VoIP protocols:

SIP ALG

DMZ support:

Yes

DHCP client: Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.

Yes

DHCP server: A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Yes

Ports & interfaces

WAN connection: A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations.

Ethernet (RJ-45)

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

5

Management features

Reset button:

Yes

Web-based management: Using a website/web application to manage something.

Yes

Network

Multicast support:

Yes

VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.

Yes

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

100, 1000, 10

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1Q, IEEE 802.3az
