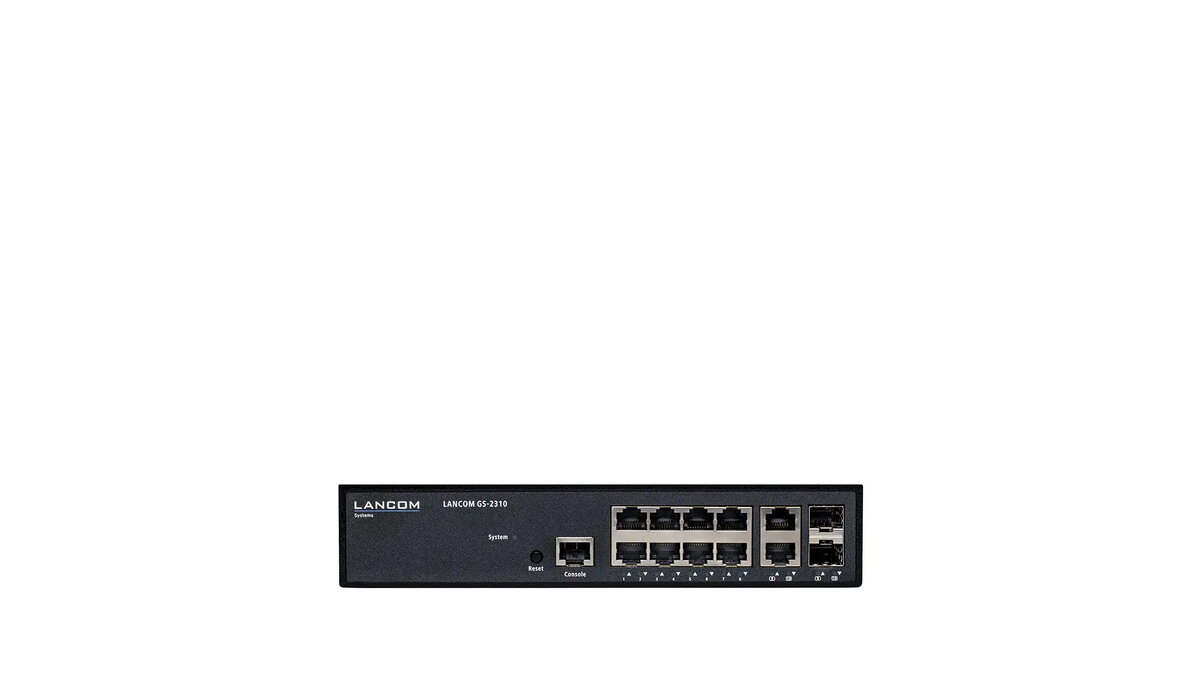

Lancom Systems LANCOM GS-2310 managed L2 switch

Name: Managed L2 Switch Lancom Systems 61492
Brand: Lancom
SKU: 12086175
Price: 300.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Managed L2 Switch Lancom Systems LANCOM GS-2310 — 10x Gigabit Ethernet (10/100/1000), RJ-45 console, 20 Gbit/s switching, 1U rack

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The LANCOM GS-2310 is a managed Layer 2 switch offering 10 Gigabit-capable RJ-45 ports (10/100/1000) for Ethernet connectivity, an RJ-45 console port, and a MAC address table of 8,000 entries. With 20 Gbit/s switching capacity, IEEE 802.1Q/VLAN, spanning tree, QoS and other standard protocols support, AC power input and 1U rack form factor, it suits small to medium business access and aggregation tasks.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 12086175

Manufacturer: Lancom

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.06 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LANCOM GS-2310 is a managed Layer 2 switch designed for small and medium business access and aggregation tasks. It provides ten Gigabit-capable RJ-45 Ethernet ports (10/100/1000) plus an RJ-45 console port in a compact 1U rack form factor. With a switching capacity of 20 Gbit/s and a MAC address table of 8,000 entries, the device supports common enterprise networking standards such as IEEE 802.1Q VLANs, spanning tree variants and QoS to ensure predictable traffic handling and segmentation.

Advantages

The LANCOM GS-2310 offers full managed-switch functionality in a fanless, silent housing suitable for office environments. Its 10 Gigabit-capable copper ports deliver stable throughput under load while the switch supports secure remote management (SSH, SSL, SNMPv3) and authentication/authorization via TACACS+. Dual-stack IPv4/IPv6 support and configurable port-based access control (IEEE 802.1X, including MAC-based methods) enable secure and future-proof deployments. Centralized orchestration via LANCOM Management Cloud (SD-LAN) simplifies mass configuration and automated roll-out across sites.

Suitable for

Small office or branch-office access layer switching
Aggregation for compact rack installations (1U)
Secure managed networks requiring IEEE 802.1X and TACACS+ integration
Environments where fanless, silent operation is preferred

Key specifications

Ports: 10 x Gigabit Ethernet (10/100/1000) RJ-45
Console port: RJ-45
Switching capacity: 20 Gbit/s
MAC address table: 8,000 entries
Supported standards: IEEE 802.1Q, 802.1p, 802.1D, 802.1w, 802.1x, 802.3, 802.3u, 802.3x, 802.3ab, 802.3az and related bridging/spanning tree protocols
Management: Managed L2 with web/CLI and cloud orchestration (SD-LAN)
Security features: IEEE 802.1X port-based access control, ACLs, TACACS+, SSH, SSL, SNMPv3
Design: Fanless, 1U rack-mountable
Weight: 1.06 kg
Power: AC input included
Colour: Black

How to use

Install the LANCOM GS-2310 in a 1U rack or place it on a shelf in a ventilated, dust-free environment. Connect the AC power supply and attach network devices to the Gigabit RJ-45 ports. Access the switch locally via the console port (RJ-45) or remotely using the supported secure management protocols. For centralized configuration and automated deployment, register and configure the switch in the LANCOM Management Cloud to apply SD-LAN port profiles and VLAN assignments across multiple locations.

Usage recommendations

Use the switch as an access or aggregation device in small to medium installations where full Layer 2 management and secure remote administration are required. Employ SD-LAN orchestration for consistent configuration across sites and enable IEEE 802.1X on user-facing ports to prevent unauthorized network access.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Switch type:: Managed
10G support:: No
Weight:: 1.06 kg
Basic switching RJ-45 Ethernet ports quantity:: 10
Networking standards:: IEEE 802.1s, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Product colour:: Black

All features

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:: 10
Console port:: RJ-45
Combo SFP ports quantity:: 2
Installed SFP+ modules quantity:: 0
Installed SFP modules quantity:: 0
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 10
Power connector:: AC-in jack

Management features

Switch layer:: L2
Quality of Service (QoS) support:: Yes
Web-based management:: Yes
Switch type:: Managed
Configuring Location Settings (CLI):: Yes

Packaging data

Package weight:: 1970 g
Package depth:: 360 mm
Package height:: 85 mm
Package width:: 330 mm
Mounting brackets included:: Yes

Logistics data

Country of origin:: Taiwan
Harmonized System (HS) code:: 85176990
Customs product code (TARIC):: 85176200

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Operating temperature (T-T):: 0 - 40

Power

Power source:: AC
AC input frequency:: 50/60
AC input voltage:: 100 - 240
Power consumption (max):: 14 W
Power supply included:: Yes

Design

Rack mounting:: Yes
Form factor:: 1U
LED indicators:: Y
Product colour:: Black
Stackable:: Yes
Reset button:: Yes
Housing material:: Metal

Packaging content

Cables included:: AC, Serial
Manual:: Yes

Weight & dimensions

Weight:: 1.06 kg
Height:: 45 mm
Width:: 220 mm
Depth:: 135 mm

Network

Networking standards:: IEEE 802.1s, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Flow control support:: Yes
Port mirroring:: Yes
Link aggregation:: Yes
Broadcast storm control:: Yes
Number of VLANs:: 4096
Spanning tree protocol:: Yes
VLAN support:: Yes
10G support:: No
Virtual LAN features:: Tagged VLAN, Private VLAN, Port-based VLAN, Voice VLAN

Data transmission

MAC address table:: 8000 entries
Switching capacity:: 20 Gbit/s
Jumbo frames support:: Yes
Store-and-forward:: Yes
Throughput:: 14.88 Mpps
Jumbo frames:: 9000

Security

Access Control List (ACL):: Yes
SSH/SSL support:: Yes
IGMP snooping:: Yes
Authentication type:: TACACS+, RADIUS, IEEE 802.1x
IGMP proxy:: Yes
DHCP features:: DHCP snooping, DHCP relay, DHCP client, DHCP Option 82, DHCP Option 67

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Performance

Firmware upgradeable:: Yes
Fanless:: Yes
Telnet:: Yes

Protocols

GARP VLAN Registration Protocol (GVRP):: Yes
IP Source Guard (IPSG):: Yes

Multicast features

Multicast support:: Yes

Certificates

Compliance certificates:: Federal Communications Commission (FCC), CE
