LANCOM XS-4554YUP

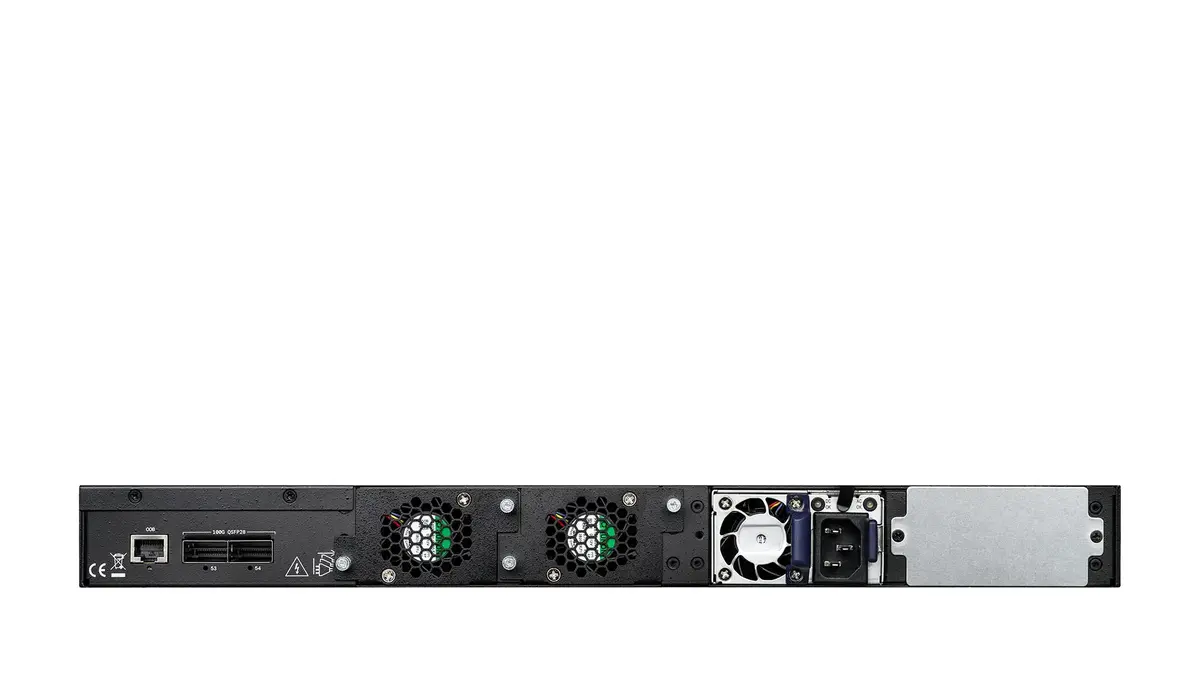

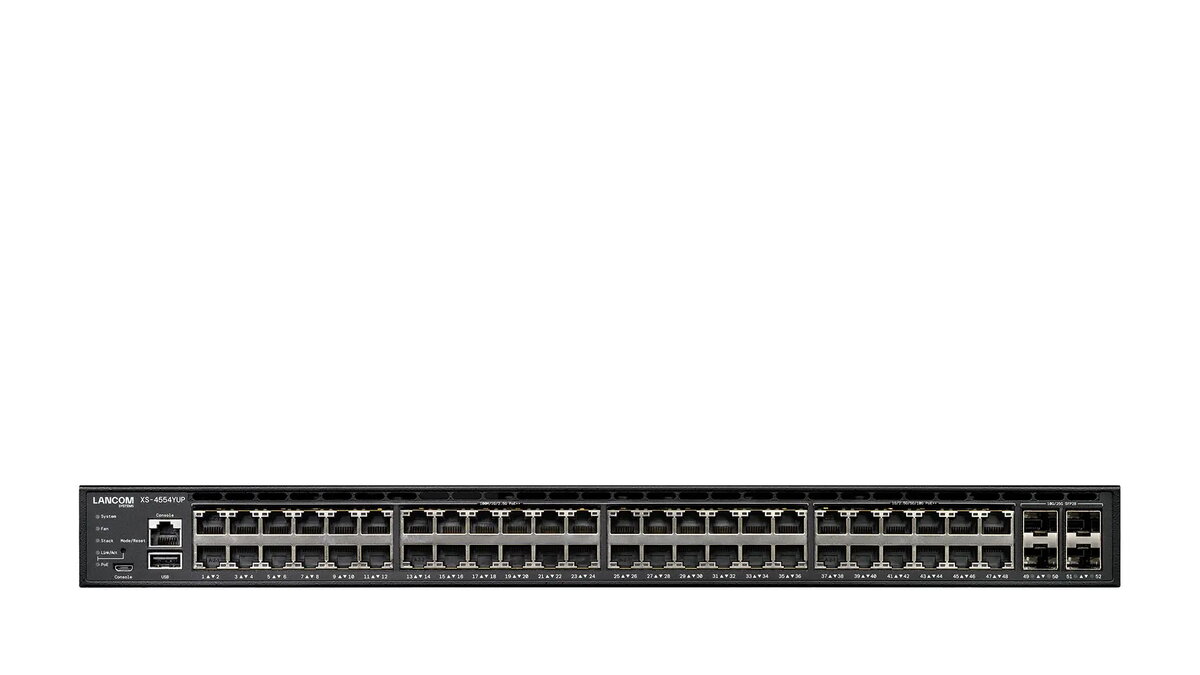

LANCOM XS-4554YUP 61886 Photo 1
LANCOM XS-4554YUP 61886 Photo 2
LANCOM XS-4554YUP 61886 Photo 1
LANCOM XS-4554YUP 61886 Photo 2
LANCOM XS-4554YUP 61886 Photo 1
LANCOM XS-4554YUP 61886 Photo 2
LANCOM XS-4554YUP 61886 Photo 1
LANCOM XS-4554YUP 61886 Photo 2
LANCOM XS-4554YUP
10,106.99 €
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

LANCOM XS-4554YUP

{{email}}
You keep track of price changes

LANCOM XS-4554YUP

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}
Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

LANCOM XS-4554YUP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 1020 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ad,.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Available at price 10,106.99 €: 15 pcs.
Total available for order: 75 pcs.
Warranty: 2 Years
SKU: 12079723
Manufacturer: Lancom
Learn more
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

All delivery methods Hide details
Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
31.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
03.09.2026 {{selectedOffer.courierDeliveryString}}
From 6.39 € (Weight: 7.00 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
03.09.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
More about delivery methods
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities
Find out more Hide details
Leasing for legal entities: from 351.72 euros per month
Available for private customers at price 11,121.49 €: 15 pcs.
More about payment methods
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LANCOM XS-4554YUP is a managed, full Layer‑3 access switch designed for demanding enterprise infrastructures. It provides 48 multi‑Gigabit RJ‑45 Ethernet ports (36x 2.5G and 12x 10G) with PoE++ support, four SFP28 (25G) and two QSFP28 (100G) fiber uplinks/stacking ports, a 1,020 Gbps switching capacity and a 32k MAC address table. The unit is 1U rack‑mountable, black in colour, includes a hot‑swappable PSU and redundant hot‑swappable fans, and supports console access via RJ‑45 or micro‑USB. Management options include web GUI, CLI and the LANCOM Management Cloud for centralized configuration and monitoring.

Advantages

The LANCOM XS-4554YUP delivers multi‑Gigabit throughput and a high PoE budget on all copper ports, enabling simultaneous high‑performance data and power delivery to modern endpoints such as Wi‑Fi 7 access points. Its Layer‑3 routing capabilities (OSPF, BGP4) and industry‑standard CLI provide flexible integration into existing network topologies, while VPC and stack support ensure redundancy and the possibility of near‑continuous operation during maintenance or ISSU. Hardware redundancy (hot‑swappable PSU and fans) and cloud management with secure remote access options increase operational reliability and simplify large‑scale rollouts.

Suitable for

  • Enterprise access layers delivering high bandwidth to Wi‑Fi 6/7 access points and aggregation nodes
  • Environments requiring PoE++ to power high‑consumption devices (up to PD‑Type 4)
  • Redundant, high‑availability networks using VPC/stacking and ISSU
  • Multi‑site deployments managed centrally via cloud management

Key specifications

  • Ports: 48x RJ‑45 multi‑Gigabit (36x 2.5G + 12x 10G) with PoE support
  • Uplinks/stacking: 4x SFP28 (25G) and 2x QSFP28 (100G)
  • PoE: IEEE 802.3af/at/bt PD‑Type 4 support; up to 1,440 W PoE budget with dual PSUs
  • Switching capacity: 1,020 Gbit/s
  • MAC address table: 32,000 entries
  • Layer: Full Layer‑3 routing with OSPF v2/v3, BGP4, VRRP, DHCP
  • Stacking: Front SFP28 or rear QSFP28 backplane stacking up to 400G
  • Redundancy: Hot‑swappable PSU, optional second PSU, redundant hot‑swappable fans (N+1)
  • Management: Web‑based GUI, CLI, LANCOM Management Cloud; SSH, SSL, SNMPv3, TACACS+
  • Security: IEEE 802.1X port‑based access control, ACL support
  • Form factor: 1U rackmount, stackable; weight ~7 kg; product colour: black

How to use

Install the LANCOM XS-4554YUP into a standard 19" rack using the included slide‑in rails and connect power via the AC inlet. For PoE deployment, connect endpoints using CAT6a/CAT7 cables where 10G throughput is required. Choose a management method—web GUI, CLI or LANCOM Management Cloud—and perform initial configuration: assign management IP, configure VLANs, enable PoE profiles, and set routing protocols (OSPF/BGP) as required. For redundancy, configure VPC or stack membership on uplink ports and verify ISSU and non‑stop forwarding behavior. Use the console (RJ‑45 or micro‑USB) for local setup and troubleshooting, and enable secure remote access (SSH/SNMPv3/TACACS+) for operational management.

Usage recommendations

For optimal 10G performance and PoE stability, use CAT6a or CAT7 cabling for 10G copper links, ensure both PSUs are installed when high PoE budgets are required, and enable stacking or VPC for high‑availability topologies. Regularly update the device using supported LCOS SX releases and back up configurations before firmware updates.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Yes
Power supply included: There is a power supply with this product.
Yes
Power source: What is providing power for the product e.g. mains electricity.
AC/PoE
Stackable: Devices can be placed on top of each other.
Yes
Rack mounting: The type of mounting that can position devices in a shelving system (rack).
Yes
Switching capacity: The data transfer capacity of the switch per second.
1020 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
32000 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.
Yes
Installed SFP+ modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.
0
Installed SFP modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.
0
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).
10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).
48
Switch type: What switch device has, managed or unmanaged.
Managed
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
All features

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).
Taiwan
Customs product code (TARIC):
85176200

Certificates

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, Federal Communications Commission (FCC)

Packaging data

Package weight: Weight of the packaged product.
6700 g
Package height: The distance from the top to the bottom of the packaging.
130 mm
Package depth: The distance from the front to the back of the packaging.
590 mm
Package width: The distance from one side of the packaging to the other.
630 mm
Mounting brackets included:
Yes
Rack rails:
Yes

Packaging content

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Yes
Cables included:
AC, Micro-USB, Serial

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
7 kg
Height: The measurement of the product from head to foot or from base to top.
44 mm
Depth: The distance from the front to the back of something.
440 mm
Width: The measurement or extent of something from side to side.
442 mm

Operational conditions

Heat dissipation: The heat generated by the power supply.
715 BTU/h
Operating relative humidity (H-H):
10 - 90
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 40

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget:
720 W
Power over Ethernet (PoE) power per port:
90 W
Power over Ethernet 4PPoE (PoE++) ports quantity:
48
Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Yes

Power

Power consumption (max): The maximum amount of power used by the device.
1650 W
AC input frequency:
50/60
AC input voltage: The voltage of the AC electricity that is inputted into the product.
100 - 240
Power supply included: There is a power supply with this product.
Yes
Power source: What is providing power for the product e.g. mains electricity.
AC/PoE

Performance

Noise level: The amplitude level of the undesired background noise, usually measured in decibels (db).
60 dB
Firmware upgradeable:
Yes

Design

Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
2 fan(s)
DIN rail mounting:
Yes
Housing material: What the casing of the product is made of.
Metal
Product colour: The colour e.g. red, blue, green, black, white.
Black
Form factor: The shape or design of the product.
1U
Stackable: Devices can be placed on top of each other.
Yes
Rack mounting: The type of mounting that can position devices in a shelving system (rack).
Yes

Protocols

IP Source Guard (IPSG):
Yes
Routing protocols:
BGP4, OSPFv2, OSPFv3, VRRP
GARP VLAN Registration Protocol (GVRP):
Yes

Multicast features

Multicast Listener Discovery (MLD) snooping:
Yes
Multicast support:
Yes

Security

SSH/SSL support:
Yes
Authentication type: Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.
IEEE 802.1x, RADIUS, TACACS+
Authentication:
Guest VLAN
IGMP snooping:
Yes
IGMP proxy:
Yes
Access Control List (ACL):
Yes
DHCP features:
DHCP client, DHCP relay, DHCP server, DHCP snooping

Data transmission

Packet buffer memory:
8 MB
Jumbo frames:
12288
Jumbo frames support:
Yes
Number of static routes:
16000
Static route:
Yes
Store-and-forward:
Yes
Throughput:
758 Mpps
Switching capacity: The data transfer capacity of the switch per second.
1020 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
32000 entries

Network

Number of VLANs:
4093
Virtual LAN features:
IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Yes
Flow control support:
Yes
Link aggregation:
Yes
Broadcast storm control:
Yes
Spanning tree protocol:
Yes
Cable length detection:
Yes
Port mirroring:
Yes
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.
Yes
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Ports & interfaces

Power connector:
AC-in jack
QSFP28 ports quantity:
2
SFP28 ports quantity:
4
Console port:
RJ-45/Micro-USB
Number of management ports:
1 pc(s)
USB Type-A ports quantity:
1
Installed SFP+ modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.
0
Installed SFP modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.
0
10G Ethernet (copper) ports quantity:
12
2.5G Ethernet (copper) ports quantity:
36
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).
10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).
48

Management features

ARP inspection:
Yes
Configuring Location Settings (CLI):
Yes
Web-based management: Using a website/web application to manage something.
Yes
Quality of Service (QoS) support:
Yes
Switch layer: A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L3
Switch type: What switch device has, managed or unmanaged.
Managed
Hide Show all

Instructions

mmo_121101856_1732106939_5225_4095462.pdf
lancom-systems-61886-12079723.pdf
lancom-systems-61886-12079723(1).pdf

Description

Instructions

mmo_121101856_1732106939_5225_4095462.pdf
lancom-systems-61886-12079723.pdf
lancom-systems-61886-12079723(1).pdf
Machine translation. Load original

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}
Stock data
Warehouse Stock Delivery to the store Store Price
WH94 15 17.08.2026 Best delivery
11,121.49 €
EU3 15 17.08.2026 Best delivery
11,255.49 €
WH354 15 17.08.2026 Best delivery
12,457.99 €
Show all offers Hide
Available only for legal entities
Warehouse Stock Delivery to the store Store Price
WH109 15 31.08.2026
10,106.99 € Best price
11,121.49 €
Stock: 15
Delivery Date: 17.08.2026 Best delivery
Warehouse: WH94
11,255.49 €
Stock: 15
Delivery Date: 17.08.2026 Best delivery
Warehouse: EU3
12,457.99 €
Stock: 15
Delivery Date: 17.08.2026 Best delivery
Warehouse: WH354
13,217.49 €
Stock: 15
Delivery Date: 17.08.2026 Best delivery
Warehouse: WH320
Available only for legal entities
10,106.99 €
Stock: 15
Delivery Date: 31.08.2026
Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the LANCOM XS-4554YUP 61886 cost, and is it available for purchase?

The price is 10,106.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 75 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 31.08.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Lancom products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Lancom service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: power over ethernet (poe), power supply included, power source, stackable, rack mounting, switching capacity, mac address table, 10g support, installed sfp+ modules quantity, installed sfp modules quantity, basic switching rj-45 ethernet ports type, basic switching rj-45 ethernet ports quantity, switch type, networking standards, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for LANCOM XS-4554YUP 61886?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
Show all questions
{{totalProductsWishes}} {{totalProductsCompare}} {{totalProductsCount}}
We respect your privacy
We use cookies to ensure the full operation of our store. The information associated with cookies is not used to personally identify you, and the files themselves are stored on your device, under your control. Cookies are not used for purposes other than those stated in our Privacy policy. By continuing to use our site, you agree to the use of essential cookies. If you do not agree, please, leave this site.
We use cookies
Show info
We respect your privacy
We use cookies to ensure the full operation of our store. The information associated with cookies is not used to personally identify you, and the files themselves are stored on your device, under your control. Cookies are not used for purposes other than those stated in our Privacy policy. By continuing to use our site, you agree to the use of essential cookies. If you do not agree, please, leave this site.
Which cookie files we use?

The necessary technical cookies allow you to use the basic functions of the store, such as page navigation, ordering, access to secure sites and more. The site cannot function properly without these files.

Preferences cookies are used to save information that changes how the site works and looks.

Static cookies are used in order to help the sites owner understand how the users are interacting with the site.

Marketing cookies are used in order to track a users movements throughout the site in order to show interesting and relevant ads to the specific user.
warranty
14-Day Return Policy We are confident in our quality, but if the purchase doesn’t fit — you have 14 days to return the product with peace of mind.
shipping
Fast Delivery Get your orders as quickly as possible — right to your door, parcel lockers, or pickup points across Latvia and the EU.
payment
Secure Payment Pay the way you prefer: cash, VISA, MasterCard, Apple Pay, Google Pay, bank transfer, or 0% installment plan.
warranty
Quality Since 2008 AiO.lv has been on the market for over 18 years and has earned trust — with more than 6000 genuine positive reviews on Google.
