header-product Lanview LVO231396 Fiber Optic Pigtail SC/APC Singlemode OS2 9/125 µm 2 m Yellow
5.99 €

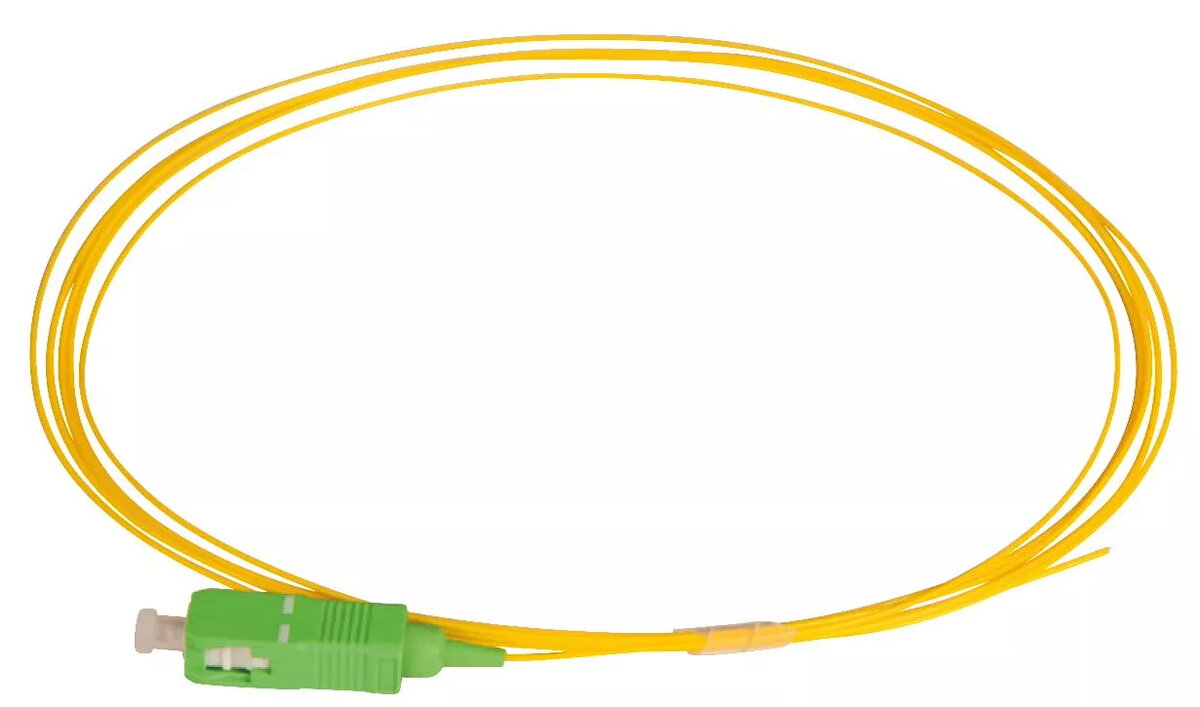

Lanview LVO231396 Fiber Optic Pigtail SC/APC Singlemode OS2 9/125 µm 2 m Yellow

Lanview LVO231396 SC/APC Singlemode Fiber Pigtail 2m Photo 1
Lanview LVO231396 SC/APC Singlemode Fiber Pigtail 2m Photo 2
Lanview LVO231396 SC/APC Singlemode Fiber Pigtail 2m Photo 3
Lanview LVO231396 SC/APC Singlemode Fiber Pigtail 2m Photo 1
Lanview LVO231396 SC/APC Singlemode Fiber Pigtail 2m Photo 2
Lanview LVO231396 SC/APC Singlemode Fiber Pigtail 2m Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Lanview LVO231396 Fiber Optic Pigtail SC/APC Singlemode OS2 9/125 µm 2 m Yellow

{{email}}
You keep track of price changes

Lanview LVO231396 Fiber Optic Pigtail SC/APC Singlemode OS2 9/125 µm 2 m Yellow

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Lanview LVO231396 singlemode fiber optic pigtail with a length of 2 meters and an SC/APC connector. Features OS2 9/125 µm fiber, G.652D standard, ceramic zirconia ferrule, and a 0.9 mm PVC jacket in yellow. Designed for reliable splicing in high-speed telecommunication and data communication networks.
Available at price 5.99 €: 14 pcs.
Total available for order: 42 pcs.
Warranty: 2 Years
SKU: 4143905
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
15.12.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
18.12.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.01 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
18.12.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 7.99 €: 14 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Lanview LVO231396 singlemode fiber optic pigtail is a reliable connection cable designed for professional networking environments. Featuring a length of 2 meters and a pre-terminated SC/APC connector, this simplex pigtail is built to facilitate accurate and secure fiber splicing. It utilizes an OS2 9/125 µm singlemode fiber adhering to the G.652D standard, ensuring minimal signal attenuation and high performance in long-distance transmissions. The robust construction includes a ceramic zirconia ferrule for precise alignment and a flexible 0.9 mm PVC outer jacket in a standard yellow color, making it a practical choice for organized cabinet installations.

Advantages

This fiber optic pigtail offers exceptional signal integrity and low insertion loss, largely thanks to the high-precision ceramic zirconia ferrule and quality OS2 singlemode fiber. The G.652D standard compatibility ensures excellent performance across high-speed data transmission channels. Its 0.9 mm thickness and flexible PVC jacket make it easy to manage within compact splice trays and patch panels. Designed for durability, it provides a stable connection for critical infrastructure while maintaining compatibility with standard networking equipment.

Suitable for

  • Telecommunication network installations and maintenance
  • Data center structured cabling systems
  • High-speed computer network infrastructure
  • Fiber optic cable splicing in distribution boxes
  • Enterprise and industrial communication setups

When it may not be suitable

This product is not suitable for direct connections between two active network ports without a splice, as it features a single connector on one end only. It should also not be used in multi-mode fiber optic systems or environments requiring LC, ST, or other non-SC connector types.

Key specifications

  • Cable length: 2 m
  • Fiber optic type: OS2 single-mode (9/125 µm)
  • Fiber standard: G.652.D
  • Connector: SC Male (with APC polish)
  • Cable diameter: 0.9 mm
  • Jacket material: Polyvinyl chloride (PVC)
  • Ferrule material: Ceramic zirconia
  • Cable structure: Simplex
  • Color: Yellow

How to use

To use the Lanview LVO231396 pigtail, strip the incoming distribution cable to expose the individual fibers. Prepare the pigtail and use a fusion splicer to join the bare fiber of the pigtail to the bare fiber of the incoming cable. Once spliced, carefully place the splice protection sleeve over the joint and secure it in a splice cassette tray. Route the 0.9 mm buffered fiber carefully to avoid sharp bends, and connect the SC/APC male connector to the corresponding adapter on a patch panel or optical distribution frame.

What to consider before purchase

  • Verify that your existing equipment and patch panels require an SC/APC connector type
  • Ensure your network architecture utilizes single-mode OS2 9/125 µm fiber specifications
  • Check if a 2-meter length is sufficient for routing from the splice tray to your termination panel
  • Confirm that fusion splicing tools and accessories are available for installation
Usage recommendations: Handle the fiber ends with extreme care and keep them clean using lint-free cleaning tools before connection. Avoid bending the cable beyond its minimum bend radius to prevent permanent signal loss or fiber breakage.

Specifications

Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2: This is the second connector in the device.
No
Connector 1: This is the first connector in the device.
SC
Cable length: How long the cable is.
2 m
All features
Insertion loss:
0.3 dB
Fiber mode structure:
Single-mode
Core diameter: The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.
9 µm
Cladding diameter: The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
125 µm
Fibre optic type: The standardised properties of the fiber optic cable.
OS2
Return loss:
50 dB

Other features

Cable diameter: The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
0.9 mm
Connector(s):
SC

Packaging data

Package weight: Weight of the packaged product.
10 g
Package height: The distance from the top to the bottom of the packaging.
150 mm
Package depth: The distance from the front to the back of the packaging.
60 mm
Package width: The distance from one side of the packaging to the other.
150 mm

Packaging content

Quantity per pack:
1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.009 kg

Certificates

Certification:
ISO 9001, UL, GR-326-Core, IEC 61755, IEC61300
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS

Operational conditions

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 75

Features

Jacket material:
Polyvinyl chloride (PVC)
Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2: This is the second connector in the device.
No
Connector 1: This is the first connector in the device.
SC
Product colour: The colour e.g. red, blue, green, black, white.
Yellow
Cable length: How long the cable is.
2 m
