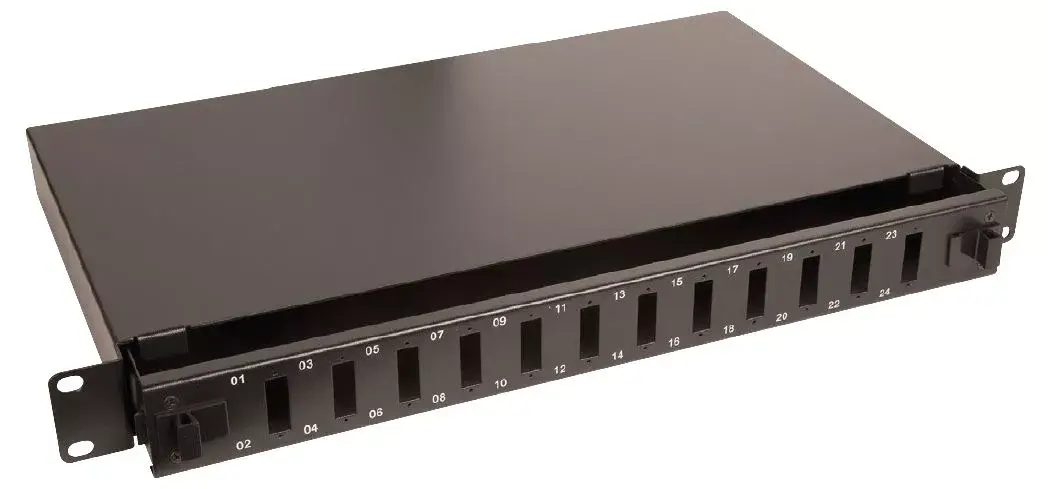

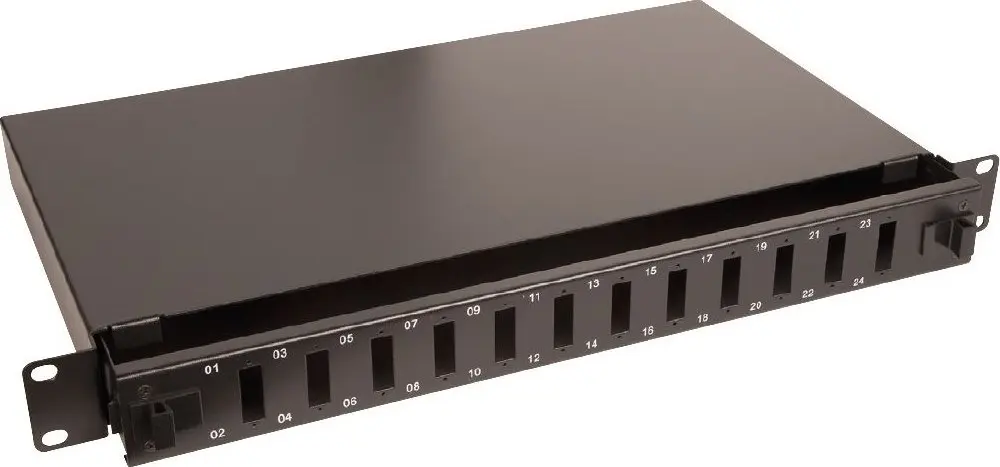

Lanview LVO231551 patch panel 1U 12-port rack mount black SC/LC LC steel

The Lanview LVO231551 patch panel is a professional fiber optic termination solution designed for structured network infrastructures. Built to fit standard server enclosures, this 1U rack mount device provides reliable organization for up to 12 fiber connections. Constructed from durable black steel, it ensures long-lasting mechanical protection for delicate fiber optic cables and splices in demanding environments like data centers and telecommunication rooms. The unit features a functional slide-out design for convenient internal access during installation and maintenance.

Advantages

This fiber optic patch panel offers a robust steel construction that guarantees enhanced durability and structural stability within server racks. The slide-out mechanism simplifies installation, inspection, and maintenance tasks without requiring the complete removal of the unit from the rack. Integrated cable management features, including dedicated cutouts for cable ties and velcro straps, ensure proper strain relief and maintain optimal bend radii for fiber cables. Additionally, the back side accommodates multiple cable inlets and rubber-coated strain relief components, allowing secure cable entry and effective organization of blown-fiber installations.

Suitable for

• Organizing fiber optic connections in data centers
• Server room network infrastructure setups
• Telecommunication and enterprise wiring closets
• Deployments requiring SC and LC fiber connectivity

When it may not be suitable

This patch panel is not intended for non-rack-mounted deployments or environments that lack standard 19-inch server cabinet infrastructure. It may also be insufficient for high-density network setups that require significantly more than 12 ports within a single rack unit.

Key specifications

• 12 ports capacity
• 1U rack capacity
• Rack mounting design
• SC and LC connector support
• Durable steel material
• Black product colour
• Weight: 3.29 kg
• Slide-out mechanism
• Fixtures for splice cassettes
• Cable management cutouts

How to use

Mount the 1U patch panel securely into a standard 19-inch rack or server cabinet using appropriate mounting hardware. Route the incoming fiber optic cables through the rear inlets, utilizing the rubber-coated strain relief for secure cable entry. Secure the cables using cable ties or velcro straps at the designated cutouts to relieve tension. Splice or terminate the fibers using compatible LC or SC connectors, and install splice cassettes within the internal fixtures if required. Slide the panel housing as needed during installation to manage internal connections, and ensure the enclosure is properly secured before operational use.

What to consider before purchase

• Verify that your rack environment has available 19-inch mounting space and 1U clearance
• Confirm that a 12-port capacity meets your current and immediate network connection requirements
• Check compatibility with your existing SC or LC fiber optic connectors and cables
• Assess cable entry and routing needs based on the rear inlet and strain relief specifications

Usage recommendations

Always maintain proper bend radii for all fiber optic cables during installation and secure them firmly with cable ties to prevent strain on the connectors. Regularly inspect internal splices and connections within the slide-out housing to ensure long-term network reliability.
