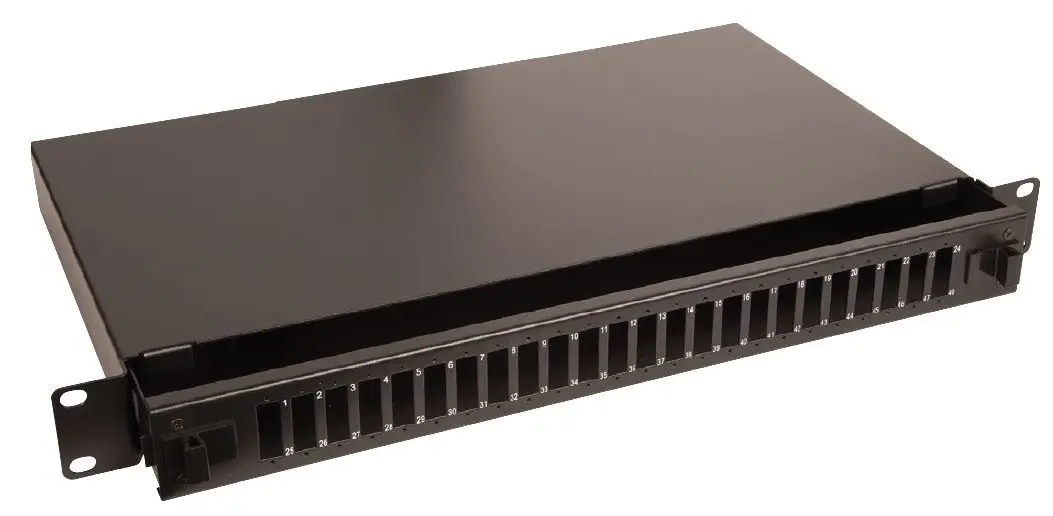

Lanview LVO231552 24-port fiber optic patch panel for SC/LC connectors 1U rack mount steel black

The Lanview LVO231552 is a 24-port fiber optic patch panel designed for rack mounting in standard 1U server spaces. It provides a reliable interface for structured fiber optic cabling in data centers, telecommunication rooms, and enterprise networks. Built with a durable steel housing in black, this patch panel ensures secure connection management, mechanical stability, and organized cable routing for professional network infrastructures.

Advantages

The patch panel offers a structured and centralized approach to managing fiber optic lines, significantly reducing clutter in server cabinets. Its robust steel construction provides high mechanical stability and protects sensitive fiber connections during daily operations. The unit supports flexible configuration options with slide-out functionality and features integrated cable management cutouts to secure cables using ties or straps, effectively relieving strain. Additionally, the standard rack format allows for straightforward integration into existing server racks without requiring specialized tools.

Suitable for

• Data centers requiring high-density fiber organization
• Server rooms in enterprise and commercial buildings
• Structured fiber optic cabling installations
• Connecting incoming fiber lines to active network components

This patch panel may not be suitable for non-rack environments or installations that do not utilize standardized 19-inch server cabinets. It is specifically engineered for fiber optic cabling with SC and LC connector types and will not accommodate copper networking cables such as RJ45 Ethernet lines.

Key specifications

• 24 ports capacity
• 1U rack capacity
• Supports SC duplex and LC quad adapters
• SC/LC connector compatibility
• Steel housing material
• Black product color
• Product weight: 3.29 kg
• Rear inlets for cable entry and strain relief

How to use

Begin by securing the 1U patch panel into a standard 19-inch server rack using appropriate mounting hardware. Route the incoming fiber optic cables through the designated rear inlets, ensuring proper strain relief using the integrated rubber-coated fixtures or cable ties. Install the appropriate SC duplex or LC quad adapters into the panel ports. Carefully splice or connect the fiber strands inside the unit, utilizing internal fixtures for splice cassettes to maintain organization and prevent bend radius violations. Secure all cables firmly to the internal management cutouts to ensure long-term connection stability.

What to consider before purchase

• Verify that your server cabinet has available 19-inch 1U rack space
• Confirm that your network infrastructure uses SC duplex or LC quad fiber connectors
• Evaluate cable entry requirements to ensure compatibility with the rear panel inlets
• Check whether splice cassettes or additional adapters are required for your specific setup

Usage recommendations: Install the patch panel in a clean, temperature-controlled server environment to protect sensitive fiber optic connections. Ensure proper cable slack management and use velcro straps or cable ties to secure incoming lines, preventing accidental strain on the connectors and maintaining optimal signal integrity over time.
