header-product Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 Multimode 2m Magenta
6.99 €

Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 Multimode 2m Magenta

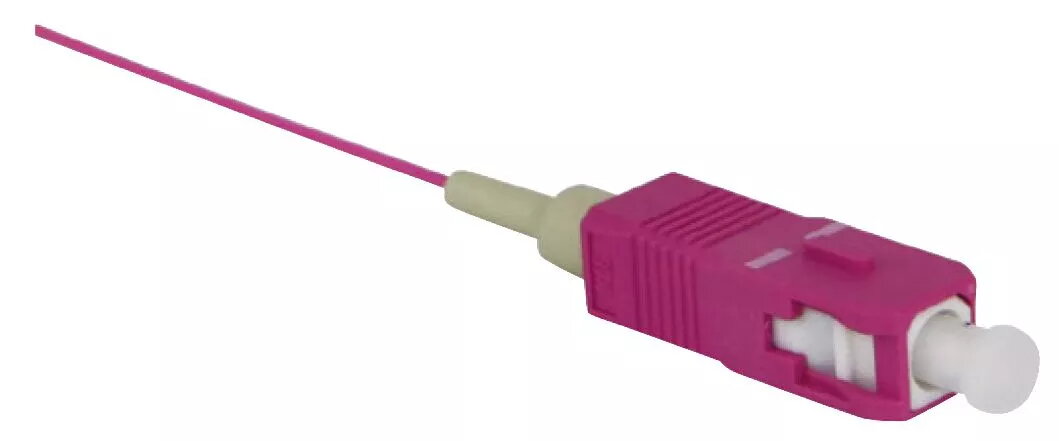

Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 2m Photo 1
Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 2m Photo 2
Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 2m Photo 3
Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 2m Photo 1
Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 2m Photo 2
Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 2m Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 Multimode 2m Magenta

{{email}}
You keep track of price changes

Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 Multimode 2m Magenta

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Lanview LVO231805 fibre optic cable with a length of 2 meters, designed for high-speed multimode networks. Features an OM4 specification, SC/UPC connector, 50/125 µm core diameter, and a durable magenta PVC outer jacket. Ideal for professional telecommunications and data communication installations, providing reliable splicing and precise connections.
Available at price 6.99 €: 82 pcs.
Total available for order: 246 pcs.
Warranty: 2 Years
SKU: 4143907
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
10.12.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
15.12.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.01 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
15.12.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 9.99 €: 82 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 Multimode 2m Magenta is a high-quality optical component designed to support reliable, high-speed data transmission in modern networking environments. Measuring 2 meters in length, this simplex multimode fibre optic cable features a 50/125 micrometer core diameter and complies with the OM4 standard. It is equipped with a precise SC/UPC male connector and a ceramic zirconia ferrule to ensure low insertion loss and stable signal transmission. Built with a durable polyvinyl chloride outer jacket in a distinctive magenta colour, this cable provides essential mechanical protection during installation and everyday network operation.

Advantages

This fibre optic cable delivers exceptional performance in demanding network architectures by combining high-grade optical characteristics with robust physical construction. The inclusion of a ceramic zirconia ferrule ensures high alignment precision during splicing, which minimizes signal degradation and maintains optical integrity across high-speed links. The OM4 multimode specification supports high bandwidth over extended distances compared to older fibre classes, making it well-suited for high-density environments. Additionally, the flexible PVC jacket facilitates smooth cable routing in confined spaces while offering reliable protection against standard environmental wear.

Suitable for

  • Telecommunication network installations
  • Data communication setups
  • High-speed multimode network connections
  • Fiber optic cable splicing work
  • Data centers and computer server rooms

When it may not be suitable

This cable is not designed for single-mode network infrastructures and cannot be used where single-mode transceivers or long-haul transmission standards are required. Due to its simplex design with a single SC/UPC connector on one end and no connector on the other, it is intended specifically for splicing applications rather than direct point-to-point patching between two active equipment ports without prior preparation.

Key specifications

  • Cable length: 2 m
  • Fibre optic type: OM4
  • Multimode fibre: 50/125 µm
  • Connector 1: SC Male
  • Ferrule material: Ceramic zirconia
  • Jacket material: Polyvinyl chloride (PVC)
  • Outer jacket colour: Magenta
  • Design: Simplex

How to use

The cable is designed for professional installation within structured cabling systems and telecommunication enclosures. Technicians should prepare the unconnectorized end of the pigtail for fusion splicing to the main distribution cable according to standard optical networking practices. Care must be taken to clean the SC/UPC connector end-face using appropriate optical cleaning tools before mating it with compatible adapters or network equipment ports. Always adhere to recommended bending radius limits during routing to prevent micro-bends that could affect signal transmission performance.

What to consider before purchase

  • Verify that your existing network hardware utilizes multimode OM4 infrastructure and SC/UPC connectivity.
  • Confirm whether a 2-meter cable length and simplex design with one unconnectorized end matches your specific splicing requirements.
  • Check compatibility with your current patch panels, splice trays, and transceivers.
Usage recommendations: Handle the fibre optic cable with care during installation, avoiding excessive pulling forces or sharp bends. Always inspect and clean optical connectors before connection to maintain optimal network performance and prevent contamination of equipment ports.

Specifications

Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2: This is the second connector in the device.
No
Connector 1: This is the first connector in the device.
SC
Cable length: How long the cable is.
2 m
All features
Insertion loss:
0.3 dB
Fiber mode structure:
Multi-mode
Core diameter: The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.
50 µm
Cladding diameter: The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
125 µm
Fibre optic type: The standardised properties of the fiber optic cable.
OM4
Return loss:
35 dB

Other features

Cable diameter: The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
0.9 mm
Connector(s):
SC

Packaging data

Package weight: Weight of the packaged product.
10 g

Packaging content

Quantity per pack:
1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.009 kg

Certificates

Certification:
ISO 9001, UL, GR-236-Core, IEC 61755, IEC61300
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS

Operational conditions

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 75

Features

Jacket material:
Polyvinyl chloride (PVC)
Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Male
Connector 2: This is the second connector in the device.
No
Connector 1: This is the first connector in the device.
SC
Product colour: The colour e.g. red, blue, green, black, white.
Magenta
Cable length: How long the cable is.
2 m

Similar products

{{product.title}}
Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}
Stock data
Warehouse Stock Delivery to the store Store Price
WH357 82 19.11.2026 Best delivery
9.99 €
Available only for legal entities
Warehouse Stock Delivery to the store Store Price
EU6 82 10.12.2026
6.99 €
WH109 82 03.12.2026
26.99 €
9.99 €
Stock: 82
Delivery Date: 19.11.2026 Best delivery
Warehouse: WH357
Available only for legal entities
6.99 €
Stock: 82
Delivery Date: 10.12.2026
Warehouse: EU6
26.99 €
Stock: 82
Delivery Date: 03.12.2026
Warehouse: WH109

Customer reviews

Customer questions

FAQ

How much does the Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 2m cost, and is it available for purchase?

The price is 6.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 246 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 10.12.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Lanview products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Lanview service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: connector 1 gender, connector 2, connector 1, cable length, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Lanview LVO231805 Fibre Optic Cable SC/UPC OM4 2m?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
