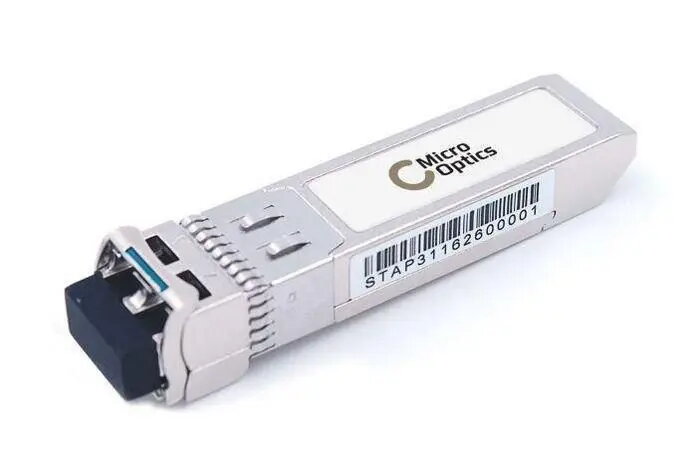

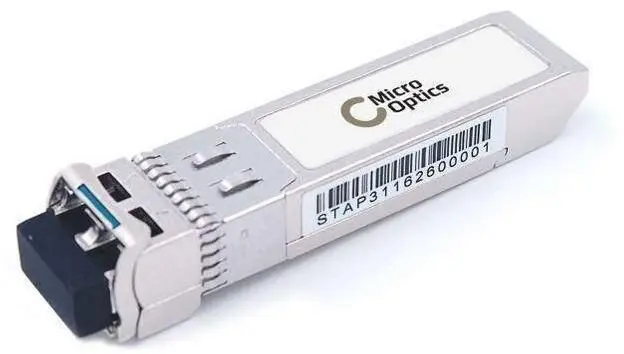

Lanview SFP+ Fiber Optic Transceiver MO-OSX010000 10 Gbps 1310 nm Compatible with Huawei

Lanview MO-OSX010000 is an SFP+ fiber-optic transceiver module designed for 10 Gigabit Ethernet connections with a 1310 nm wavelength. The compact metallic-form-factor SFP+ module supports a maximum data transfer rate of 10000 Mbit/s and follows MSA and RoHS certifications. It is compatible with Huawei equipment and is intended as a cost-effective, fully compatible alternative to branded OEM transceivers.

Advantages

The module offers 100% compatibility with standard SFP+ ports and is supplied from extensive stock for fast availability. Each unit is tested for quality and reliability, and the product comes with long-term support and a warranty option. Choosing this third-party transceiver can provide substantial cost savings compared with rebranded OEM modules while maintaining the required technical specifications for 10 Gigabit Ethernet.

Suitable for

• 10 Gigabit Ethernet uplinks and switch-to-switch connections
• Fiber backbone links over single-mode fiber at 1310 nm
• Network equipment with SFP+ ports, including compatible Huawei systems
• Data center and enterprise network expansion where cost-effective optics are needed

When it may not be suitable

This SFP+ transceiver is intended for use with single-mode fiber at a 1310 nm wavelength; it is not suitable for multimode fiber applications or links requiring a different wavelength. It may also be incompatible with devices that enforce vendor-locked firmware, despite testing for broad compatibility.

Key specifications

• Form factor: SFP+
• Data rate: up to 10000 Mbit/s
• Wavelength: 1310 nm
• Connector type: standard SFP+ fiber connector
• Housing colour/finish: metallic
• Typical dimensions: 56 mm (depth) × 12 mm (width) × 8.5 mm (height)
• Weight: approximately 0.01 kg
• Standards and certifications: MSA compliant, RoHS

How to use

Insert the Lanview MO-OSX010000 module into an available SFP+ port until it clicks into place. Connect the single-mode fiber cable with the appropriate LC connector to the transceiver. Verify link status on your switch or host device and configure the interface as required for 10 Gigabit Ethernet. For safe removal, power down the port or follow your equipment manufacturer’s hot-swap procedure and depress the latch to extract the module.

What to consider before purchase

• Confirm your equipment accepts third-party SFP+ modules and does not implement vendor lock restrictions
• Ensure your link uses single-mode fiber and a 1310 nm wavelength
• Verify required distance and optical budget for your fiber run match the transceiver’s capabilities
• Check physical dimensions to ensure compatibility with your equipment’s SFP+ slot

Usage recommendations

Use quality single-mode LC fiber patch cords, keep transceiver dust caps in place when unused, and test links after installation. If mixing with branded optics, verify link stability and monitor error rates to ensure interoperability.
