Rack cabinet Lanview RWF07U66BL — 19" telecommunications rack, quick-assembly flat pack

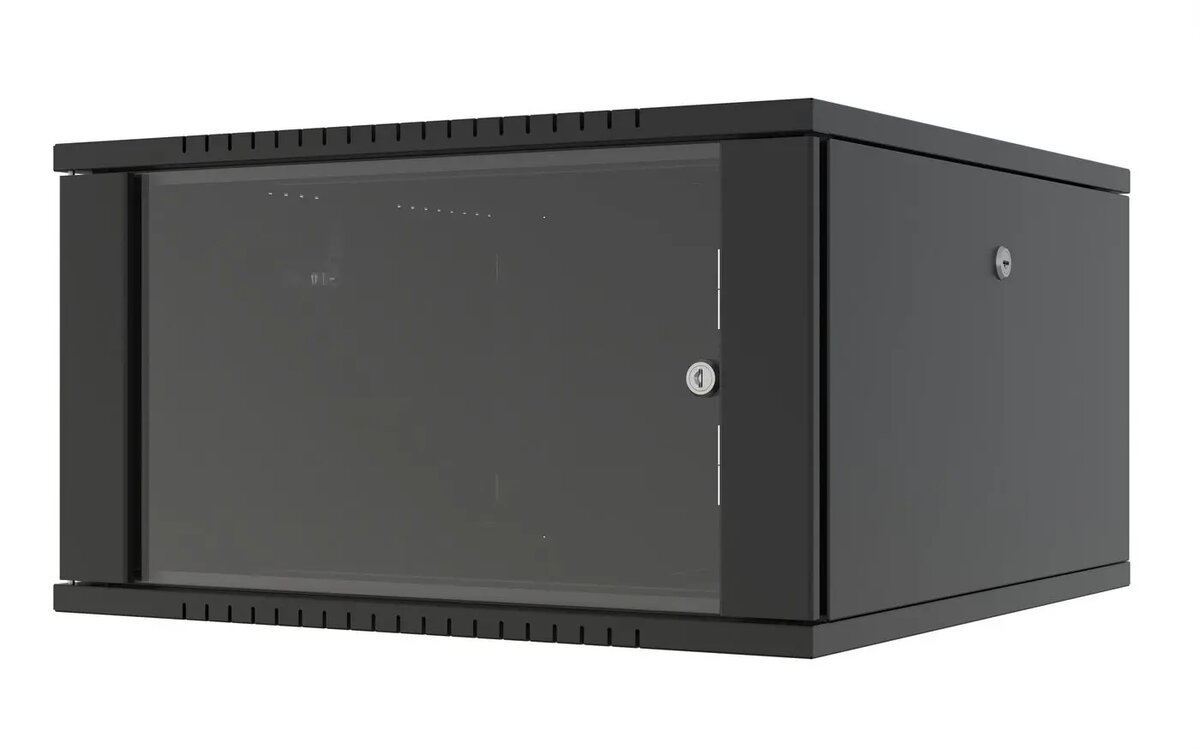

Lanview RWF07U66BL is a 19" telecommunications rack cabinet supplied as a quick-assembly flat pack. With external dimensions of W 600 x D 600 x H 423 mm, the cabinet provides a standardized enclosure for mounting 19-inch network devices such as servers, switches and patch panels. The front door is a 4 mm antistatic tempered glass panel in an extruded aluminium frame with decorative coloured side strips and high fracture resistance. The cabinet is designed for wall-mounting and free-standing use; side doors are fixed so wall installations are accessed from the front only while free-standing configurations provide front and rear access.

Advantages

The quick-assembly flat pack format reduces shipping volume and simplifies on-site assembly, making the cabinet suitable for tight installation schedules. The tempered glass front door gives visual access to equipment status without opening the cabinet while maintaining protection. Adjustable device installation rails (one set plus two rails supplied) allow depth adjustment for different 19" devices. Multiple cable entry points and a rubber-edged movable cable entry module with sliding compression reduce dust ingress and secure cables safely.

Suitable for

• Telecommunications closets and small server rooms
• Network equipment racks for switches, patch panels and small servers
• Wall-mounted network installations in offices and comms rooms
• Temporary or staged installations where flat-pack transport is required

Key specifications

• Dimensions (W x D x H): 600 x 600 x 423 mm
• Form factor: 19" rack cabinet, quick-assembly flat pack
• Front door: 4 mm antistatic tempered glass with extruded aluminium frame
• Door style: fixed side doors (access front only when wall-mounted; front and rear when free-standing)
• Cable entry: 145 x 70 mm inlet holes at top, bottom and rear
• Cable management: rubber-edged movable cable entry module, adjustable 0–50 mm with sliding compression
• Ventilation: passive ventilation via upper chassis holes; supports optional ventilation module with up to 2 fans for active cooling
• Mounting accessories: delivered with one set and two device installation rails; compatible with optional pinion feet or caster group for free-standing use
• Finish: RAL9005 (black)

How to use

Unpack the flat-packed components and follow the assembly instructions to erect the cabinet frame, install the supplied device rails and attach the tempered glass front door. For wall mounting, secure the cabinet to a suitable wall structure and note that the side doors are fixed so access will be from the front. For free-standing installations, fit optional pinion feet or casters if required and ensure rear access is unobstructed. Route cables through the top, bottom or rear 145 x 70 mm inlet holes and use the rubber-edged movable cable entry module to compress and protect incoming cables. If active cooling is required, attach an optional 2-fan ventilation module to the upper chassis ventilation hole.

Usage recommendations

Install equipment with consideration for proper airflow: position heat-generating devices to allow hot air to exit through the top ventilation holes and, when using active fans, verify intake and exhaust orientation. Use the adjustable rails to set appropriate mounting depth for each device and secure cable entries with the compression module to minimise dust ingress. When wall-mounted, ensure the supporting wall and fixings meet load requirements for the populated cabinet.
