Lanview RWF07U66WH rack cabinet RWF07U66WH

Name: Lanview RWF07U66WH rack cabinet 7U RWF07U66WH
Brand: Lanview
SKU: 12282247
Price: 175.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Lanview RWF07U66WH rack cabinet 7U Wall mounted rack White

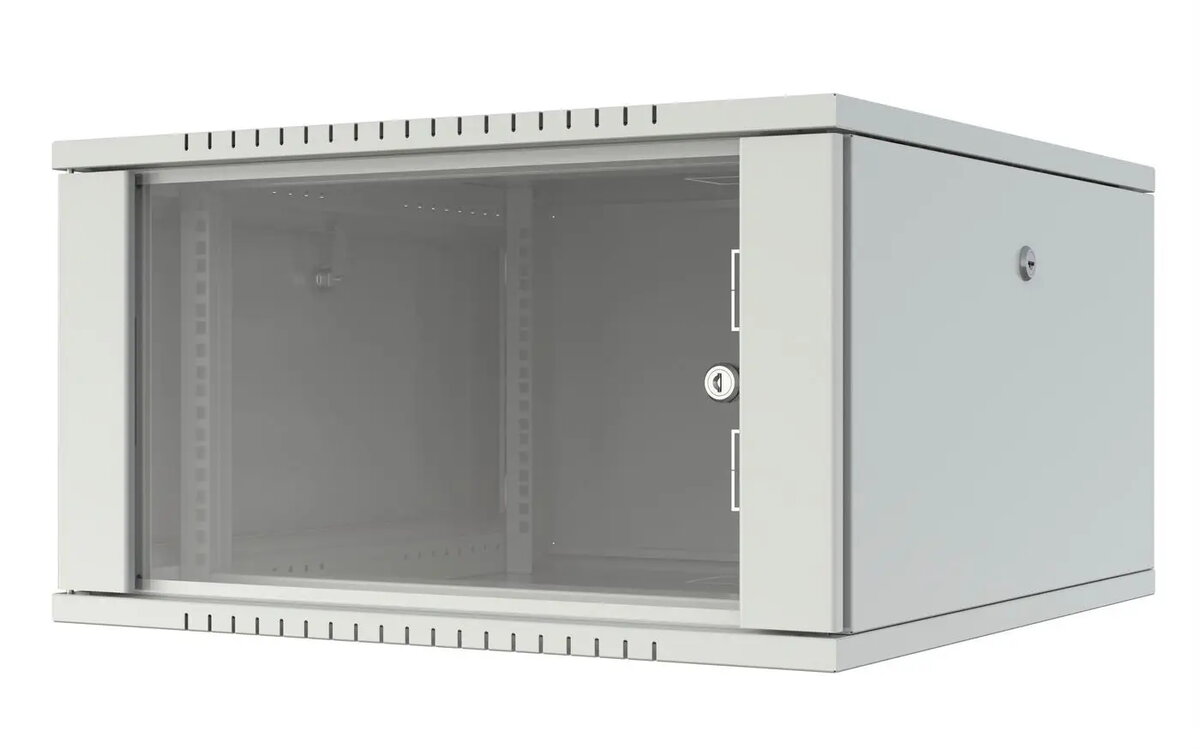

Lanview RWF07U66WH rack cabinet RWF07U66WH Photo 1

Lanview RWF07U66WH rack cabinet RWF07U66WH Photo 2

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

Lanview RWF07U66WH. Type: Wall mounted rack, Rack capacity: 7U, Key lock, Rack rails, International Protection (IP) code: IP20, Assembly required. Weight: 20.5 kg. Product colour: White

Available for order: 8 pcs.

Warranty: 2 Years

SKU: 12282247

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 €

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Lanview RWF07U66WH is a 7U wall-mounted rack cabinet in white designed for telecom and network equipment. It features an extruded aluminum frame with a 4 mm tempered, antistatic, smoothed glass front door with colored side strips for a decorative finish. The cabinet measures 600 x 600 x 423 mm (W x D x H) and is delivered flat-packed for on-site assembly. It includes one set of pre-mounted device installation rails (two rails) that allow depth adjustment of mounted equipment and a key lock on the door for basic physical security. The cabinet has an IP20 protection rating and a net weight of 20.5 kg.

Advantages

This wall-mounted rack provides a compact 7U capacity suitable for small installations while maintaining a clean visual appearance thanks to the tempered glass door and white finish. Pre-mounted adjustable rack rails simplify device installation and the rubber-edged cable entry module with sliding compression reduces dust ingress and secures incoming cables. Upper, lower and rear cable inlet openings (145 x 70 mm) allow routing from three directions. Ventilation holes in the top of the chassis support passive airflow or optional active ventilation by fitting a two-fan ventilation module.

Suitable for

Small server, network and telecom installations requiring up to 7U rack space
Wall-mounted equipment in offices, comms rooms or retail environments
Environments where a visible, lockable glass front is preferred for monitoring

When it may not be suitable

This 7U cabinet is not suitable for larger rack deployments or equipment that requires greater than 7U of rack space. It is intended for indoor use only (IP20) and therefore is not appropriate for dusty, wet or outdoor environments. Because the side doors are fixed and non-detachable, side access is limited — in wall-mounted installations access is available only from the front.

Key specifications

Dimensions (W x D x H): 600 x 600 x 423 mm
Rack capacity: 7U, 19"
Material: extruded aluminum frame with 4 mm antistatic tempered glass door
Door type: glass front door with colored side strips and key lock
Protection rating: IP20
Weight: 20.5 kg
Cable inlets: 145 x 70 mm openings at top, bottom and rear
Cable entry: rubber-edged, movable 0–50 mm with sliding compression
Ventilation: passive ventilation via top chassis holes; supports optional two-fan ventilation module
Mounting: wall-mounted; can be used freestanding with optional feet or casters (sold separately)

How to use

Assemble the flat-packed cabinet following the supplied instructions and mount it to a suitable wall structure using appropriate fixings. Install equipment onto the pre-mounted and adjustable rack rails, setting the desired depth. Route cables through the 145 x 70 mm cable inlets at top, bottom or rear and secure them using the rubber-edged cable entry module, adjusting its movable range (0–50 mm) and compression to minimise dust ingress. For improved cooling, leave the top ventilation holes open for passive airflow or fit the optional two-fan ventilation module into the upper chassis ventilation hole for active ventilation. Note that side doors are fixed; in wall-mounted installations access is from the front only.

What to consider before purchase

Confirm 7U capacity and internal depth are sufficient for your devices
Ensure wall structure can support the cabinet and installed equipment weight
Check IP20 is appropriate for your installation environment (indoor use)
Decide if optional accessories are required: ventilation module, pinion feet or casters
Verify cable routing needs align with the provided 145 x 70 mm inlets

Usage recommendations

Mount the cabinet to a solid wall using suitable fixings, balance load across the rack rails, and use the rubber-edged cable entry with proper compression to protect internal components from dust. Add the optional fan module if equipment generates significant heat or if passive airflow is insufficient.

Specifications

International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20
Rack capacity:: 7U
Size (imperial):: 19 "
Weight:: 20.5 kg
Height:: 423 mm
Depth:: 600 mm
Width:: 600 mm
Product colour:: White

All features

Features

Type:: Wall mounted rack
Material:: Glass
Product colour:: White
Castor wheels:: No
Rack capacity:: 7U
Cooling type:: Passive
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20
Mounting hole shape:: Square
Removable side panels:: No
Key lock:: Yes
Rack rails:: Yes
Frame type:: Closed
Assembly required:: Yes
Preassembled:: No
Soundproof:: No
Removable back door:: No
Front door construction:: Glass/Steel
Side panel construction:: Steel
Front door key lock:: Yes
Cable entry point:: Yes

Other features

Dimensions (WxDxH):: 600 x 600 x 423

Weight & dimensions

Weight:: 20.5 kg
Size (imperial):: 19 "
Height:: 423 mm
Width:: 600 mm
Depth:: 600 mm

Packaging data

Package weight:: 21100 g
Package depth:: 640 mm
Package height:: 200 mm
Package width:: 640 mm
