Rack cabinet Lanview RWF09U66BL 19" server/network cabinet, flat-pack quick-assembly

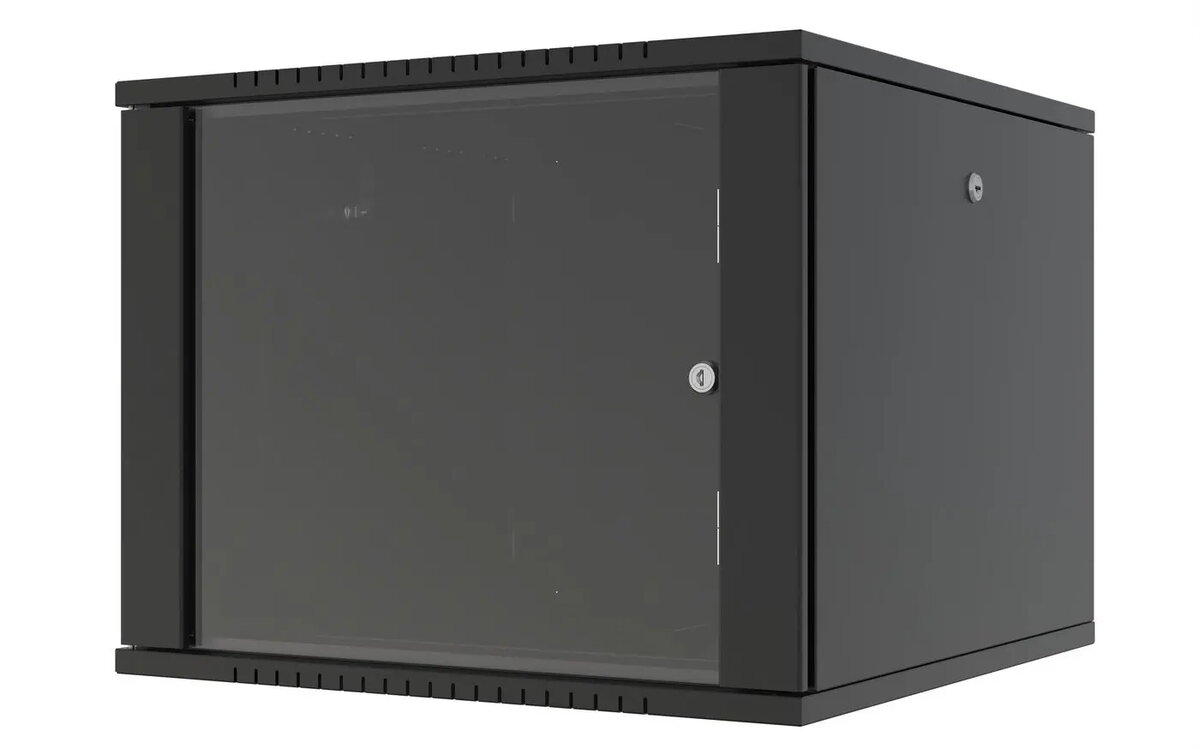

Lanview RWF09U66BL is a 19" rack cabinet designed for server and network equipment, supplied as a flat-pack quick-assembly unit. With external dimensions of 600 x 600 x 512 mm, the cabinet provides standard 19-inch mounting rails, vertical space for rackmount devices and three-direction cable access for straightforward installation and maintenance. The front door is 4 mm antistatic tempered glass with an extruded aluminum frame and colored side strips, offering a durable, serviceable and visually distinct enclosure suitable for data closets, small server rooms and network installations.

Advantages

The cabinet ships flat-packed for reduced transport volume and quick on-site assembly, and comes with two adjustable device installation rails already mounted for depth flexibility of equipment. Fixed side panels ensure structural rigidity and secure wall-mounted use, while the front glass door allows visual inspection without opening. Multiple cable inlet holes (upper, lower and rear) and a rubber-edged cable entry module with 0–50 mm movable sliding compression minimize dust ingress and secure incoming cables. Ventilation openings in the top chassis support passive airflow and accept an optional ventilation module with up to two fans for active cooling.

Suitable for

• Small server rooms and network closets
• Wall-mounted networking and telecom installations
• Enclosures for rackmount switches, patch panels and compact servers
• Environments requiring visual monitoring through a glass front door

Key specifications

• External dimensions: 600 mm (W) x 600 mm (D) x 512 mm (H)
• Mounting standard: 19-inch rackmount
• Front door: 4 mm antistatic tempered glass with extruded aluminum frame
• Finish color: RAL9005 (black)
• Delivery format: flat-pack, quick-assembly
• Device installation rails: 2 rails mounted, adjustable depth
• Cable entries: 145 x 70 mm inlet holes at top, bottom and rear; rubber-edged movable cable entry (0–50 mm) with sliding compression
• Ventilation: passive top chassis ventilation holes; supports optional 2-fan ventilation module for active cooling
• Side panels: fixed (non-detachable) for wall-mount applications; removable access for free-standing use with optional feet or casters

How to use

Assemble the cabinet on a stable surface following the supplied quick-assembly instructions; the flat-packed design reduces parts and assembly time. For wall mounting, secure the cabinet to appropriate structural supports and note that side panels are fixed—access will be from the front only. For free-standing installations, fit the optional pinion feet or caster group and ensure rear and front access for maintenance. Install rackmount devices on the provided installation rails and adjust rail depth to accommodate equipment depth. Route cables through the 145 x 70 mm inlet holes or the rubber-edged cable entry module, using the sliding compression to protect and compress incoming cables.

Usage recommendations

Place the cabinet in a well-ventilated location and, if equipment generates significant heat, install the optional 2-fan ventilation module in the top chassis to provide active airflow. Use correct mounting hardware for wall installations and ensure cable entry points are sealed as required to limit dust. For mobile or raised-floor environments, use the caster group or pinion feet and confirm floor loading and stability before loading equipment.
