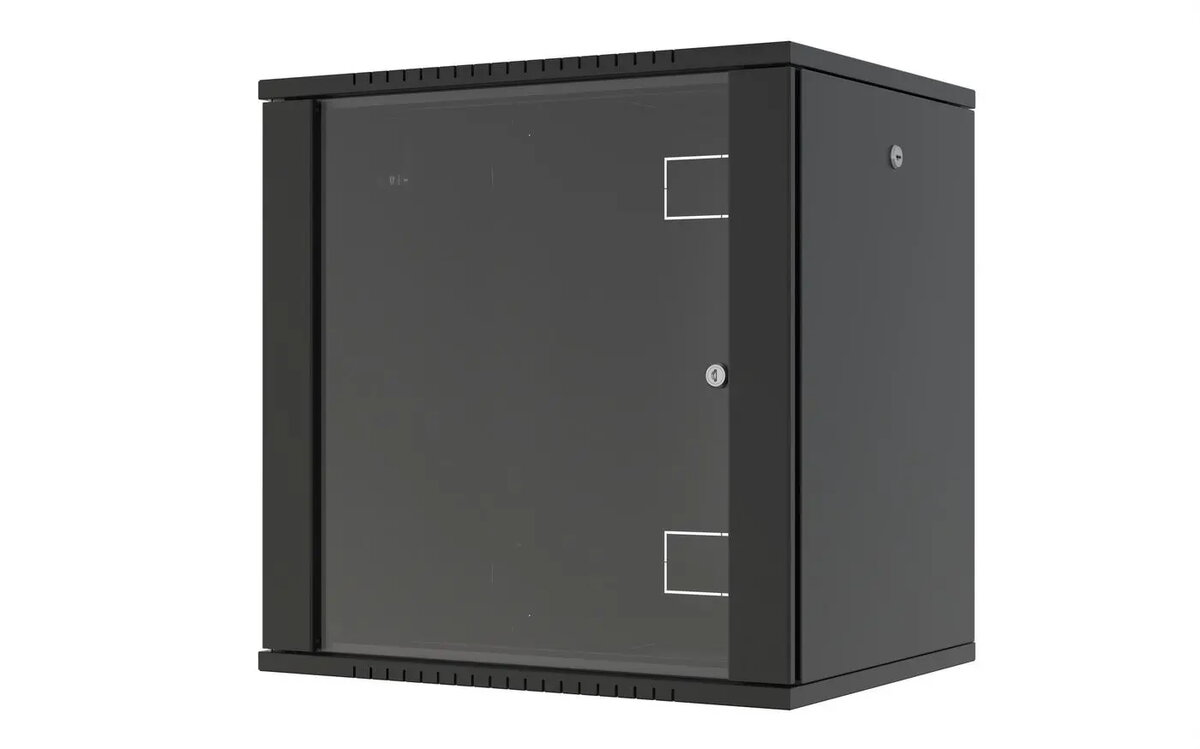

Lanview RWF12U45BL 19-inch Quick Assembly Wall Mount Cabinet

The Lanview RWF12U45BL is a 19-inch wall-mounted telecommunication cabinet engineered for the organized and secure housing of network equipment. This unit features a practical flat-pack design that allows for quick and efficient assembly, making it an excellent choice for environments where space and ease of installation are priorities. Constructed with a focus on durability and functionality, the cabinet provides a stable environment for servers, switches, and patch panels.

Advantages

The cabinet is built with a robust extruded aluminum frame and a 4mm antistatic, tempered glass door that offers high fracture resistance while maintaining a professional aesthetic. Its design includes versatile cable management options with entry points at the top, bottom, and rear, all equipped with a sliding compression system to secure cables and minimize dust ingress. The internal rails are adjustable, allowing for precise depth configuration to accommodate various hardware sizes. Furthermore, the unit supports both passive and active cooling, with dedicated ventilation holes that can be upgraded with optional fan modules to ensure optimal operating temperatures for sensitive electronics.

Suitable for

• Small office network infrastructure
• Home server and networking setups
• Housing patch panels and network switches
• Secure storage for telecommunication equipment

This cabinet may not be suitable for environments requiring frequent side access, as the side panels are fixed and not detachable. It is also not intended for heavy-duty industrial equipment that exceeds the weight capacity of a standard wall-mounted unit.

Key specifications

• Dimensions: 600mm width x 450mm depth x 645mm height
• Material: Tempered 4mm antistatic glass with aluminum frame
• Color: RAL9005 black finish
• Cable management: Three-way entry with sliding compression module
• Ventilation: Passive air circulation with optional active fan support
• Mounting: Wall-mount design with optional floor-standing capability

Assembly should be performed on a flat, stable surface according to the provided instructions. Once assembled, the cabinet can be mounted to a wall using appropriate hardware for the wall type. Equipment should be installed using the adjustable rails to ensure proper depth alignment. If active cooling is required, install the optional fan module into the top chassis ventilation port before securing the cabinet to the wall. Ensure all cables are routed through the rubber-edged entry points and compressed to maintain a clean and dust-free interior.

What to consider before purchase

• Verify the wall structure can support the weight of the cabinet and installed equipment.
• Ensure the 450mm depth is sufficient for your specific server or switch models.
• Confirm that front-only access is sufficient for your maintenance requirements.
• Check if optional accessories like caster wheels or fan modules are needed for your specific setup.

For optimal performance, ensure the cabinet is placed in a well-ventilated area and that the cable entry modules are properly tightened to prevent dust accumulation.
