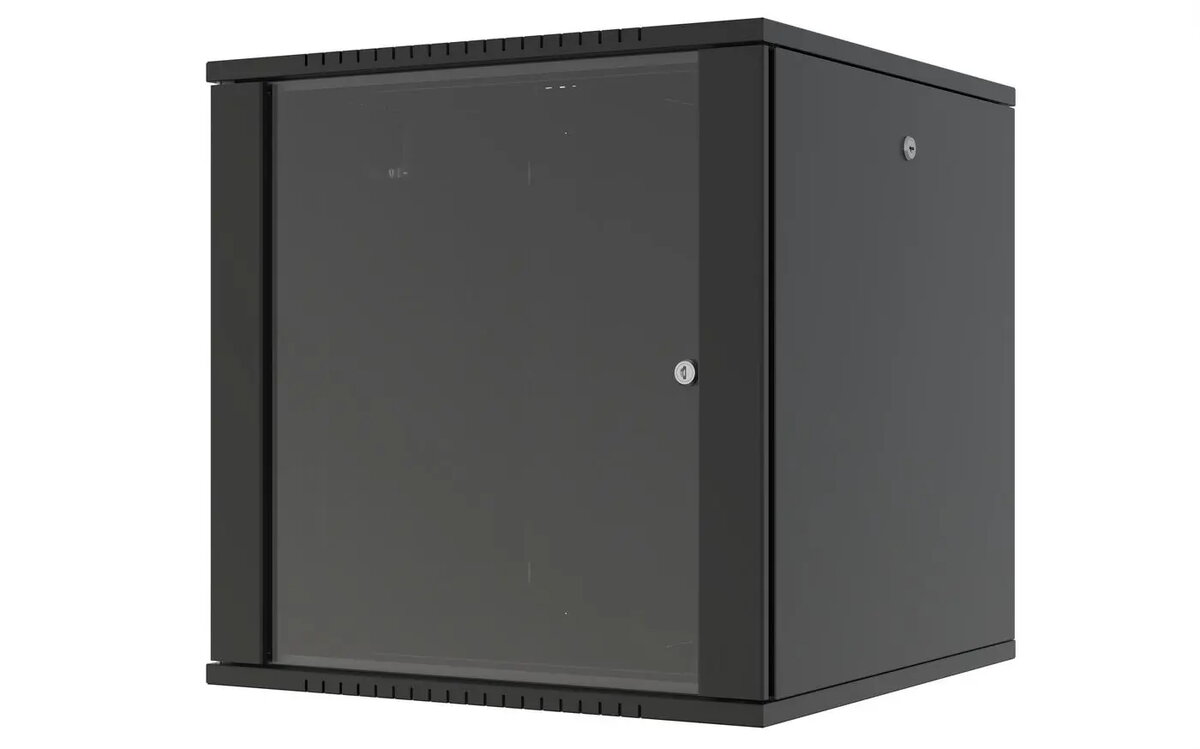

Rack cabinet Lanview RWF12U66BL 19" server/network cabinet, 12U, 600mm depth, lockable front door

The Lanview RWF12U66BL rack cabinet is a 12U, 19-inch enclosure designed for small network and AV installations. It measures 600 mm wide, 600 mm deep and 645 mm high and features a tempered 4 mm antistatic glass front door set into an extruded aluminum frame. Side-colored strips on the glass and a rubber-edged adjustable cable entry module help manage cables and reduce dust ingress. The cabinet is supplied flat-packed and can be configured for wall mounting or free-standing use with optional feet or castors.

Advantages

This rack cabinet combines a compact footprint with a tempered, smoothed glass door for equipment visibility and protection. The extruded aluminum frame and high fracture resistance of the glass provide a durable front access point, while built-in passive ventilation and an option to add an active fan module give flexible thermal management. Adjustable device installation rails allow depth adjustment of mounted equipment, and multiple 145 x 70 mm cable entry holes at top, bottom and rear simplify cable routing.

Suitable for

• Small network or server installations requiring up to 12U of rack space
• Telecommunications or AV equipment in offices, retail or IT closets
• Wall-mounted applications where front access is required
• Free-standing setups when used with optional feet or castors

When it may not be suitable

The cabinet’s 12U height and 600 x 600 mm footprint limit the amount and size of equipment that can be installed, so it is not suitable for larger server rooms or installations requiring significant rack depth. Because the side doors are fixed, rear access in wall-mounted installations is restricted; full rear access is available only in free-standing configurations.

Key specifications

• External dimensions: 600 mm (W) x 600 mm (D) x 645 mm (H)
• Rack capacity: 12U, 19-inch mounting
• Front door: 4 mm tempered antistatic smoothed glass with extruded aluminum frame
• Color: black (RAL9005)
• Cable entries: 145 mm x 70 mm openings at top, bottom and rear; rubber-edged adjustable cable inlet module with 0–50 mm movable range and sliding compression
• Ventilation: passive vents in upper chassis; option to fit up to 2 fans for active ventilation
• Installation rails: 1 set with 2 device installation rails, depth-adjustable
• Packaging: flat-packed for quick assembly

How to use

For wall mounting, attach the cabinet securely to a suitable wall surface and install equipment through the front door; rear access will be limited due to fixed side panels. For free-standing use, fit optional pinion feet or castors, which allow access from both front and rear. Route cables through the 145 x 70 mm inlet holes at top, bottom or rear and compress them safely using the rubber-edged cable entry module, adjustable over 0–50 mm. If additional cooling is required, install the optional fan module (up to two fans) in the upper chassis ventilation opening to enable active ventilation; otherwise the cabinet uses passive airflow through the vents.

What to consider before purchase

• Confirm that 12U of rack space and the 600 x 600 mm internal depth are sufficient for your equipment
• Decide whether wall mounting or free-standing configuration is required and whether optional feet or castors will be needed
• Check whether active cooling (fan module) is necessary for heat-generating devices
• Ensure front-only access in wall-mounted installations meets your service and maintenance needs

Usage recommendations

Place heat-generating equipment lower in the rack when possible, maintain clear airflow paths through cable management, and use the rubber-edged compression module to protect cables and reduce dust ingress. For equipment requiring frequent rear access, prefer a free-standing setup with optional castors.
