Rack cabinet Lanview RWF20U66WH 19" server/network cabinet, model RWF20U66WH

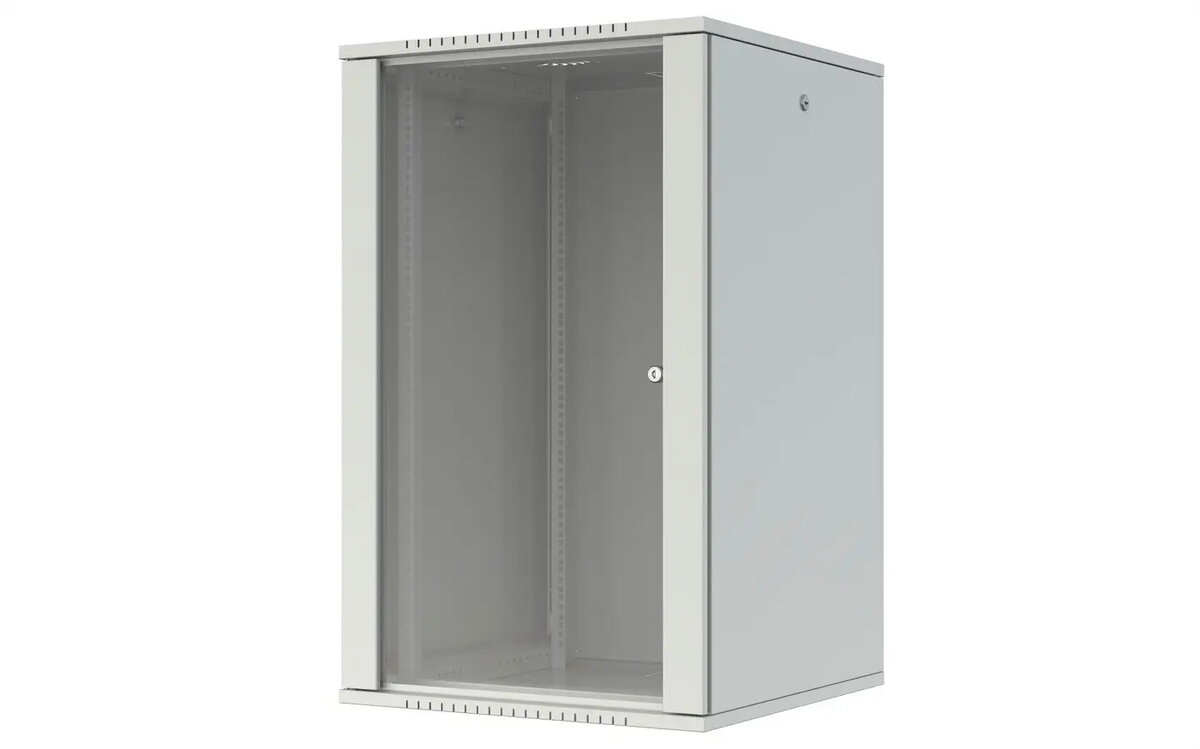

Lanview RWF20U66WH is a 19" rack cabinet designed to house servers, network switches and related IT equipment. With external dimensions of 600 x 600 x 1000 mm, the cabinet provides a standardized enclosure for organized cable routing, secure mounting and both passive and optional active ventilation. The front features a 4 mm tempered, antistatic glass door framed in extruded aluminum, with colored decorative strips along the sides. Side doors are fixed; access depends on mounting type: front access only for wall-mounted installations, and front and rear access for free-standing setups.

Advantages

The cabinet supports flexible installation: it ships flat-packed for quick assembly and can be used as a wall-mounted unit or as a free-standing cabinet with optional pinion feet or caster group. Built-in device rails (one set with two mounting rails) allow depth adjustment of installed equipment. Multiple 145 x 70 mm cable entry openings in the top, bottom and rear doors and a movable rubber-edged cable entry module with sliding compression (0–50 mm) provide secure cable sealing and reduced dust ingress. Passive ventilation is available through top vents; active ventilation can be added by fitting an optional fan module with up to two fans.

Suitable for

• Small server rooms and branch office racks
• Network closets and cabling points
• Mounting 19" servers, switches and rack-mount devices
• Installations requiring a compact, organized enclosure with glass front visibility

When it may not be suitable

The cabinet’s internal depth and height are limited by its overall dimensions (600 x 600 x 1000 mm), so very deep or large 19" equipment may not fit. Side doors are fixed and not removable, which restricts side access in some installation scenarios.

Key specifications

• External dimensions: 600 x 600 x 1000 mm (W x D x H)
• Front door: 4 mm tempered, antistatic, smoothed glass with extruded aluminum frame
• Color: RAL 7035 (light grey)
• Mounting: wall-mountable or free-standing (optional feet or casters)
• Device mounting: one set with two adjustable 19" installation rails
• Cable entry: 145 x 70 mm openings at top, bottom and rear; movable rubber-edged cable entry module with sliding compression (0–50 mm)
• Ventilation: passive vents in top chassis; optional active ventilation with up to two fans
• Delivery format: flat-packed for quick assembly

How to use

Assemble the flat-packed cabinet following the supplied instructions, mounting the adjustable 19" rails to the desired depth. For wall installation, secure the cabinet to suitable anchors and note that side doors are fixed, so prepare for front-only access. For free-standing use, fit optional pinion feet or casters to allow rear and front access. Route cables through the top, bottom or rear 145 x 70 mm openings and use the movable rubber-edged cable entry module to compress and seal incoming cable bundles. If additional cooling is required, install the optional fan module (up to two fans) into the top ventilation opening to enable active ventilation.

What to consider before purchase

• Check internal equipment depth and height against cabinet internal dimensions to ensure fit
• Determine whether front-only access (wall-mount) meets maintenance needs or if free-standing access is required
• Decide if optional feet, casters or fan module are needed for your installation
• Confirm required cable entry directions and sealing needs for dust protection

Usage recommendations

Install heavier equipment low in the cabinet to maintain stability, use the adjustable rails to set correct mounting depth for connectors, and fit the rubber-edged cable entry module to minimize dust ingress. Add the optional fan module only if passive ventilation is insufficient for your heat load.
