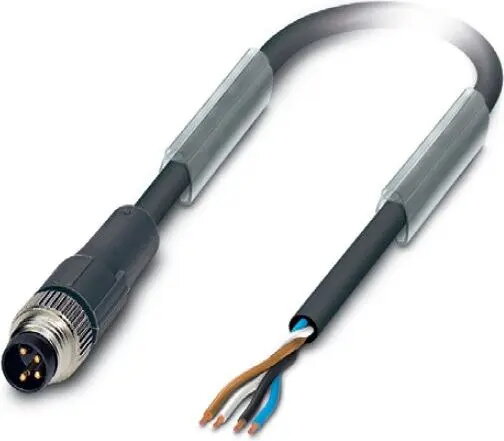

The Lapp AB-C4-M8MS-10,0PUR is a high-performance fieldbus connection cable engineered for precision and reliability in industrial automation environments. Measuring 10 meters in length, this 4-pin cable features a straight M8 plug, providing a robust and secure connection for sensors and field devices. The cable is encased in a high-quality polyurethane (PUR) jacket, which offers excellent protection against mechanical wear, abrasion, and chemical exposure, ensuring long-term operational stability in demanding factory settings.
Advantages
This connection cable stands out due to its exceptional durability and signal integrity. The PUR outer sheath provides superior resistance to oils, lubricants, and mechanical stress, making it highly suitable for dynamic applications where flexibility is required. The standardized M8 connector ensures compatibility with a wide range of industrial equipment, while the 4-pin configuration facilitates accurate data and power transmission. Its robust construction minimizes the risk of signal interference and connection failure, contributing to increased uptime and efficiency in automated systems.
Suitable for
- Industrial automation and control systems
- Sensor and actuator connectivity
- Fieldbus communication networks
- Robotic and motion control applications
- Manufacturing environments with high mechanical requirements
When it may not be suitable
This cable is not intended for high-voltage power distribution or applications requiring extreme temperature resistance beyond the standard specifications for PUR materials. It is also not suitable for permanent outdoor installations where direct, prolonged exposure to UV radiation is expected without additional protective shielding.
Key specifications
- Cable length: 10 meters
- Connector type: M8 straight plug
- Pin count: 4-pin
- Jacket material: Polyurethane (PUR)
- Application: Fieldbus and sensor connectivity
How to use
To install the cable, align the M8 connector with the corresponding port on your sensor or field device. Push the connector firmly into the socket and tighten the threaded locking ring by hand until it is secure. Ensure that the cable is routed away from sharp edges or heavy machinery that could cause physical damage. Avoid exceeding the minimum bending radius during installation to maintain the integrity of the internal conductors.
What to consider before purchase
- Verify the pin configuration matches your device requirements
- Check the connector gender and orientation (straight vs. angled)
- Ensure the 10-meter length is sufficient for your installation layout
- Confirm compatibility with your specific fieldbus protocol
Usage recommendations
Regularly inspect the cable jacket for signs of wear or damage, especially in areas subject to constant movement or vibration. Ensure that all connections remain tight and free from debris to maintain optimal signal quality.
