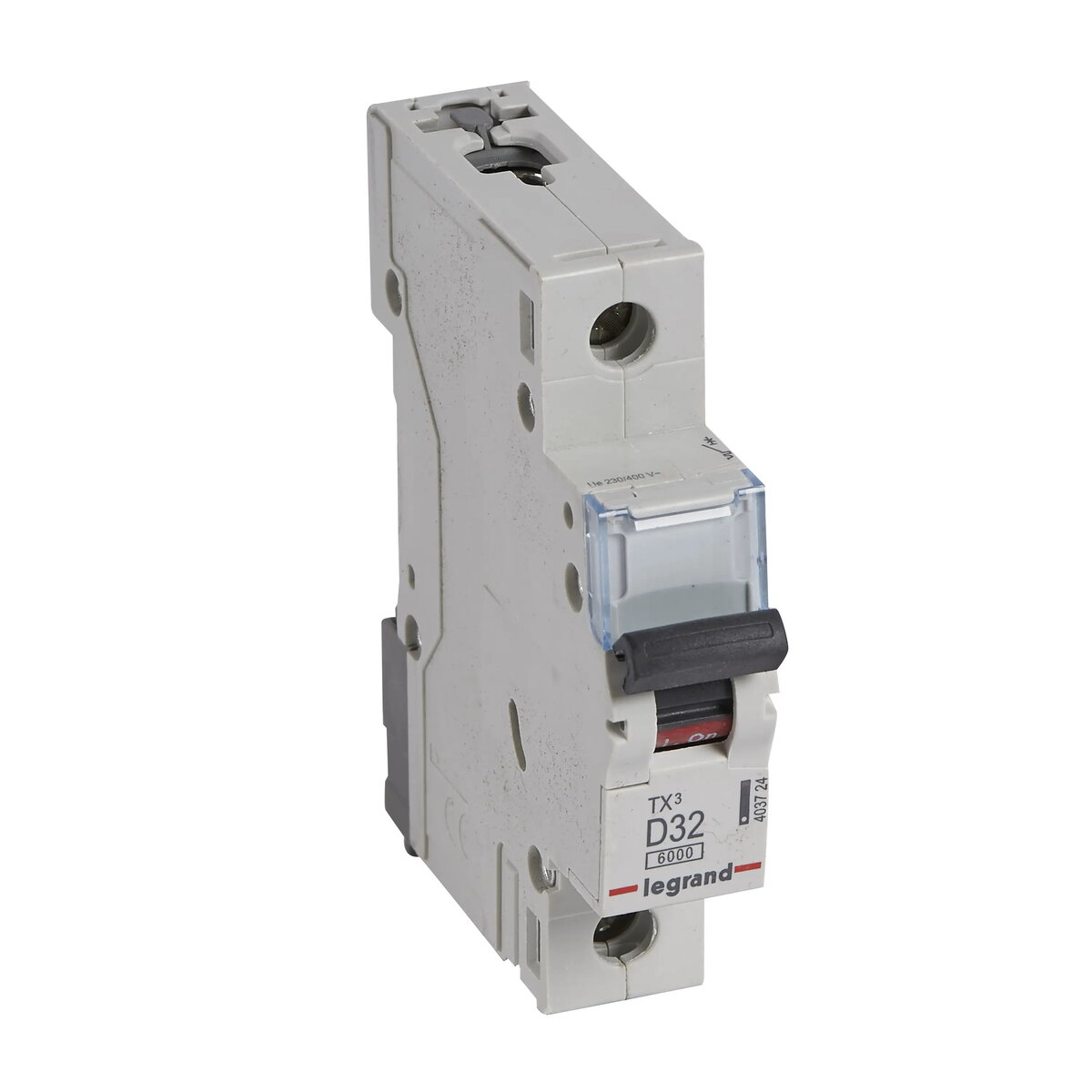

Legrand TX3 403724 Miniature Circuit Breaker 1P 32A

Name: Legrand TX3 403724 Miniature Circuit 403724
Brand: Legrand
SKU: 12481440
Price: 14.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Legrand TX3 403724 Miniature Circuit Breaker, 1P, 32A, Type D, 6kA

New Arrival

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Legrand TX3 403724 is a 1-pole miniature circuit breaker designed for reliable electrical circuit protection. It features a 32A rated current, Type D tripping characteristic, and operates at 240-415V with a 50-60Hz frequency. Rated for 6kA breaking capacity, this IP20-rated device is suitable for industrial and residential electrical distribution systems requiring protection against short circuits and overloads.

Available for order: 20 pcs.

Warranty: 2 Years

SKU: 12481440

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 €

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Legrand TX3 403724 is a high-quality 1-pole miniature circuit breaker engineered to provide dependable protection for electrical circuits in both residential and industrial environments. This device is designed to safeguard electrical installations by effectively interrupting the power supply in the event of overloads or short circuits, ensuring the safety of connected equipment and wiring. With a rated current of 32A and a robust 6kA breaking capacity, it is built to handle demanding electrical loads while maintaining consistent performance across a voltage range of 240-415V.

Advantages

This circuit breaker offers exceptional reliability and durability, which are hallmarks of the Legrand brand. Its compact design allows for efficient use of space within electrical distribution boards, making it an ideal choice for modern installations where panel space is limited. The Type D tripping characteristic provides a higher tolerance for inrush currents, making it particularly effective for circuits powering motors, transformers, or other inductive loads that experience temporary current spikes during startup. The device is constructed with high-quality materials to ensure long-term operational stability and safety.

Suitable for

Residential electrical distribution systems
Industrial power distribution panels
Circuits supplying inductive loads such as motors and transformers
Protection against short circuits and overloads

This device may not be suitable for applications requiring a different tripping characteristic, such as Type B or C, which are more sensitive to lower current surges. It is also not intended for outdoor use without a protective enclosure, as it carries an IP20 rating, meaning it is not protected against water ingress or high levels of dust.

Key specifications

Rated current: 32A
Number of poles: 1
Tripping characteristic: Type D
Breaking capacity: 6kA
Voltage range: 240-415V
Frequency: 50-60Hz
Protection rating: IP20
Dimensions: 17.8 mm width, 77.8 mm depth, 88 mm height

How to use

The Legrand TX3 circuit breaker is designed for mounting on a standard DIN rail within an electrical distribution board. Installation should be performed by a qualified electrician in accordance with local electrical regulations. The device is snapped onto the rail, and the electrical conductors are secured into the terminal clamps. Ensure that the wire gauge is appropriate for the 32A current rating to prevent overheating. Once installed, the toggle switch can be used to manually disconnect or reconnect the circuit as needed.

What to consider before purchase

Verify that the 32A rating matches the requirements of your specific circuit load.
Ensure that the Type D characteristic is appropriate for the equipment being protected.
Check the available space in your distribution board to accommodate the 17.8 mm module width.
Confirm that the installation environment meets the IP20 protection requirements.

Usage recommendations: Always ensure the power supply is completely disconnected before attempting any installation or maintenance work on the electrical distribution board. Regularly inspect the circuit breaker for signs of wear or damage to maintain optimal safety standards.

All features

Type:: Type D
Storage temperature (T-T):: -40 - 70
Pollution degree:: 2
Circuit breaker type:: Miniature circuit breaker
Dielectric strength:: 4000 V

Power

Input voltage:: 240 - 415
Rated current:: 32 A
Input frequency:: 50 - 60
Rated voltage:: 230 V

Weight & dimensions

Height:: 88 mm
Width:: 17.8 mm
Depth:: 77.8 mm

Design

International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20

Features

Number of poles:: 1
Installation type:: DIN-rail

Technical details

Doesn't contain:: Halogen

Description
