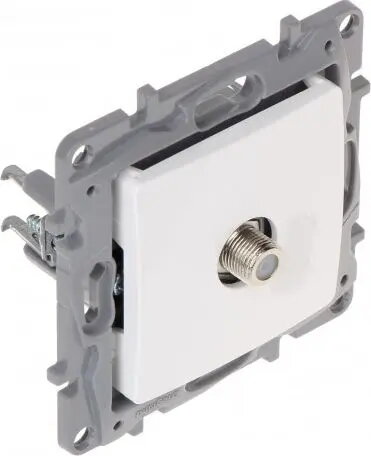

Wall outlet socket Legrand TV/SAT Niloe LE-764549 — TV and satellite coaxial termination

Legrand Niloe LE-764549 is a wall-mounted TV/SAT end socket designed to terminate coaxial television and satellite cables. It provides a dedicated, flush-mounted connection point compatible with Niloe modular plates and standard in-wall installations, enabling tidy cable management and reliable signal access for TV and satellite receivers in living rooms, bedrooms, or media cabinets.

Advantages

The wall outlet offers a compact, standardized solution for coaxial cable termination without protruding connectors, ensuring a neat appearance and protected connection. Its compatibility with Niloe mounting plates allows simple replacement or integration into existing modular installations. The unit is intended to maintain signal integrity for TV and satellite reception while simplifying wiring routes and accessibility for end-user equipment.

Suitable for

• Home television and satellite receiver connections
• Integration into modular Niloe wall plates and flush-mounted installations
• Media cabinets and AV distribution points
• Living rooms, bedrooms, guest rooms and other residential spaces

Key specifications

• Function: coaxial termination for TV and satellite signals
• Form factor: flush-mounted wall outlet compatible with Niloe modular plates
• Connector type: coaxial female termination suitable for TV/SAT cables
• Installation: in-wall mounting within standard electrical boxes and plate frames
• Finish: designed for integration with Niloe series finishes and cover plates

How to use

Install the socket into a compatible Niloe frame or standard in-wall mounting box following local electrical and building regulations. Terminate the incoming coaxial cable to the socket’s coaxial connection according to cable preparation standards, ensuring solid contact and secure fixation. Attach the Niloe cover plate to conceal the mounting hardware and provide a flush finish. Connect a TV or satellite receiver to the front-facing coaxial outlet using an appropriate coaxial lead.

Usage recommendations

For optimal signal quality, use quality coaxial cable with appropriate shielding and ensure connectors are properly tightened. Locate the socket near the intended receiver to minimize cable runs and avoid routing coaxial cable alongside power cables to reduce interference. When integrating into multi-point distribution systems, verify impedance matching and consult signal distribution equipment documentation.
