PoE Switch LevelOne 8-Port Fast Ethernet 90W

Name: PoE Switch LevelOne 8-Port Fast 520830
Brand: LEVELONE
SKU: 429941
Price: 160.99 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

PoE Switch LevelOne 8-Port Fast Ethernet 90W Photo 3

PoE Switch LevelOne 8-Port Fast Ethernet 90W Photo 4

Sale OUT! Discount 6%

You save: 9.50 €

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Usual Price: 170.49 €

Your Price:

The discount is valid from 03.06.2026 to 03.07.2026

Short description

The LevelOne 8-Port Fast Ethernet PoE Switch offers 8 PoE outputs with a total power budget of 90W. It features Fast Ethernet ports (10/100 Mbps), full duplex capability, and a MAC address table with 1024 entries. With a switching capacity of 1.6 Gbit/s, it supports IEEE networking standards including 802.3, 802.3af, 802.3u, and 802.3x. Ideal for powering devices like IP cameras and wireless access points.

Available at price 160.99 €: 1 pcs.

Total available for order: 2 pcs.

Warranty: 2 Years

SKU: 429941

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

19.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

19.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

26.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.40 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

26.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 53.66 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 4.47 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

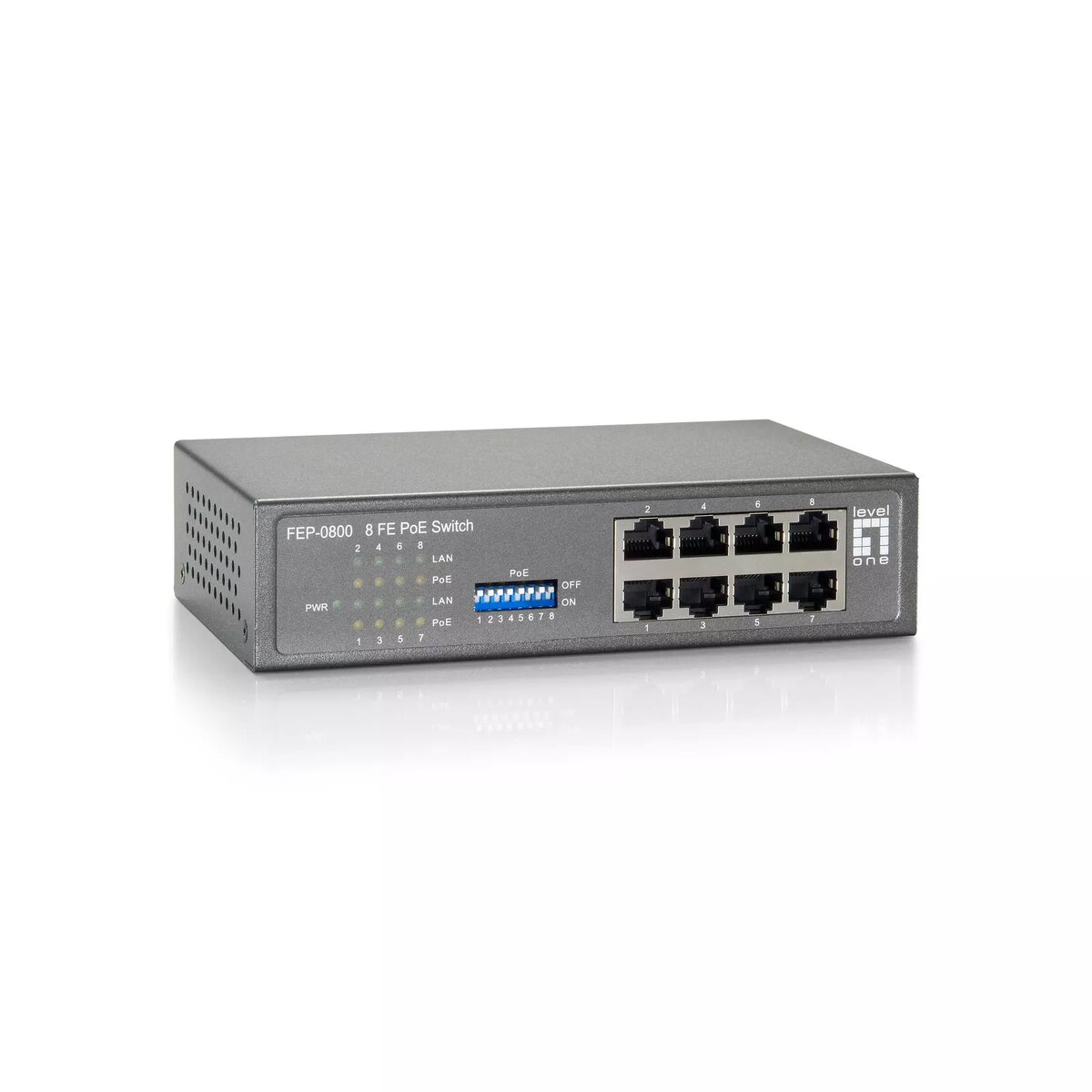

FEP-0800 is an 8-port 10/100Mbps Fast Ethernet switch with Power over Ethernet (PoE). Each of the eight PoE ports has a dedicated DIP switch for manual On/Off control. When a port's DIP switch is set to ON, the switch supports up to 30W per LAN port. Two dual 10/100Mbps ports can be used as uplinks to connect to other edge switches or an NVR. Using a LevelOne PoE repeater, connections can be extended by an additional 100 meters, and multiple repeaters can be daisy-chained to reach greater distances.

Advantages

The FEP-0800 provides centralized PoE management via per-port DIP switches and a total PoE power budget of 85W, allowing flexible power delivery to connected devices. Auto-negotiation and Auto-MDI/MDIX simplify connections, while IEEE 802.3x flow control helps prevent packet loss for more reliable data transmission. Installation is plug-and-play, requiring no configuration for basic operation.

Key specifications

Ports: 8 x 10/100Mbps PoE ports with individual DIP switches; 2 dual 10/100Mbps uplink ports
PoE: Supports up to 30W per port when DIP switch is ON
Total PoE budget: 85W
Standards: IEEE 802.3x Flow Control
Operation: 10/100Mbps Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
Installation: Plug and Play

How to use

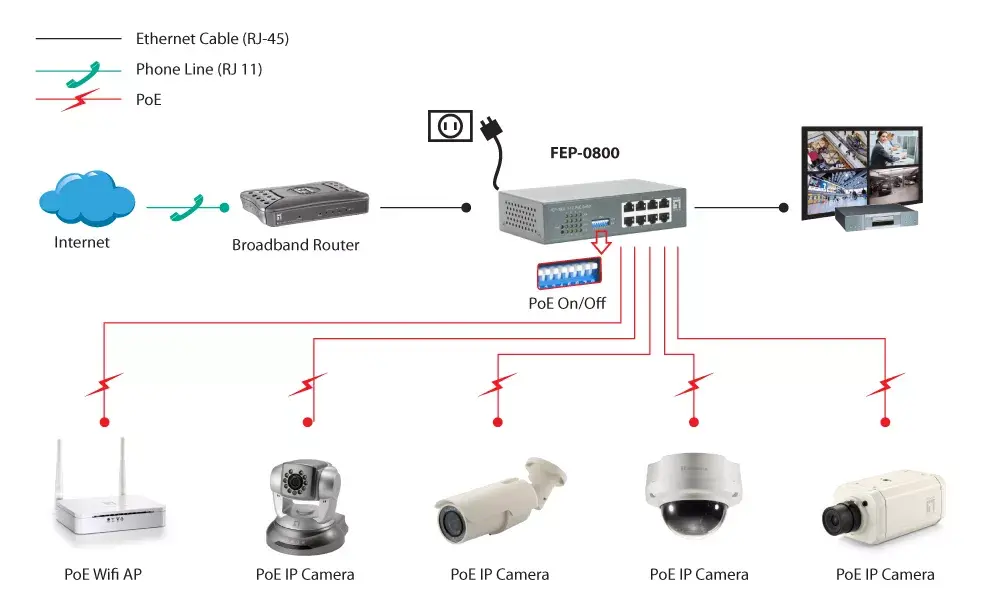

Connect devices to the eight PoE ports and set the corresponding DIP switches to ON to provide power (up to 30W) to each powered device. Use the dual 10/100Mbps ports as uplinks to integrate the switch into your network or to connect to an NVR. If you need to extend the powered connection beyond 100 meters, install a LevelOne PoE repeater; multiple repeaters can be daisy-chained for longer distances. No additional configuration is required for basic connectivity.

Recommendations

Ensure the total power consumption of connected PoE devices does not exceed the switch’s 85W PoE budget. For long runs, use LevelOne PoE repeaters and verify each powered device’s wattage requirement before enabling its port with the DIP switch.

Specifications

Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Weight:: 1.4 kg
Basic switching RJ-45 Ethernet ports quantity:: 8
10G support:: No
Networking standards:: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Product colour:: Black, Grey

All features

Packaging data

Package weight:: 1600 g
AC adapter included:: Yes
Package depth:: 230 mm
Package height:: 82 mm
Package width:: 371 mm
Package type:: Box

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 8
Power connector:: DC-in jack

Packaging content

Manual:: Yes

Certificates

Certification:: FCC, CE, RoHS

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 90 W
Output voltage:: 56
Power protection features:: Over current, Short circuit
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240
Power supply included:: Yes

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 45
Storage relative humidity (H-H):: 10 - 90

Logistics data

Country of origin:: Taiwan
Harmonized System (HS) code:: 85176990

Data transmission

MAC address table:: 1024 entries
Switching capacity:: 1.6 Gbit/s
Store-and-forward:: Yes
Packet forwarding rate (10 Mbps):: 14880 pps
Packet forwarding rate (100 Mbps):: 148000 pps

Performance

Buffer size:: 64 KB

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet (PoE) ports quantity:: 8
Total Power over Ethernet (PoE) budget:: 85 W
Power over Ethernet (PoE) power per port:: 30 W

Weight & dimensions

Weight:: 1.4 kg
Height:: 41 mm
Width:: 165 mm
Depth:: 99 mm

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X:: Yes
10G support:: No
Copper ethernet cabling technology:: 10BASE-T, 100BASE-TX
Auto-negotiation:: Yes

Design

Rack mounting:: No
LED indicators:: Power, Activity, LAN, PoE
Product colour:: Black, Grey
Stackable:: No
On/off switch:: Yes
