Fiber optic transceiver LevelOne AOC-0502

Name: Fiber optic transceiver LevelOne AOC-0502 AOC-0502
Brand: LEVELONE
SKU: 10498226
Price: 394.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Fiber optic transceiver LevelOne AOC-0502 Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The LevelOne AOC-0502 is a high-performance fiber optic transceiver module with a maximum data transfer rate of 103100 Mbit/s. It features a QSFP28 interface and operates at a wavelength of 850 nm. This universal transceiver is RoHS certified and comes in an aqua and silver color. With dimensions of 18.4 mm in width, 8.5 mm in depth, and 2000 mm in height, it is compact and efficient for various networking applications.

Available at price 394.49 €: 2 pcs.

Total available for order: 6 pcs.

Warranty: 2 Years

SKU: 10498226

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.13 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 131.5 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 10.96 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

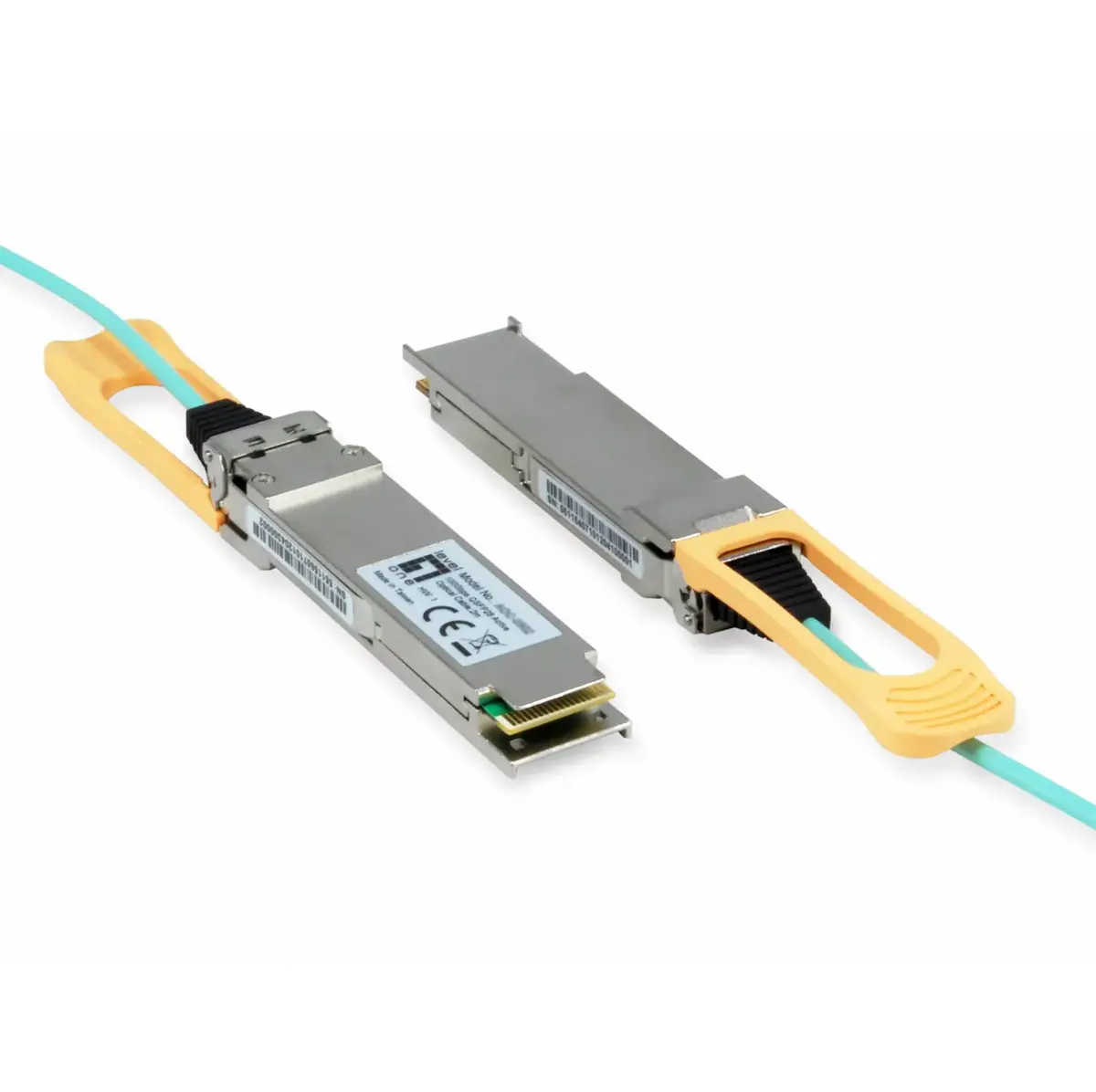

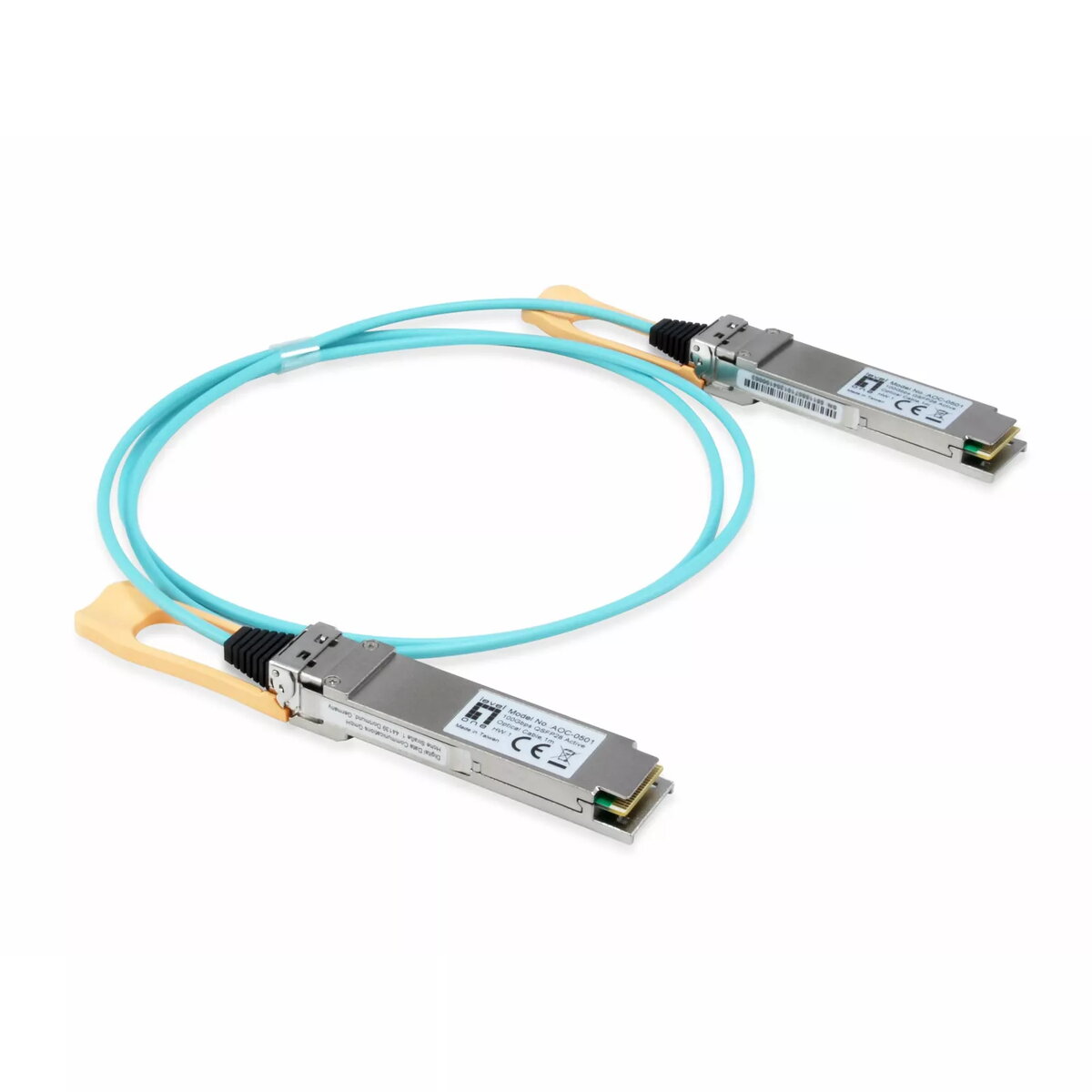

The LevelOne Quad Small Form-factor Pluggable 28 (QSFP28) active optical cable provides high-performance 100G Ethernet connectivity for I/O-intensive applications. The cable integrates four channels and supports up to 100 Gbps aggregate bandwidth using a Chip on Board (COB) design to deliver efficient optical communication and flexible deployment options.

Advantages

The QSFP28 active optical cable combines multi-channel transmission with a compact QSFP28 form factor, enabling high-density 100G links with reduced power consumption and improved signal integrity. The COB technique enhances thermal and electrical performance, making the cable suitable for data centers and other environments that require reliable, high-throughput optical interconnects.

Key specifications

Form factor: QSFP28
Type: Active optical cable (AOC)
Channels: 4
Maximum aggregate data rate: 100 Gbps
Technology: Chip on Board (COB)

How to use

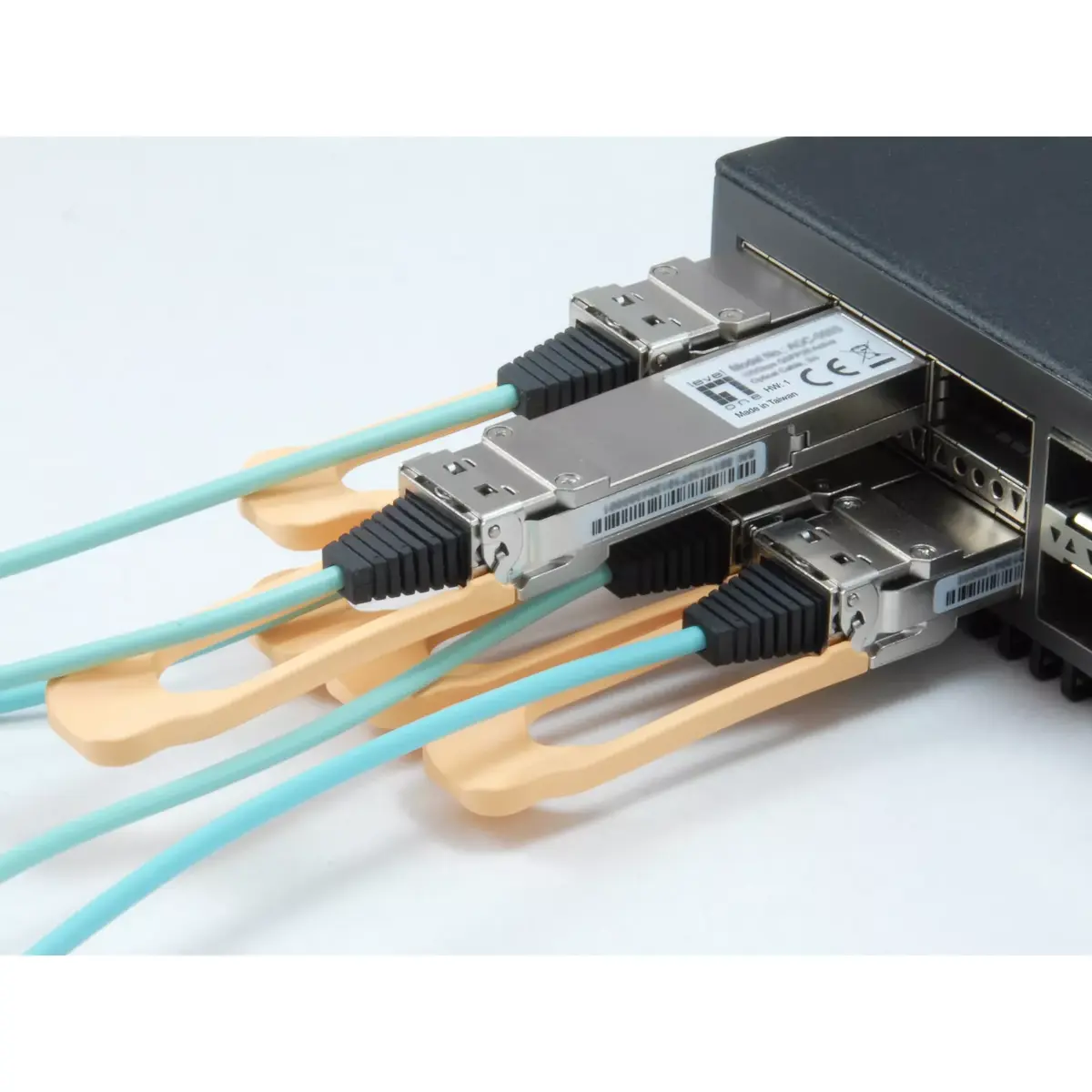

Install the QSFP28 active optical cable by inserting the QSFP28 connector into compatible switch, router or server ports designed for 100G QSFP28 modules. Ensure ports are powered down or follow hot-plugging guidelines from the equipment vendor if supported. Verify link status and configuration in the host device after connection to confirm proper operation.

Recommendations

Use this QSFP28 AOC in environments with compatible 100G QSFP28 ports and follow manufacturer guidelines for handling optical cables. For long-term reliability, avoid excessive bending of the cable and maintain appropriate airflow and cooling around connected equipment.

All features

Weight:: 0.109 kg
Certification:: RoHS
Operating relative humidity (H-H):: 0 - 85
Storage temperature (T-T):: -40 - 85
Package weight:: 134 g
Plug and Play:: Yes
Interface type:: QSFP28
Operating temperature (T-T):: 0 - 70
Maximum data transfer rate:: 103100 Mbit/s
Cable length:: 2 m
Storage relative humidity (H-H):: 0 - 90
Height:: 2000 mm
Width:: 18.35 mm
Depth:: 8.5 mm
Product colour:: Aqua colour, Silver
Networking standards:: IEEE 802.3bm
Wavelength:: 850 nm
Maximum operating temperature:: 70 °C
Country of origin:: Taiwan
Package depth:: 0.5 mm
Package height:: 260 mm
Package width:: 210 mm
Package type:: Bag
Fiber optic connector:: QSFP28
User guide:: Yes
Brand compatibility:: Universal
SFP transceiver type:: Fiber optic
Minimum operating temperature:: 0 °C
Quantity per pack:: 1 pc(s)
Harmonized System (HS) code:: 85369010
SFP transceiver standard:: SR4
Pallet net length:: 800 mm
Pallet net width:: 1200 mm
Pallet net height:: 1644 mm
