5-Port Gigabit Industrial Switch LevelOne IGP-0501

Name: 5-Port Gigabit Industrial Switch LevelOne IGP-0501
Brand: LEVELONE
SKU: 3984343
Price: 169.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

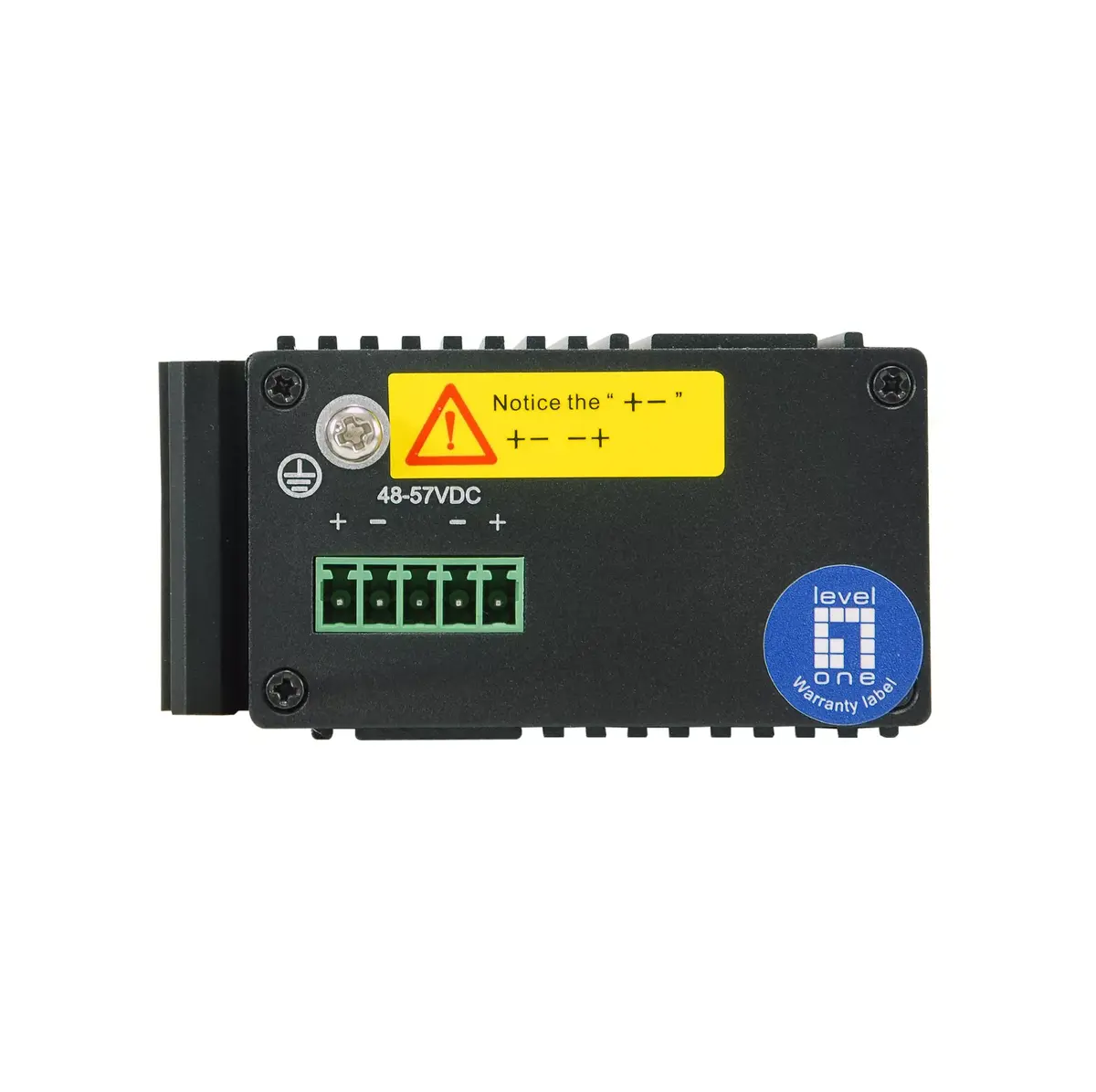

5-Port Gigabit Industrial Switch LevelOne IGP-0501 Photo 3

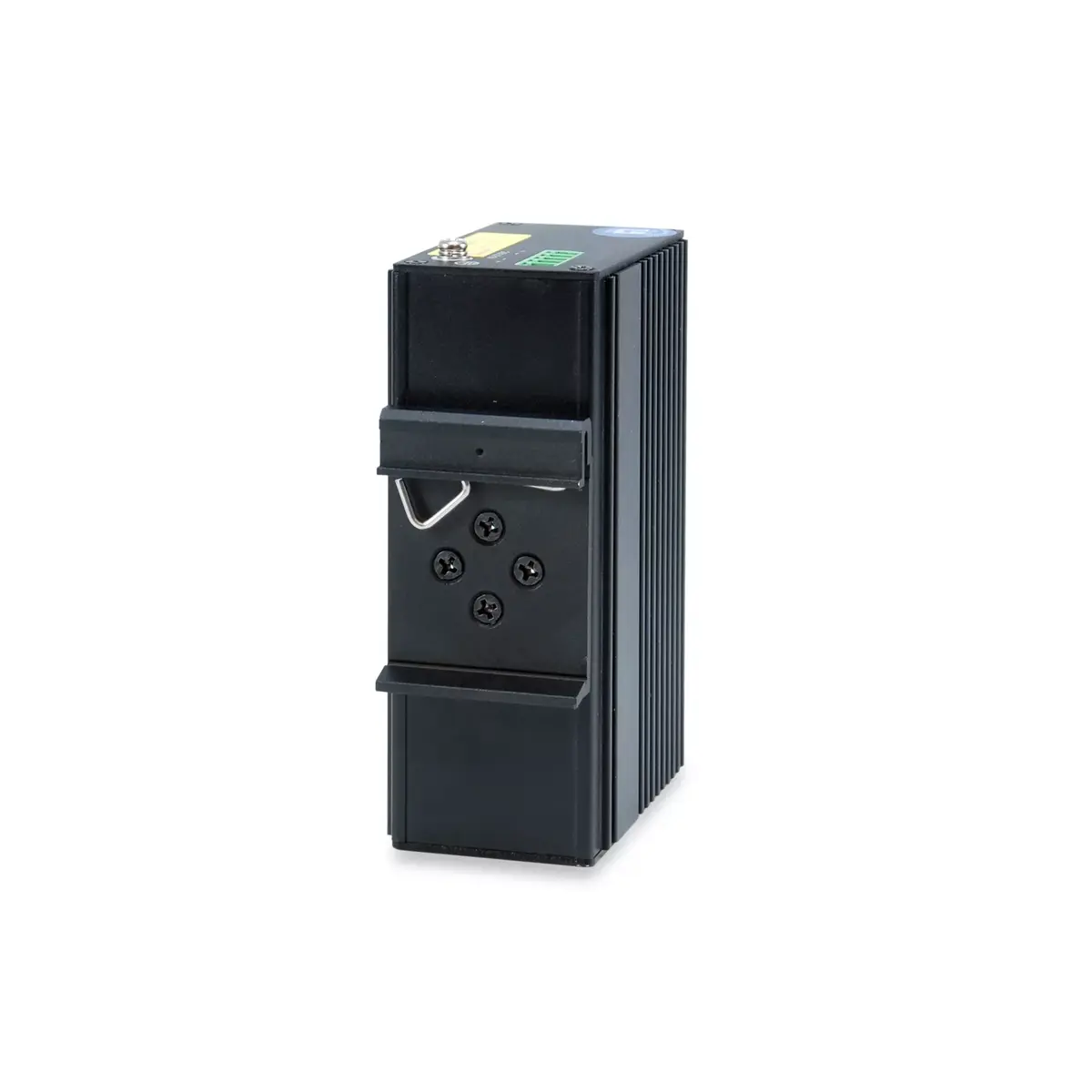

5-Port Gigabit Industrial Switch LevelOne IGP-0501 Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The LevelOne 5-Port Gigabit Industrial Switch IGP-0501 is designed for harsh environments with a temperature range of -30°C to 65°C. It features 4 Gigabit Ethernet ports, supporting full duplex and various networking standards including IEEE 802.3af and IEEE 802.3at for Power over Ethernet (PoE). With a DC input voltage of 48 - 57 V, this switch is wall mountable, making it ideal for industrial applications.

Available at price 169.99 €: 31 pcs.

Total available for order: 124 pcs.

Warranty: 2 Years

SKU: 3984343

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.37 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 56.66 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 4.72 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne IGP-0501 is a 5-port Gigabit industrial Ethernet switch designed for mission-critical and harsh environments. It provides four Gigabit RJ-45 ports with PoE (Power over Ethernet) support and one Gigabit SFP slot for fiber connectivity. The switch supports IEEE 802.3af and IEEE 802.3at standards, delivers up to 30 W per PoE port, and accepts a DC input voltage in the 48–57 V range. The durable metal housing and DIN-rail/wall-mountable design suit installations where temperature ranges and space constraints are a factor.

Advantages

The IGP-0501 integrates PoE Power Sourcing Equipment functionality to supply power to compatible devices directly over Ethernet, reducing separate power cabling and the number of required UPS units. The inclusion of a Gigabit SFP port allows flexible uplink choices via pluggable transceivers. Visible status LEDs simplify monitoring of link and port activity. The switch supports standard Gigabit Ethernet protocols and industrial operating temperatures, making it suitable for reliable network deployment in harsh conditions.

Suitable for

IP cameras and video surveillance systems
Industrial automation and control networks
Access points and wireless backhaul in outdoor or factory settings
Small aggregation points requiring fiber uplink

Key specifications

Ports: 4 × Gigabit RJ-45 (10/100/1000) with PoE, 1 × Gigabit SFP
PoE standard: IEEE 802.3af and IEEE 802.3at (up to 30 W per port)
Input voltage: DC 48–57 V
Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x
Operating temperature: suitable for industrial environments (refer to manufacturer data)
Weight: 0.35 kg
Color: Black

How to use

Mount the switch on a DIN rail or secure it to a wall or cabinet using the supplied mounting hardware. Connect the DC power input within the specified 48–57 V range. Attach network devices to the RJ-45 ports and, if required, insert a compatible SFP transceiver into the SFP slot for fiber uplink. PoE-capable devices will receive power automatically when connected to PoE ports, up to the port power budget. Monitor port link/activity LEDs to verify connectivity and status.

Usage recommendations

Use Category-rated Ethernet cables (Cat5e or higher) for Gigabit performance, choose compatible SFP modules that match the remote uplink media and wavelength, and ensure the total PoE power budget meets connected devices’ requirements to avoid overload.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Weight:: 0.35 kg
Basic switching RJ-45 Ethernet ports quantity:: 4
10G support:: No
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:: Black

All features

Design

Rack mounting:: No
LED indicators:: Activity, Power
Wall mountable:: Yes
Product colour:: Black
Housing material:: Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP30
DIN rail mounting:: Yes

Power

Surge protection voltage:: 6 kV
Surge protection:: Yes
DC input voltage:: 48 - 57
Power supply included:: No

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet (PoE) ports quantity:: 4
Power over Ethernet (PoE) power per port:: 30 W

Packaging content

Quick start guide:: Yes

Packaging data

Package weight:: 400 g
Package depth:: 60 mm
Package height:: 110 mm
Package width:: 70 mm
Package type:: Box
Terminal block included:: Yes

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:: 4
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 4
SFP module slots quantity:: 1

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -30 - 65
Storage relative humidity (H-H):: 10 - 90

Logistics data

Products per pallet:: 24 pc(s)
Country of origin:: China
Master (outer) case height:: 360 mm
Master (outer) case width:: 422 mm
Master (outer) case gross weight:: 13000 g
Master (outer) case length:: 566 mm
Products per master (outer) case:: 28 pc(s)
Harmonized System (HS) code:: 85176990

Technical details

Pallet gross width:: 1200 mm
Pallet gross length:: 800 mm
Pallet height (air):: 1590 mm

Weight & dimensions

Weight:: 0.35 kg
Height:: 101 mm
Width:: 65 mm
Depth:: 36 mm

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:: Yes
Auto MDI/MDI-X:: Yes
10G support:: No
Copper ethernet cabling technology:: 100BASE-TX, 10BASE-T, 1000BASE-T
Auto-negotiation:: Yes
Half duplex:: Yes
