header-product LevelOne SFP-2502 network transceiver module Fiber optic 2500 Mbit/s 1310 nm
37.99 €

LevelOne SFP-2502 network transceiver module Fiber optic 2500 Mbit/s 1310 nm

LevelOne SFP-2502 network transceiver module Photo 1

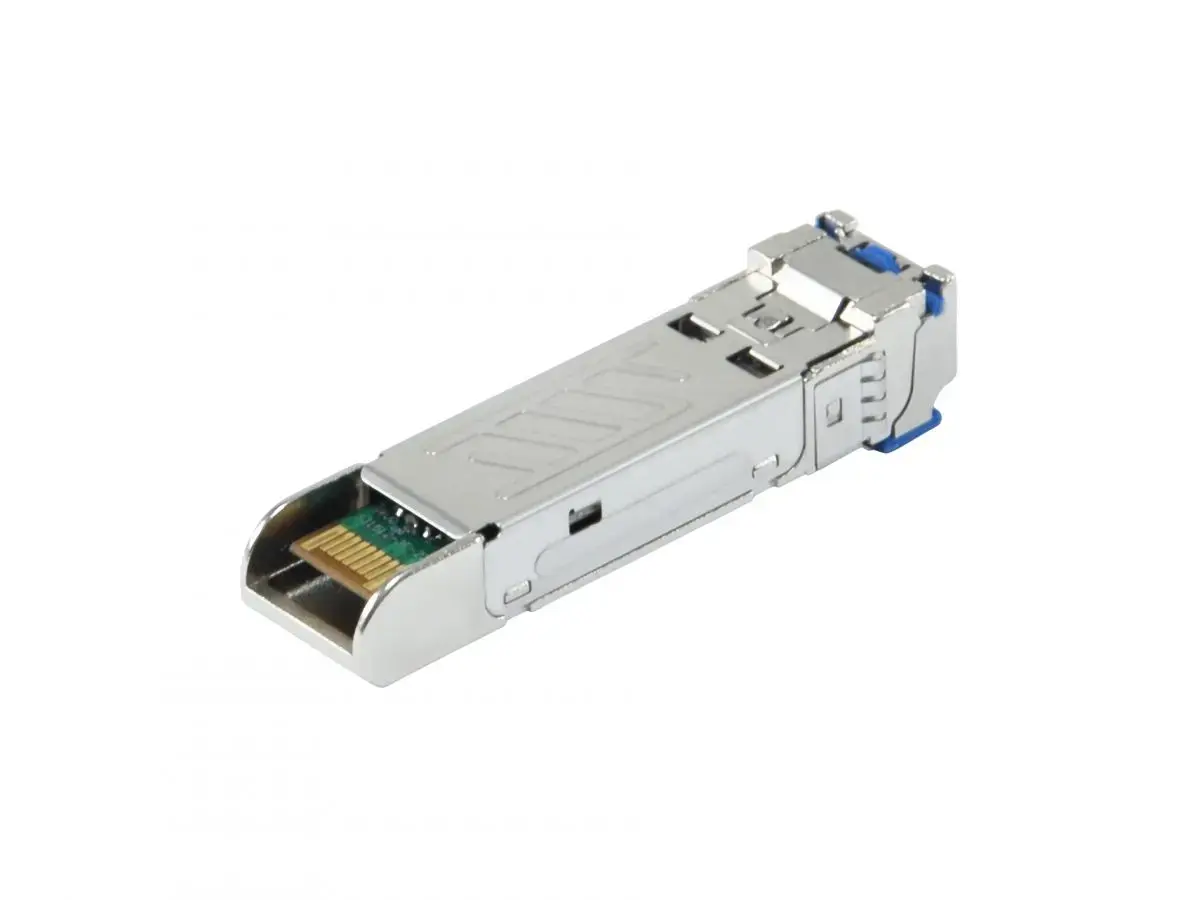

LevelOne SFP-2502 network transceiver module Photo 2
LevelOne SFP-2502 network transceiver module Photo 3
LevelOne SFP-2502 network transceiver module Photo 4
LevelOne SFP-2502 network transceiver module Photo 1
LevelOne SFP-2502 network transceiver module Photo 2
LevelOne SFP-2502 network transceiver module Photo 3
LevelOne SFP-2502 network transceiver module Photo 4
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

LevelOne SFP-2502 network transceiver module Fiber optic 2500 Mbit/s 1310 nm

{{email}}
You keep track of price changes

LevelOne SFP-2502 network transceiver module Fiber optic 2500 Mbit/s 1310 nm

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The LevelOne SFP-2502 is a fiber optic SFP transceiver module with a maximum data transfer rate of 2500 Mbit/s. It operates at a wavelength of 1310 nm and has a typical power consumption of 1 W. This module is compliant with various certifications including CB, CE, FCC, RoHS, TÜV, and UL, ensuring reliability and safety. Its compact form factor makes it suitable for various networking applications.
Available at price 37.99 €: 8 pcs.
Total available for order: 32 pcs.
Warranty: 2 Years
SKU: 11577255
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
30.09.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
05.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.05 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
05.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne SFP-2502 is a single-mode SFP transceiver module designed for Gigabit Ethernet links that require up to 2.5 Gbps bidirectional throughput over a single duplex fiber core. It operates at a 1310 nm wavelength using a Fabry-Perot (FP) laser diode light source, provides an LC duplex connector and is intended for 9/125 μm fiber to support links up to 2 km. Typical power consumption is 1 W and the module complies with industry standards and certifications for reliable network deployment.

Advantages

The SFP-2502 offers a cost-effective way to extend network capacity to 2.5 Gbps over single-mode fiber while keeping a compact, hot-swappable SFP form factor. It supports Digital Diagnostics Monitoring (DDM) for status checking, adheres to SFP MSA standards for broad compatibility, and meets common safety and regulatory certifications (CB, CE, FCC, RoHS, TÜV, UL). Its commercial operating temperature range (0 °C to 70 °C) and low typical power consumption make it suitable for many standard networking environments.

Suitable for

  • Short- to medium-range single-mode fiber links up to 2 km
  • Network equipment requiring SFP form-factor modules (switches, routers, media converters)
  • Upgrading links to 2.5GBASE performance
  • Environments where hot-swappable, compact transceivers are needed

Key specifications

  • Data rate: up to 2.5 Gbps (2500 Mbit/s)
  • Fiber type: single-mode (9/125 μm)
  • Maximum link distance: up to 2 km
  • Wavelength: 1310 nm (FP laser)
  • Optical connector: duplex LC
  • Receiver: PIN-TIA photodetector
  • Form factor: SFP, hot-swappable
  • Digital Diagnostics Monitoring (DDM): supported
  • Typical power consumption: 1 W
  • Operating temperature: 0 °C to 70 °C (commercial)
  • Standards: 2.5GBASE-IX, SFP MSA

How to use

Install the SFP-2502 into an SFP-compatible slot on a switch, router or media converter while the host device is powered according to the vendor's hot-swap guidelines. Connect a duplex LC-terminated 9/125 μm single-mode fiber patch cable between transceivers at each end of the link. Configure the host device for the intended 2.5G link speed if manual settings are required; otherwise allow auto-negotiation where supported. Monitor SFP status and optical parameters through the host device's DDM interface for link validation and troubleshooting.

Usage recommendations

Use certified 9/125 μm single-mode fiber and LC connectors, maintain clean connector endfaces, and verify link budgets for distances approaching 2 km. Ensure host equipment firmware and SFP compatibility to avoid interoperability issues.

Specifications

Interface type:
SFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.
2500 Mbit/s
SFP transceiver type:
Fiber optic
All features

Packaging content

Quantity per pack:
1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.0155 kg
Height: The measurement of the product from head to foot or from base to top.
13 mm
Depth: The distance from the front to the back of something.
13.4 mm
Width: The measurement or extent of something from side to side.
55.9 mm

Operational conditions

Storage relative humidity (H-H):
5 - 85
Operating relative humidity (H-H):
5 - 85
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 70

Certificates

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
UL, TÜV mark, RoHS, Federal Communications Commission (FCC), CE, CB

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
1 W

Features

Hot-swap:
Yes
Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Yes
Form factor: The shape or design of the product.
SFP
Product colour: The colour e.g. red, blue, green, black, white.
Silver

Performance

Digital Diagnostics Monitoring (DDM):
Yes
Copper ethernet cabling technology:
2.5GBASE
Tx power (max):
-3 dBmW
Tx power (min):
-9 dBmW
Wavelength: The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
1310 nm
Maximum transfer distance: The greatest distance over which the data/signal can be transferred.
2000 m
Fiber cable diameters supported (core/cladding):
9/125
Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
LC
Single-mode fiber (SMF) supported:
Yes
Interface type:
SFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.
2500 Mbit/s
SFP transceiver type:
Fiber optic
