SFP transceiver LevelOne SFP-2504

Name: LevelOne SFP-2504 network transceiver module SFP-2504
Brand: LEVELONE
SKU: 11587109
Price: 61.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

LevelOne SFP-2504 network transceiver module Fiber optic 2500 Mbit/s 1310 nm

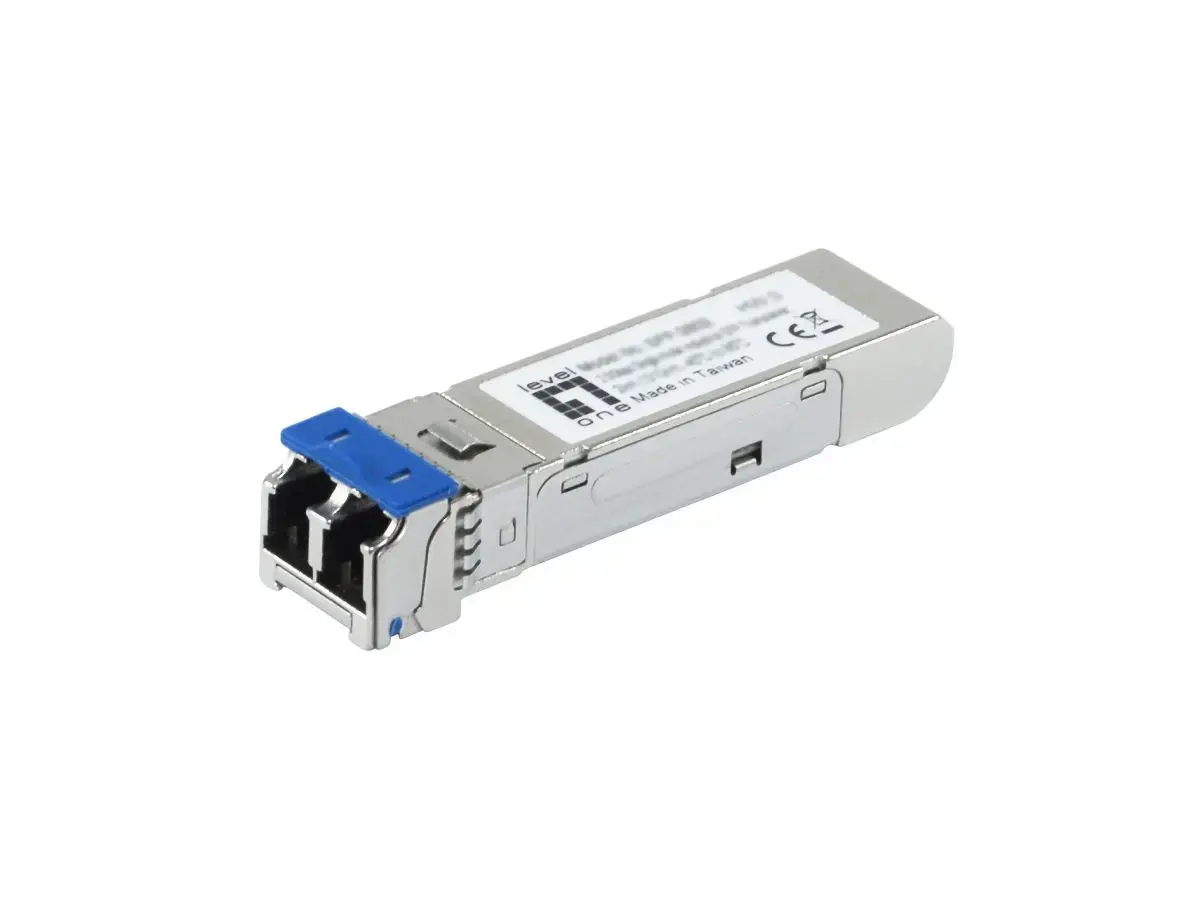

SFP transceiver LevelOne SFP-2504 Photo 1

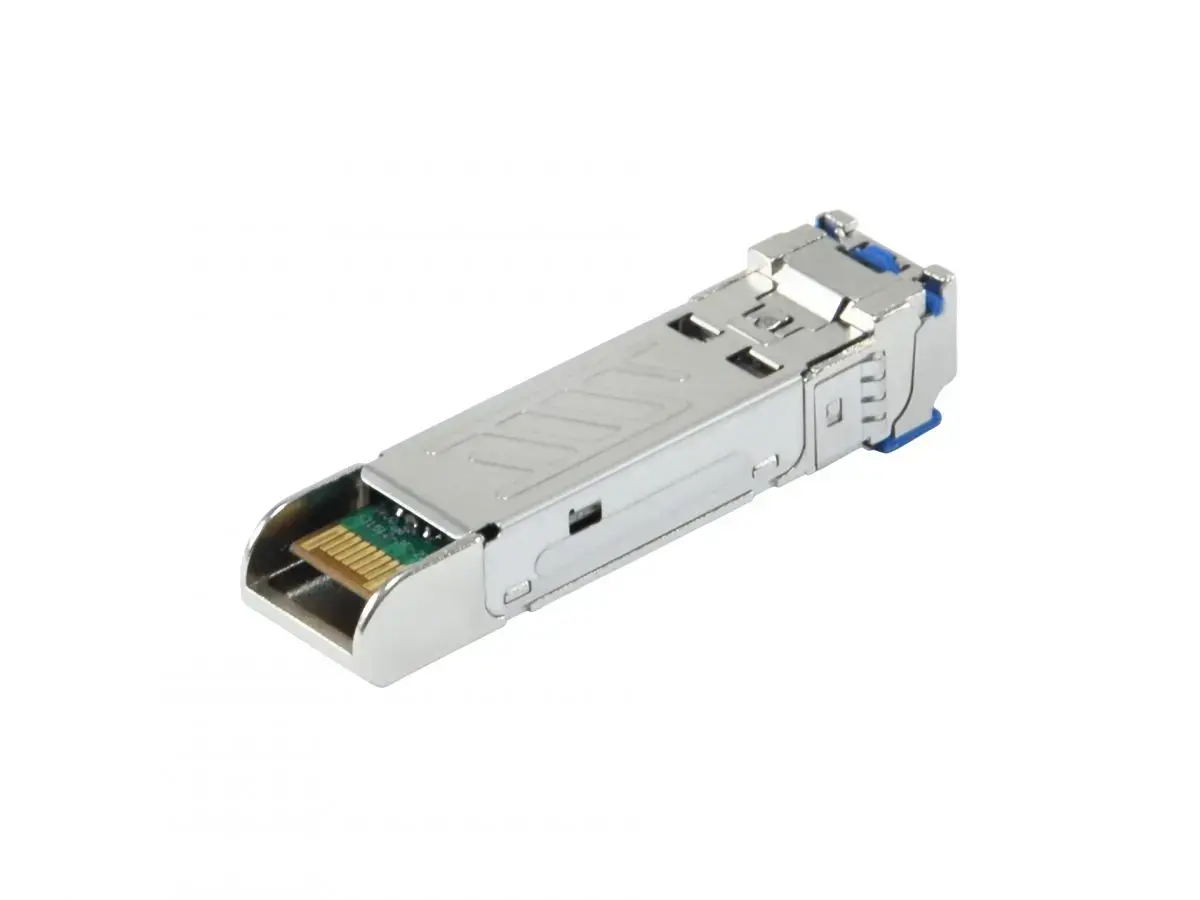

SFP transceiver LevelOne SFP-2504 Photo 2

SFP transceiver LevelOne SFP-2504 Photo 3

SFP transceiver LevelOne SFP-2504 Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The LevelOne SFP-2504 is a fiber optic SFP transceiver module with a maximum data transfer rate of 2500 Mbit/s. It operates at a wavelength of 1310 nm and has a typical power consumption of 1 W. The module is compliant with various certifications including CB, CE, FCC, RoHS, TÜV, and UL. Its compact form factor makes it suitable for various networking applications.

Available at price 61.99 €: 10 pcs.

Total available for order: 30 pcs.

Warranty: 2 Years

SKU: 11587109

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.04 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne SFP-2504 is a single-mode fiber SFP transceiver module designed for Gigabit Ethernet and higher-speed links. It supports bidirectional data transfer up to 2.5 Gbps over a single duplex 9/125 µm fiber core, operates at a wavelength of 1310 nm using a DFB laser diode transmitter with a PIN-TIA receiver, and fits into standard SFP ports with an LC duplex connector. Typical power consumption is 1 W and the module is hot-swappable for easy installation and replacement.

Advantages

The SFP-2504 offers a cost-effective solution for extending network links up to 40 km on single-mode fiber while maintaining a compact SFP form factor. Compliance with SFP MSA and support for Digital Diagnostics Monitoring (DDM) simplify interoperability and status monitoring. The device’s commercial temperature range (0 °C to 70 °C) and low typical power draw make it suitable for a variety of standard networking environments.

Suitable for

Long-distance Gigabit Ethernet links up to 40 km
Data center uplinks and campus backbone connections
Network equipment with SFP ports requiring 2.5GBASE-LX transceivers
Environments needing DDM status monitoring

Key specifications

Form factor: SFP (hot-swappable)
Data rate: up to 2.5 Gbps (2500 Mbit/s)
Fiber type: single-mode (9/125 µm)
Reach: up to 40 km
Wavelength: 1310 nm
Transmitter: DFB laser diode
Receiver: PIN-TIA photodetector
Connector: duplex LC
Power consumption (typical): 1 W
Standards: compatible with SFP MSA; supports DDM
Operating temperature (commercial): 0 °C to 70 °C

How to use

Insert the SFP-2504 module into an available SFP slot on a compatible switch, router, or media converter while the host device is powered on or off, since the module supports hot-swapping. Connect a duplex LC single-mode fiber patch cable (9/125 µm) to the module’s LC port, verifying transmitter/receiver orientation. Configure the host interface according to the device’s documentation to enable the 2.5 Gbps link and, if available, monitor diagnostics through the host software to check optical power and temperature.

Usage recommendations

Use single-mode 9/125 µm fiber cabling and quality LC patch cords to achieve the specified 40 km reach. Verify compatibility with the host device firmware and enable DDM monitoring where supported to track module status and optical parameters. Avoid exposing the module to temperatures outside the specified commercial range.

Specifications

Interface type:: SFP
Maximum data transfer rate:: 2500 Mbit/s
Weight:: 0.0155 kg
Product colour:: Silver

All features

Performance

Interface type:: SFP
Maximum data transfer rate:: 2500 Mbit/s
Copper ethernet cabling technology:: 2.5GBASE
Wavelength:: 1310 nm
Fiber optic connector:: LC
Maximum transfer distance:: 40000 m
Fiber cable diameters supported (core/cladding):: 9/125
Tx power (max):: 3 dBmW
Tx power (min):: -2 dBmW
Digital Diagnostics Monitoring (DDM):: Yes
Single-mode fiber (SMF) supported:: Yes

Network

SFP transceiver type:: Fiber optic

Features

Form factor:: SFP
Plug and Play:: Yes
Product colour:: Silver
Hot-swap:: Yes

Operational conditions

Operating relative humidity (H-H):: 5 - 85
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 70
Storage relative humidity (H-H):: 5 - 85

Packaging content

Quantity per pack:: 1 pc(s)

Weight & dimensions

Weight:: 0.0155 kg
Height:: 13 mm
Width:: 55.9 mm
Depth:: 13.4 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 1 W

Certificates

Compliance certificates:: TÜV mark, CB, CE, Federal Communications Commission (FCC), RoHS, UL
