LevelOne SFP-2603 network transceiver module

Name: LevelOne SFP-2603 network transceiver module SFP-2603
Brand: LEVELONE
SKU: 11577259
Price: 49.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

LevelOne SFP-2603 network transceiver module Fiber optic 2500 Mbit/s 1310 nm

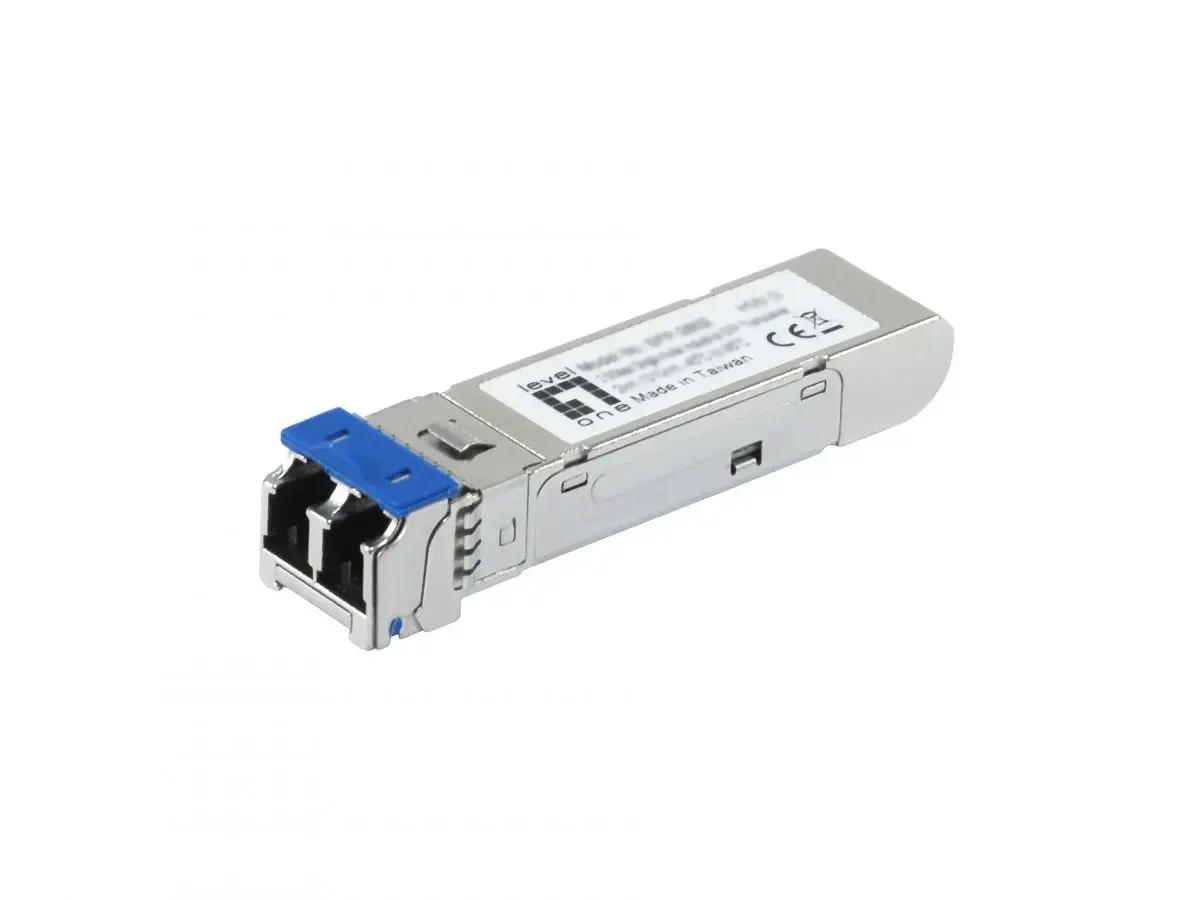

LevelOne SFP-2603 network transceiver module Photo 1

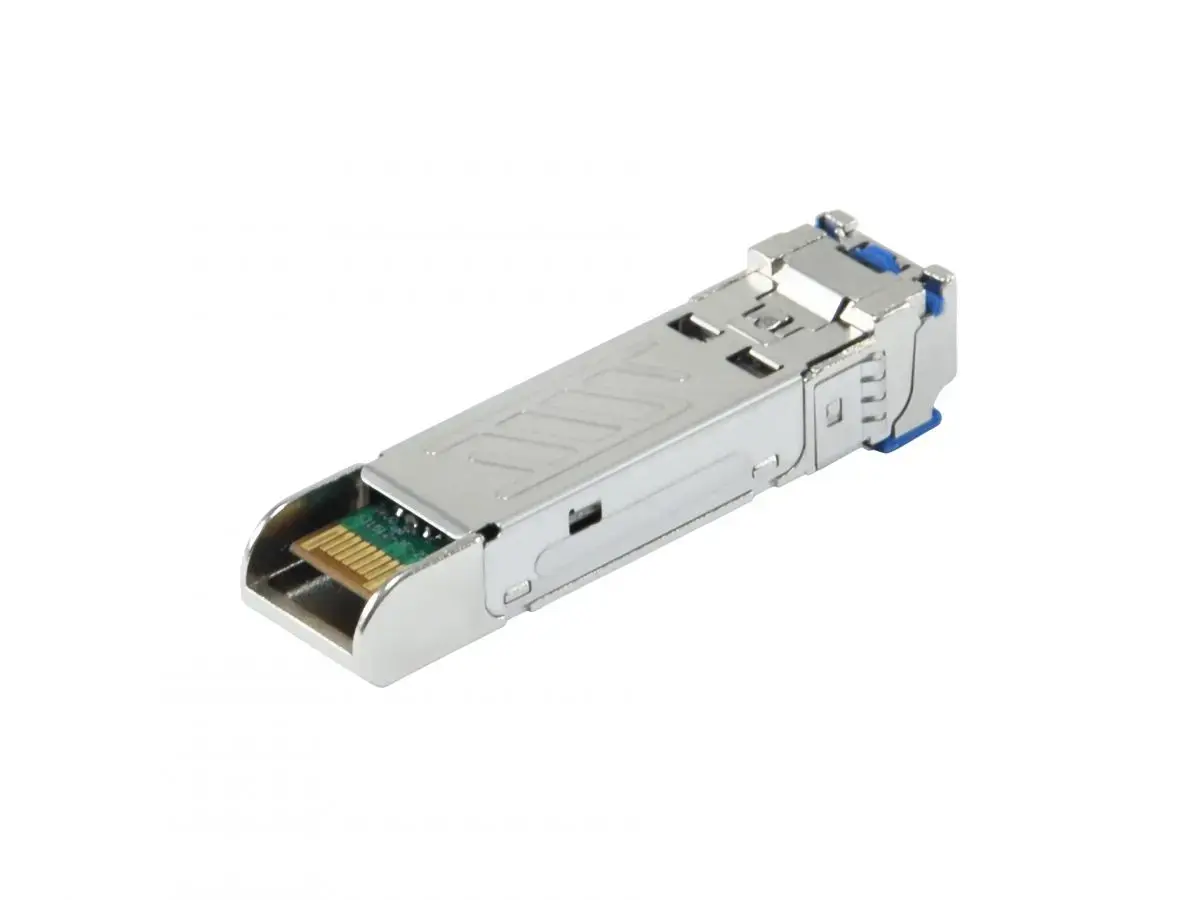

LevelOne SFP-2603 network transceiver module Photo 2

LevelOne SFP-2603 network transceiver module Photo 3

LevelOne SFP-2603 network transceiver module Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The LevelOne SFP-2603 is a fiber optic SFP transceiver module with a maximum data transfer rate of 2500 Mbit/s. It operates at a wavelength of 1310 nm and has a typical power consumption of 1 W. The module is compliant with various certifications including CB, CE, FCC, RoHS, TÜV, and UL, ensuring reliability and safety. Its compact form factor makes it suitable for various networking applications.

Available at price 49.49 €: 10 pcs.

Total available for order: 30 pcs.

Warranty: 2 Years

SKU: 11577259

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.05 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne SFP-2603 is a single‑mode fiber SFP transceiver module designed for Gigabit Ethernet and 2.5G applications. It supports bidirectional data transfer up to 2.5 Gbps over a single duplex fiber core, operates at a wavelength of 1310 nm with a DFB laser diode transmitter and PIN-TIA receiver, and uses an LC duplex connector. The module is hot-swappable and built to operate across a wide industrial temperature range.

Advantages

The transceiver delivers a combination of high performance and cost efficiency for long-reach single‑mode links up to 20 km over 9/125 μm fiber. Compliance with SFP MSA standards and support for Digital Diagnostics Monitoring (DDM) enable easy integration and real‑time status monitoring. Typical power consumption is 1 W, and the unit meets common safety and environmental certifications.

Suitable for

Metro and enterprise fiber links requiring up to 2.5 Gbps
Long‑distance single‑mode connections (up to 20 km)
Industrial environments with wide temperature ranges
Switches, routers and media converters with SFP slots

Key specifications

Data rate: up to 2.5 Gbps
Standard: 2.5GBASE‑LX single‑mode
Wavelength: 1310 nm
Transmitter: DFB laser diode; Receiver: PIN‑TIA
Connector: Duplex LC
Maximum reach: up to 20 km over 9/125 μm fiber
Operating temperature: -40 °C to 85 °C
Power consumption (typical): 1 W
Form factor: SFP (hot‑swappable); SFP MSA compliant

How to use

Insert the SFP-2603 into a compatible SFP slot on a switch, router or media converter while the host device is powered according to the equipment instructions. Connect a duplex LC single‑mode fiber patch cable (9/125 μm) to the module’s LC port, observing correct transmit/receive alignment. Monitor link status and diagnostics via the host device using DDM if supported. The module is hot‑swappable but follow your system vendor’s hot‑swap procedures to avoid transient network disruption.

Usage recommendations

Use single‑mode LC patch cables with 9/125 μm fiber and keep fiber connectors clean. Verify host compatibility with SFP MSA modules and consult the switch/router documentation for supported transceiver lists. For reliable long‑distance links, use fiber rated for 20 km and maintain proper bend radius and connector condition.

Specifications

Interface type:: SFP
Maximum data transfer rate:: 2500 Mbit/s
Weight:: 0.0155 kg
Product colour:: Silver

All features

Performance

Interface type:: SFP
Maximum data transfer rate:: 2500 Mbit/s
Copper ethernet cabling technology:: 2.5GBASE
Wavelength:: 1310 nm
Fiber optic connector:: LC
Maximum transfer distance:: 20000 m
Fiber cable diameters supported (core/cladding):: 9/125
Tx power (max):: 0 dBmW
Tx power (min):: -5 dBmW
Digital Diagnostics Monitoring (DDM):: Yes
Single-mode fiber (SMF) supported:: Yes

Network

SFP transceiver type:: Fiber optic

Features

Form factor:: SFP
Plug and Play:: Yes
Product colour:: Silver
Hot-swap:: Yes

Operational conditions

Operating relative humidity (H-H):: 5 - 85
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -40 - 85
Storage relative humidity (H-H):: 5 - 85

Packaging content

Quantity per pack:: 1 pc(s)

Weight & dimensions

Weight:: 0.0155 kg
Height:: 13 mm
Width:: 55.9 mm
Depth:: 13.4 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 1 W

Certificates

Compliance certificates:: TÜV mark, CB, CE, Federal Communications Commission (FCC), RoHS, UL
