header-product LevelOne SFP-2604 network transceiver module Fiber optic 2500 Mbit/s 1310 nm
69.99 €

LevelOne SFP-2604 network transceiver module Fiber optic 2500 Mbit/s 1310 nm

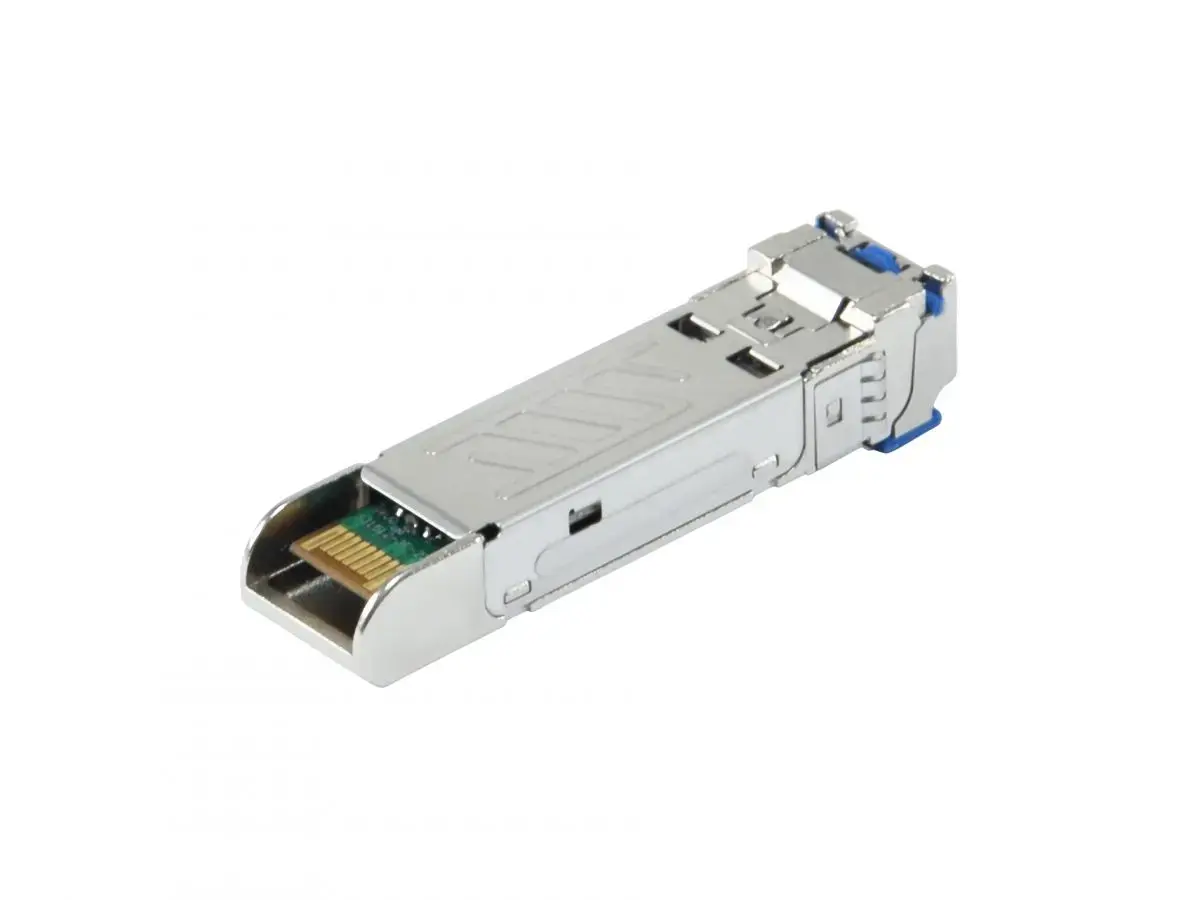

SFP transceiver LevelOne SFP-2604 Photo 1
SFP transceiver LevelOne SFP-2604 Photo 2
SFP transceiver LevelOne SFP-2604 Photo 3
SFP transceiver LevelOne SFP-2604 Photo 4
SFP transceiver LevelOne SFP-2604 Photo 1
SFP transceiver LevelOne SFP-2604 Photo 2
SFP transceiver LevelOne SFP-2604 Photo 3
SFP transceiver LevelOne SFP-2604 Photo 4
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

LevelOne SFP-2604 network transceiver module Fiber optic 2500 Mbit/s 1310 nm

{{email}}
You keep track of price changes

LevelOne SFP-2604 network transceiver module Fiber optic 2500 Mbit/s 1310 nm

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The LevelOne SFP-2604 is a fiber optic SFP transceiver module with a maximum data transfer rate of 2500 Mbit/s. It operates at a wavelength of 1310 nm and has a typical power consumption of 1 W. The module complies with various certifications including CB, CE, FCC, RoHS, TÜV, and UL. Its compact form factor allows for easy integration into networking equipment.
Available at price 69.99 €: 10 pcs.
Total available for order: 40 pcs.
Warranty: 2 Years
SKU: 11587112
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
24.09.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
29.09.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.04 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
29.09.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne SFP-2604 is a single-mode fiber SFP transceiver module designed for Gigabit Ethernet links with support for up to 2.5 Gbps bidirectional data transfer over a single duplex fiber core. It uses a 1310 nm DFB laser diode transmitter, a PIN-TIA photo-detector, and an LC duplex connector. The module is hot-swappable, follows SFP MSA standards, and is suitable for links over 9/125 µm fiber up to 40 km. Typical power consumption is 1 W and the unit meets common certifications including CB, CE, FCC, RoHS, TÜV and UL.

Advantages

The SFP-2604 offers a balance of performance and cost-efficiency with 2.5Gbps data rates and support for long-reach single-mode connections up to 40 km. Industrial-grade temperature tolerance (-40 °C to 85 °C), hot-swappable operation and compliance with SFP MSA ensure straightforward integration and reliable operation in varied environments. Built-in Digital Diagnostics Monitoring (DDM) allows real-time status checks.

Suitable for

  • Long-distance Gigabit Ethernet links (up to 40 km) over single-mode fiber
  • Network equipment requiring SFP MSA-compliant fiber transceivers
  • Industrial and outdoor networking with wide temperature requirements
  • Data center uplinks and carrier aggregation where 2.5G bandwidth is required

Key specifications

  • Model: LevelOne SFP-2604
  • Data rate: up to 2.5 Gbps (2500 Mbit/s)
  • Fiber type: single-mode, 9/125 µm
  • Maximum reach: up to 40 km
  • Wavelength: 1310 nm (DFB laser)
  • Receiver: PIN-TIA photo-detector
  • Connector: duplex LC
  • Hot-swappable: yes
  • Digital Diagnostics Monitoring (DDM): supported
  • Operating temperature: -40 °C to 85 °C
  • Power consumption (typical): 1 W
  • Compliance: SFP MSA, CB, CE, FCC, RoHS, TÜV, UL

How to use

Insert the SFP-2604 into an SFP-compatible port on your switch or router while the host device is powered on or off (hot-swappable). Connect a single-mode duplex LC fiber cable (9/125 µm) to the module and verify link negotiation on the host device. Configure the host interface for the required 2.5G operation if needed. Monitor module status and optical parameters via the host’s DDM interface for diagnostics.

Usage recommendations

Use certified single-mode LC duplex fiber (9/125 µm) and follow proper fiber handling to avoid contamination. Verify compatibility with the host device's SFP firmware and consult the device vendor if link negotiation issues occur. For deployments in extreme environments, confirm thermal conditions remain within the -40 °C to 85 °C range.

Specifications

Interface type:
SFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.
2500 Mbit/s
SFP transceiver type:
Fiber optic
All features

Packaging content

Quantity per pack:
1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.0155 kg
Height: The measurement of the product from head to foot or from base to top.
13 mm
Depth: The distance from the front to the back of something.
13.4 mm
Width: The measurement or extent of something from side to side.
55.9 mm

Operational conditions

Storage relative humidity (H-H):
5 - 85
Operating relative humidity (H-H):
5 - 85
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 85

Certificates

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
UL, TÜV mark, RoHS, Federal Communications Commission (FCC), CE, CB

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
1 W

Features

Hot-swap:
Yes
Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Yes
Form factor: The shape or design of the product.
SFP
Product colour: The colour e.g. red, blue, green, black, white.
Silver

Performance

Digital Diagnostics Monitoring (DDM):
Yes
Copper ethernet cabling technology:
2.5GBASE
Tx power (max):
0 dBmW
Tx power (min):
-5 dBmW
Wavelength: The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
1310 nm
Maximum transfer distance: The greatest distance over which the data/signal can be transferred.
40000 m
Fiber cable diameters supported (core/cladding):
9/125
Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
LC
Single-mode fiber (SMF) supported:
Yes
Interface type:
SFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.
2500 Mbit/s
SFP transceiver type:
Fiber optic

Description
