LevelOne 1.25Gbps Single-mode SFP Transceiver

Name: LevelOne 1.25Gbps Single-mode SFP Transceiver SFP-3611
Brand: LEVELONE
SKU: 2114044
Price: 67.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

LevelOne 1.25Gbps Single-mode SFP Transceiver 80km 1550nm

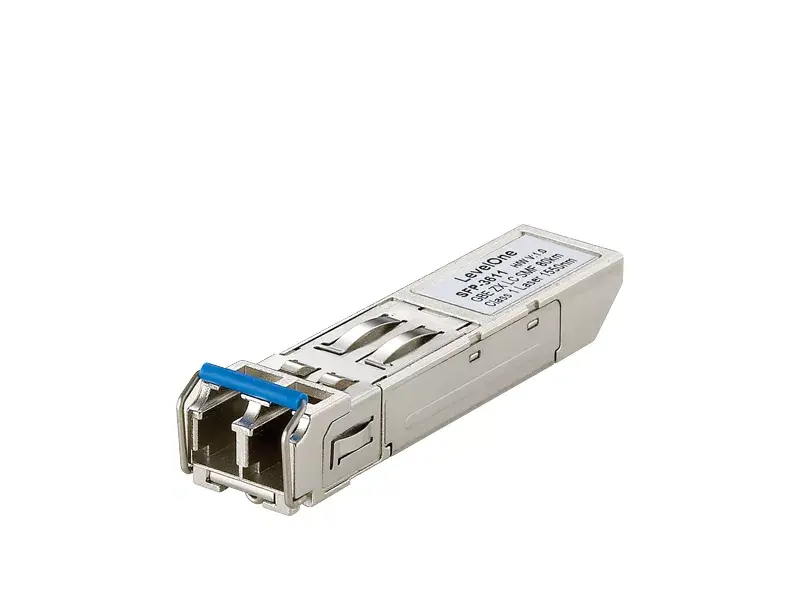

LevelOne 1.25Gbps Single-mode SFP Transceiver Photo 1

LevelOne 1.25Gbps Single-mode SFP Transceiver Photo 2

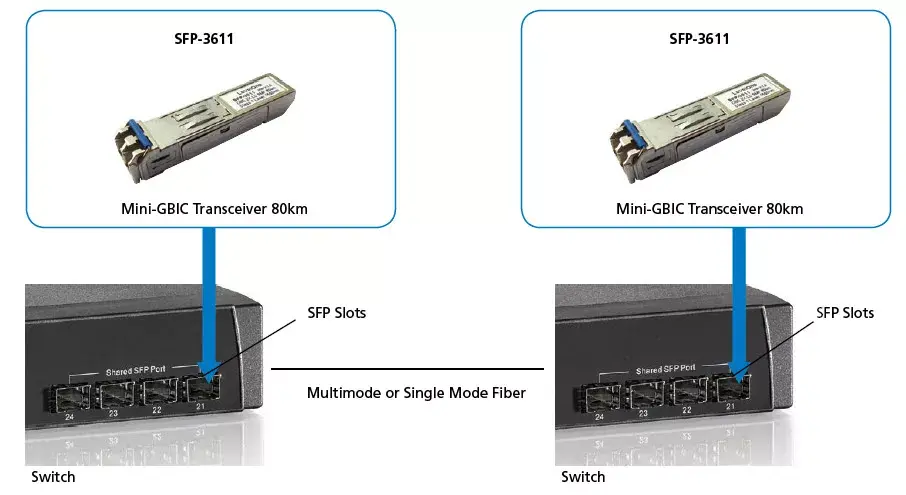

LevelOne 1.25Gbps Single-mode SFP Transceiver Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The LevelOne 1.25Gbps Single-mode SFP Transceiver supports a maximum data transfer rate of 1250 Mbit/s with an 80km range at 1550nm. It is designed for fiber optic connections and complies with EN 60825-1 safety standards. This compact transceiver operates at an input voltage of 3.3 V and is ideal for long-distance data transmission.

Available at price 67.49 €: 4 pcs.

Total available for order: 12 pcs.

Warranty: 2 Years

SKU: 2114044

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.30 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

LevelOne SFP-3611 is a single-mode SFP transceiver designed for long-distance fiber links. It supports Gigabit Ethernet data rates up to 1.25 Gbps over a single duplex fiber core, uses a 1550 nm DFB laser diode light source, and fits standard SFP ports with a duplex LC connector. The module is optimized for 9 µm single-mode fiber and can reach distances up to 80 km while operating from a single +3.3 V power supply and meeting relevant industry standards.

Advantages

The transceiver offers cost-effective long-reach connectivity with small form-factor pluggable compatibility, low power operation at +3.3 V, and compliance with IEEE 802.3z and MSA specifications. It uses a DFB laser for stable 1550 nm transmission, provides a clear AC-coupled differential electrical interface, and meets RoHS and EN 60825-1 (Laser Class 1) safety requirements.

Suitable for

Long-distance Gigabit Ethernet links up to 80 km over single-mode fiber
WAN/metro fiber connections requiring 1550 nm transmission
Network equipment with SFP ports (switches, routers, media converters)

Key specifications

Data rate: 1.25 Gbps (NRZ)
Wavelength: 1550 nm (DFB laser diode)
Maximum reach: up to 80 km on 9 µm single-mode fiber
Interface: SFP with duplex LC connector
Power supply: single +3.3 V
Standards: IEEE 802.3z, MSA compliant; EN 60825-1 (Laser Class 1); RoHS

How to use

Insert the SFP-3611 module into any compatible SFP slot on your network device until it clicks into place. Connect a duplex LC single-mode fiber cable (9 µm) and ensure proper Tx/Rx orientation. Power the host device with the standard supply; the transceiver requires no additional configuration or installation software. Monitor link status via the host device to confirm operational 1.25 Gbps connectivity.

Usage recommendations

Use single-mode 9 µm fiber with appropriate attenuation characteristics for 80 km links, verify LC connector cleanliness before mating, and follow your equipment vendor’s guidelines for SFP compatibility and eye-safety procedures per EN 60825-1.

Specifications

Interface type:: SFP
Maximum data transfer rate:: 1250 Mbit/s
Weight:: 0.02 kg

All features

Performance

Interface type:: SFP
Maximum data transfer rate:: 1250 Mbit/s
Networking standards:: IEEE 802.3z
Duplex system:: Full
Wavelength:: 1550 nm
Fiber ports quantity:: 1
Fiber optic connector:: LC
Link budget:: 23 dB
Maximum transfer distance:: 80000 m
Fiber cable diameters supported (core/cladding):: 9/125
Tx power (max):: 5 dBmW
Single-mode fiber (SMF) supported:: Yes

Network

SFP transceiver type:: Fiber optic

Features

Plug and Play:: Yes
Hot-swap:: Yes

Certificates

Certification:: CE, FCC
Safety:: EN 60825-1

Power

Input voltage:: 3.3
Maximum current:: 300 A
Maximum voltage:: 6 V

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 70

Logistics data

Harmonized System (HS) code:: 85369010

Packaging data

Package weight:: 35 g
Package depth:: 20 mm
Package height:: 65 mm
Package width:: 106 mm
Number of products included:: 1 pc(s)

Weight & dimensions

Weight:: 0.02 kg
Height:: 13.7 mm
Width:: 57 mm
Depth:: 12 mm

Sustainability

Sustainability certificates:: RoHS
