header-product Directional Antenna LevelOne WAN-9180 18dBi 5GHz
244.49 €

Directional Antenna LevelOne WAN-9180 18dBi 5GHz

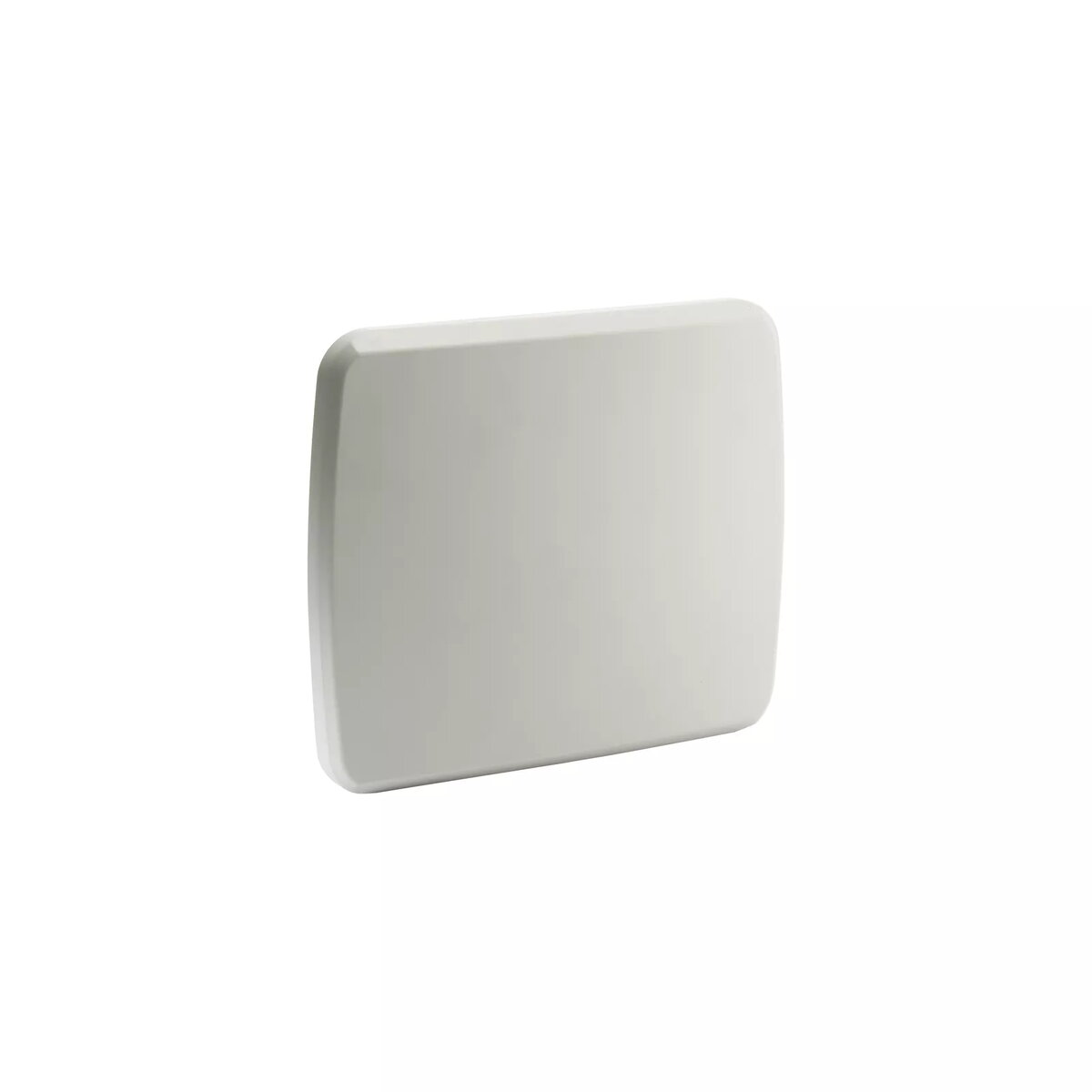

Directional Antenna LevelOne WAN-9180 Photo 1

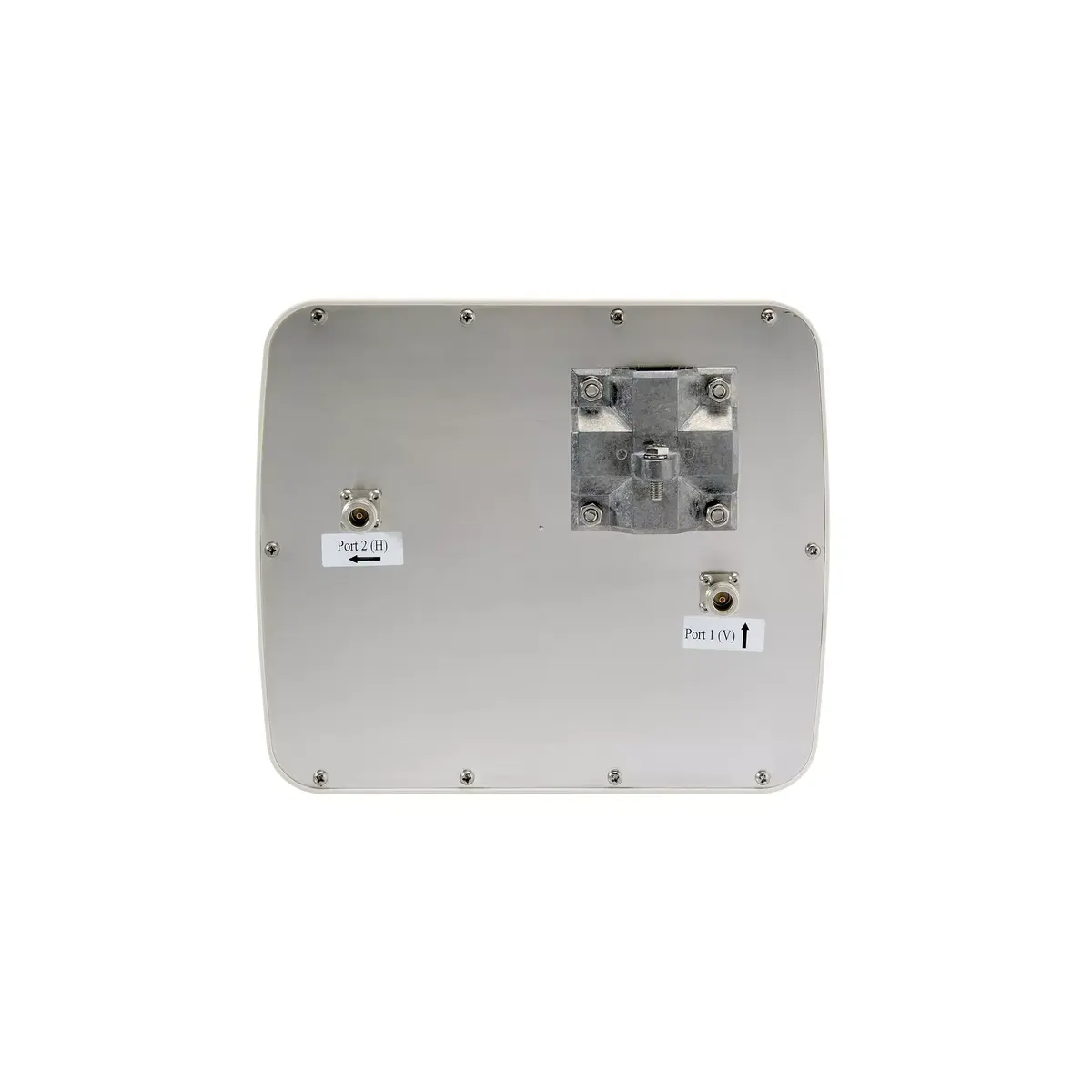

Directional Antenna LevelOne WAN-9180 Photo 2
Directional Antenna LevelOne WAN-9180 Photo 3
Directional Antenna LevelOne WAN-9180 Photo 4

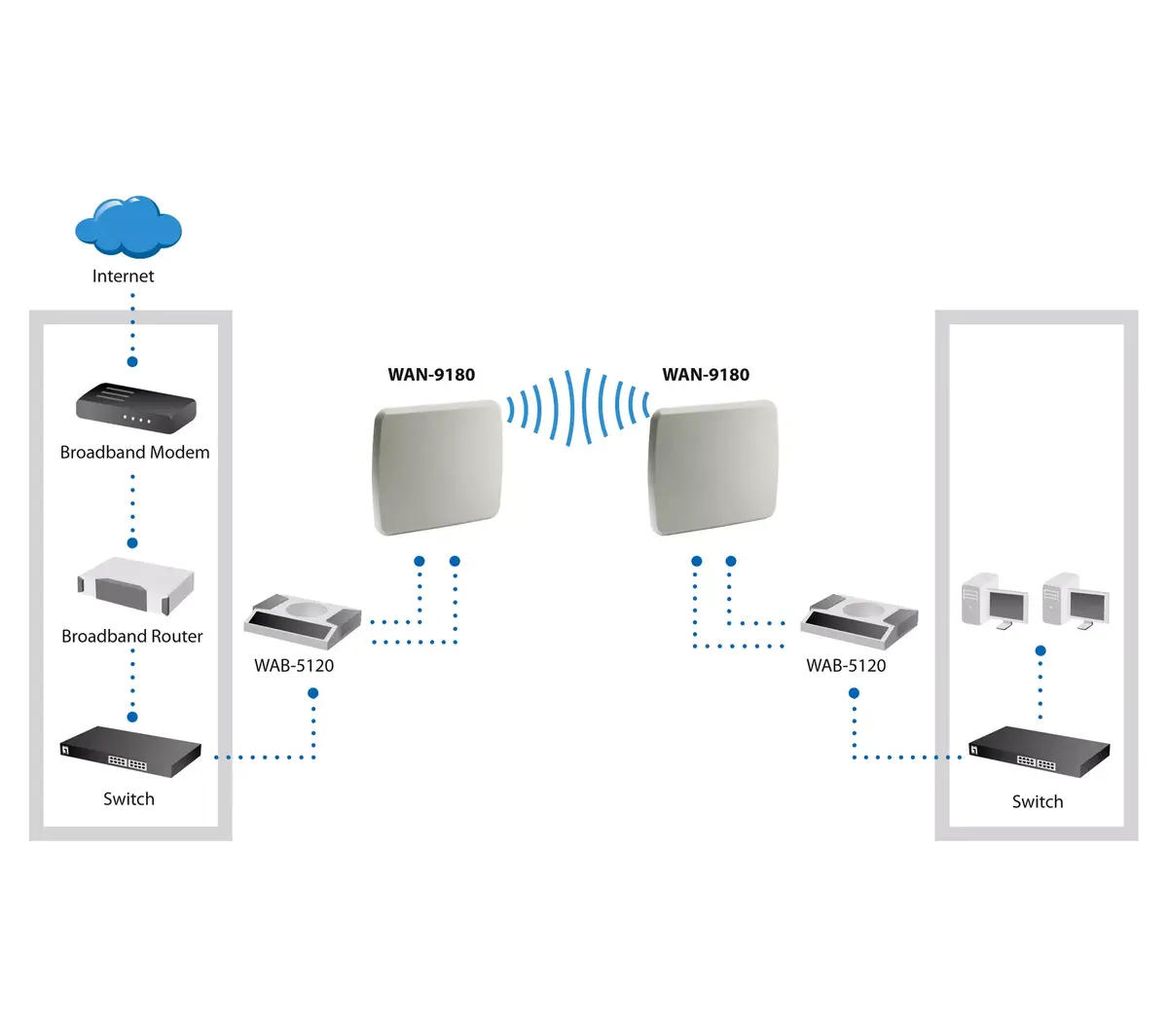

Directional Antenna LevelOne WAN-9180 Photo 5
Directional Antenna LevelOne WAN-9180 Photo 1
Directional Antenna LevelOne WAN-9180 Photo 2
Directional Antenna LevelOne WAN-9180 Photo 3
Directional Antenna LevelOne WAN-9180 Photo 4
Directional Antenna LevelOne WAN-9180 Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Directional Antenna LevelOne WAN-9180 18dBi 5GHz

{{email}}
You keep track of price changes

Directional Antenna LevelOne WAN-9180 18dBi 5GHz

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The LevelOne WAN-9180 is a high-performance 18dBi directional antenna designed for outdoor use. Operating in the 5.15 - 5.875 GHz frequency band, it supports IEEE 802.11a and IEEE 802.11n networking standards. With a compact design (256mm x 227mm x 19mm) and N-type female connector, it provides enhanced signal strength and coverage for wireless networks.
Available at price 244.49 €: 1 pcs.
Total available for order: 2 pcs.
Warranty: 2 Years
SKU: 1918029
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
12.10.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
15.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.47 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
15.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 81.5 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 6.79 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne WAN-9180 is an 18 dBi directional dual-polarization panel antenna intended for outdoor wireless links in the 5 GHz band. Its +45° and -45° array polarizations focus signal energy into a concentrated direction to improve coverage and throughput in environments with potential interference. The antenna features weather-resistant construction suitable for elevated outdoor mounting and is rated IP67 for protection against dust and moisture.

Advantages

The dual-polarization design reduces cross-polarization interference and supports antenna diversity for more reliable connections. With high 18 dBi gain, the panel provides extended range and concentrated coverage in the 5 GHz band. The IP67 enclosure and robust build enable stable outdoor operation in windy or wet conditions, while a wideband frequency response allows compatibility with current 5 GHz WLAN equipment and provides flexibility for future deployments.

Key specifications

  • Frequency band: 5 GHz (IEEE 802.11a/n)
  • Gain: 18 dBi
  • Polarization: Dual-polarization (+45° / -45°)
  • Type: Directional panel antenna
  • Ingress protection: IP67 (dust- and water-resistant)
  • Mounting: Wall or flat-surface mounting, suitable for elevated outdoor installation

How to use

Mount the WAN-9180 on a stable flat surface such as a wall or near a window at an elevated outdoor position to achieve the intended directional coverage. Align the panel so its main lobe points toward the target area or remote radio unit, and secure the mounting hardware according to site conditions. Connect the antenna to compatible 5 GHz radio equipment using appropriate coaxial cabling and weatherproof connectors; verify polarization alignment (+45° / -45°) with the radio to optimize performance.

Recommendations

For best results, install the antenna above obstructions and ensure clear line-of-sight to the receiving station. Use weatherproofed cable entries and regularly inspect mounting hardware for corrosion. Match antenna polarization with the connected radio and consider professional alignment when integrating into point-to-point or point-to-multipoint links.

Specifications

Antenna connector type: The way in which the antenna is connected to the device e.g. coaxial.
N-type
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.
Directional antenna
Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
5.15 - 5.875
Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
18 dBi
All features

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).
Taiwan
Harmonized System (HS) code:
85177100

Packaging content

Quick installation guide:
Yes
Mounting kit:
Yes
Quantity per pack:
1 pc(s)

Packaging data

Package weight: Weight of the packaged product.
188 g
Package height: The distance from the top to the bottom of the packaging.
47 mm
Package depth: The distance from the front to the back of the packaging.
235 mm
Package width: The distance from one side of the packaging to the other.
343 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.435 kg
Height: The measurement of the product from head to foot or from base to top.
19 mm
Depth: The distance from the front to the back of something.
227 mm
Width: The measurement or extent of something from side to side.
256 mm

Operational conditions

Operating relative humidity (H-H):
0 - 95
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 80

Features

Mounting: What size the mounting head of the product is, to couple it with a camera.
Wall
Purpose: What the product is used for.
Indoor & outdoor
Power handling:
10 W
Survival wind speed:
216 km/h
Waterproof: The product is protected from water, staying dry if liquid is spilt on it or it gets wet in the rain.
Yes
Housing material: What the casing of the product is made of.
Acrylonitrile butadiene styrene (ABS), Aluminium
Product colour: The colour e.g. red, blue, green, black, white.
Grey
Voltage Standing Wave Ratio (VSWR):
2.2
Polarization:
Dual polarization
Antenna connector type: The way in which the antenna is connected to the device e.g. coaxial.
N-type
Connector gender: To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male.
Female
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.
Directional antenna

Performance

Horizontal beam width:
15 °
Vertical beam width:
15 °
Impedance: The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance.
50 Ω
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11n, IEEE 802.11a
Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
5.15 - 5.875
Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
18 dBi
