Fibre optic cable Lightwin LDP-50 LSH-LSH 5.0 OM4

Name: Fibre optic cable Lightwin LDP-50 LDP-50 LSH-LSH 5.0 OM4
Brand: Lightwin
SKU: 4271834
Price: 64.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

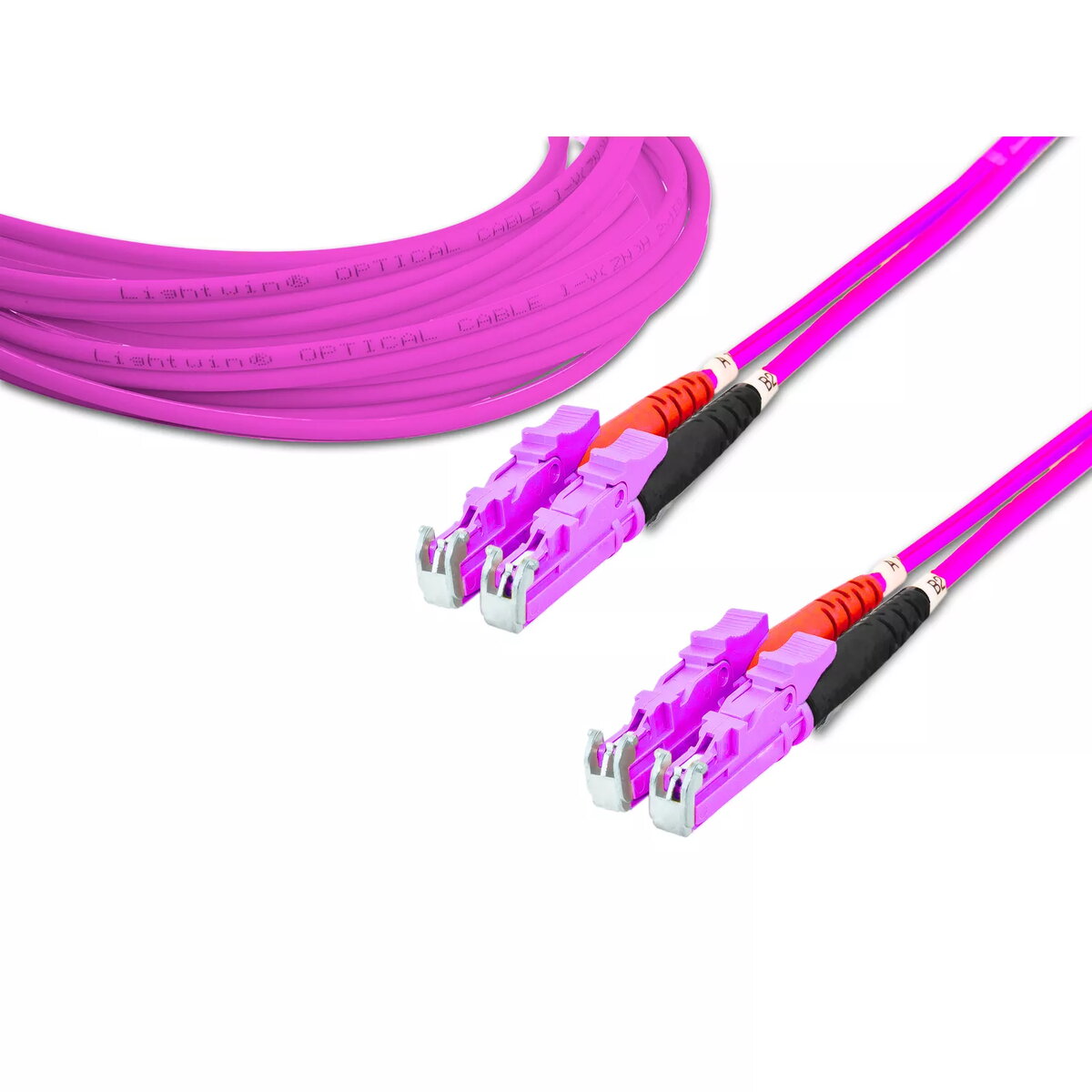

The Lightwin LDP-50 LSH-LSH 5.0 OM4 fibre optic cable is 5 meters long and features E-2000 (LSH) connectors on both ends. With a core diameter of 50 µm, it supports full duplex communication, making it ideal for high-speed data transmission. This cable is designed for reliable performance in data centers and networking applications.

Available for order: 8 pcs.

Warranty: 2 Years

SKU: 4271834

Manufacturer: Lightwin

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

24.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

27.08.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

27.08.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Lightwin LDP-50 LSH-LSH 5.0 OM4 fibre optic cable is a 5.0 metre duplex patch cord with E-2000 (LSH) connectors on both ends and a 50 µm multimode core. Designed for high-speed data transmission, this OM4-grade cable delivers low attenuation and stable signal performance for short- to medium-range links in data centres, telecom racks and enterprise networks. The cable construction and connector type support repeatable connections and minimal insertion loss when installed in patch panels, transceivers and active networking equipment.

Advantages

The OM4 specification provides increased bandwidth and improved modal performance compared with lower multimode grades, enabling higher-speed links and longer reach within multimode infrastructures. E-2000 (LSH) connectors offer secure latching, precise ferrule alignment and low back-reflection suitable for sensitive optical systems. The 5.0 metre length offers flexibility for rack-to-rack and equipment-to-panel connections while keeping excess slack manageable for neat cable routing.

Suitable for

Data centre rack patching and interconnects
Short- to medium-distance multimode links between switches and servers
Optical transceiver connections requiring E-2000 (LSH) interfaces
Enterprise LAN backbone and distribution frames

Key specifications

Length: 5.0 metres
Core diameter: 50 µm (multimode)
Performance grade: OM4
Connector type: E-2000 (LSH) to E-2000 (LSH), duplex
Polish/termination: precise ceramic ferrule alignment for low insertion loss
Cable type: multimode duplex patch cord

How to use

Install the Lightwin LDP-50 LSH-LSH 5.0 OM4 cable by aligning each E-2000 (LSH) connector with the device or patch panel adapter and compressing the latch until it clicks to ensure a secure connection. Route the duplex cable through cable management equipment to avoid tight bends and strain on the connectors; maintain the manufacturer’s minimum bend radius for multimode fibre. When disconnecting, release the latch and gently withdraw the connector. Clean connector endfaces before mating to reduce insertion loss and back-reflection.

Usage recommendations

Use this OM4 multimode cable for high-density installations where low attenuation and reliable repeatable connections are required. Store and handle the cable in a dry environment, avoid sharp bends and protect connector endfaces with dust caps when not in use. For best performance, pair with OM4-rated transceivers and maintain regular cleaning routines for connectors and patch panels.

All features

Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.: Yes
Cable length: How long the cable is.: 5 m
Product colour: The colour e.g. red, blue, green, black, white.: Violet
Connector 1: This is the first connector in the device.: E-2000 (LSH)
Connector 2: This is the second connector in the device.: E-2000 (LSH)
Cable diameter: The distance from one side of the cable to the other, with a straight line going through the middle of the cable.: 2.8 mm
Fiber mode structure:: Multi-mode
Core diameter: The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.: 50 µm
Cladding diameter: The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.: 125 µm
Jacket material:: Low smoke zero halogen (LSZH)
Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.: Male
Connector 2 gender: The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.: Male
Quantity per pack:: 1 pc(s)
Fibre optic type: The standardised properties of the fiber optic cable.: OM4
Doesn't contain:: Halogen

Description

Machine translation. Load original

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Fibre optic cable Lightwin LDP-50 LSH-LSH 5.0 OM4 cost, and is it available for purchase?

The price is 64.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 8 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 24.08.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Lightwin products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Lightwin service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.
