Lightwin PLC Splitter ABS Box 1x8 SC G657.A1

Name: PLC Splitter ABS Box 1x8 SPLITTER ABS 1X8 SC
Brand: Lightwin
SKU: 12270833
Price: 51.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

PLC Splitter ABS Box 1x8 Lightwin with 1.8 mm cable, SC connector, G657.A1, 250µm fiber

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

PLC Splitter ABS Box 1x8 by Lightwin is a fiber-optic passive splitter designed for splitting one input into eight outputs. Built with G657.A1 single-mode 250µm fiber and SC connector on a 1.8 mm cable, it provides reliable optical signal distribution for FTTH, PON networks, and indoor cabling. Suitable for patching, optical distribution frames, and multi-dwelling installations.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 12270833

Manufacturer: Lightwin

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

17.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

17.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

22.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

22.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

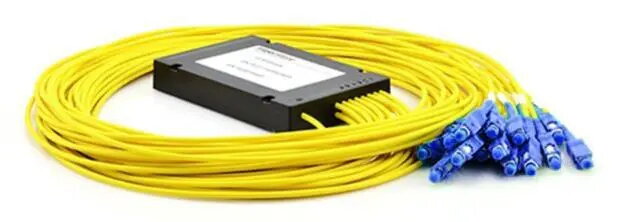

Lightwin PLC Splitter ABS Box 1x8 with 1.8 mm cable and SC connector is a passive fiber-optic splitter that divides one optical input into eight outputs. Built with bend-insensitive single-mode G657.A1 250µm fiber, the device is housed in a compact black ABS enclosure suitable for indoor mounting and integration into patching panels or distribution boxes. The product is intended for FTTH and PON networks, multi-dwelling unit (MDU) installations and general optical distribution where reliable signal splitting and low insertion loss are required.

Advantages

The splitter offers even optical power distribution across eight ports with stable performance and low excess loss characteristic of planar lightwave circuit (PLC) technology. The use of G657.A1 250µm bend-insensitive fiber and a 1.8 mm cable terminated with an SC connector simplifies routing in confined spaces and reduces the risk of performance degradation due to tight bends. The ABS box provides a compact, durable enclosure that protects internal fibers and splice points while keeping the unit suitable for indoor network cabinets and wall-mounted installations.

Suitable for (tasks / use cases)

FTTH passive optical network splitters and subscriber distribution in residential buildings
PON network deployments requiring 1x8 splitting ratio
Indoor cabling, patch panels and optical distribution frames
Multi-dwelling units (MDU) and small to medium business fiber access

When it may not be suitable

This passive PLC splitter is not suited for active optical amplification or signal conditioning; it only splits optical power and introduces insertion loss consistent with a 1x8 passive device. It may not be appropriate for outdoor or direct-burial installations unless additional environmental protection and sealing are provided, since the enclosure is designed for indoor use.

Key specifications

Split ratio: 1x8
Fiber type: Single-mode bend-insensitive G657.A1, 250µm
Cable diameter: 1.8 mm
Connector type: SC (pre-terminated on one or more leads as supplied)
Enclosure material and colour: ABS, black
Application: FTTH, PON, indoor optical distribution

How to use

Mount the ABS box in a suitable indoor location such as a patch panel, wall bracket or distribution cabinet. Route the 1.8 mm fiber cable carefully to avoid sharp bends and secure it with cable ties or clips as appropriate. Connect the network feed (input) to the splitter input port and attach subscriber or downstream fibers to the output SC ports. If splicing is required, access the internal splice tray following standard fiber handling procedures, perform fusion splices or connectorization, and close the enclosure to maintain fiber protection.

What to consider before purchase

Ensure the 1x8 split ratio and passive loss budget match the optical power budget of your PON/FTTH network
Confirm SC connector compatibility with existing equipment or plan for adapter/connector changes if needed
Verify indoor installation environment and mounting options for an ABS enclosure
Account for bend-radius and fiber routing requirements for G657.A1 250µm fiber

Usage recommendations

Handle fibers using ESD-safe tools and follow standard fiber safety and testing procedures. Test insertion loss and continuity after installation using an optical power meter and light source or an OTDR where applicable to ensure the splitter meets network requirements.

Specifications

Product colour:: Black

All features

Housing material:: Acrylonitrile butadiene styrene (ABS)
Suitable for indoor use:: Yes

Features

Product colour:: Black

Weight & dimensions

Height:: 18 mm
Width:: 120 mm
Depth:: 80 mm
