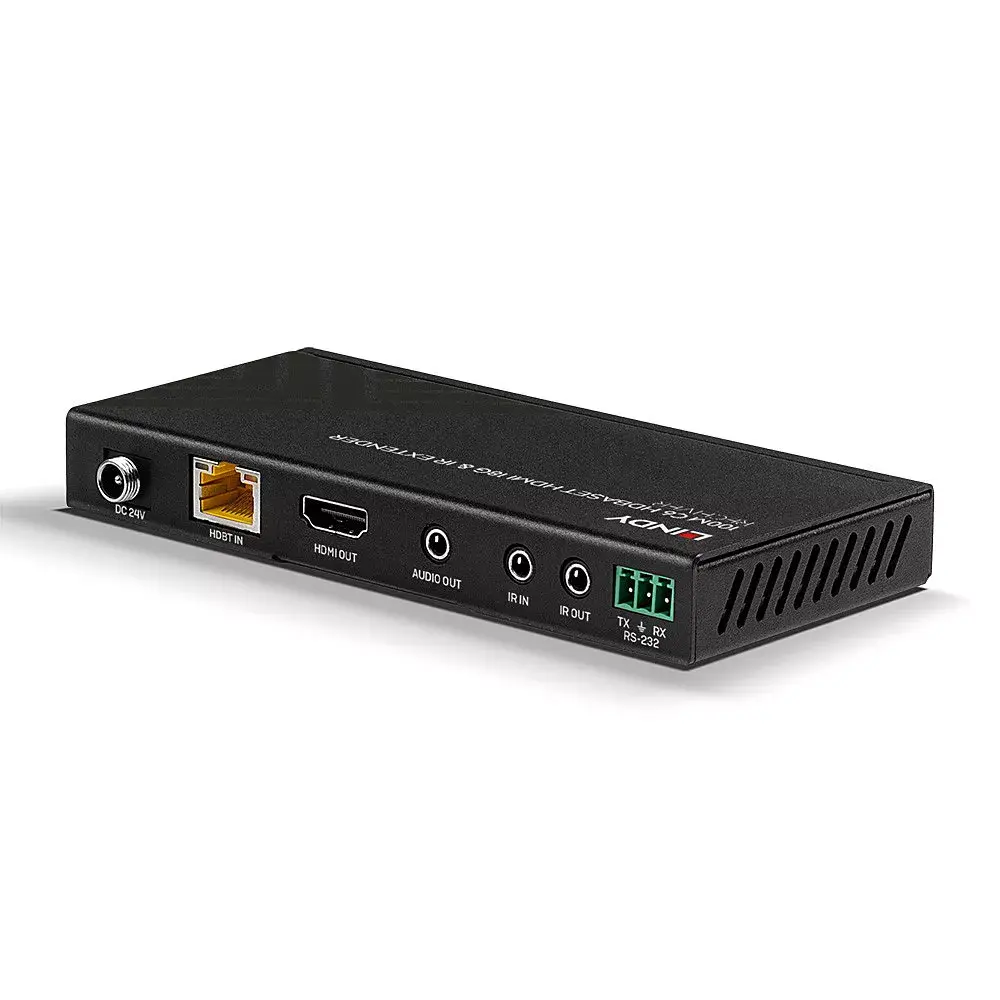

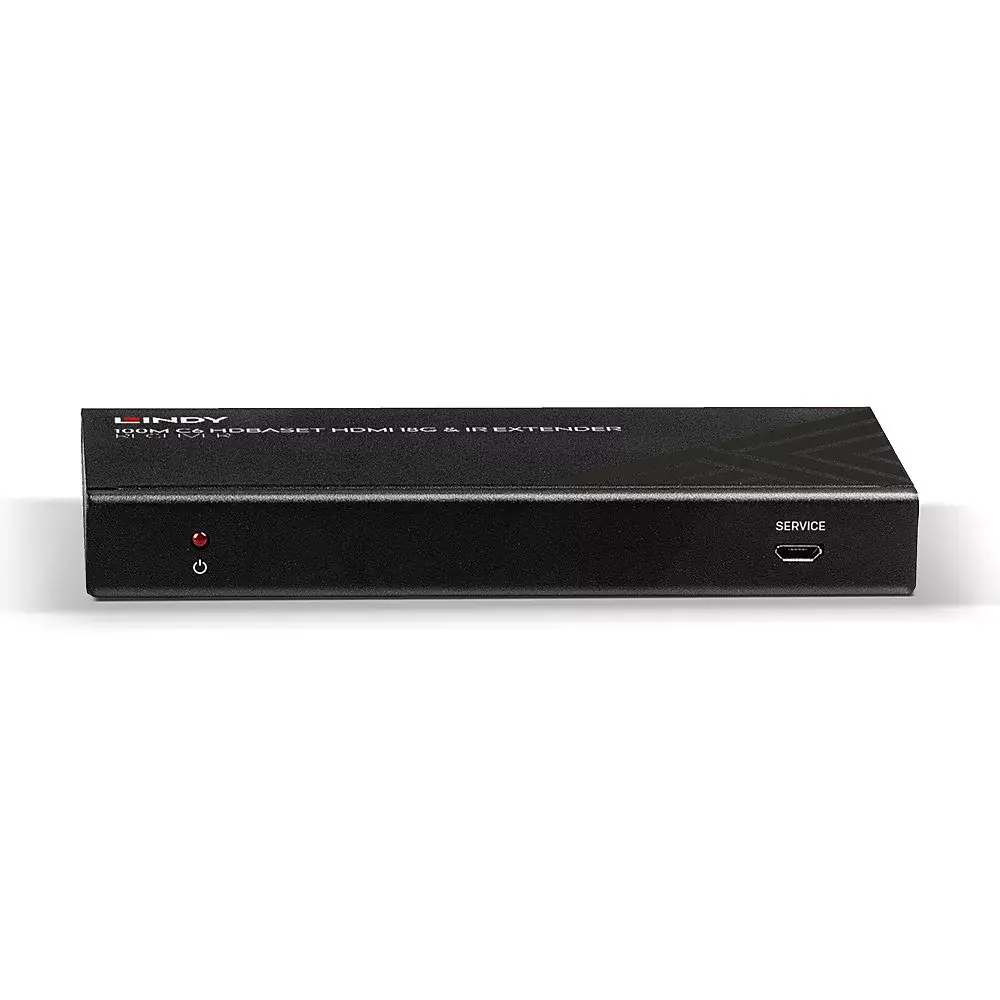

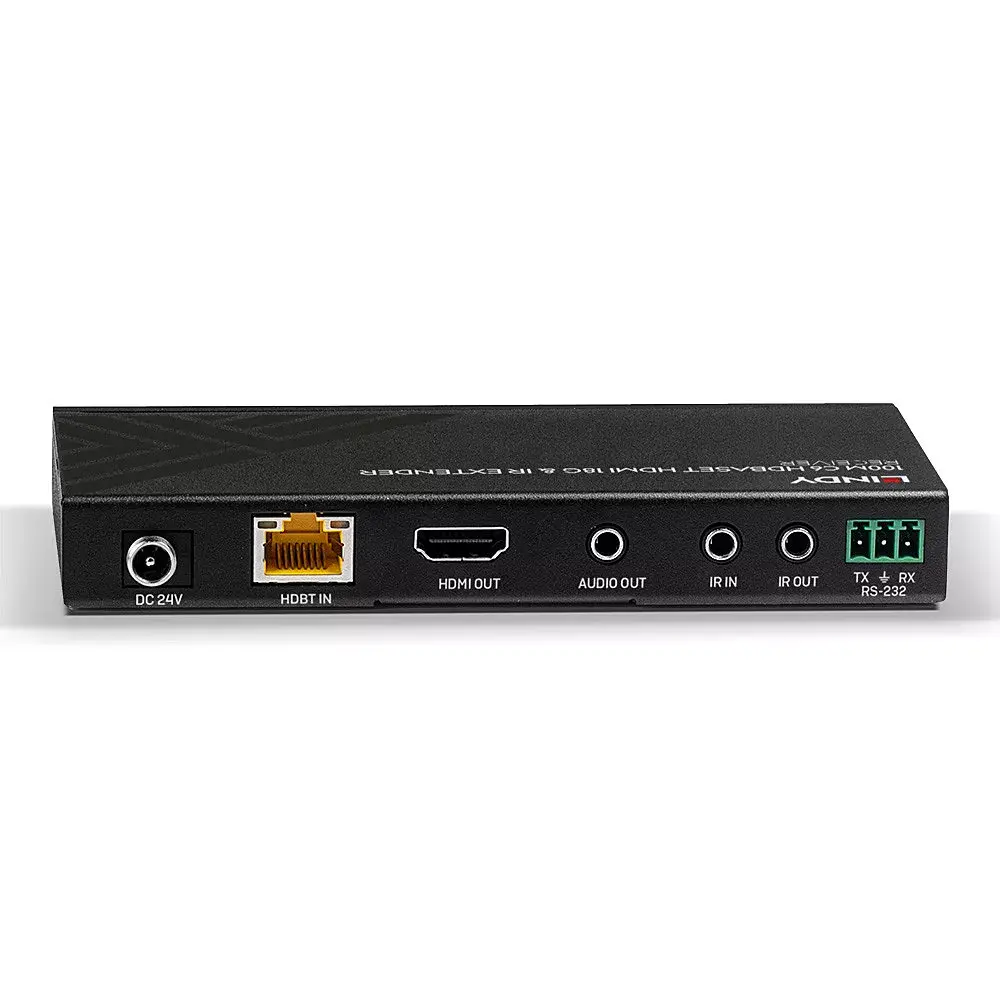

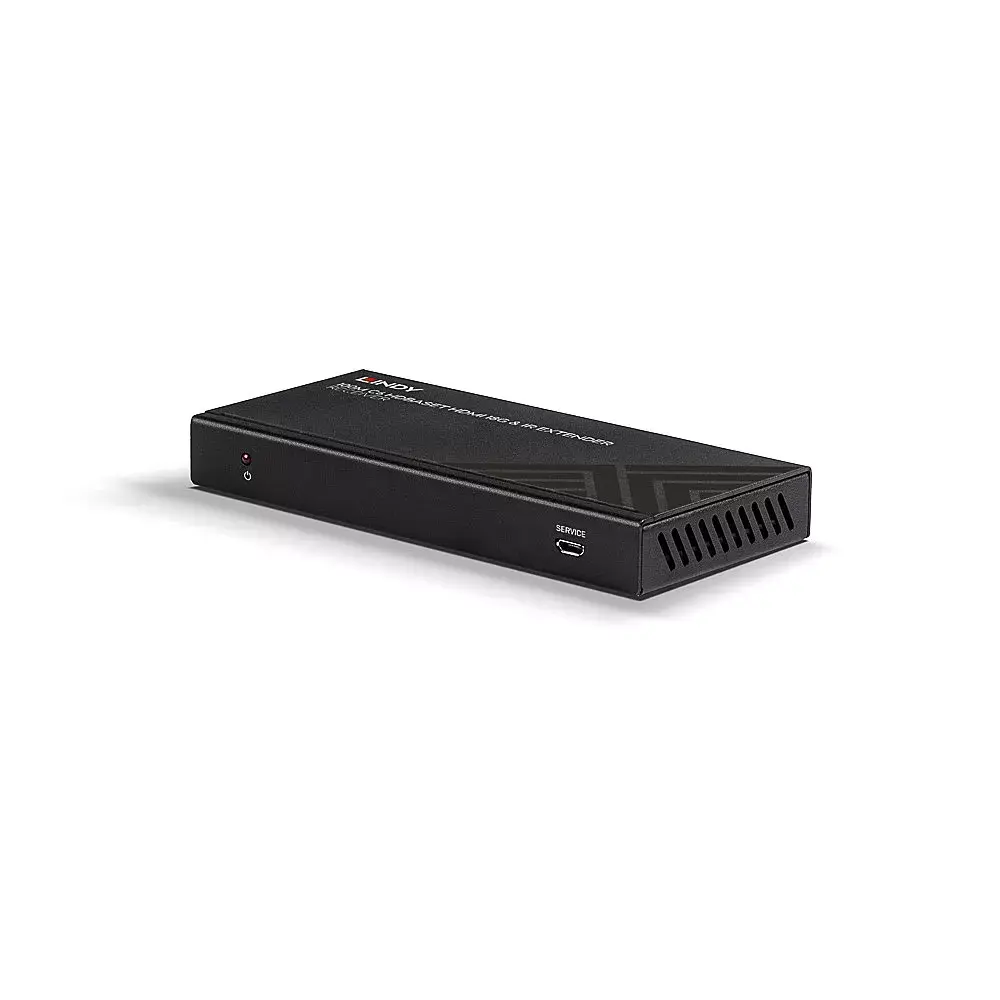

AV receiver Lindy 100m Cat.6 HDMI 4K60 IR RS-232 HDBaseT Extender Receiver

Type: Characteristics of the device.

AV receiver

Bidirectional: Bidirectional script support is the capability of a computer system to correctly display bi-directional text. The term is often shortened to BiDi or bidi. Bi-directional text is text containing text in both text directionalities, both right-to-left (RTL) and left-to-right (LTR). It generally involves text containing different types of alphabets.

Yes

Audio input: The type of audio input that the device requires, and the connection needed.

1

Bandwidth:

18 Gbit/s

Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

1280 x 720 (HD 720), 3840 x 2160

Operating voltage: Defines the range of operating voltages available

24 V

Number of HDMI outputs: Port (socket) for HDMI output.

1

Cable types supported:

Cat6

Maximum transfer distance: The greatest distance over which the data/signal can be transferred.

150 m

Remote (IR) input:

1

Remote (IR) output:

1

RJ-45 input ports:

1

USB ports quantity:

1

IR receiver included:

Yes

HDBaseT certified:

Yes

HDBaseT port:

Yes

CEC pass-through:

Yes

Logistics data

Quantity per pack:

1 pc(s)

Other features

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Packaging content

Manual:

Yes

Cables included:

IR

Packaging data

Package weight: Weight of the packaged product.

847 g

Package height: The distance from the top to the bottom of the packaging.

130 mm

Package depth: The distance from the front to the back of the packaging.

70 mm

Package width: The distance from one side of the packaging to the other.

220 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.315 kg

Height: The measurement of the product from head to foot or from base to top.

18 mm

Depth: The distance from the front to the back of something.

65 mm

Width: The measurement or extent of something from side to side.

140 mm

Operational conditions

Operating relative humidity (H-H):

20 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Power

Input current:

1

Design

Material: The material from which a thing is or can be made e.g. wood, plastic.

Metal

Product colour: The colour e.g. red, blue, green, black, white.

Black

Performance

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

VS100

HDCP version:

2.2

Maximum refresh rate:

60 Hz

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Yes

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes
