AV transmitter Lindy 38348

Name: AV transmitter Lindy 38348 Maximum 38348
Brand: Lindy
SKU: 10604514
Price: 190.49 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

AV transmitter Lindy 38348 Maximum resolution 3840 x 2160 pixels

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Lindy 38348 AV transmitter supports a maximum resolution of 3840 x 2160 pixels. It operates on a 24 V DC power source and outputs 1 A. Designed for use with Cat6 cables, it provides reliable AV signal transmission. Compact dimensions of 80 mm x 80 mm x 38 mm make it easy to integrate into various setups.

Available at price 190.49 €: 4 pcs.

Total available for order: 240 pcs.

Warranty: 2 Years

SKU: 10604514

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.53 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 192.99 €: 1 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

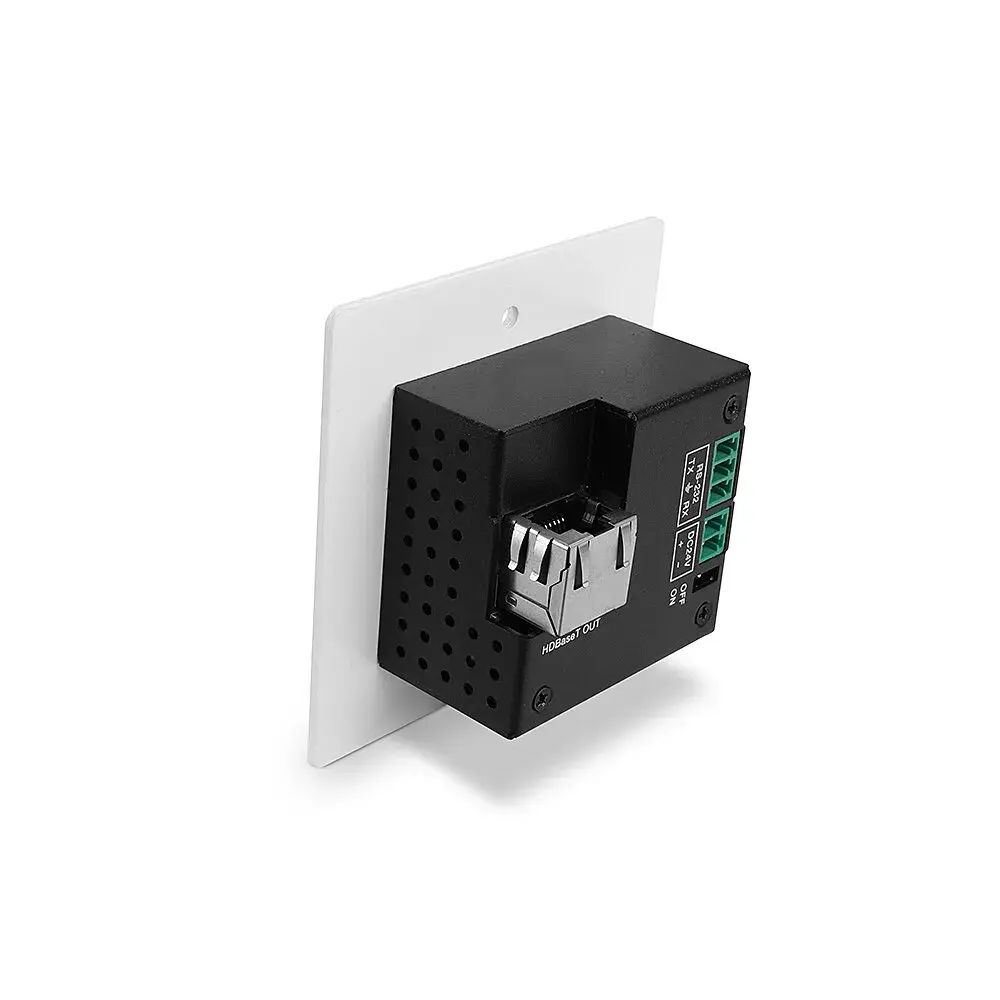

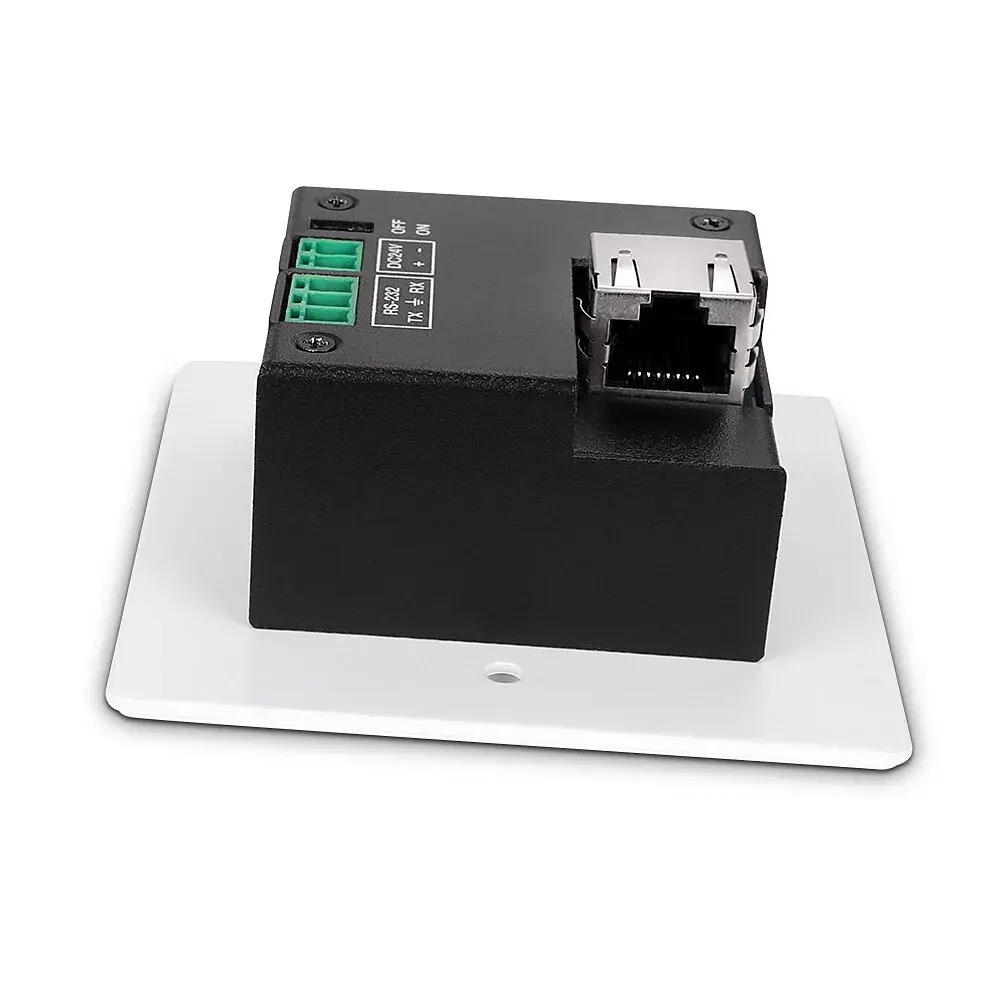

The Lindy Cat.6 HDBaseT HDMI 4K60 Wall Plate Transmitter is a compact AV transmitter designed to extend HDMI signals over Cat.6 or better network cable. It supports resolutions up to 3840 x 2160 (4K Ultra HD) and is intended to be paired with a compatible HDBaseT receiver to create a point-to-point extension system for longer cable runs. The unit measures 80 x 80 x 38 mm, is finished in white and draws power from a 24 V DC supply (1 A output).

Advantages

This wall plate transmitter delivers reliable HDMI extension over Cat.6 U/UTP or F/UTP cable with distance/resolution trade-offs that allow 1080p at 70 m and 4K60 up to 40 m. HDR support improves contrast and colour reproduction for compatible sources and displays. Built-in PoC (Power over Cable) with an On/Off switch permits powering the paired receiver from a single power supply, reducing installation complexity. Bi-directional IR and an RS-232 terminal block enable remote control and integration with control systems.

Suitable for

Digital signage in retail environments
AV installations in conference rooms and lecture halls
Event displays and immersive video setups
Point-to-point HDMI extension over structured cabling

Key specifications

Maximum resolution: 3840 x 2160 @60Hz
Supported distances (using Cat.6 or above): 70 m at 1920x1080@60Hz 4:4:4 8bit; 40 m at 3840x2160@60Hz 4:4:4 8bit or 4:2:2 12bit
HDBaseT standard for AV, power and control over twisted-pair cable
PoC (Power over Cable) with On/Off switch
Bi-directional IR ports and RS-232 via terminal block
Power input: 24 V DC, 1 A
Dimensions: 80 x 80 x 38 mm
Weight: 0.39 kg
Colour: White

How to use

Install the transmitter into a compatible wall box and connect the HDMI source to the transmitter's HDMI input. Run a high-quality Cat.6 or better cable from the transmitter to a matching HDBaseT receiver. Connect the 24 V DC power supply to the transmitter (or to the receiver if using PoC with the appropriate On/Off setting) and power the system. Configure IR or RS-232 connections as required for remote control. Verify the source and display resolutions to ensure they match supported distance/resolution capabilities.

Usage recommendations

Use high-quality Cat.6 or better U/UTP or F/UTP cable and keep cable runs within the stated distance limits for the desired resolution. Enable PoC only when the paired receiver supports PoC and the installation requires single-supply powering. For long runs or critical installations, test the system end-to-end before final mounting.

Specifications

Weight:: 0.39 kg
Product colour:: White

All features

Type:: AV transmitter
Bidirectional:: Yes
Chipset:: VS010
Storage temperature (T-T):: -20 - 60
Video in:: 1
Maximum resolution:: 3840 x 2160
Manual:: Yes
HDCP:: Yes
Maximum refresh rate:: 60 Hz
HDMI in:: 1
Power source type:: DC
Cable types supported:: Cat6
Maximum transfer distance:: 70 m
Remote (IR) input:: 1
Remote (IR) output:: 1
RJ-45 output ports:: 1
HDCP version:: 2.2
RS-232 input ports:: 1
RS-232 output ports:: 1
HDBaseT port:: Yes
Operating voltage (transmitter):: 24 V
Infrared (IR) frequency range:: 20 - 60
Extended display identification data (EDID):: Yes
High Dynamic Range (HDR) supported:: Yes
Transceiver(s) included:: Yes
Compliance certificates:: Federal Communications Commission (FCC), CE, RoHS, UKCA

Features

Operating relative humidity (H-H):: 20 - 90
Operating temperature (T-T):: 0 - 40

Other features

Output current:: 1 A

Weight & dimensions

Weight:: 0.39 kg
Height:: 38.05 mm
Width:: 80 mm
Depth:: 80 mm

Technical details

Sustainability compliance:: Yes

Packaging data

Package weight:: 540 g
Package depth:: 133 mm
Package height:: 95 mm
Package width:: 152 mm

Design

Product colour:: White
