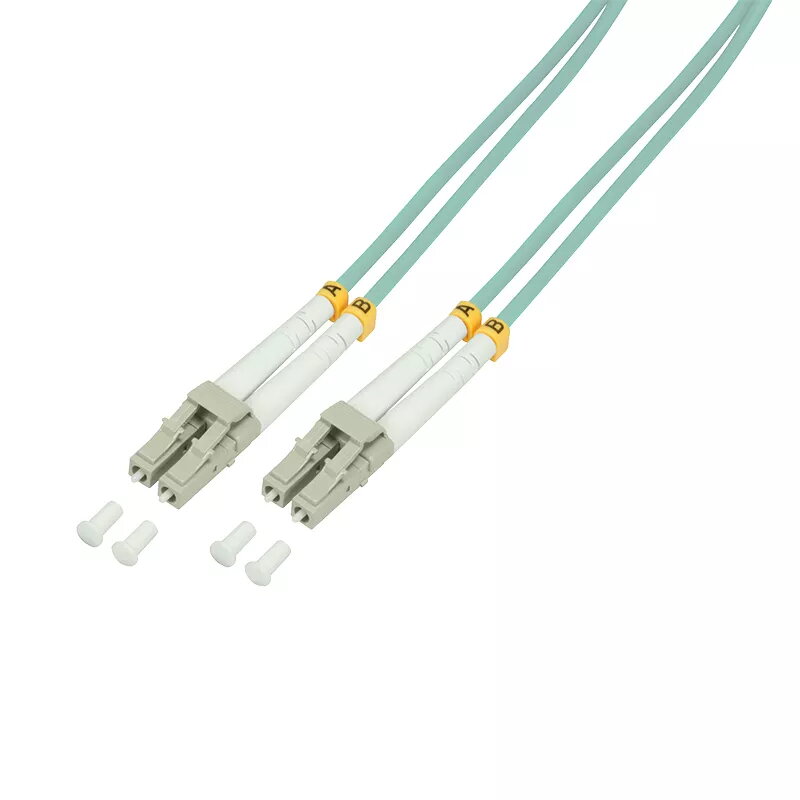

LogiLink FP3LC30 OM3 Fibre Optic Cable 30 m 2x LC to 2x LC Duplex Turquoise 50 µm

The LogiLink FP3LC30 OM3 Fibre Optic Cable 30 m 2x LC to 2x LC Duplex Turquoise 50 µm is a high-performance network patch cable designed for reliable high-speed data transmission in modern telecommunication and networking environments. Featuring a generous length of 30 metres and equipped with dual LC connectors on both ends, this multimode fiber optic cable utilizes an OM3 fiber type with a 50 µm core diameter to support demanding bandwidth requirements over extended distances. Constructed with a low smoke zero halogen jacket, it provides enhanced safety by minimizing toxic and corrosive gas emissions in the event of a fire, making it suitable for professional indoor installations.

Advantages

This fiber optic cable ensures exceptional signal integrity and performance thanks to its Grade A/1 classification and full duplex capability, which allows simultaneous bidirectional data traffic. The inclusion of a robust 50/125µ multimode fiber core enables data transmission speeds of up to 10 Gbit/s over a distance of 500 metres, meeting rigorous industry standards such as DIN EN 50173-1 and IEC/ISO 11801. Every individual cable comes with a dedicated measurement protocol, guaranteeing certified quality and dependable operation right out of the box.

Suitable for

• Connecting network switches, routers, and patch panels in enterprise data centers
• High-speed local area network installations requiring reliable OM3 multimode connectivity
• Telecommunication applications demanding low signal loss and stable 10 Gbit/s data rates
• Indoor structured cabling systems utilizing low smoke zero halogen safety standards

When it may not be suitable for single-mode fiber infrastructures or long-distance outdoor runs requiring direct burial or specialized armor protection, this multimode patch cable remains an optimal choice for indoor local network environments.

Key specifications

• Cable length: 30 m
• Fibre optic type: OM3 multimode
• Core diameter: 50/125 µm
• Connectors: 2x LC Male to 2x LC Male
• Duplex capability: Full duplex
• Jacket material: Low smoke zero halogen (LSZH)
• Maximum speed and distance: Up to 10 Gbit/s at 500 m
• Color: Turquoise

To use the LogiLink FP3LC30 fiber optic cable properly, carefully inspect the connectors for dust or debris before installation. Remove the protective dust caps from the LC connectors and gently plug each end into the corresponding ports on your network equipment until a secure click is heard. Avoid bending the cable beyond its minimum bend radius and prevent excessive pulling tension during routing to maintain optimal optical performance.

What to consider before purchase

• Verify that your networking hardware utilizes LC connector interfaces
• Check the required cable length to ensure 30 metres is sufficient for your routing path
• Confirm that your network equipment supports OM3 multimode fiber specifications
• Ensure indoor installation requirements align with the low smoke zero halogen jacket rating

Usage recommendations: Handle the fiber optic connectors with clean hands and always use protective dust caps when the cable is temporarily disconnected. Plan your cable management route to avoid sharp corners, pinch points, and heavy foot traffic to preserve the longevity and signal quality of the fiber optic link.
