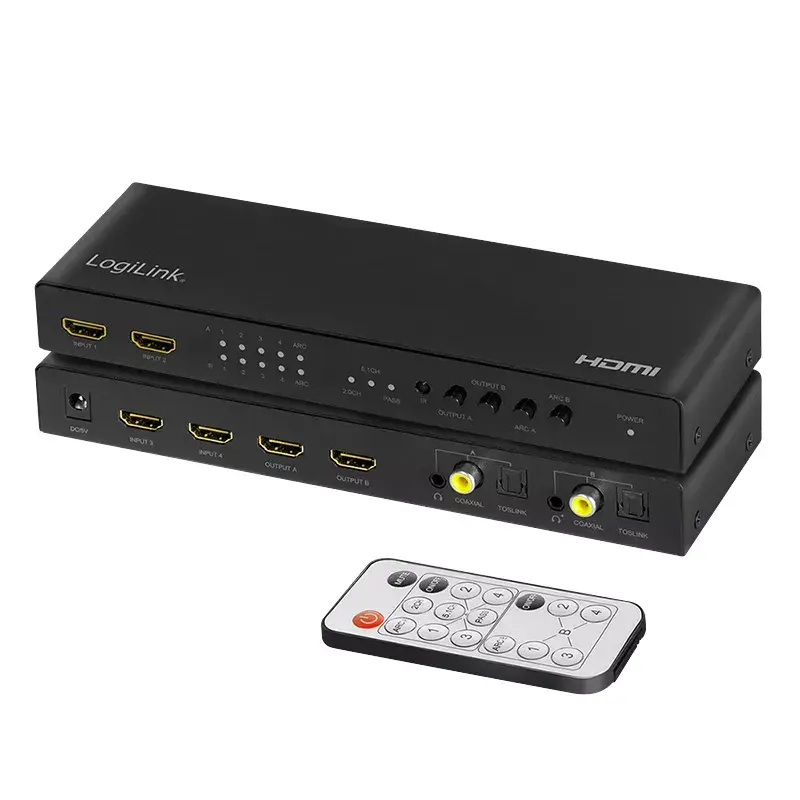

AV matrix switcher LogiLink HD0049 Photo 3

AV matrix switcher LogiLink HD0049 Photo 4

AV matrix switcher LogiLink HD0049 Photo 5

AV matrix switcher LogiLink HD0049 Photo 6

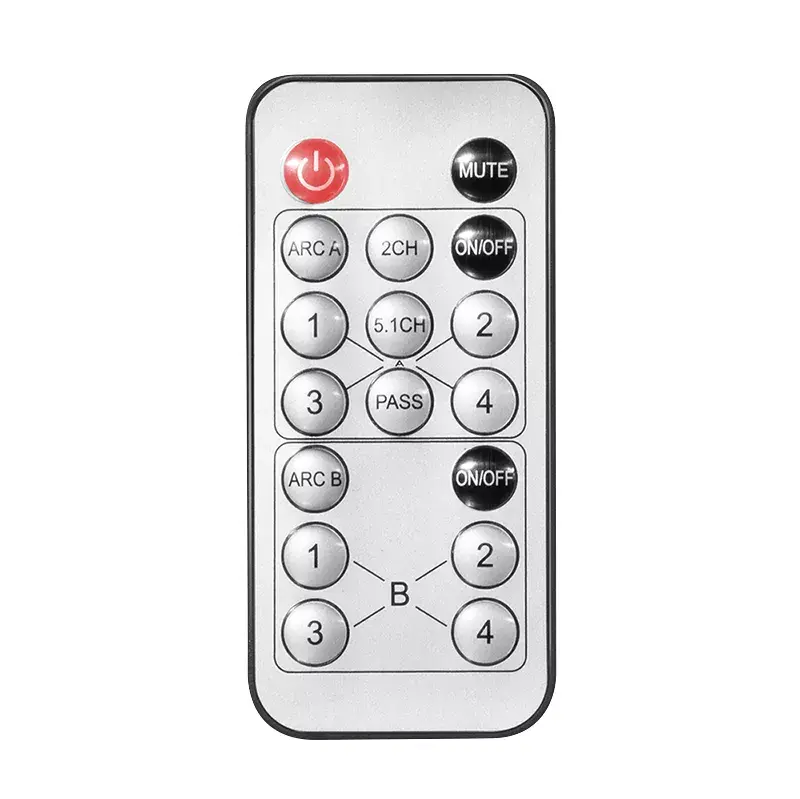

AV matrix switcher LogiLink HD0049 Photo 7

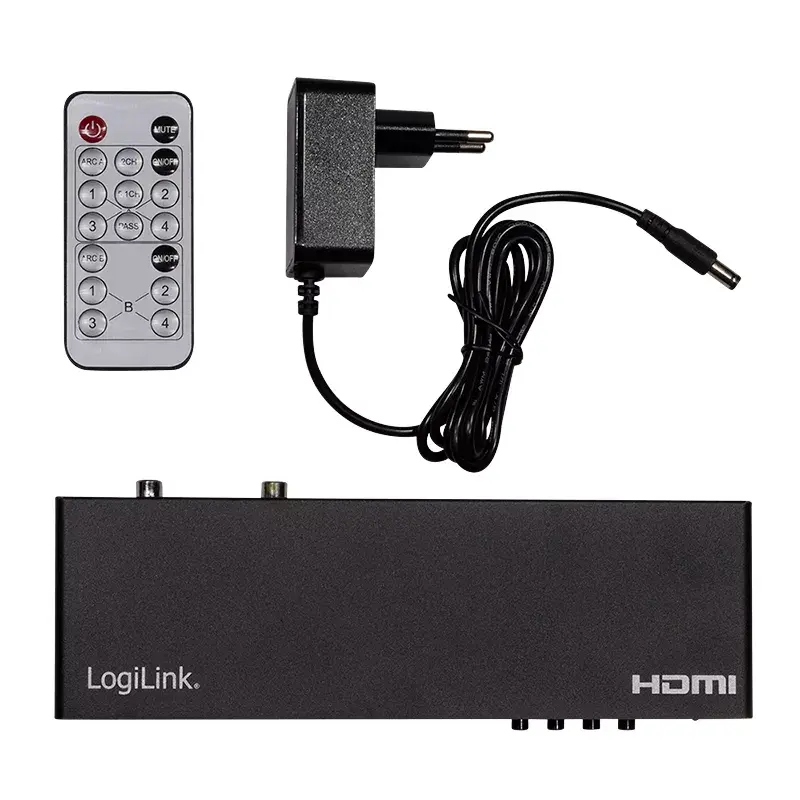

AV matrix switcher LogiLink HD0049 Photo 8

AV matrix switcher LogiLink HD0049 Photo 9

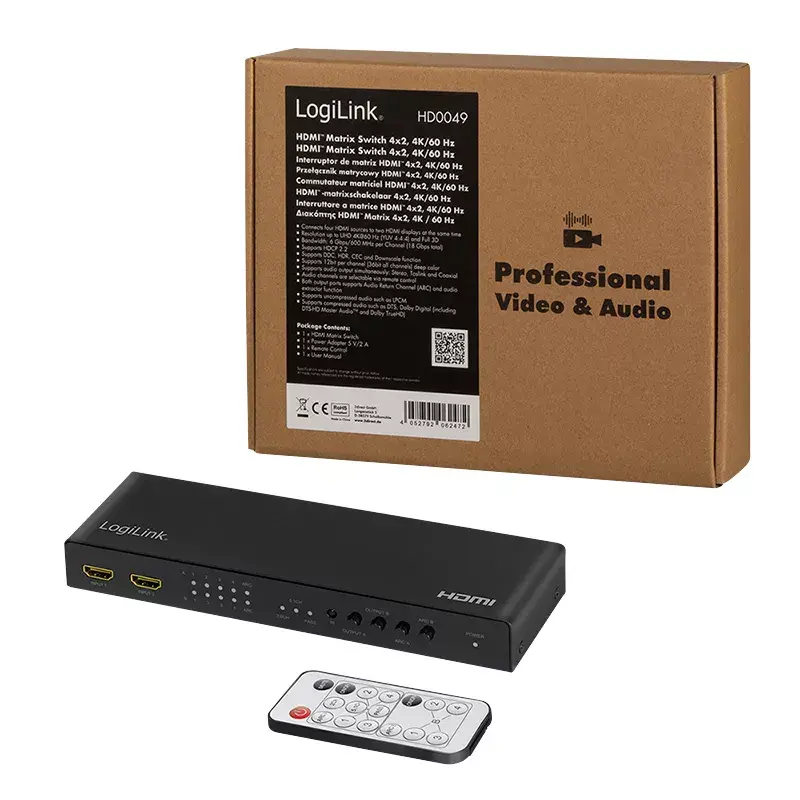

AV matrix switcher LogiLink HD0049 Photo 10

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The LogiLink HD0049 is a high-performance AV matrix switcher with a bandwidth of 6 Gbit/s. It features a robust metal housing in black, ensuring durability. With a compact size of 210 mm width, 66 mm depth, and 26 mm height, it fits easily into any setup. The switcher consumes a maximum of 5 W, making it energy-efficient. Perfect for managing multiple AV sources seamlessly.

Available at price 128.49 €: 29 pcs.

Total available for order: 31 pcs.

Warranty: 2 Years

SKU: 4255112

Manufacturer: LOGILINK

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

17.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.59 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

17.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 131.99 €: 1 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LogiLink AV matrix switcher HD0049 combines the functions of an HDMI switch and an HDMI splitter, allowing one or two HDMI outputs to receive signals from any of four selectable HDMI inputs. It supports Ultra HD (4K/60 Hz) sources and includes a downscaler to display 4K content on Full HD screens. The compact metal housing and low power consumption make the unit suitable for desktop and small AV installations.

Advantages

The device supports 4K/60 Hz, HDR, CEC and 3D, and is compatible with HDCP 2.2. It transmits multichannel audio formats including LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD, and offers ARC support for connecting an external AV receiver. Remote control operation and simultaneous output to both 4K and Full HD displays increase flexibility for mixed-display setups.

Suitable for

Home theatre systems with multiple HDMI sources
Small office or meeting rooms requiring multiple displays
Gaming setups with several consoles and one or two screens
Integration with AV receivers via ARC

Key specifications

Model: LogiLink HD0049
Bandwidth: 6 Gbit/s
Inputs: 4 × HDMI
Outputs: 2 × HDMI (configurable routing)
Resolution support: up to Ultra HD 4K@60 Hz, downscaling to Full HD
HDCP: 2.2
Audio formats: LPCM 7.1, DTS, Dolby Digital, DTS-HD MA, Dolby TrueHD
Features: HDR, CEC, 3D, ARC support
Housing: metal, color: black
Dimensions (W×D×H): 210 × 66 × 26 mm
Power consumption: max. 5 W
Weight: 0.34 kg
Brand: LOGILINK, MPN: HD0049, EAN: 4052792062472

How to use

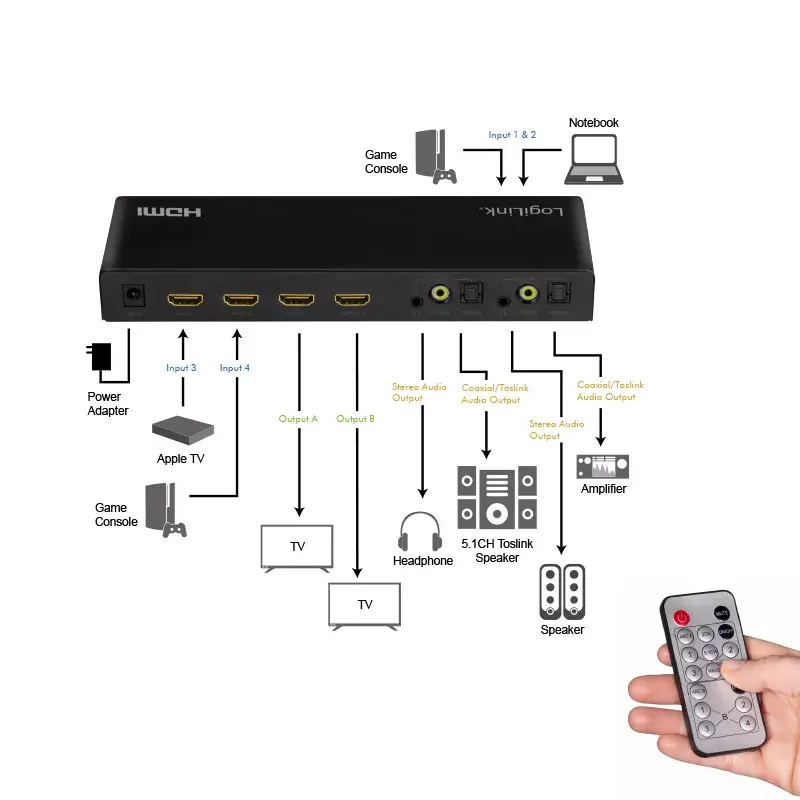

Connect up to four HDMI source devices (camera, Blu‑ray/HD DVD player, set‑top box, game console, receiver, etc.) to the inputs and connect one or two HDMI displays to the outputs. Use the remote control to select which input(s) route to each output; the matrix can send any input to either or both outputs. If using an AV receiver, connect it via the ARC-enabled HDMI output to pass audio to the receiver. When 4K content is routed to a Full HD display, the integrated downscaler will adjust the resolution automatically.

Usage recommendations

For reliable 4K@60 Hz and HDR performance use high-quality HDMI cables rated for 18 Gbit/s or higher and ensure source devices and displays support HDCP 2.2. Place the unit in a well-ventilated location and avoid long cable runs without signal boosters for best results.

Specifications

Weight:: 0.34 kg

All features

Remote control included:: Yes
Digital audio optical out:: 2
Audio (L/R) out:: 2
Digital audio coaxial in:: 2
HDMI version:: 2.0
HDCP:: Yes
3D:: Yes
HDCP version:: 2.2
Housing colour:: Black
Product type:: AV matrix switcher
Audio channels:: 7.1
High Dynamic Range (HDR) supported:: Yes
HDMI input ports quantity:: 4
HDMI output ports quantity:: 2
Remote Input Control Over DDC (RICOD):: Yes

Logistics data

Harmonized System (HS) code:: 85299097

Weight & dimensions

Weight:: 0.34 kg
Height:: 26 mm
Width:: 210 mm
Depth:: 66 mm

Operational conditions

Operating relative humidity (H-H):: 10 - 85
Storage temperature (T-T):: -10 - 80
Operating temperature (T-T):: 0 - 70
Storage relative humidity (H-H):: 5 - 90

Other features

Bandwidth:: 6 Gbit/s

Packaging data

AC adapter included:: Yes

Packaging content

Manual:: Yes

Ports & interfaces

DC-in jack:: Yes

Power

Power consumption (max):: 5 W

Design

LED indicators:: Y
Housing material:: Metal
